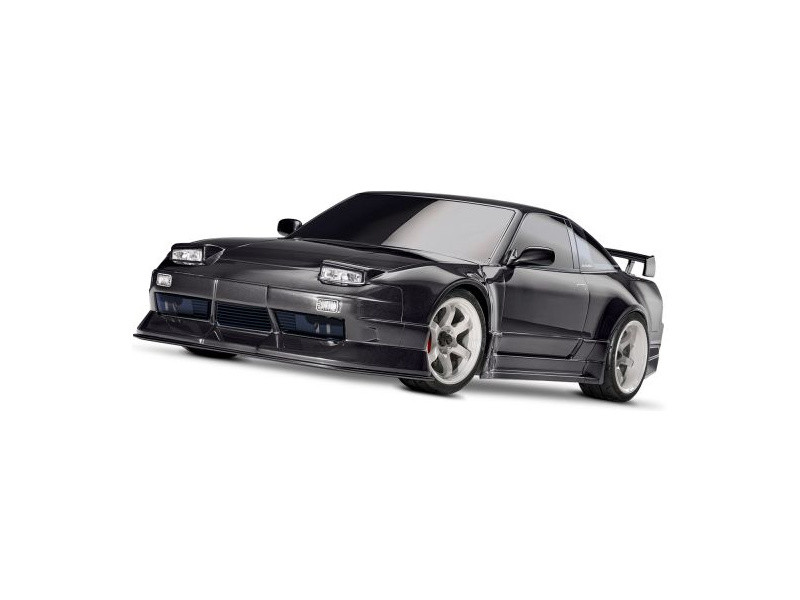

Traxxas 4-Tec 2.0 Nissan 240SX VX3 RTR - černý

Road RC model of the Traxxas Nissan 240SX car on the proven on-road 4-TEC 2.0 chassis. The model turns every piece of parking lot, asphalt road, sports field or other flat surface into a race track where you can compete, skid through corners and enjoy incredible fun full of brutal acceleration, precise steering and speed. The faithfully processed, clipless licensed Nissan 240SX body with detailed design underlines the realistic appearance of the model and will delight not only RC car fans. Thanks to the new brushless drive with 2-3S LiPo power supply, the model reaches speeds of up to 80 km/h. The new brushless motor has integrated cooling and the controller includes integrated telemetry support. The system is assisted by the electronic stabilization of the TSM ride , which allows everyone to drive like a pro even at high speeds.

The proven design of the 4-Tec 2.0 model has been retained, including a modular chassis design, cutting-edge independent suspension geometry and a 4x4 drivetrain. Power is distributed between the wheels using a front and rear differential. Suspension is provided by Ultra oil shock absorbers. The chassis has a low center of gravity for stability and the undercarriage is smooth on the underside to prevent the model from bouncing on uneven surfaces. A new clipless body system with beaks in the front and rear bumpers allows for easy access to the model and battery replacement.

For children and beginners, it is advisable to initially operate the model with a 2S LiPo battery, which reduces the maximum speed by 30%. The controller also offers three driving modes, including Training mode, in which the power is limited to 50%. This makes the Nissan 240SX a versatile model that you can initially use with lower power and gradually increase it as your driving experience grows. The control is provided by the new TQi Sport 2.4 GHz RC kit. Of course, there is also a wide range of tuning and complete spare parts.

Main news

New VX3 drive

The new VX3 brushless motor can convert the energy of a 3S LiPo battery into extreme acceleration and speed. The VX3 speed controller has modern electronics, a massive passive heat sink, easy one-button setup and telemetry support. The powerful Velineon V3300 motor is the ideal combination of high speed, power and efficiency. The integrated cooling effectively keeps the motor temperature low even during demanding driving.

Durable servo

The 4-Tec model features a new metal gear servo for superior strength and durability. Additionally, a servosaver is installed in the steering mechanism to protect the gears from impacts.

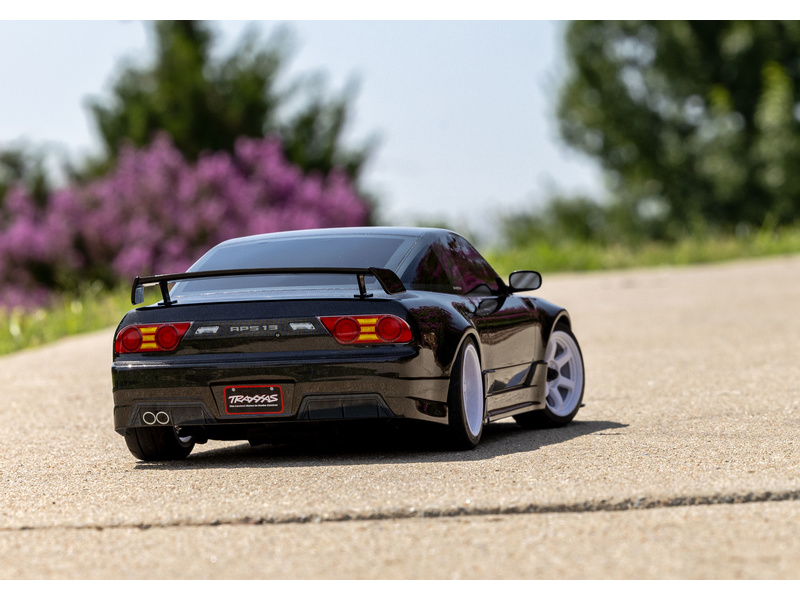

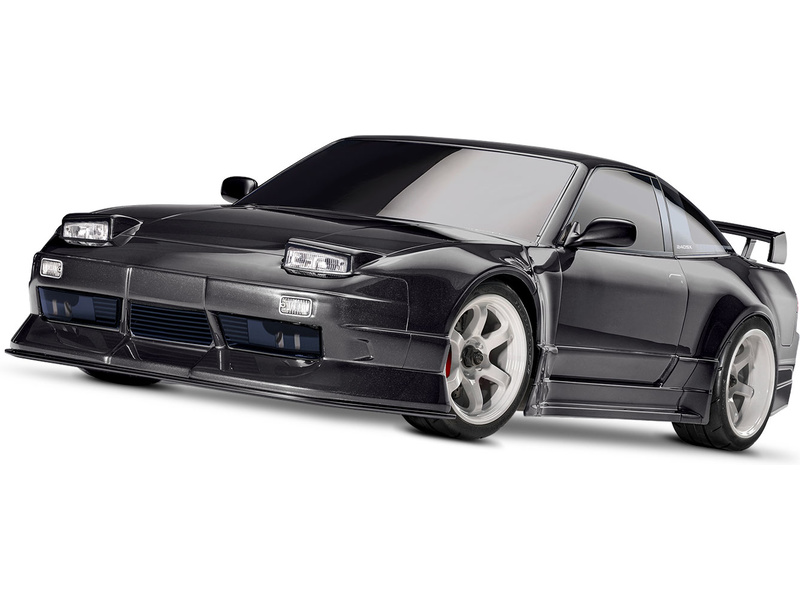

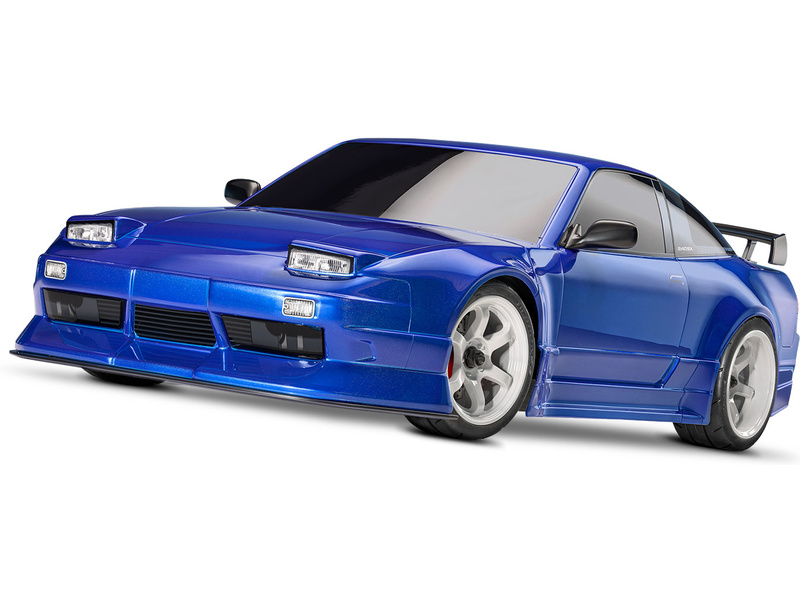

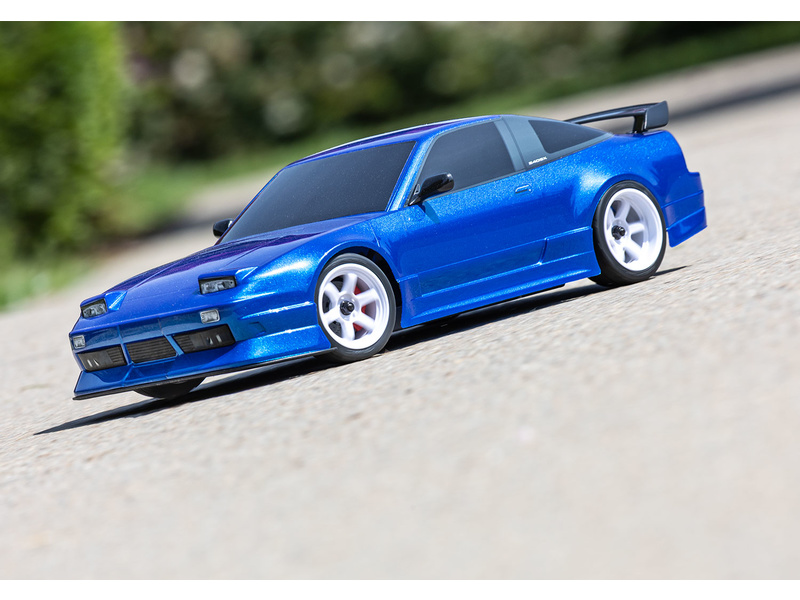

Classic look

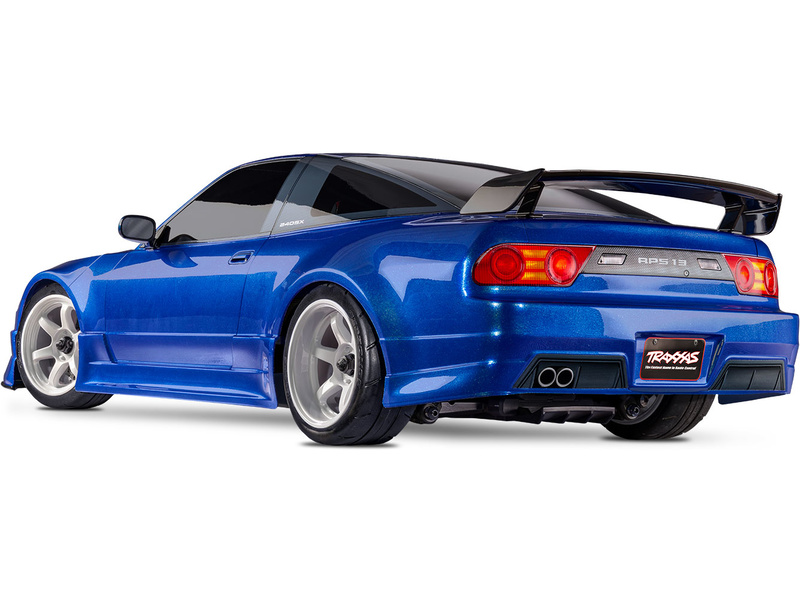

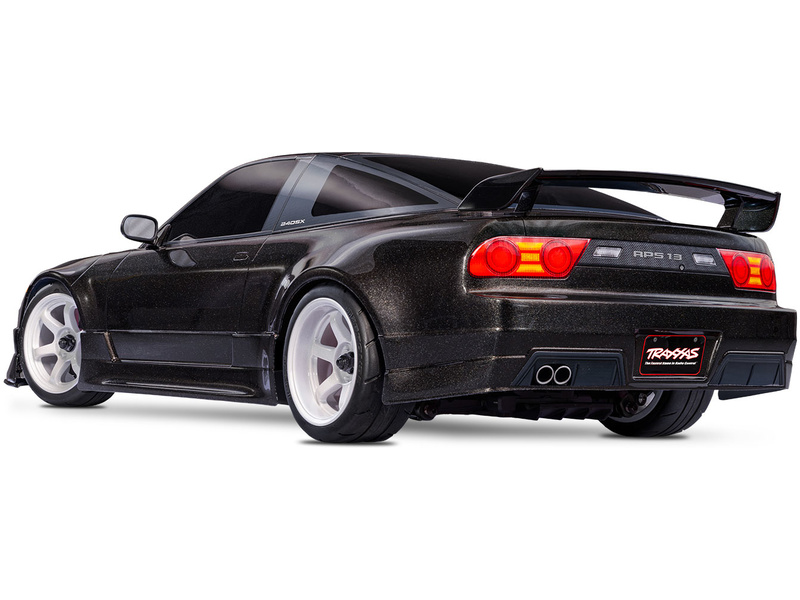

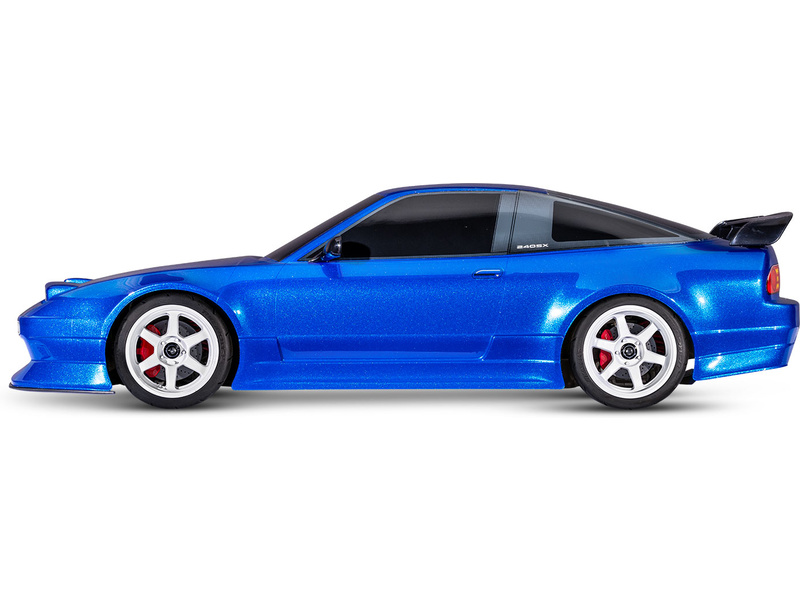

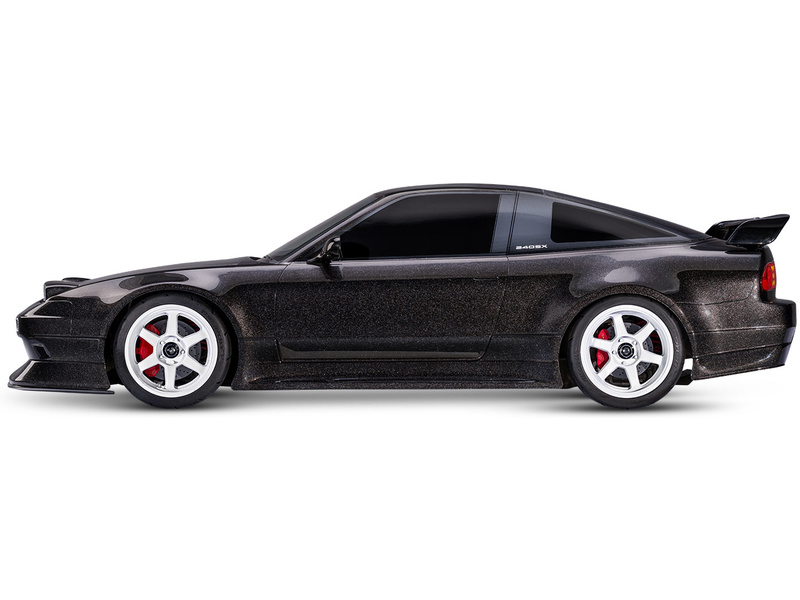

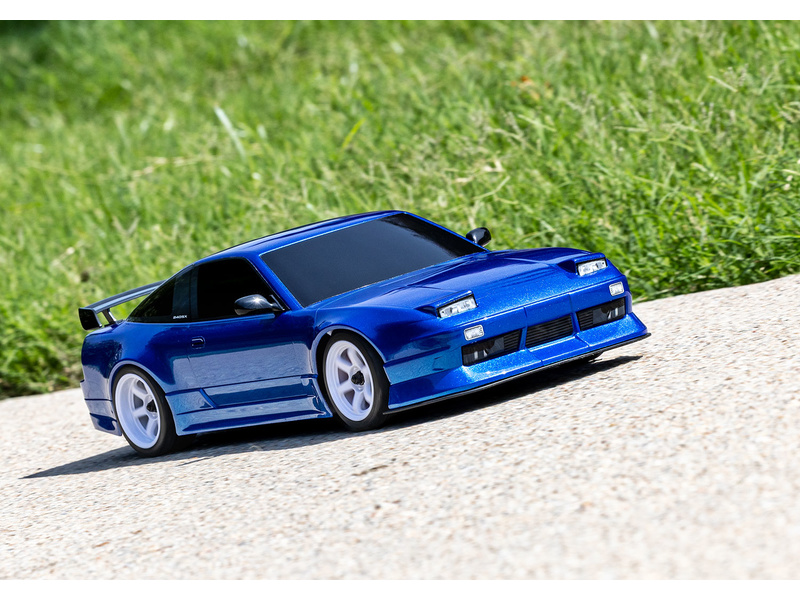

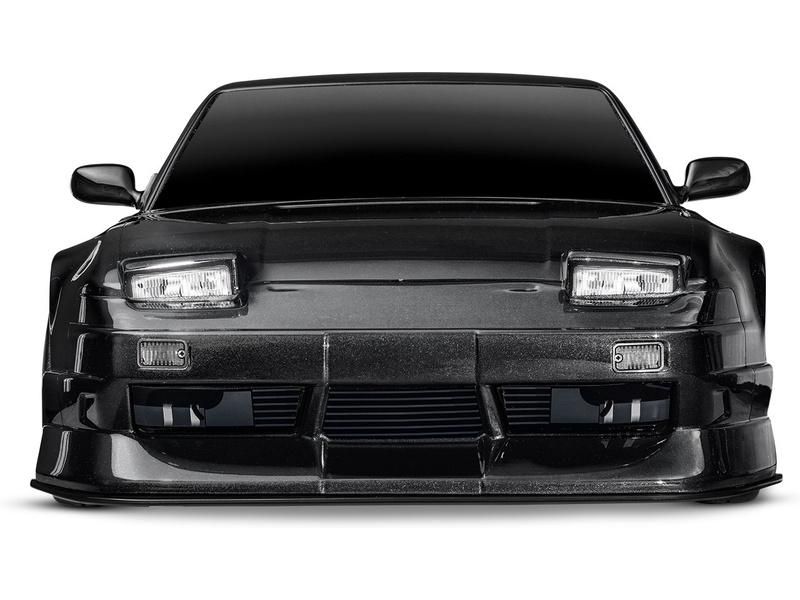

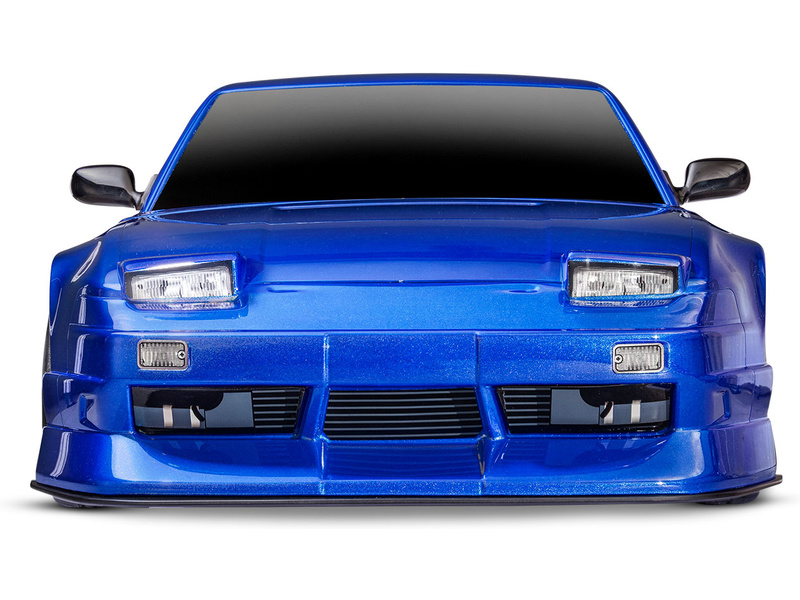

The Traxxas Nissan 240SX S13 licensed bodywork faithfully reproduces the classic styling of the 1980s car. The sleek low stance with metallic paint is complemented by plastic details in the form of mirrors and a rear spoiler. The headlights are also iconic.

Stapleless bodywork

The unique system of attaching the body using hooks in the front and rear bumpers from the bottom ensures that the graceful lines of the body are not disturbed by unsightly clips like on other models. This makes removing the body very easy and installing it even faster - just put the body on and press the hooks to lock in place.

TQi Sport RC kit

The TQi™ Sport transmitter offers the proven range and reliability of the TQi system in a compact and ergonomic design. With simple operation and one-button programming, it is quick and intuitive to use. The powerful 2.4 GHz system provides a stable connection, long range and precise control, so you can control your model even at high speeds.

All-wheel drive

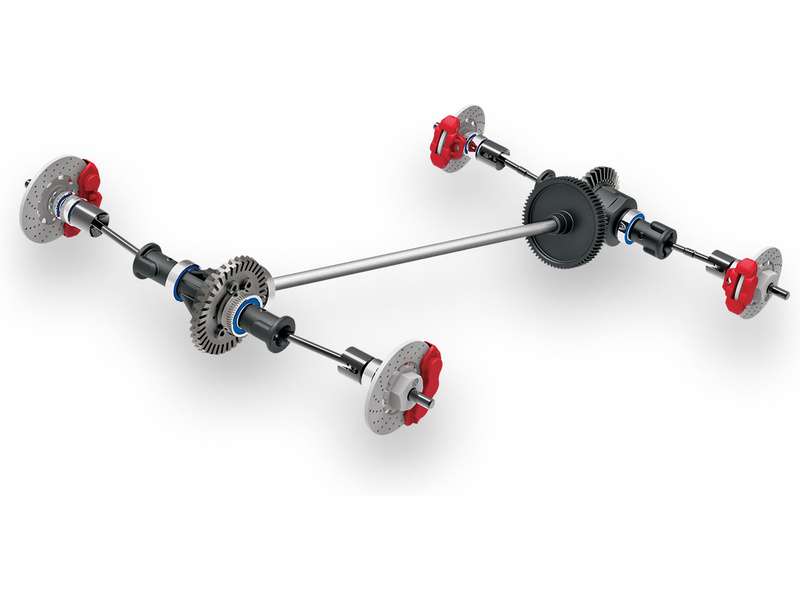

The 4x4 drivetrain is based on a proven design with a center shaft, two differentials and durable steel axles. The model appearance is completed by imitation brake discs with red calipers.

Model construction

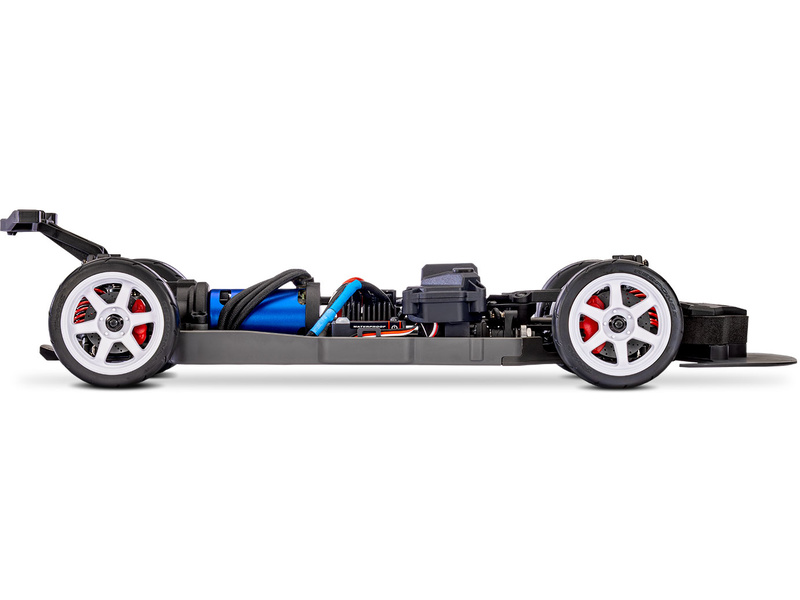

Durable chassis with low center of gravity

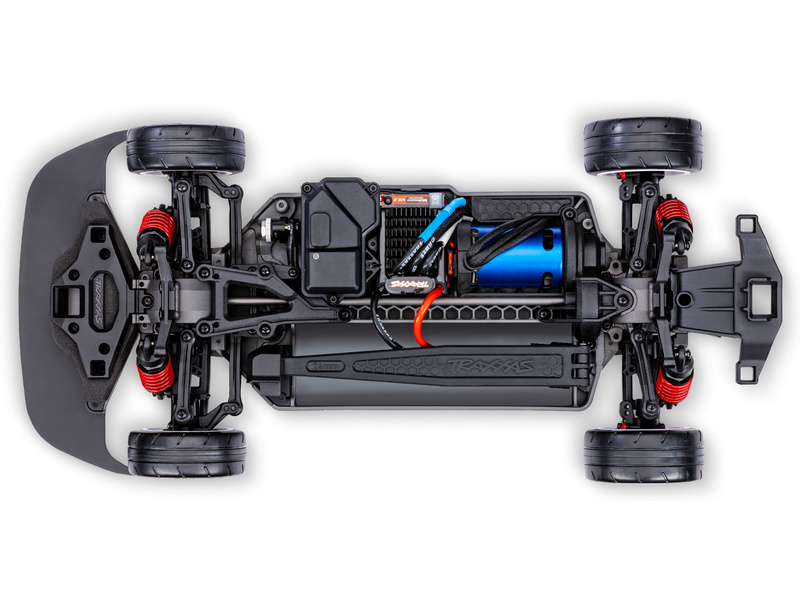

The Traxxas 4-Tec 2.0 chassis is made of a three-dimensional composite molding (glass-filled nylon), which is lightweight and stiff at the same time. Everything was subordinated to obtaining the lowest possible center of gravity. On one side are the electronics components, on the other side is the battery compartment.

Modular construction

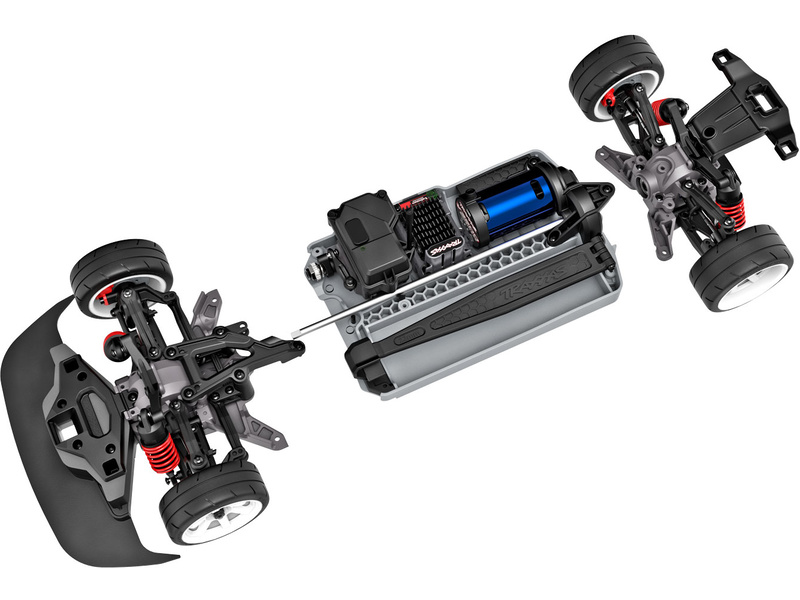

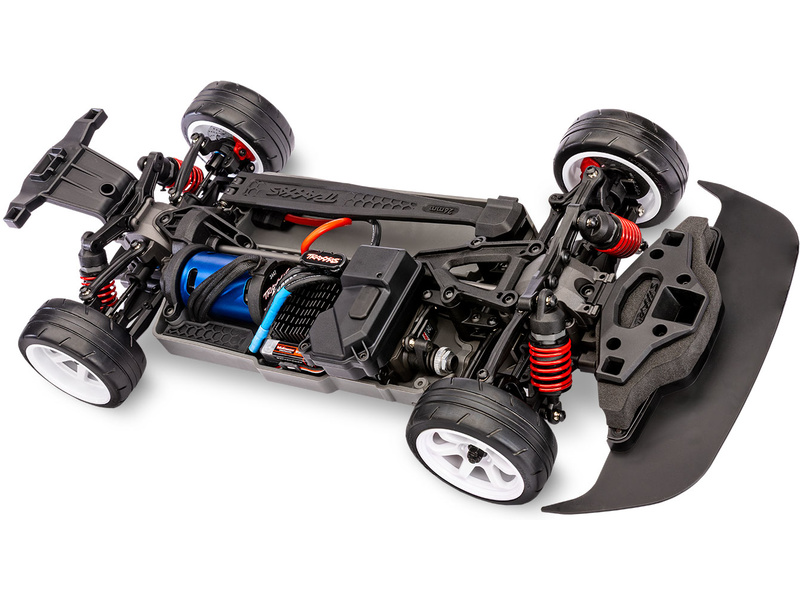

The modular design connects the front and rear chassis with the center chassis into one solid platform. This advanced solution ideally distributes impact energy while allowing easy servicing of the model. You have instant access to all important components, model settings and service maintenance.

Straight chassis

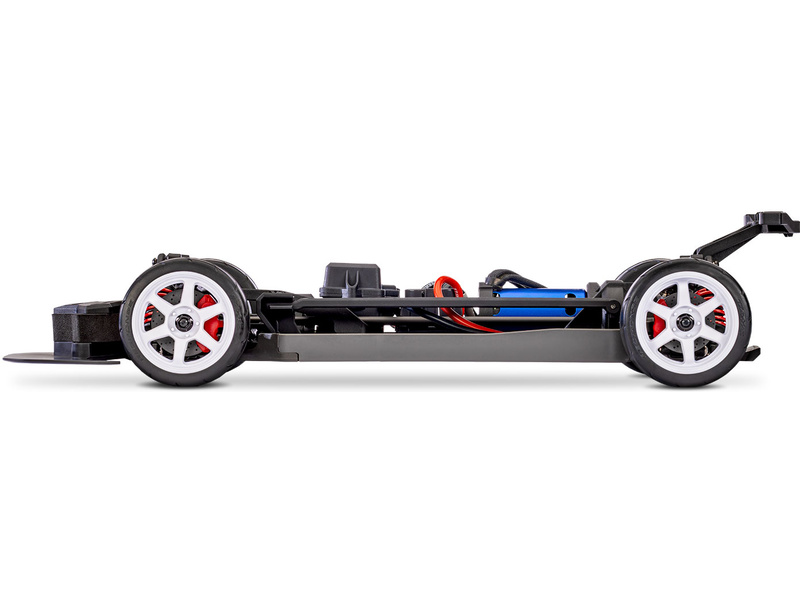

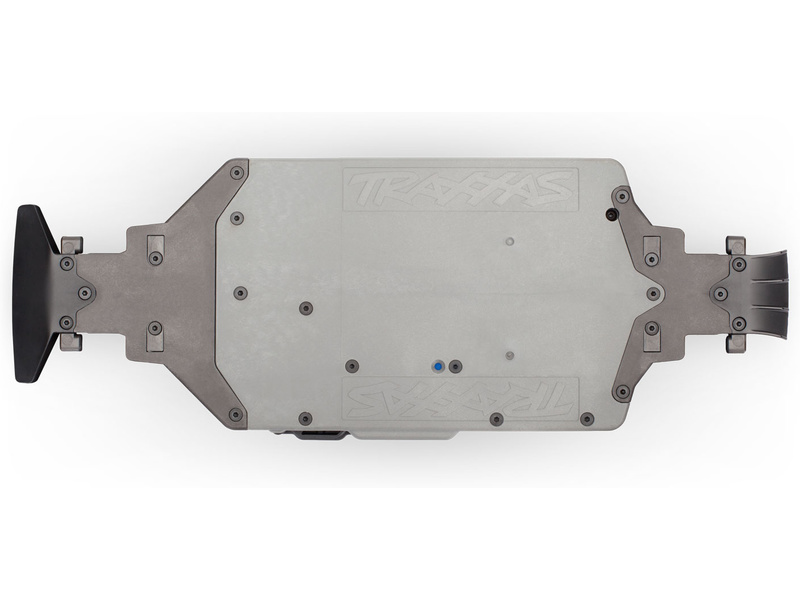

The completely smooth, flat chassis reduces aerodynamic drag and glides smoothly over uneven surfaces without any hitches. The front bumper has an increased ramp so that the model can overcome unevenness in the form of expansion joints and the like.

Precise proportional control

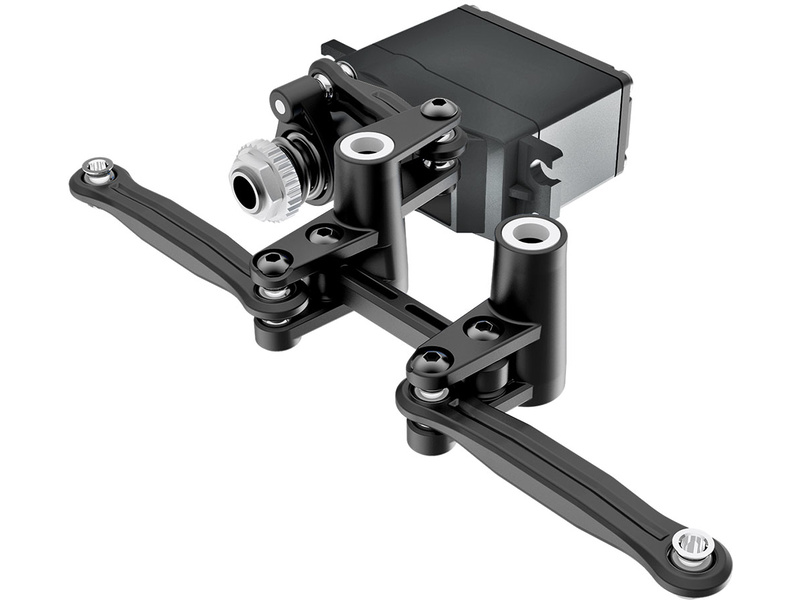

The front wheel steering mechanism is implemented via a Dual-Bell-Crank system, which ensures precise operation of the wheel linkages and reduces the bump steering effect. The servo lever has an integrated servo-saver to protect the mechanism against impacts.

Battery bed

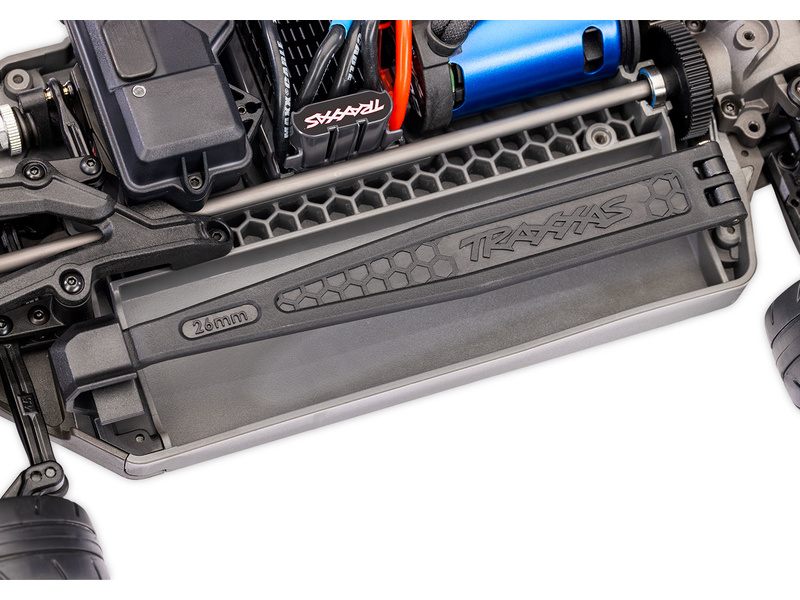

The innovative battery cradle securely holds the battery in place with a rotating latching partition, making battery replacement a matter of seconds and eliminating the need to loosen clips or straps.

Oil shock absorbers

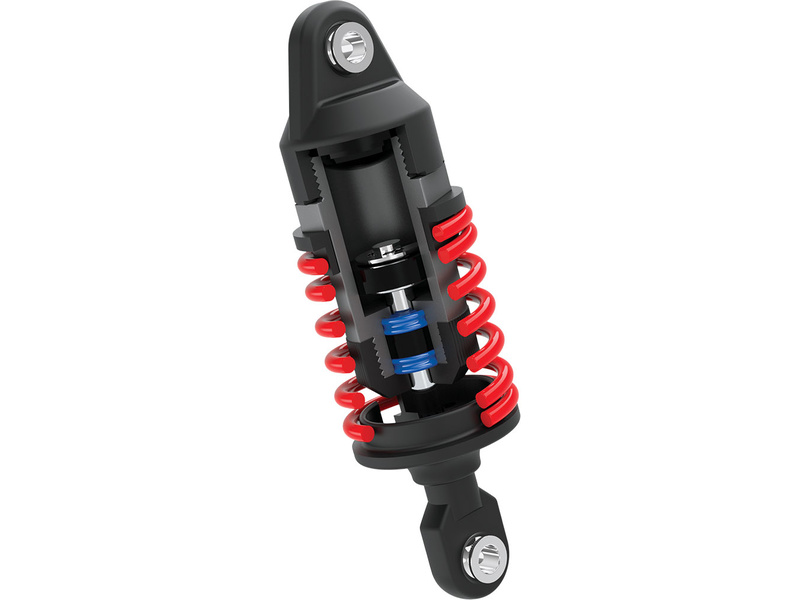

The 4-Tec 2.0 chassis effectively overcomes bumps with oil-filled shock absorbers with exclusive X-rings that seal perfectly. The shock absorbers are adjustable - spring preload can be changed using shims, compression and rebound can be adjusted by changing the viscosity of the oil in the shock absorber, and springs with different stiffness are also available.

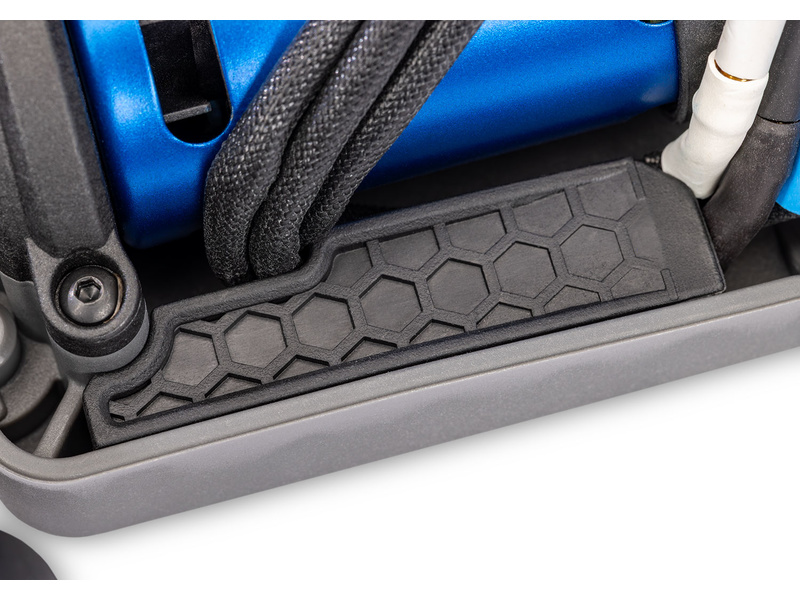

Cable holder

The elegant, precisely shaped divider securely fixes cables and replaces classic unsightly cable holders.

Waterproof* construction

The model uses a number of patented solutions that reduce the risk of water ingress to the electronics, such as a sealed receiver box, servos, and epoxy-encapsulated controller electronics. This gives you the freedom to go for a ride regardless of the weather.

Geometry setting options

Adjustable wheelbase

The 4-Tec 2.0 chassis allows the wheelbase to be extended or shortened by up to 3 mm, allowing the chassis to be precisely adapted to different body styles. The adjustment is made by removing the rear suspension arms and removing material from their front or rear part. The cut-off part is then used as a spacer on the opposite side of the arm, or it can be replaced with suitable washers. Note: The front suspension arms are not adjustable.

Drifting control

The 4-Tec 2.0 chassis steering rods allow for a larger wheel angle setting if maximum steering is required. First, cut off the plastic stop to increase the range of movement of the rods. Then drill an inner hole in the rod lever and relocate the steering rod. When making this modification, the manufacturer recommends using constant velocity drive shafts for smooth operation.

Rear arm attachment

The 4-Tec 2.0 chassis offers two different positions for attaching the rear upper arms. Changing the position does not affect the driving characteristics, but allows the use of bodies with different heights. For this modification, it is necessary to use adjustable upper arms - TRA8341X (sold separately), which will allow the arms to be extended and the wheel camber to be correctly adjusted.

Hanging suspension

Suspension droop is the maximum distance the wheels can extend downward when the chassis is raised off the ground and the suspension is fully unloaded. The suspension arms are threaded to accept M4 set screws (Traxxas #4897, sold separately). Tightening these will reduce suspension droop, which helps increase stability when cornering and allows for finer tuning of the chassis' handling characteristics.

Mounting the shock absorbers

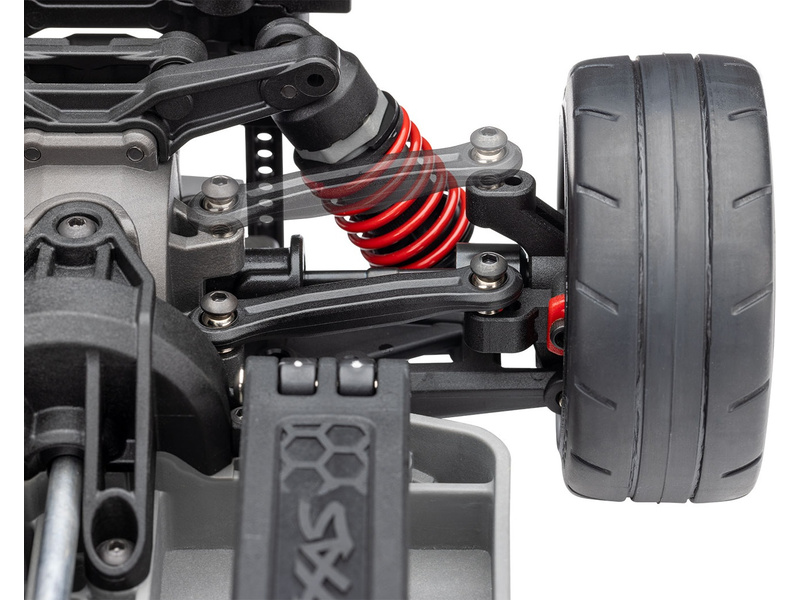

The 4-Tec 2.0 suspension offers several shock absorber mounting positions, allowing you to adapt the chassis behavior to different conditions. For driving on uneven surfaces, a softer setting with more suspension travel and higher ground clearance is more suitable. Conversely, for driving on asphalt or a race track, a lower ground clearance and a stiffer, more progressive shock absorber setting are recommended.

4WD drivetrain

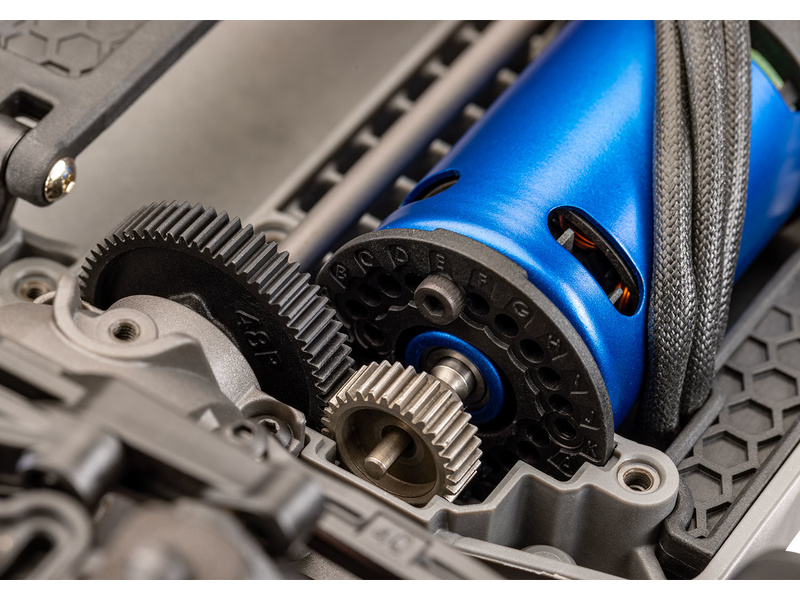

Inter-tooth clearance

A solid motor mounting system with pre-drilled holes according to the gear ratio eliminates the need to worry about setting the correct gear clearance. The gears always fit together precisely for maximum efficiency and long service life.

Center drive shaft

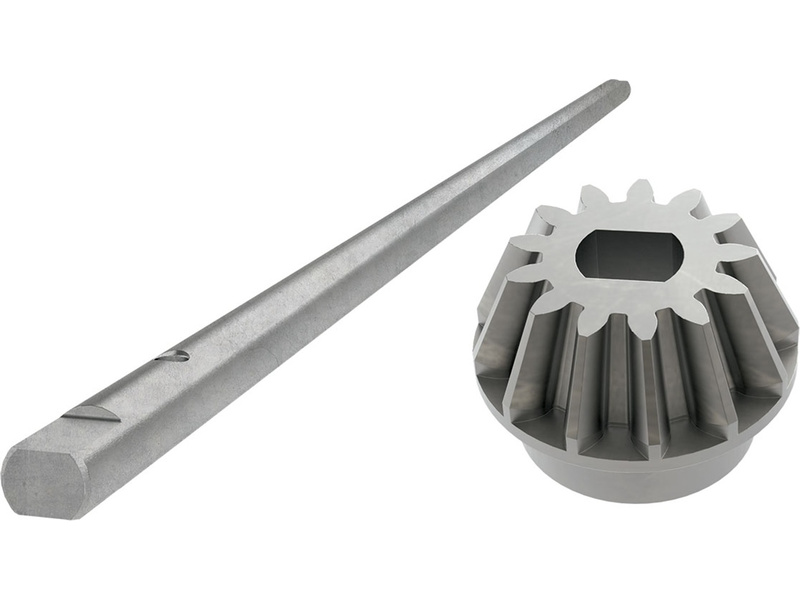

Power is distributed between the axles via a single-piece steel drive shaft that can handle the power of the AC motor without any problems. This solution does not suffer from joint wear or vibrations, making it extremely simple and efficient.

Front and rear differential

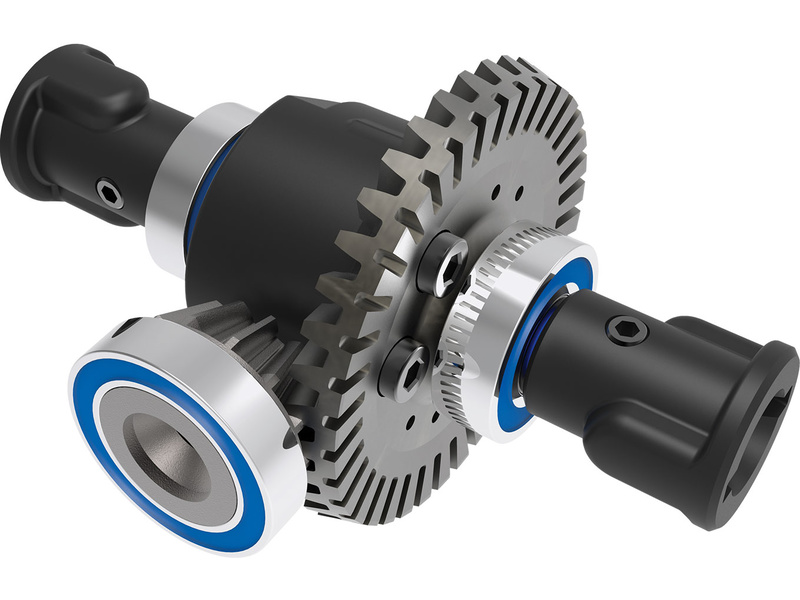

Ideal power distribution is ensured by the front and rear differential. The differential lock can be changed by changing the oil with a different viscosity (thicker or thinner).

Steel axle shafts

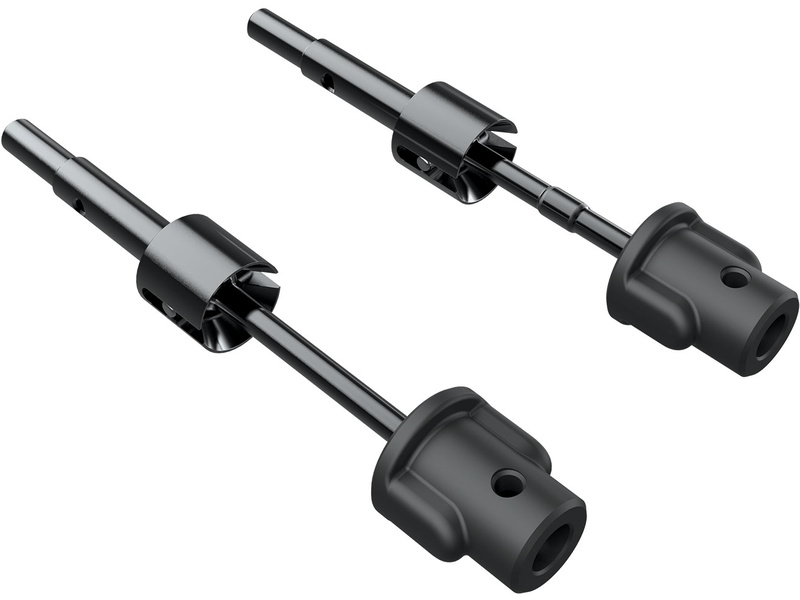

One-piece steel axles save weight and transfer power directly to the wheels with lightning-fast response.

Ball bearings

Large ball bearings are used throughout the drive system for smooth operation. The bearings are covered with plastic to keep dirt out. This extends the life of the model and simplifies maintenance.

Brake models

The model is authentically detailed with brakes that feature imitation discs with red calipers. The perforated discs are directional for maximum accuracy.

Body and wheels

Stapleless bodywork

Replacing the battery is now very easy thanks to the clip-free body attachment using the tabs in the bumpers from the bottom. To remove, simply press the tabs and slide the body upwards. Installing it is even easier – you lay the body down, press from above and the latches engage automatically.

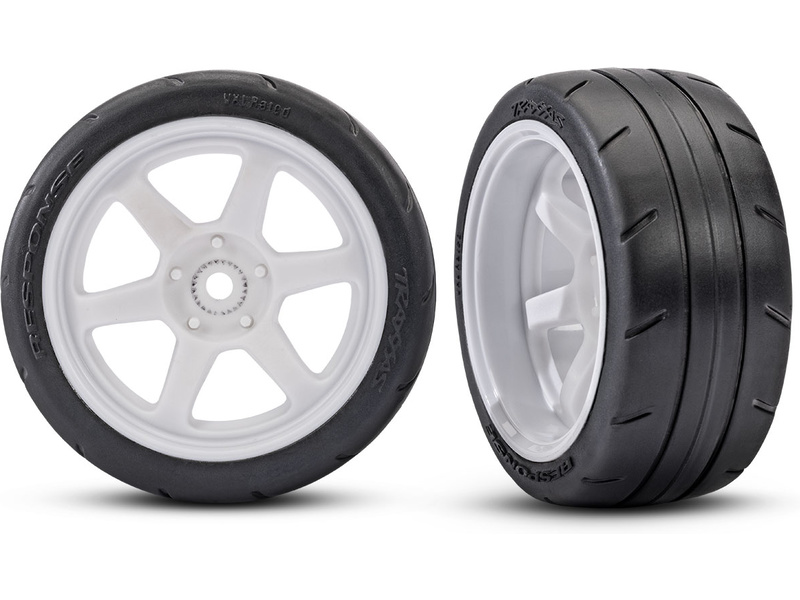

Wheels and tires

White six-spoke wheels give the model a classic tuning look. High-grip road tires provide high traction and confidence in corners.

Electronics

Power steering

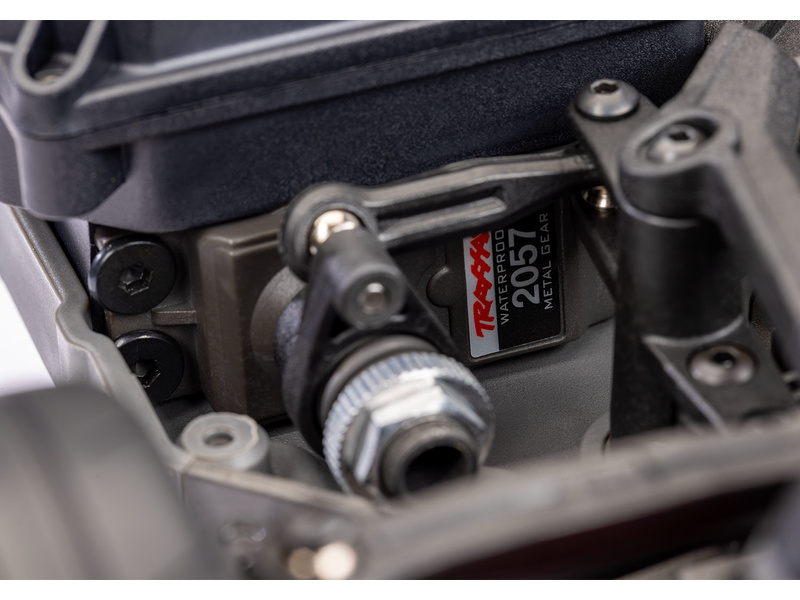

The model is controlled by a Traxxas 2057 digital servo. The servo is equipped with two ball bearings on the milled shaft and metal gears for maximum durability. The servo design is waterproof*.

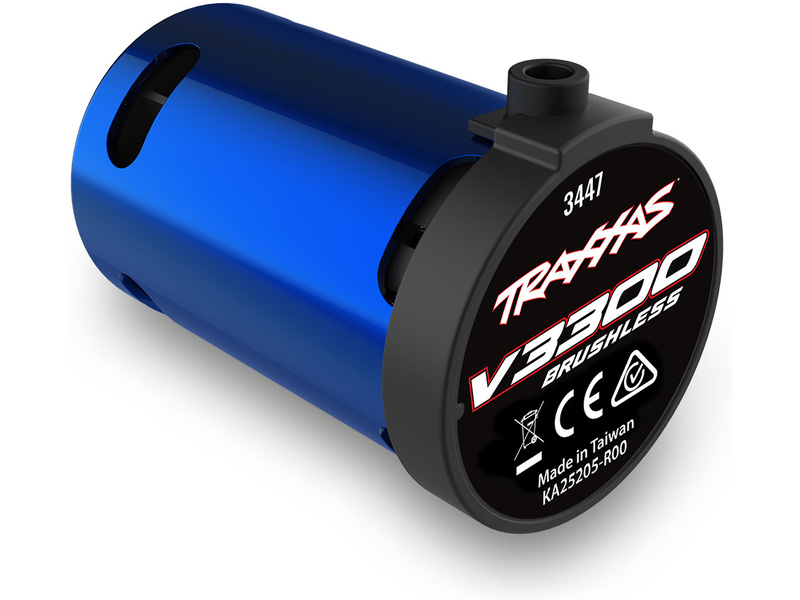

V3300 brushless motor

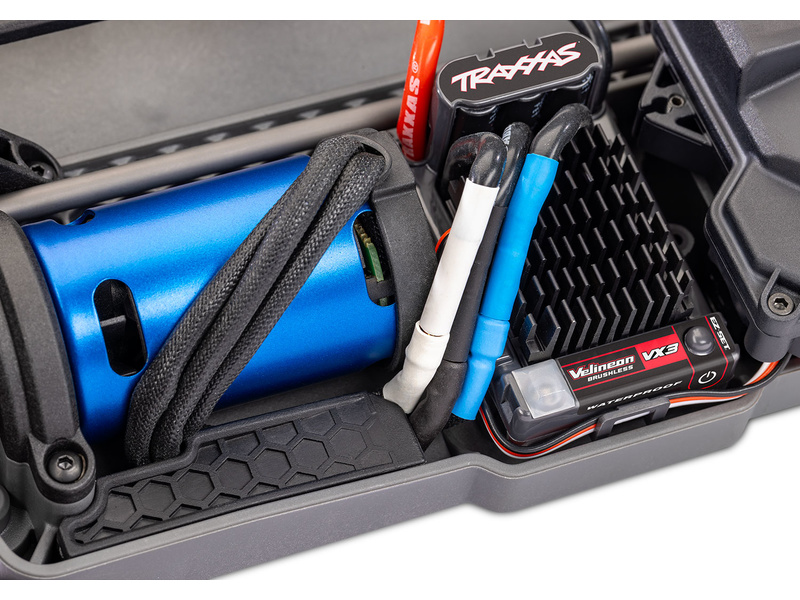

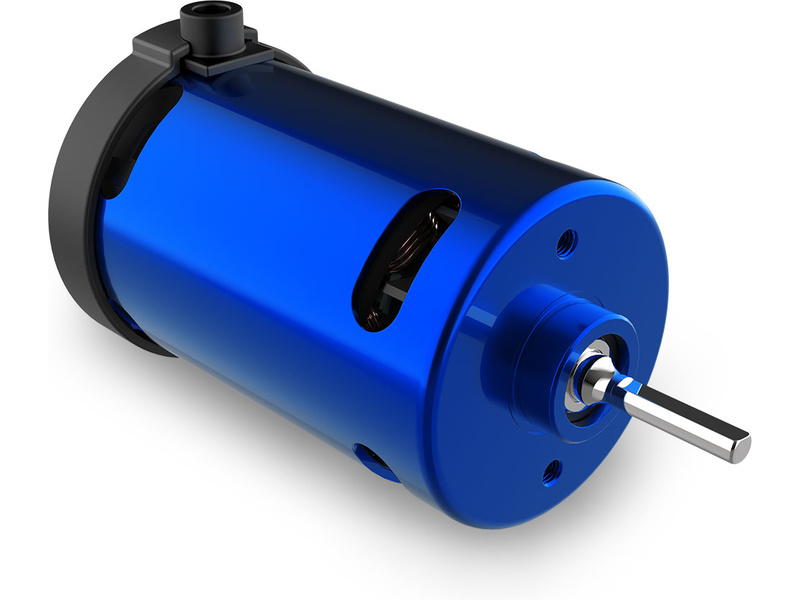

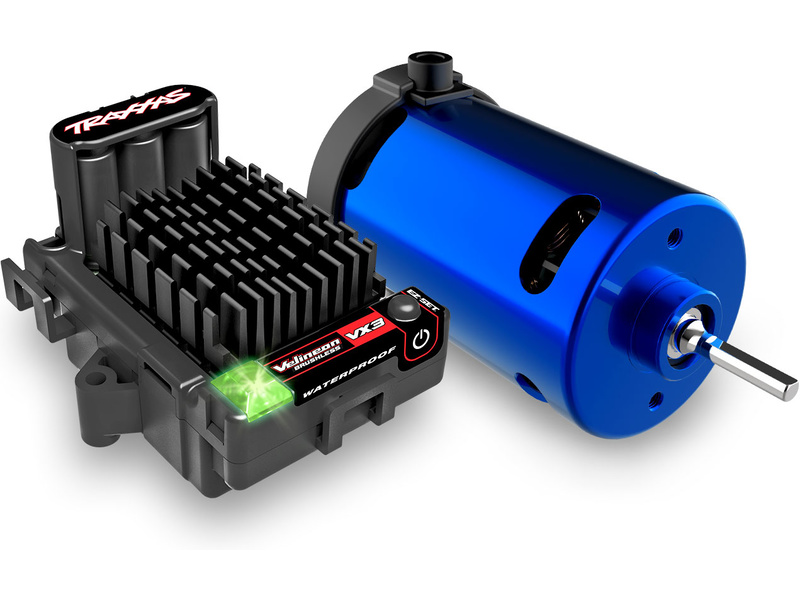

The model is powered by a powerful Velineon V3300 brushless motor. The newly designed motor features intake ports and an internal cooling fan on the shaft that forces air through the center of the motor, reducing temperature and maintaining consistent performance. Additionally, the metal housing dissipates additional heat from the motor.

• High temperature sintered neodymium magnets
• 5mm output shaft
• High-speed ball bearings
• Integrated cooling fan

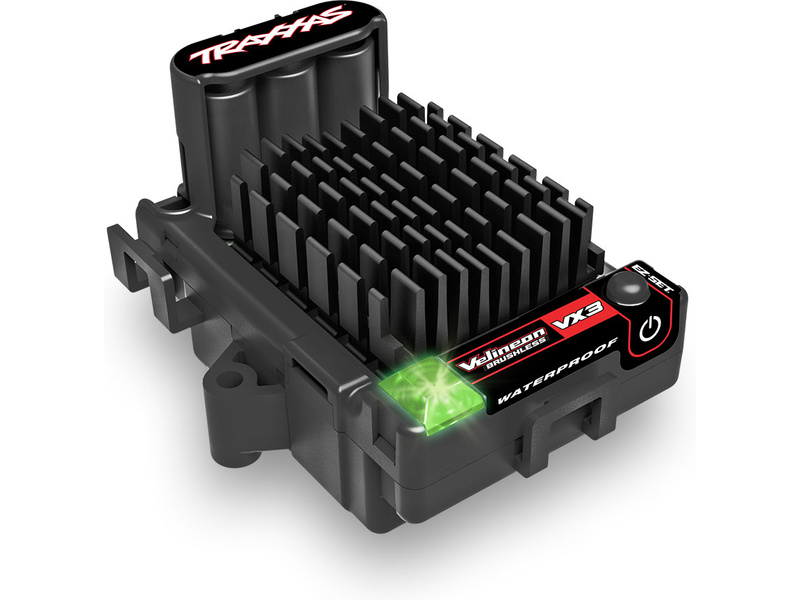

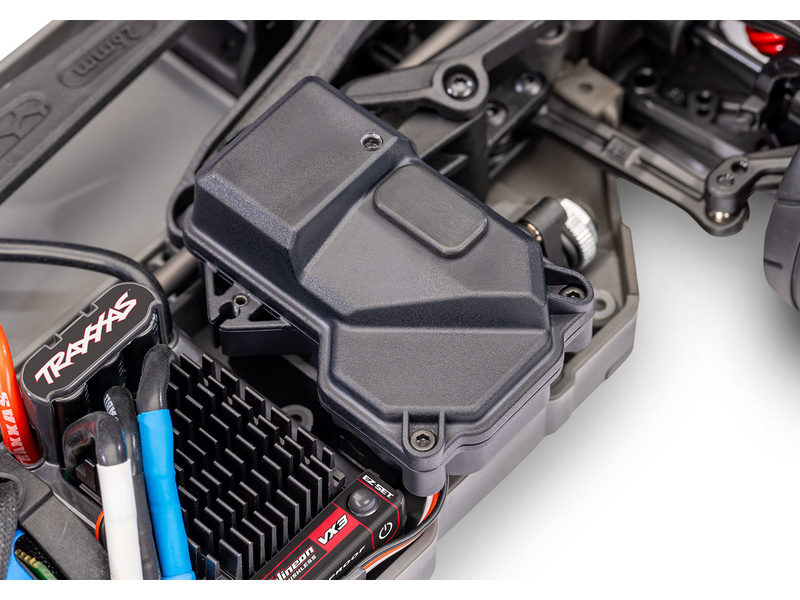

Electronic controller VX3

The waterproof* VX3 electronic brushless controller features advanced electronics and the ability to power 2-3S LiPo (NiMH batteries are not supported). It retains the simplicity of EZ-Set® one-button programming and three riding modes, including Training Mode. For a more natural feel, braking is more linear, with greater motion resolution and accuracy. The controller supports telemetry. A large aluminum heat sink dissipates heat. The epoxy-encased electronics are waterproof*.

VX3 controller modes

• Sport : Default mode, forward driving, braking and reverse driving are possible.
• Race : A mode suitable for racing. Forward and brake are possible; reverse is not available.
• Training : A mode suitable for children or novice riders. Forward travel is possible with a power limit of 50%, braking and reverse travel again with a power limit of 50%.

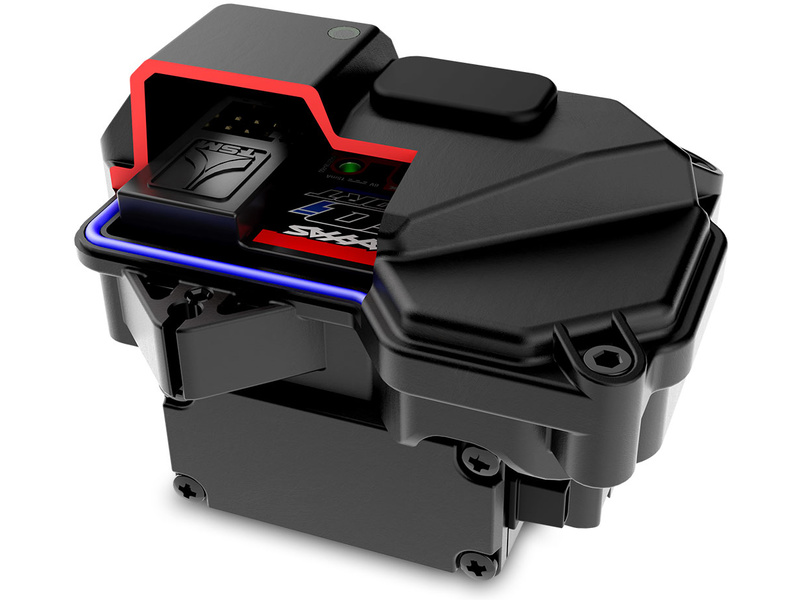

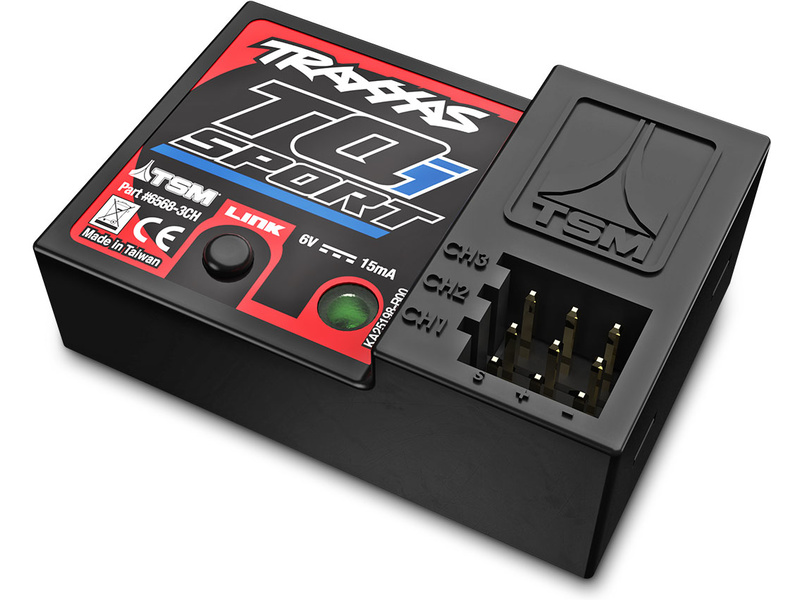

TQi Sport receiver

The Traxxas TQi Sport 2.4 GHz three-channel receiver ensures safe control without interruptions. Pairing is easy with one button. Status is indicated by an LED. The receiver has integrated 3-axis MEMS sensors for position and movement sensing.

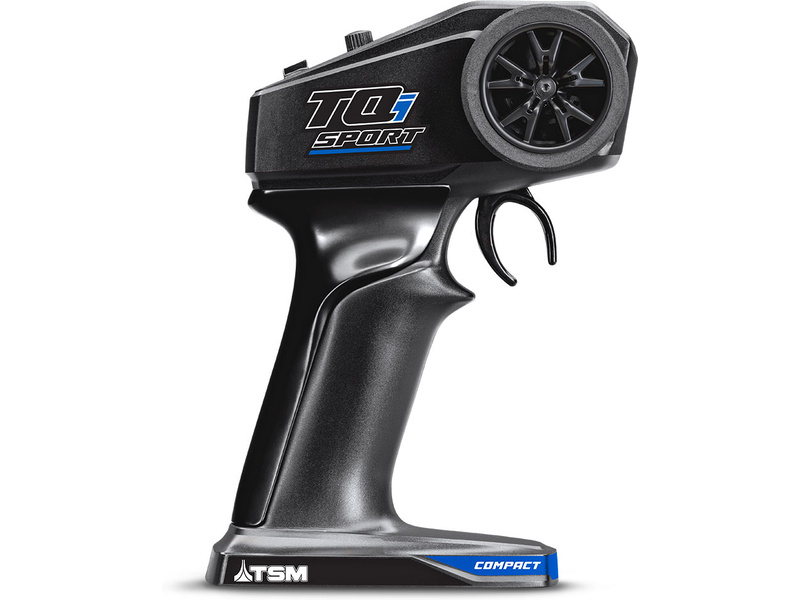

Traxxas TQi Sport Transmitter

The model is controlled by a Traxxas TQi Sport dual-channel proportional steering transmitter, operating in the 2.4 GHz band - interference-free operation. The transmitter is powered by only 4 AA batteries.

There is a rotary knob on the transmitter to trim the steering (so that the model drives straight when the steering wheel is in the center position). The battery status in the transmitter is indicated by an LED. With one button, you can set channel reverse, endpoints, TSM on/off and model type on the transmitter. Also included are:

• Precise control mechanics
• Foam steering wheel
• Removable grip for smaller hands

Traxxas Stability Management

Traxxas Stability Management (TSM) not only allows you to experience power, speed, acceleration and cornering at extreme speeds, but also ensures much easier steering and control on slippery surfaces such as dust, smooth concrete or even ice and snow.

The receiver contains a MEMS 3-axis gyro and accelerometer, which evaluates the movement of the model 100 times per second and corrects the direction of the model by appropriate interventions in the front wheel steering. Traxxas TSM does not limit the engine power - you have 100% control over the engine power. The algorithms are tuned for each model separately. TSM can be turned on or off via the TQi Sport transmitter.

Features

• Powerful and fast road RC model
• High-quality and proven on-road chassis 4-Tec 2.0
• Speed up to 80 km/h
• All-wheel drive 4WD
• Modular chassis design for easy service
• Flat chassis with low center of gravity
• Precise steering mechanics
• Adjustable suspension geometry
• Battery bed with latch system for easy replacement
• Front and rear locked differential
• One-piece center drive shaft
• Oil shock absorbers with X-rings
• Steel axle shafts
• Road tires, wheels and brake mockups
• Stapleless bodywork
• Waterproof* metal gear servo steering
• Brushless motor with integrated cooling V3300
• Waterproof* VX3 controller with telemetry support
• Traxxas TQi Sport 2.4 GHz RC Kit
• Electronic stability control (TSM)

*Please refer to the user manual for water resistance specifications. For tips and tricks on wet operation, please visit the blog.

Package contents

The package contains a ready-made, assembled RC car model Traxxas 4-Tec 2.0 Nissan 240SX VX3 RTR with painted bodywork and installed components: Velineon V3300 brushless motor, VX3 brushless controller, 2057 MG servo, TQi Sport 3-channel TSM receiver. TQi Sport 2-channel transmitter. Accessories: Allen keys (1.5, 2.0 mm), cross wrench. Instructions CZ, manual EN, DE, FR, SP.
