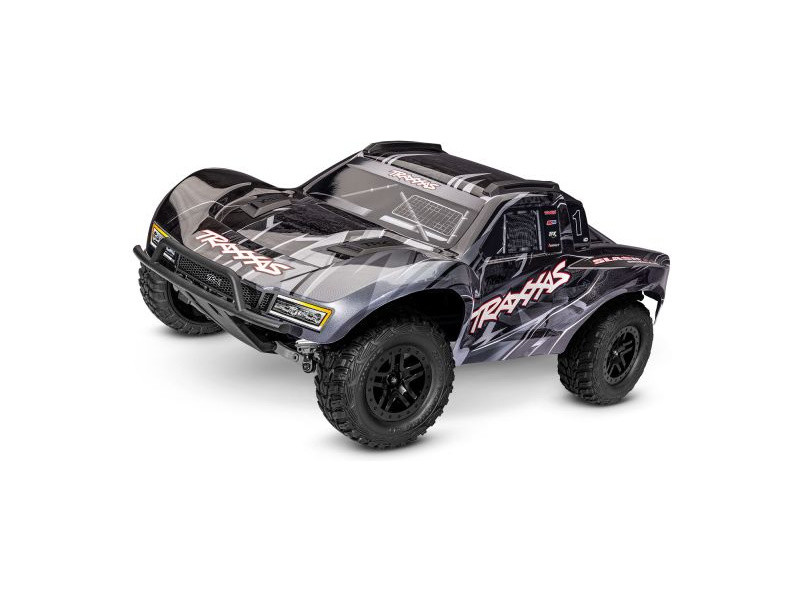

RC car model Slash 4x4 VX3 with a mock-up appearance of Short Course racing cars and a low center of gravity, built for the fastest stable ride and precise control in light and medium terrain. The new Slash is not only improved, but completely rebuilt for an even higher level of performance, durability and user comfort. Thanks to the new AC drive with 2-3S LiPo power supply, the model reaches speeds of up to 80 km/h . It can even handle this speed with the factory pinion, which is an increase of approximately 25% compared to the previous drive. The drive components have improved cooling and the controller includes integrated telemetry. The TSM electronic ride stabilization contributes to excellent controllability. With 4x4 drive, the model has excellent traction, acceleration, better cornering and easier control. For high durability, the model is factory-equipped with Extreme Heavy Duty components.
The proven Slash design has been retained, including a modular chassis design, cutting-edge independent suspension geometry and drivetrain. Front and rear differentials are complemented by a center differential for perfect power distribution between the axles. New GTR composite shock absorbers improve handling and make setup easier. Durable bumpers protect the model in the event of an impact and allow for an authentic racing model look. The low center of gravity of the chassis ensures greater stability. A new clipless body system with beaks in the wheel arches allows for easy access to the model and battery replacement.
For children and beginners, it is advisable to initially operate the model with a 2S LiPo battery, which reduces the maximum speed to 56 km/h. The controller also offers three driving modes, including Training mode, in which the power is limited to 50%. This makes the Slash a versatile model that you can initially use with lower power and gradually increase it as your driving experience grows. The control is provided by the new TQi Sport 2.4 GHz RC kit. Of course, there is also a wide range of tuning and complete spare parts.
Main news
New VX3 drive
The new VX3 brushless motor can convert the energy of a 3S LiPo battery into extreme speed. The VX3 speed controller has modern electronics, active fan cooling, easy one-button setup and telemetry support. The powerful Velineon V3200 motor is the ideal combination of high speed, power and efficiency. The fan and integrated cooling effectively keep the motor temperature low even during demanding driving.
New GTR shock absorbers
The new GTR composite shocks absorb impacts and ensure maximum wheel-to-surface contact. They hold over 70% more oil than standard Ultra Shocks, are X-ring sealed, and spring preload can be conveniently adjusted with a nut on the shock body.
Stapleless bodywork
The unique body mounting system using hooks in the wheel arches allows for quick and easy battery changes, and the model's clean look is not disturbed by clips. Robust latches hold the body firmly in place no matter how rough the ride. The body has an aerodynamic shape that increases stability at high speeds.
Low center of gravity chassis
The low-center-of-gravity chassis places the battery and electronics as low as possible, increasing stability and cornering speed. The chassis is flat and smooth underneath to prevent the model from wobbling and to prevent it from sliding off the ground if it lands on its belly.
Extreme Heavy Duty Components
The factory-installed kit adds durability to exposed parts of the model. Each piece is made from the most durable materials Traxxas uses. Whether you're driving through rough terrain or jumping over jumps, this kit is built to last.
Model construction
Durable chassis with low center of gravity
The chassis of the model consists of a durable plastic tub, on which the front and rear axles are attached. The controller with the motor and servos is on one side of the chassis and the battery is on the other for ideal weight distribution. The low center of gravity guarantees stability in corners even at high speeds.
Modular construction
The modular design connects the front and rear chassis sections with the center chassis into one solid platform. This advanced solution ideally distributes impact energy while allowing for easy servicing of the model. By loosening just 4 screws at the rear and 5 at the front, you have access to all important components, model adjustments and service maintenance in a minute.
Precise proportional control
The front wheel steering mechanism is implemented via a Dual-Bell-Crank system, which ensures precise operation of the links to the wheels and reduces the bump steering effect. For smoother operation, the sliding inserts can be replaced with 5 × 8 × 2.5 mm ball bearings (sold separately).
Battery bed
The innovative battery cradle securely holds the battery in place with a latching partition, making battery replacement a matter of seconds and eliminating the need to loosen clips or straps.
Fixed rods
Durable one-piece suspension links always maintain correct geometry and require no adjustment. If you want to fine-tune the ride to your preference, adjustable links are available, sold separately.
Suspension elements
The weights and weight holders are reinforced with more material and have a stronger construction.
Suspension arms
The suspension arms maintain proper geometry throughout the entire range of motion. Made from Traxxas' toughest composite material, they provide just the right amount of flex and durability, even in cold weather.
Model bumpers
Solid bumpers protect the model in the event of impacts. The mock-up appearance corresponds to the real tubular bumpers on cars in Short Course races.
Waterproof* construction
The model features a number of patented solutions that reduce the risk of water ingress, such as servo box seals and epoxy-encapsulated controller electronics, giving you the freedom to go for a ride regardless of the weather.
4WD drivetrain
Inter-tooth clearance
A solid motor mounting system with pre-drilled holes according to the gear ratio eliminates the need to worry about setting the correct gear clearance. The gears always fit together precisely for maximum efficiency and long service life.
Robust gear teeth
The model's drivetrain is designed from the ground up to handle the high output of the AC motor, using gears with a gear modulus of 32DP for reliable operation.
Center shaft support
The one-piece center shaft is extra strong to transfer power between the front and rear axles, yet flexible enough to withstand impact damage. A bearing support in the center ensures that the drive shaft rotates smoothly even at high speeds.
Metal differentials
The Slash is equipped with high-quality metal-geared differentials that are fully prepared for the power of AC drive. Precision X-ring seals allow the differentials to be tuned for specific operating conditions by changing the oil viscosity.
Center differential
The sealed center differential absorbs engine shocks and allows for fine-tuning of settings by changing the oil viscosity. It is factory-filled with thick oil, which reduces front axle lift under acceleration and ensures stable power transfer.
Drive shafts
Maxx-Duty driveshafts with reinforced universal joints are designed for high engine performance. The 6 mm output shafts exit into hexagonal wheel carriers.
Ball bearings
Large ball bearings are used throughout the drive system for smooth operation. The bearings are covered with a plastic cover. This solution extends the life of the model and simplifies maintenance.
Body and wheels
Stapleless bodywork
Replacing the battery is now very easy thanks to the clip-free body attachment using the claws in the wheel arches. To remove, simply press the claws and slide the body upwards. Installing it is even easier – you lay the body down, push from above and the body snaps into place.
Roof rails
Roof rails protect the bodywork if the model rolls over.
Side reinforcements
Robust side NERF reinforcements protect the chassis in side impacts and provide support to the body.
Realistic SCT wheels
Replica Kumho tires provide excellent off-road grip and precise traction on firm surfaces. The foam-padded tires are glued to a 2.2" double-spoke wheel rim.
Electronics
Power steering
The model is controlled by a Traxxas 2057 digital servo. The servo is equipped with two ball bearings on the milled shaft and metal gears for maximum durability. The servo design is waterproof*.
V3200 brushless motor
The model is powered by a powerful Velineon V3200 brushless motor. The newly designed motor features intake ports and an internal cooling fan on the shaft that drives air through the center of the motor, reducing temperature and maintaining consistent performance. Additionally, the metal housing dissipates additional heat from the motor.
- High temperature sintered neodymium magnets
- 5mm output shaft
- High-speed ball bearings
- Integrated cooling fan
Electronic controller VX3
The waterproof VX3 electronic brushless controller features advanced electronics and the ability to power 2-3S LiPo (NiMH batteries are not supported). It retains the simplicity of EZ-Set® one-button programming and three riding modes, including Training Mode. For a more natural feel, braking is more linear, with greater motion resolution and accuracy. The controller supports telemetry. A large aluminum heat sink dissipates heat. The encapsulated electronics are waterproof*.
VX3 controller modes
- Sport : The default mode is forward driving, braking and reverse driving possible.
- Race : A mode suitable for racing. Forward and braking are possible; reverse is not available.
- Training : A mode suitable for children or novice riders. Forward travel is possible with a power limit of 50%, braking and reverse travel with a power limit of 50%.
Cooling fans
For long, demanding rides, both the controller and the motor are equipped with powerful cooling fans.
TQi Sport receiver
The Traxxas TQi Sport 2.4 GHz three-channel receiver ensures safe control without interruptions. Pairing is easy with one button. Status is indicated by an LED. The receiver has integrated 3-axis MEMS sensors for position and movement sensing.
Traxxas TQi Sport Transmitter
The model is controlled by a two-channel proportional steering wheel transmitter Traxxas TQi Sport, operating in the 2.4 GHz band - without interference. The transmitter is powered by only 4x AA batteries.
There is a rotary knob on the transmitter to trim the steering (so that the model drives straight when the steering wheel is in the center position). The battery status in the transmitter is indicated by an LED. With one button, you can set channel reverse, endpoints, TSM on/off. Also included is:
- Precise control mechanics
- Foam steering wheel
- Removable grip for smaller hands
Traxxas Stability Management
Traxxas Stability Management (TSM) not only allows you to experience power, speed, acceleration and cornering at extreme speeds, but also ensures much easier steering and control on slippery surfaces such as dust, smooth concrete or even ice and snow.
The receiver contains a MEMS 3-axis gyro and accelerometer, which evaluate the model's movement at a rate of 100 times per second and corrects the direction of travel by appropriate interventions in the front wheel steering. Traxxas TSM does not limit engine power - you have 100% control over engine power. The algorithms are tuned for each model separately. TSM can be turned on or off via the TQi Sport transmitter.
Features
- Powerful and fast Short Course model
- Speed up to 80 km/h
- All-wheel drive 4WD
- Installed durable Extreme Heavy Duty components
- Modular chassis design for easy service
- Precise steering mechanics
- Battery bed with latch system for easy replacement
- Durable model bumpers
- Front, center and rear locked differential
- Metal spur gear and differential gears
- Support bearing in the middle of the center drive shaft
- Oil shock absorbers with X-rings and adjustable nut
- Half-axles with reinforced cardan joints
- Kumho tires for off-road and asphalt, 12 mm lug
- Staple-free bodywork, side NERF reinforcements
- Waterproof* metal gear servo steering
- Brushless motor with integrated cooling V3200
- Waterproof* VX3 controller with telemetry support
- Traxxas TQi Sport 2.4 GHz RC Kit
- Electronic stability control (TSM)
*Please refer to the user manual for water resistance specifications. For tips and tricks on wet operation, please visit the blog.
Package contents
The new product will be available in mid-August.
The package contains a ready-made, assembled RC car model Traxxas Slash 4x4 1:10 VX3 RTR with painted bodywork and installed components: Velineon V3200 brushless motor, VX3 brushless controller, 2057 MG servo, TQi Sport 3-channel TSM receiver. TQi Sport 2-channel transmitter. Accessories: Allen keys (1.5, 2.0, 2.5 mm), cross wrench. Instructions CZ, manual EN, DE, FR, SP.
