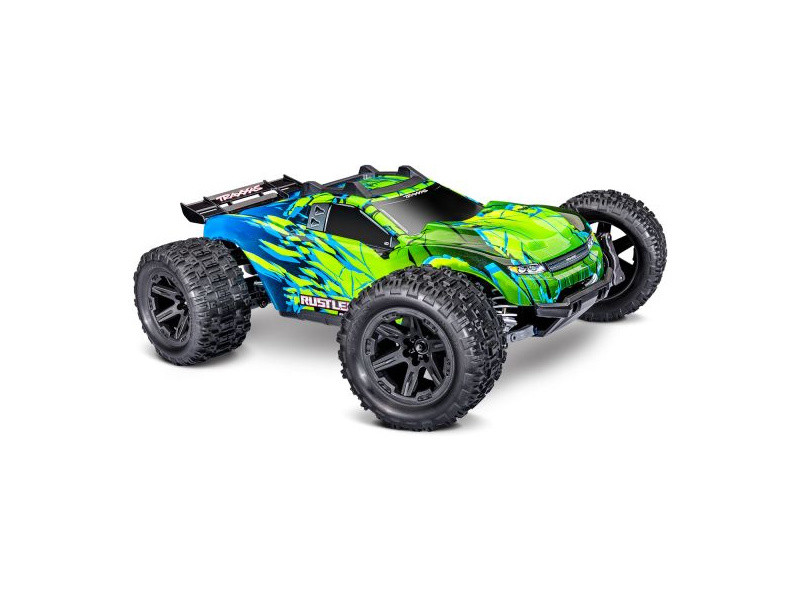

The Rustler 4x4 VX3 RC car model with large aggressive wheels, a low center of gravity and a wide track is built for the fastest stable ride and precise control in medium-heavy terrain. The new Rustler is not only improved, but completely rebuilt for an even higher level of performance, durability and user comfort. Thanks to the new AC drive with 2-3S LiPo power supply, the model reaches speeds of up to 80 km/h . It can even handle this speed with the factory pinion, which is an increase of approximately 25% compared to the previous drive. The drive components have improved cooling and a controller with integrated telemetry. The TSM electronic ride stabilization contributes to excellent controllability. With 4x4 drive, the model has excellent traction, acceleration, better cornering and easier control. For high durability, the model is factory-equipped with Extreme Heavy Duty components.
The proven Rustler design has been retained, including a modular chassis design, cutting-edge independent suspension geometry and drivetrain. Front and rear differentials complement the center differential for perfect performance between the axles. New GTR composite shocks improve handling and make setup easier. Durable reinforced bumpers protect the model in the event of an impact, and the front has an increased approach angle for better overcoming obstacles. A new clipless body system with beaks in the wheel arches allows for easy access to the model and battery replacement.
For children and beginners, it is advisable to initially operate the model with a 2S LiPo battery, which reduces the maximum speed to 56 km/h. The controller also offers three driving modes, including Training mode, in which the power is limited to 50%. This makes the Rustler a versatile model that you can initially use with lower power and gradually increase it as your driving experience grows. The control is provided by the new TQi Sport 2.4 GHz RC kit. Of course, there is also a wide range of tuning and complete spare parts.
Main news
New VX3 drive
The new VX3 brushless motor can convert the energy of a 3S LiPo battery into extreme acceleration. The VX3 speed controller has modern electronics, active fan cooling, easy one-button setup and telemetry support. The powerful Velineon V3200 motor is the ideal combination of high speed, power and efficiency. The fan and integrated cooling effectively keep the motor temperature low even during demanding driving.
New GTR shock absorbers
The new GTR composite shocks absorb impacts and ensure maximum wheel-to-surface contact. They hold over 70% more oil than standard Ultra Shocks, are X-ring sealed, and spring preload can be conveniently adjusted with a nut on the shock body.
Stapleless bodywork
A unique body mounting system using lugs in the wheel arches allows for quick and easy battery changes. Robust latches hold the body securely no matter how rough the ride.
SledgeHammer Off-Road Tires
SledgeHammer ST tires provide extreme traction and terrain control. Open tread blocks quickly shed debris. Large 2.8" black 6-spoke RXT wheels give the Rustler 4X4 an exceptionally aggressive look.
Extreme Heavy Duty Components
The factory-installed kit adds durability to exposed parts of the model. Each part is made from the most durable materials Traxxas uses. Whether you're driving through rough terrain or jumping over jumps, the kit is designed to last.
Model construction
Durable chassis with low center of gravity
The chassis of the model consists of a durable plastic tub, on which the front and rear axles are attached. The controller with the motor and servos is on one side of the chassis and the battery is on the other for ideal weight distribution. The low center of gravity in combination with the wide track maintains stability in corners even at high speeds.
Modular construction
The modular design connects the front and rear chassis sections with the center chassis into one solid platform. This advanced solution ideally distributes impact energy while allowing for easy servicing of the model. By loosening just 4 screws at the rear and 5 at the front, you have access to all important components, model adjustments and service maintenance in a minute.
Precise proportional control
The front wheel steering mechanism is implemented using the Dual-Bell-Crank system, which ensures precise operation of the linkages to the wheels and reduces the Bump steering effect. The steering has an integrated servo-saver that protects the servo from overloading. For smoother operation, the sliding inserts can be replaced with 5 × 8 × 2.5 mm ball bearings (sold separately).
Battery bed
The innovative battery cradle securely holds the battery in place with a rotating latching partition, making battery replacement a matter of seconds and eliminating the need to loosen clips or straps.
Fixed rods
Durable one-piece suspension links always maintain correct geometry. If you want to fine-tune the ride to your preferences, adjustable links are available, sold separately.
Suspension elements
The weights and weight holders are reinforced with more material and have a stronger construction.
Suspension arms
The suspension arms maintain proper geometry throughout the entire range of motion. Made from Traxxas' toughest composite material, they provide just the right amount of flex and durability, even in cold weather.
Reinforced bumpers
Solid bumpers protect the model in the event of impacts. A specially designed front bumper provides a high approach angle, allowing it to drive over obstacles.
Wheelie wheels
The model has brutal performance, which is why it is equipped with rear support wheels that prevent the car from tipping over when you quickly step on the gas, so you can enjoy driving on the rear wheels. The Wheelie holder is flexible to absorb any impacts and also protects the pressure wing.
Waterproof* construction
The model uses a number of patented solutions that reduce the risk of water entering the model. For example, the servo box seal or the epoxy-encapsulated controller electronics. This gives you the freedom to go for a ride regardless of the weather.
4WD drivetrain
Inter-tooth clearance
A rigid motor mounting system with pre-drilled holes according to the gear ratio eliminates tooth play. The gears always fit together precisely for maximum efficiency and long service life.
Robust gear teeth
The model's drivetrain is designed from the ground up to handle the high output of the AC motor, using gears with a gear modulus of 32DP for reliable operation.
Center shaft support
The one-piece center shaft is extra strong to transfer power between the front and rear axles, yet flexible enough to withstand impact damage. A bearing support in the center ensures that the drive shaft rotates smoothly even at high speeds.
Metal differentials
The Rustler is equipped with high-quality metal-geared differentials that are fully prepared for the power of AC drive. Precision X-ring seals allow the differentials to be tuned for specific operating conditions by changing the oil viscosity.
Center differential
The sealed center differential absorbs engine shocks and allows for fine-tuning of settings by changing the oil viscosity. It is factory-filled with thick oil, which reduces front axle lift under acceleration and ensures stable power transfer.
Drive shafts
Maxx-Duty driveshafts with reinforced universal joints are designed for high engine performance. The 6 mm output shafts exit into hexagonal wheel carriers.
Ball bearings
Large ball bearings are used throughout the drive system for smooth operation. The bearings are covered with a plastic cover to prevent dirt from entering. This solution extends the life of the model and simplifies maintenance.
Automatic rotation on wheels
This exclusive Traxxas patented feature is activated by the remote transmitter. Automatically, by applying the throttle and braking force, the model gradually swings and turns back onto its wheels.
The function is most effective when using a fully charged 3S LiPo battery.
Body
Stapleless bodywork
Replacing the battery is now very easy thanks to the clip-free body attachment using the claws in the wheel arches. To remove, simply press the claws and slide the body upwards. Installing it is even easier – you lay the body down, push it from above and then it locks into place.
Side reinforcements
Robust side NERF reinforcements protect the chassis and body from stones. A special profile allows the body to be inserted for a safer and firmer fit.
Roof rails
Roof rails protect the body from scratches when the model rolls over.
Pressure wing
A functional rear pressure wing reduces drag and provides downforce for high-speed stability. The wing is attached directly to the inner body frame for strength.
Electronics
Power steering
The model is controlled by a Traxxas 2057 digital servo. The servo is equipped with two ball bearings on the milled shaft and metal gears for maximum durability. The servo design is waterproof*.
V3200 brushless motor
The model is powered by a powerful Velineon V3200 brushless motor. The newly designed motor features intake ports and an internal cooling fan on the shaft that pushes air through the center of the motor. Additionally, a metal housing dissipates additional heat from the motor.
- High temperature sintered neodymium magnets
- 5mm output shaft
- High-speed ball bearings
- Integrated cooling fan
Electronic controller VX3
The waterproof VX3 electronic brushless controller features advanced electronics and 2-3S LiPo power (NiMH batteries not supported). It retains the simplicity of EZ-Set® one-button programming and three riding modes including Training Mode. For a more natural feel, braking is more linear with greater precision and resolution. The controller supports telemetry. A large aluminum heat sink dissipates heat. The electronics are waterproof*.
VX3 controller modes
- Sport : The default mode is forward driving, braking and reverse driving possible.
- Race : A mode suitable for racing. Forward and braking are possible; reverse is not available.
- Training : A mode suitable for children or novice riders. Forward travel is possible with a power limit of 50%, braking and reverse travel with a power limit of 50%.
Cooling fans
So that you are not limited by temperature protection even on long, demanding summer days, the controller and motor are equipped with powerful cooling fans.
TQi Sport receiver
The Traxxas TQi Sport 2.4 GHz three-channel receiver ensures safe control without interruptions. Pairing is easy with one button. Status is indicated by an LED. The receiver has integrated 3-axis MEMS sensors for position and movement sensing.
Traxxas TQi Sport Transmitter
The model is controlled by a two-channel Traxxas TQi Sport proportional steering transmitter, operating in the 2.4 GHz band - interference-free. The transmitter is powered by only 4x AA batteries.
There is a rotary knob on the transmitter to trim the steering (so that the model drives straight when the steering wheel is in the center position). The battery status in the transmitter is indicated by an LED. With one button on the transmitter, channel reverse, endpoints, TSM on/off can be set.
- Precise control mechanics
- Foam steering wheel
- Removable grip for smaller hands
Traxxas Stability Management
Traxxas Stability Management (TSM) not only allows you to experience power, speed, acceleration and cornering at extreme speeds, but also ensures much easier steering and control on slippery surfaces such as dust, smooth concrete or even ice and snow.
The receiver contains a MEMS 3-axis gyro and accelerometer, which evaluate the model's movement at a rate of 100 times per second and corrects the direction of travel by appropriate interventions in the front wheel steering. Traxxas TSM does not limit engine power - you have 100% control over engine power. The algorithms are tuned for each model separately. TSM can be turned on or off via the TQi Sport transmitter.
Features
- Powerful and fast truggy model
- Speed up to 80 km/h
- All-wheel drive 4WD
- Installed durable Extreme Heavy Duty components
- Modular chassis design for easy service
- Precise steering mechanics
- Battery bed with latch system for easy replacement
- Reinforced bumpers, rear wheelie wheels
- Front, center and rear locked differential
- Metal spur gear and differential gears
- Support bearing in the middle of the center drive shaft
- Oil shock absorbers with X-rings and adjustable nut
- Half-axles with reinforced cardan joints
- Talon MXT off-road tires, 12 mm lug
- Staple-free bodywork, side NERF reinforcements and roof rails
- Waterproof* metal gear servo steering
- Brushless motor with integrated cooling V3200
- Waterproof* VX3 controller with telemetry support
- Traxxas TQi Sport 2.4 GHz RC Kit
- Electronic stability control (TSM)
- Auto-rotate function on wheels
*Please refer to the user manual for water resistance specifications. For tips and tricks on wet operation, please visit the blog.
Package contents
The new product will be available in mid-August.
The package contains a ready-made, assembled RC car model Traxxas Rustler 4x4 1:10 VX3 RTR with painted bodywork and installed components: Velineon V3200 brushless motor, VX3 brushless controller, 2057 MG servo, TQi Sport 3-channel TSM receiver. TQi Sport 2-channel transmitter. Accessories: Allen keys (1.5, 2.0, 2.5 mm), cross wrench. Instructions CZ, manual EN, DE, FR, SP.
