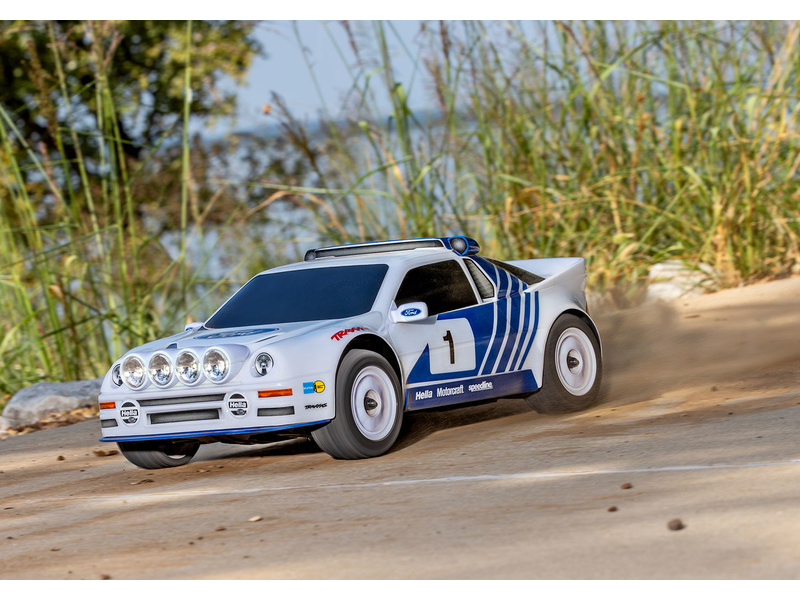

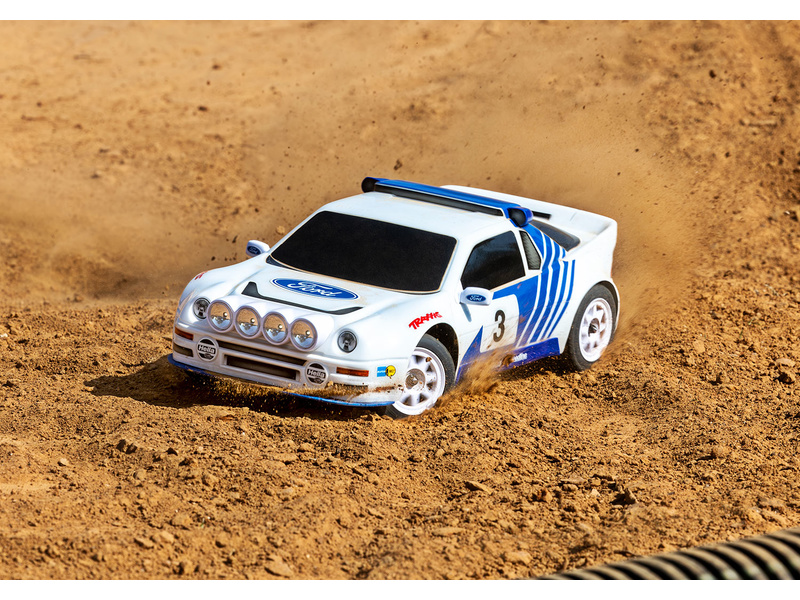

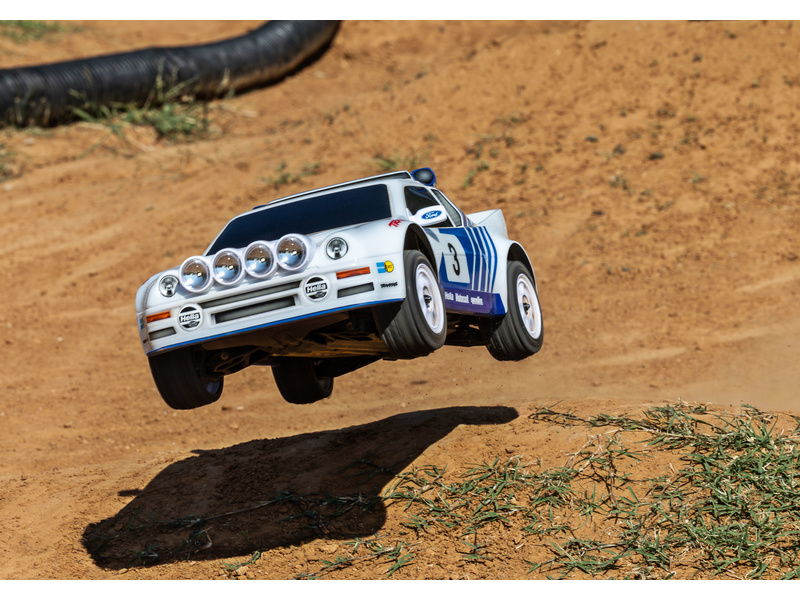

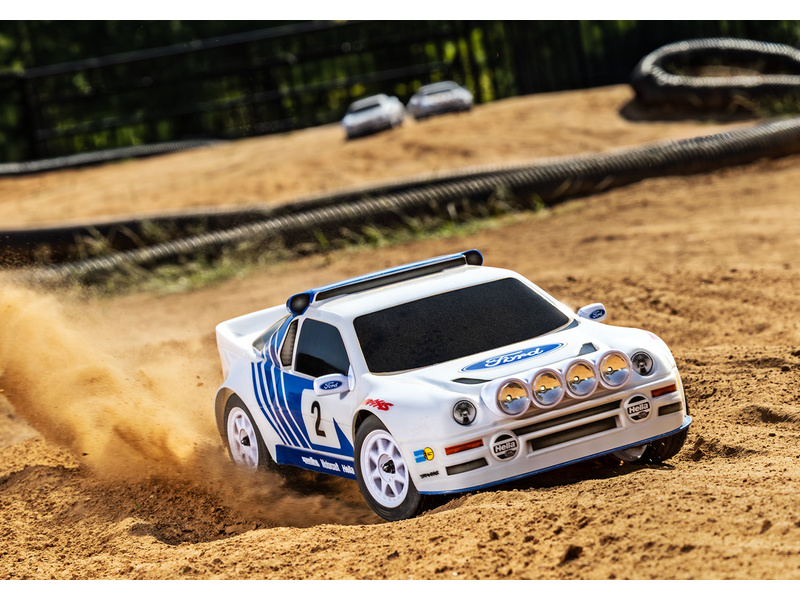

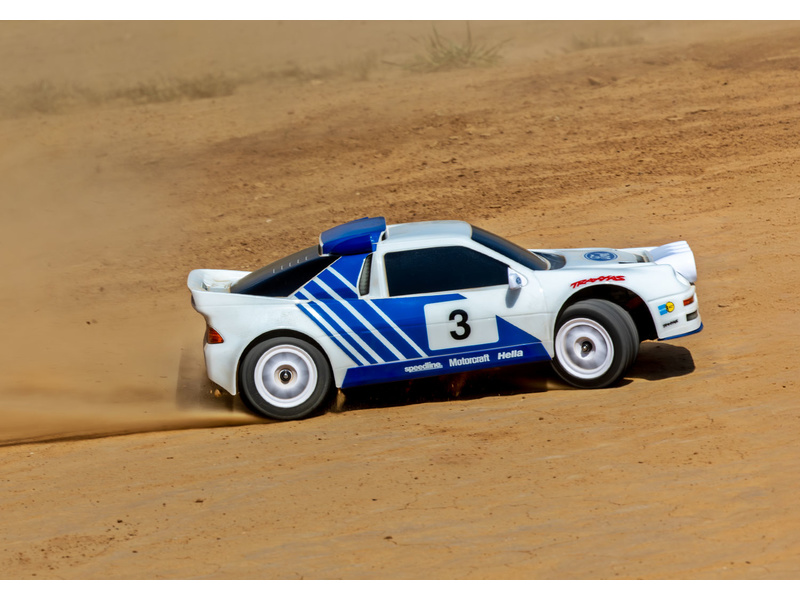

Extremely powerful and durable RC model Mini Rally with 4WD all-wheel drive in compact size 1:12 with licensed Ford RS200 body and LED lighting. TSM stabilization, maximum speed up to 90 km/h. Supplied with Traxxas TQi 2.4GHz steering transmitter, 2S LiPo drive battery and USB-C charger!
The extra powerful and durable Mini Rally Ford RS200 RC model is a real rocket, based on the unbeatable and popular XRT and Maxx model series. This model also includes a really powerful brushless motor and VXL-3s V2 speed controller.

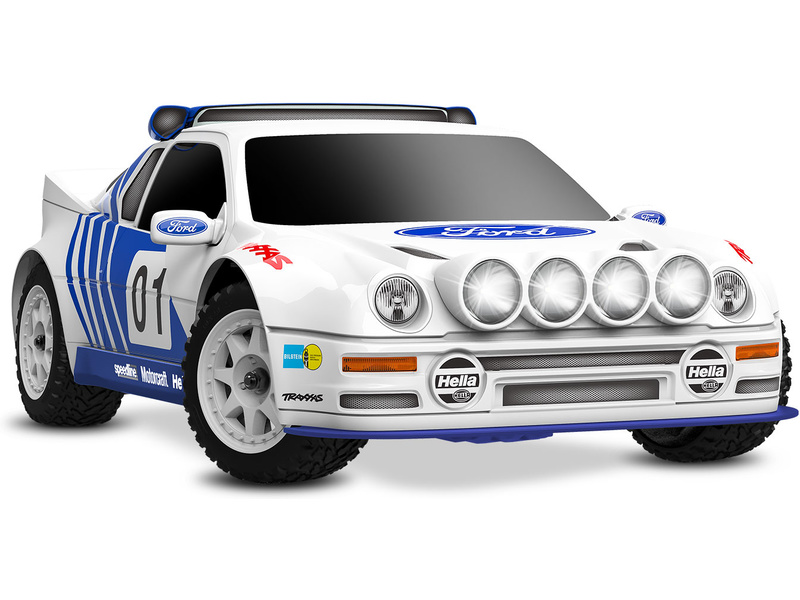

To manage the steering even at higher speeds, there is an electronic stability program TSM. Of course, there is an easy body clamping system without clips. The licensed body of the legendary Ford RS200 special is equipped with front LED lighting.
The latest Mini Rally VXL tires are designed for high performance and long life. You'll experience maximum fun right out of the box, because everything you need to run your car is included!
The Mini Rally delivers what no other model of its size can. Instantly recognizable with its rugged construction, it defines a whole new class of durability and speed, continuing the legacy of the XRT and Maxx models.

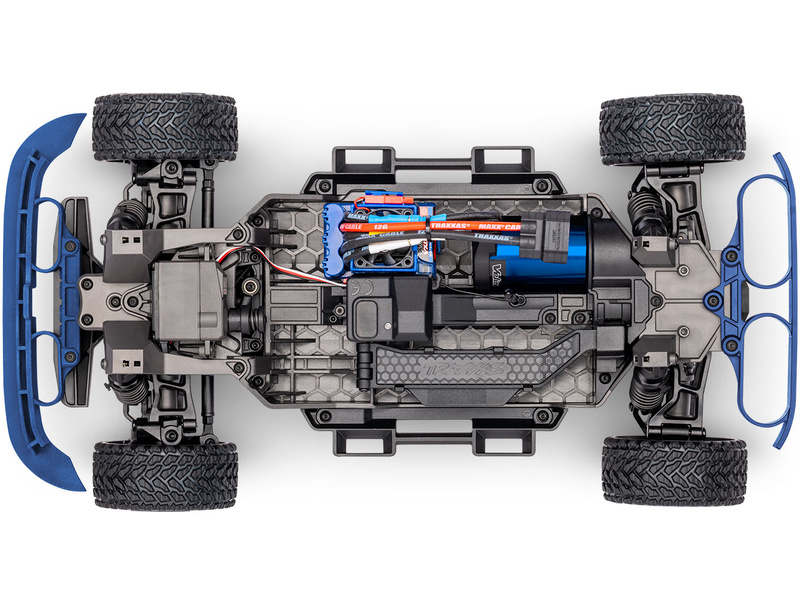

A spacious nylon chassis with extended wheelbase and integrated shock towers creates a solid foundation with modular construction for easy service. Large 1:10 scale Ultra oil shocks are installed.
The entire suspension is very robust, including the arms, rods, bearings and telescopic axles. The 4WD all-wheel drive is implemented via a center, front and rear planetary differential with metal gears.
The most powerful VXL brushless motor in the 1:10 range delivers high performance and endless fun. The speed controller with three driving modes guarantees fun for adults and children, with the option to limit the power to 50%.
You can start with the included 2S LiPo battery, then later you can switch to a 3S LiPo battery (sold separately) and get an RC car model that has brutal power and speed.
Control is provided by the Traxxas TQi 2.4GHz transmitter with precision steering mechanics, programming capabilities and the addition of a Bluetooth module (sold separately) for connection to the Traxxas Link application. A wide range of tuning and spare parts are available.
Features:
- small, very powerful and durable RC model car Mini Rally;
- this is the fastest small Traxxas model;
- permanent all-wheel drive 4WD;
- modular Maxx chassis platform with integrated shock towers;
- lightweight and strong spatial composite chassis;
- extended chassis with a wheelbase of 262 mm;
- robust suspension and suspension components;
- center differential absorbing engine shocks;
- 2 planetary differentials with metal gears;
- robust drivetrain as in larger models;

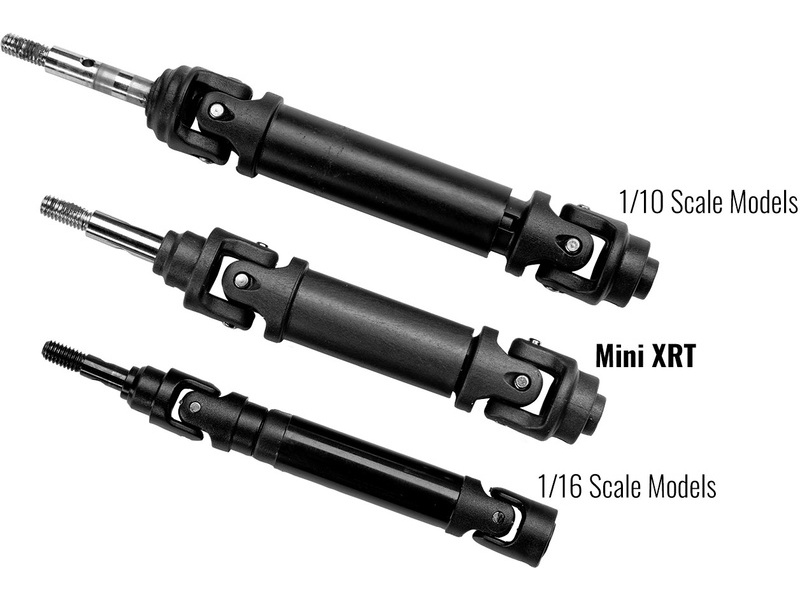

- telescopic axle shafts;
- Ultra 1:10 oil shock absorbers;
- proven Traxxas electronics;
- VXL-3s V2 speed controller and Velineon 3500kV brushless motor;
- 3 driving modes;
- digital servo control with metal gears;
- waterproof electronics;

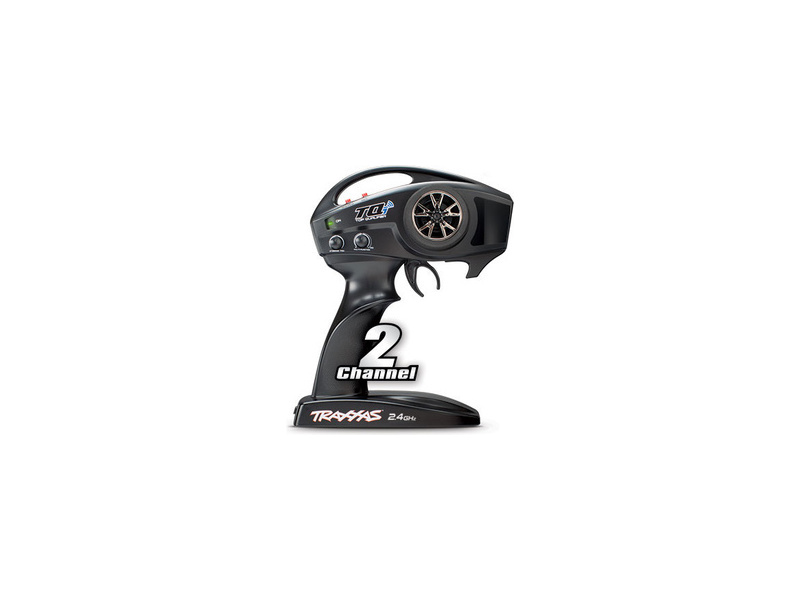

- 2-channel Traxxas TQi 2.4GHz transmitter with optional Bluetooth module;
- rally-type tires with integrated ribs;
- quick battery replacement;
- licensed clipless bodywork;

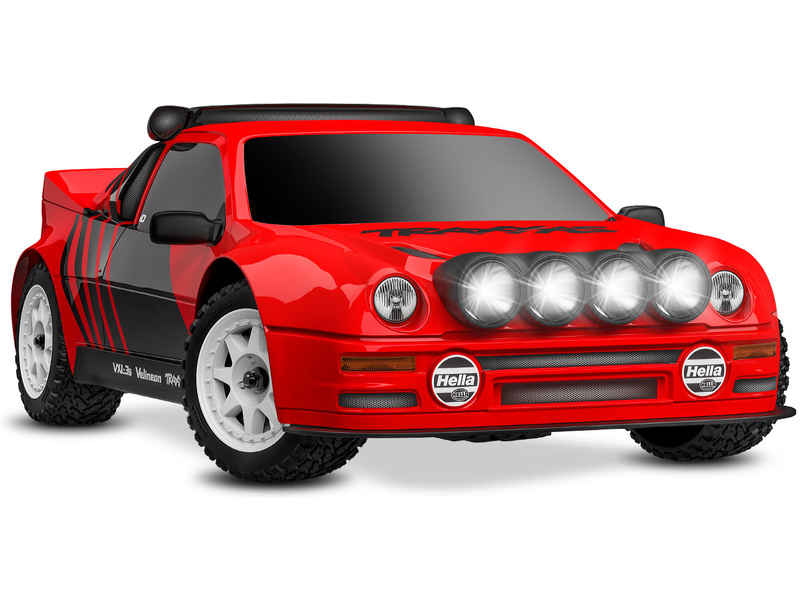

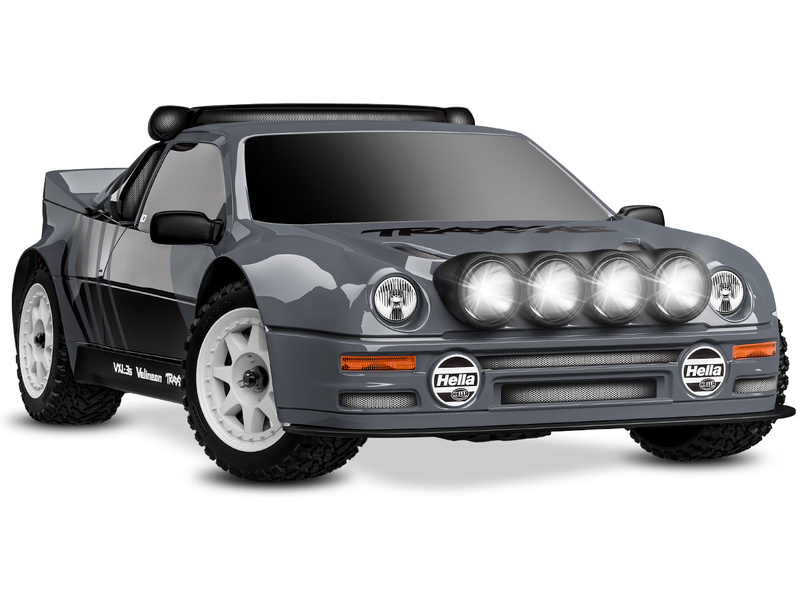

- functional LED lighting at the front;
- body reinforcements;

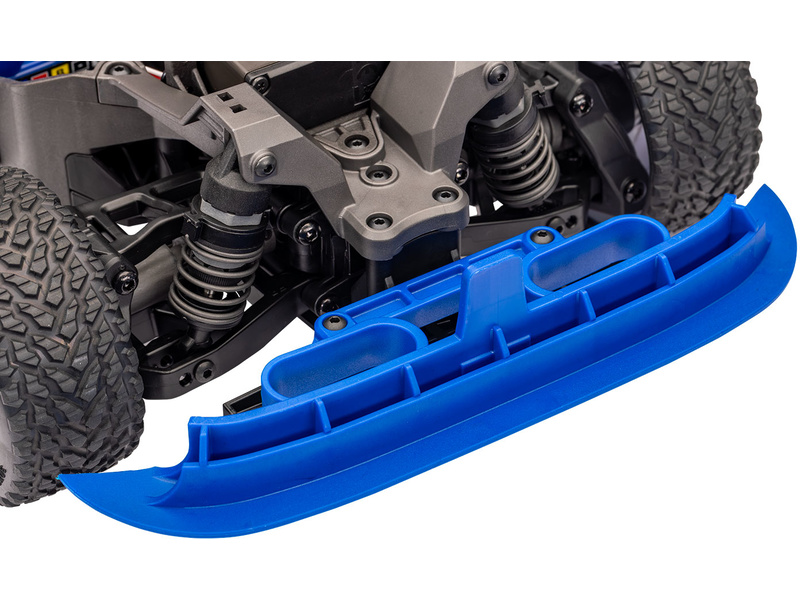

- protective front spoiler and rear bumper;
- 2S LiPo battery and USB-C charger are included.
Note: Please refer to the user manual for water resistance specifications. For tips and tricks on wet operation, please visit the blog.

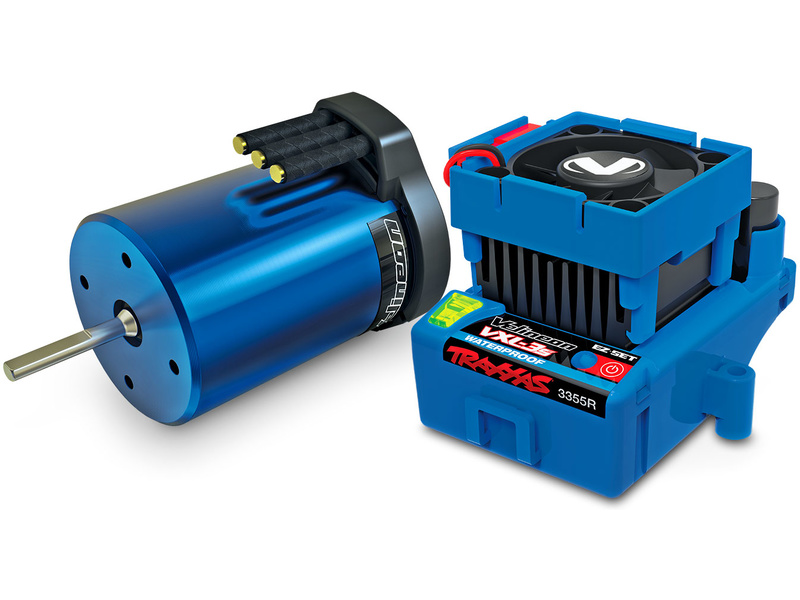

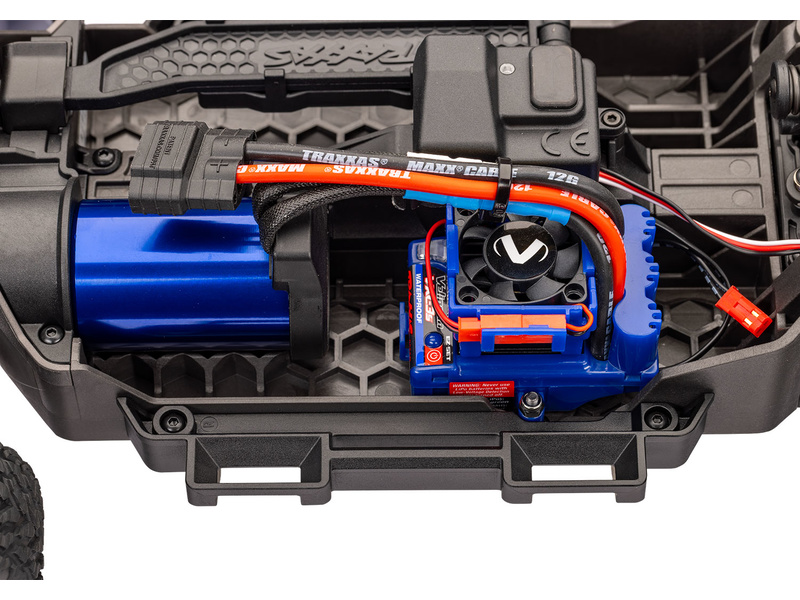

VXL-3s drive from larger models
The Velineon VXL-3s brushless drive system is at the heart of Traxxas' fastest and most powerful 1:10 scale models. For the first time ever, this extreme drive is installed in a compact small platform. The result is amazing acceleration and a top speed of up to 90 km/h.

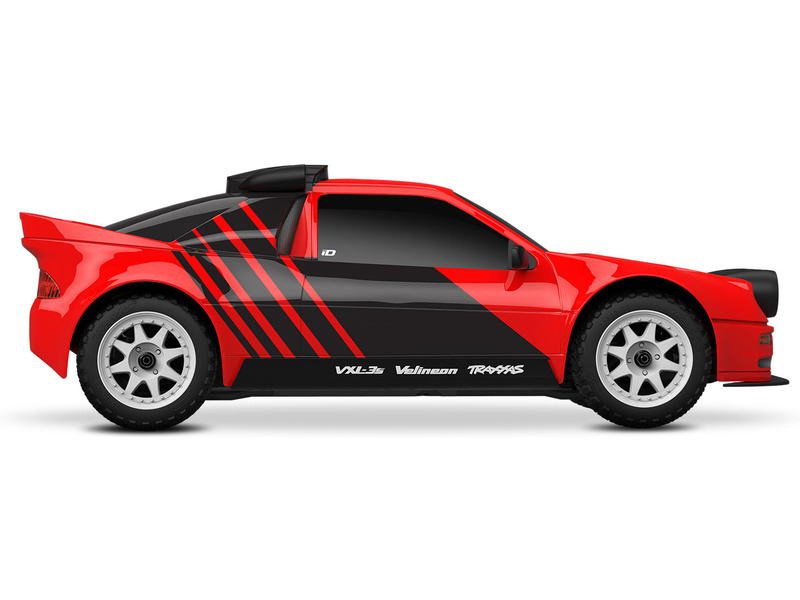

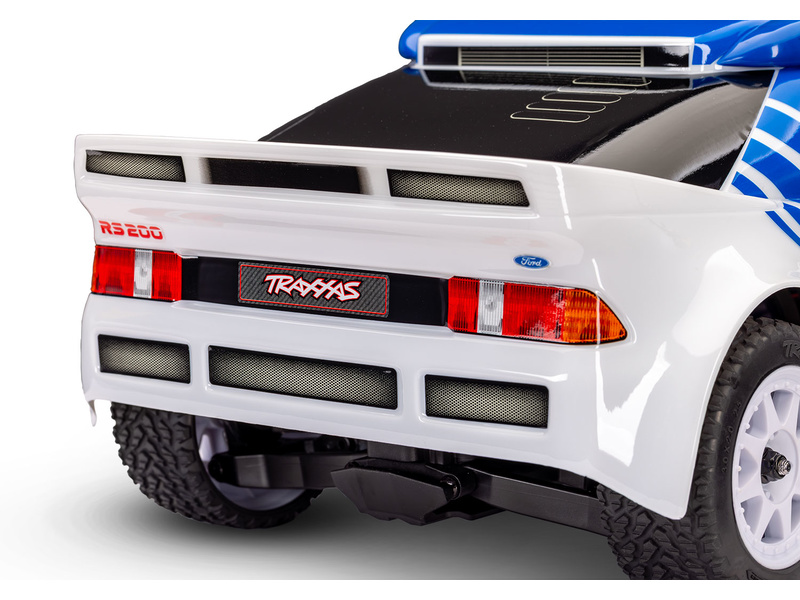

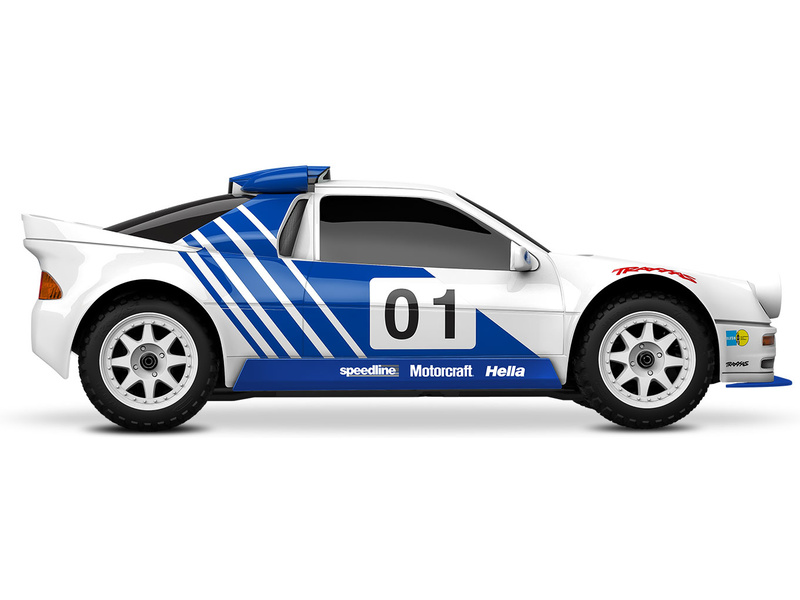

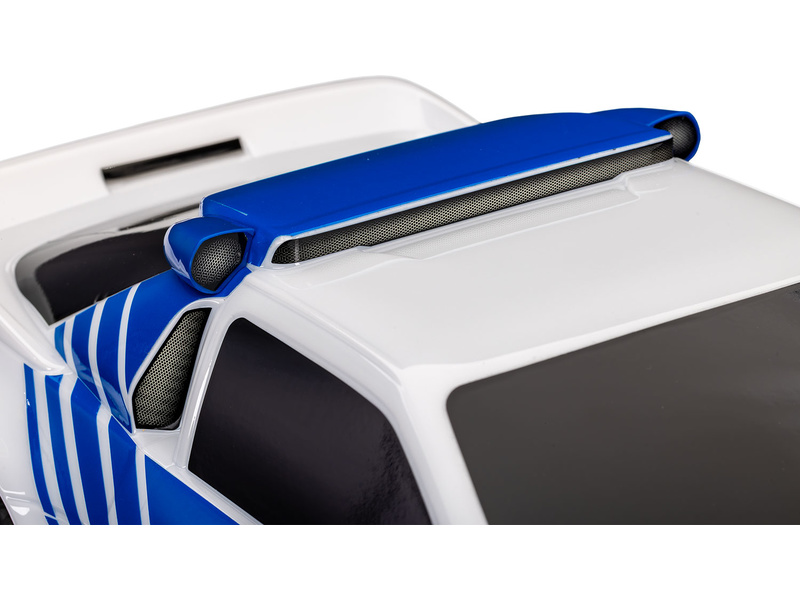

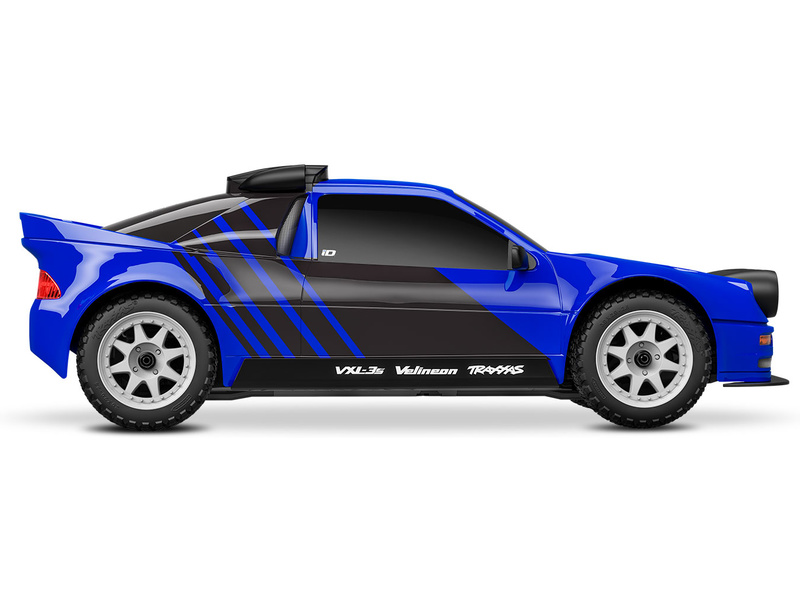

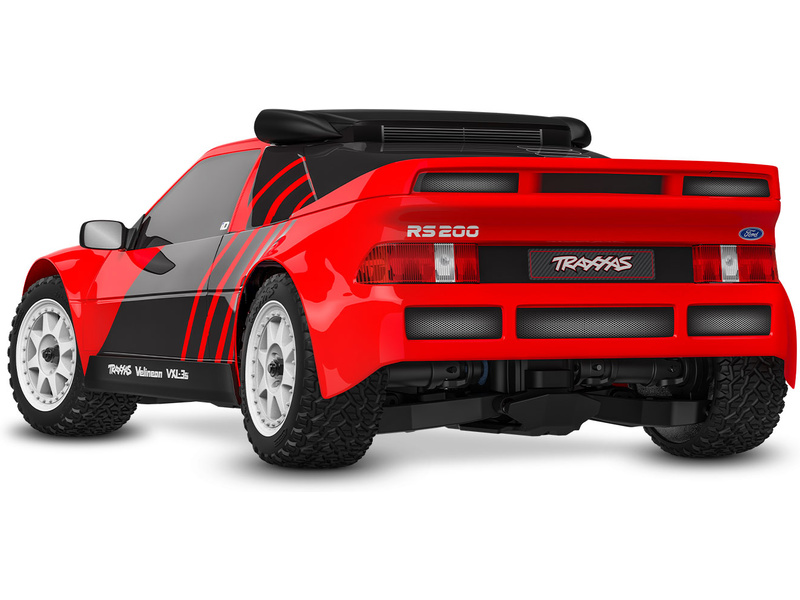

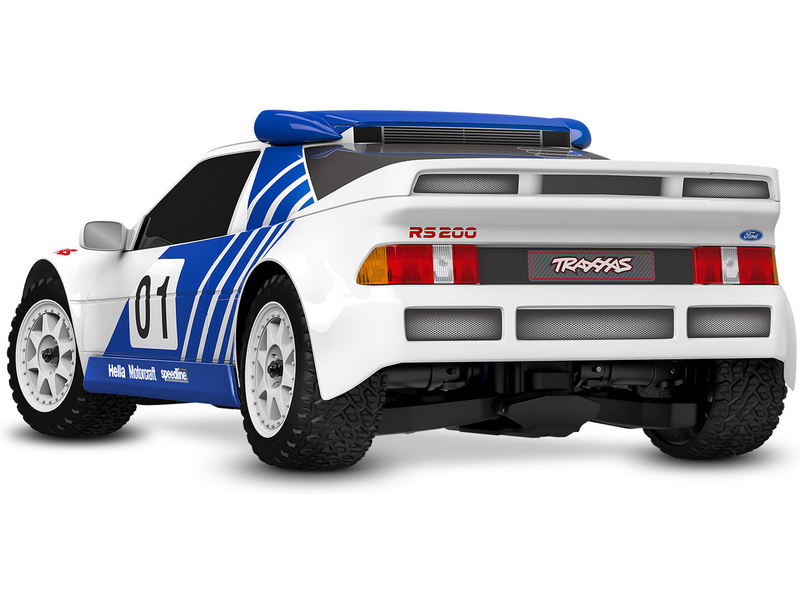

Licensed bodywork
The innovative clipless body mounting system is durable and easy to use. Simply place the body on the chassis and snap it in. When it's time to replace the battery, press the latches on the sides and the body lifts up.

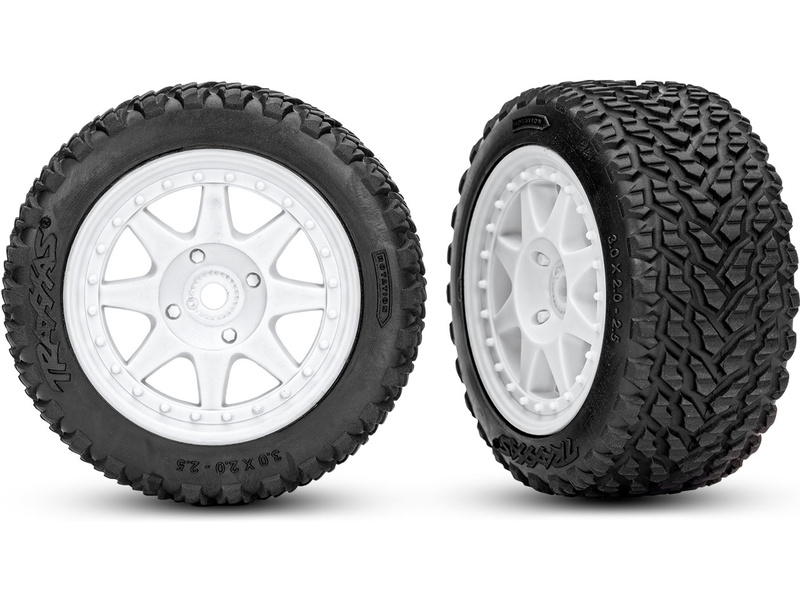

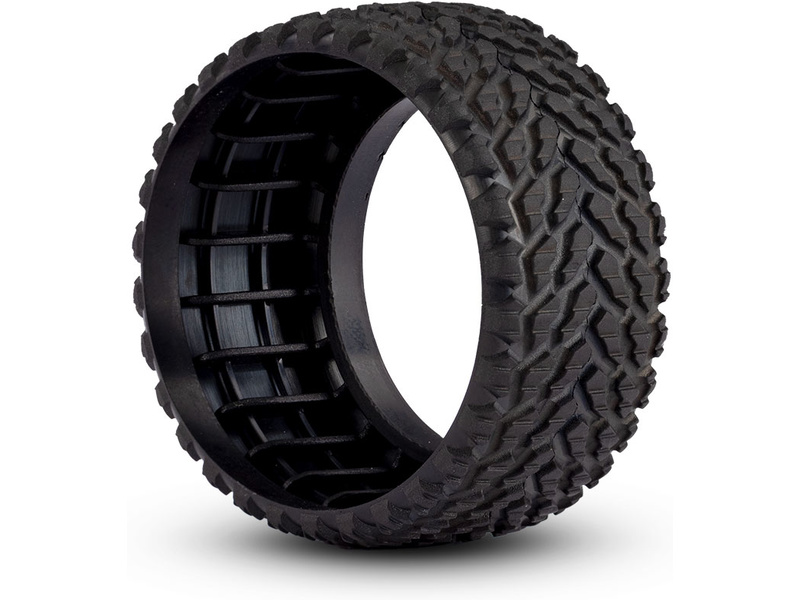

Tires without foam insert
The Mini Rally uses all-new tires for exceptional traction on most surfaces, which now feature internal ribs instead of the classic foam insert. So you can enjoy riding in wet conditions without worrying about the foam insert getting soaked and deformed by water.
Modular construction
The modular design allows for easy disassembly of the front or rear chassis. This gives you convenient access to easy service and model adjustments in just a few minutes. The modularity of the car chassis greatly simplifies maintenance.
Sliding plates
The chassis is protected by skid plates that can be easily replaced if damaged. The plates protect important drive components from damage while complementing the clean lines of the chassis, which will not get caught on obstacles.
Precise proportional (continuous) control
The front wheel steering mechanism is implemented via a Dual-Bell-Crank system, which ensures precise operation of the linkages to the wheels and reduces the bump steering effect. The steering has an integrated cam servo-saver that protects the servo against overload. For long service life, a standard-sized servo with metal gears is used.

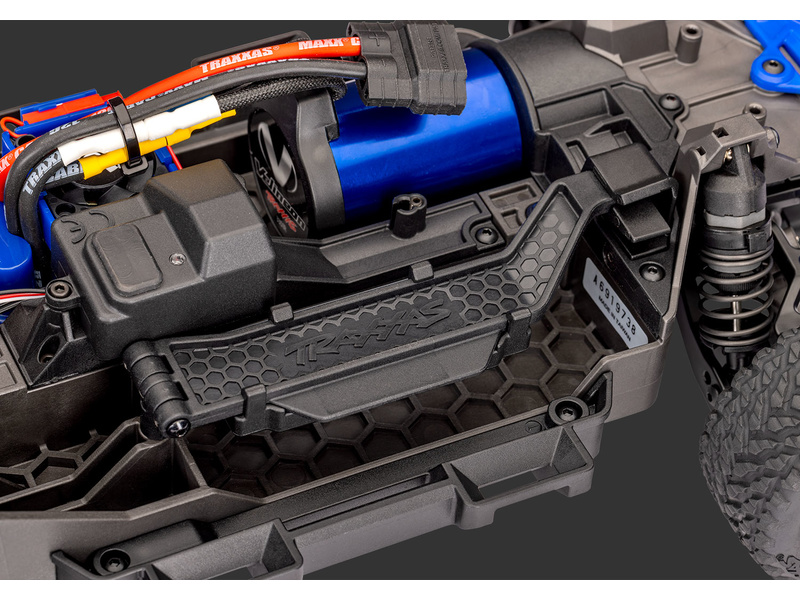

Battery compartment
The battery is housed deep in the chassis for a lower center of gravity and maximum protection. A latch system ensures easy and quick installation and removal.
Oil shock absorbers
The 1:10 high-travel oil shocks use dual X-rings for a perfect seal and smooth operation. The robust design combined with a high oil volume can absorb even hard impacts in rough terrain. You can tune the shocks to your liking by adjusting the springs and changing the oil viscosity.
Waterproof construction
The model uses a number of patented solutions that reduce the risk of water entering the electronics.

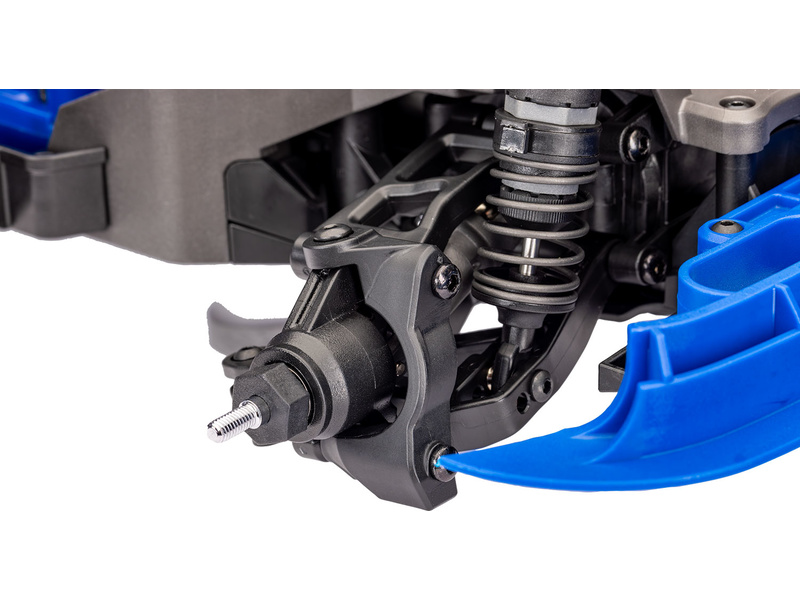

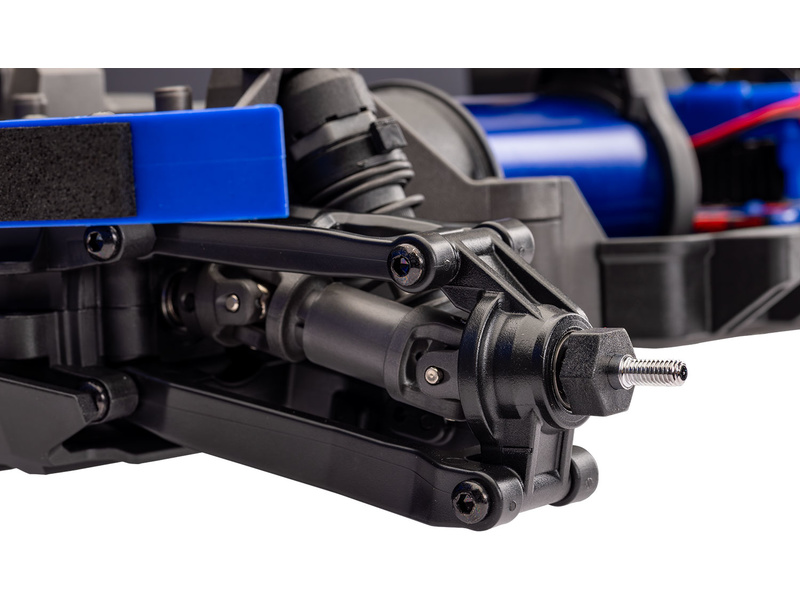

Suspension arms
The double wishbone suspension maintains proper geometry throughout the entire range of motion. It is designed to Maxx standards with more material in exposed areas.
Inter-tooth clearance
A solid motor mounting system with pre-drilled holes according to the gear ratio ensures the correct tooth clearance. The gears always fit together precisely.

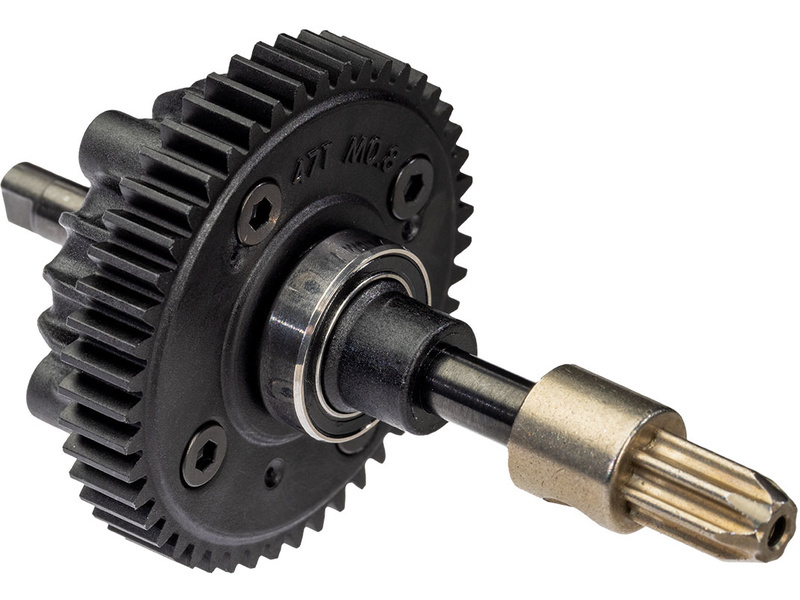

Center differential
The sealed center differential absorbs engine shocks and allows tuning by changing the oil viscosity. It is factory-filled with thick oil, which reduces front axle load and ensures stable power transfer.

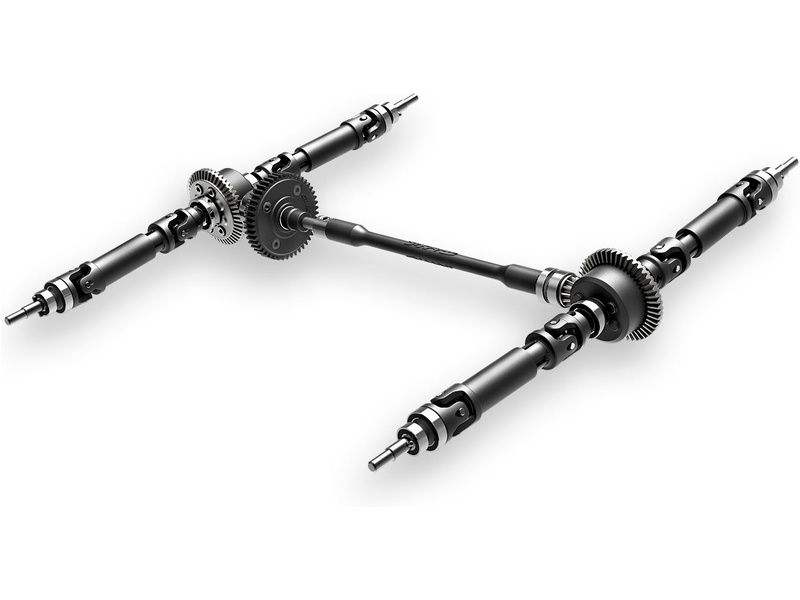

Planetary differentials
The 4WD system distributes power to each wheel using front and rear planetary differentials. The differentials are twice as large as those in 1:16 models. Silicone seals and X-rings allow for fine-tuning of the degree of adhesion using silicone oils of varying viscosity.
Ball bearings
Large ball bearings are used throughout the drive system for smooth operation. The bearings are covered with a plastic cover to keep dirt out. This extends the life of the bearings and simplifies maintenance.

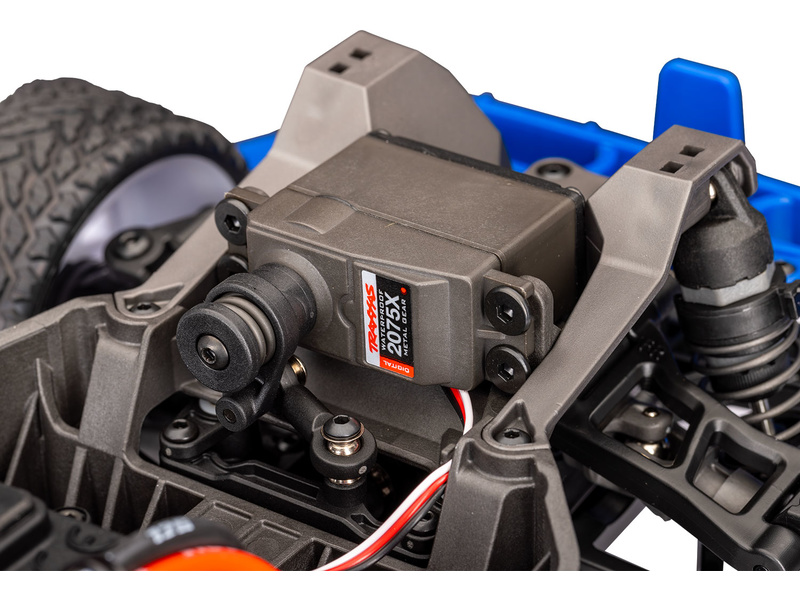

Power steering
The model is controlled by a Traxxas 2075X High-Torque digital servo. The servo is equipped with two ball bearings on a milled shaft and metal gears for maximum durability.
Velionen 550-3500kV AC motor
The Velineon 550-3500kV brushless motor delivers extreme power with almost zero maintenance. Strong and temperature-resistant neodymium magnets, high-speed bearings and 4-pole winding ensure smooth operation and long life. The rotor is dynamically balanced and wrapped in Kevlar fabric for increased strength.

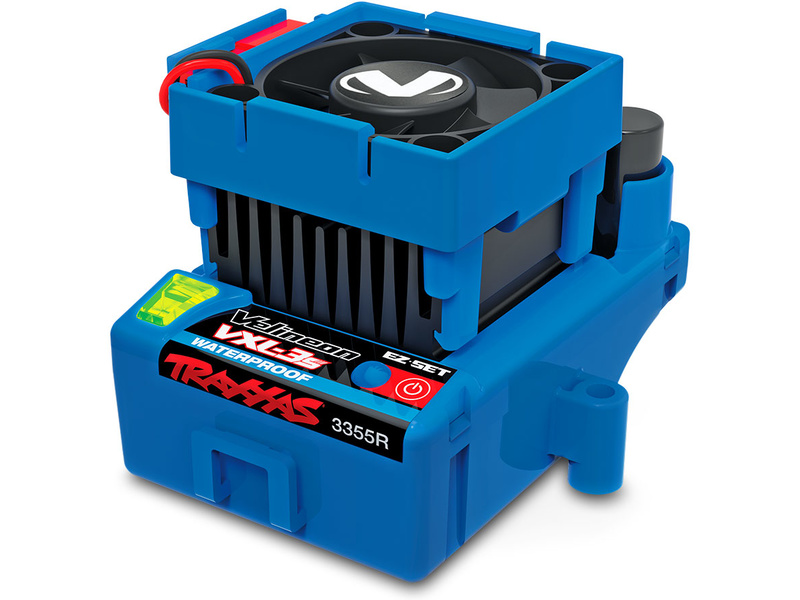

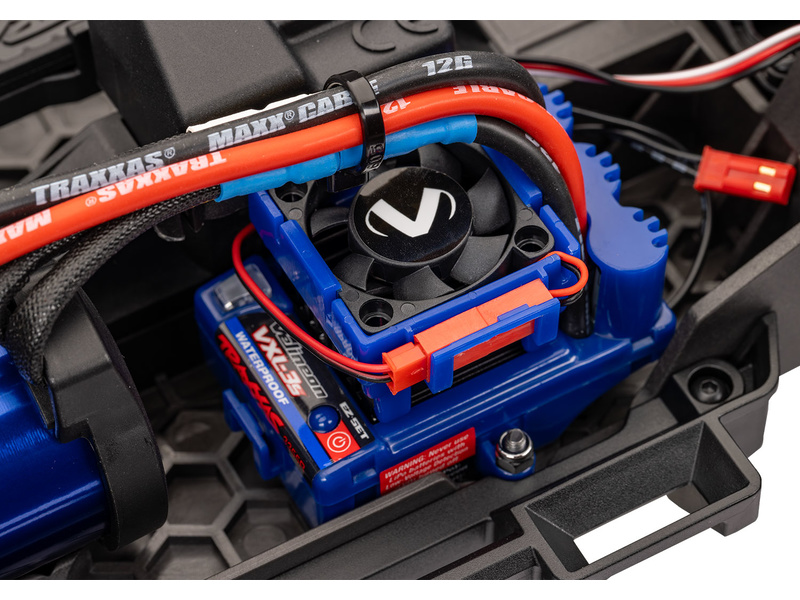

Traxxas VXL-3s V2 electronic controller
Waterproof electronic controller Traxxas VXL-3s V2 with three driving modes, support for modern high-capacity LiPo batteries and easy control with the EZ-Set button. The VXL-3s V2 controller is equipped with a training mode that limits power to 50% of the maximum.
Thanks to this, novice drivers or children can gradually get acquainted with the features of the model and prepare for the full power of the car. Thermal protection, gold-plated connectors, simple operation and intuitive signaling with a two-color LED. VXL-3s V2 controller modes:
- Sport – default mode, possible to drive forward, brake and reverse.
- Race – a mode suitable for racing. Forward and brake are possible; reverse is not available.
- Training – a mode suitable for children or beginner riders. Forward driving is possible with a power limit of 50%, braking and reverse driving are also possible with a power limit of 50%.
Traxxas TQi Bluetooth Ready RC Kit
Traxxas has prepared a completely new line of RC kits with Bluetooth connectivity for you. The Bluetooth module (sold separately) allows you to connect the RC model with the clear graphical Traxxas Link application, which you can install on your Smartphone for free. The Traxxas Link application for Apple devices is available for free on the AppStore, the application for Google Android devices is free on GooglePlay.
The Traxxas Link App is a powerful app that gives you complete control over the operation and tuning of your Traxxas RC model with stunning visualization and absolute precision settings. Traxxas Link can display real-time telemetry data provided by the model, such as speed, RPM, temperature, battery voltage and tilt of the model.
You can share RC model settings, create any number of profiles for a specific track or user, e.g. children. All in an app with brilliant graphics. Telemetry options vary by model. Telemetry sensors may need to be installed to obtain telemetry data. Compatible parts. More information about installing telemetry here.

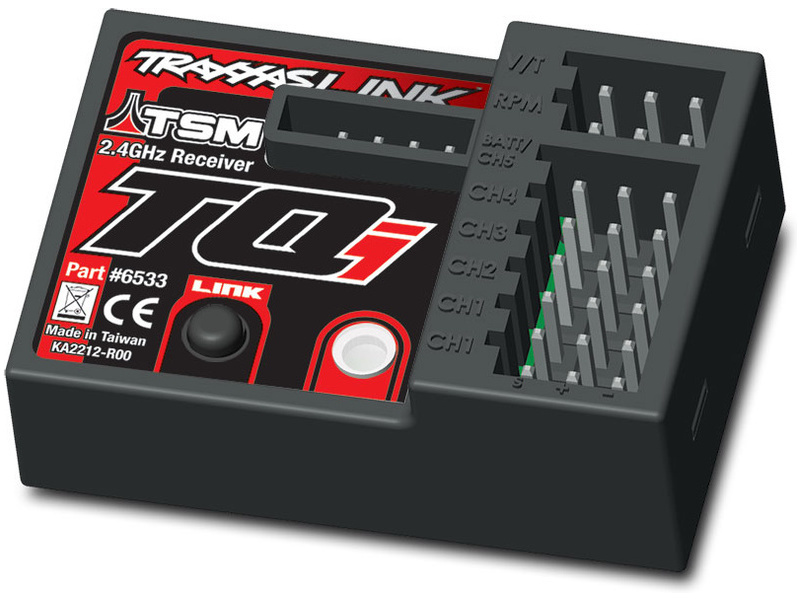

Traxxas TQi receiver
The 5-channel Traxxas TQi TSM receiver is characterized by its simple operation. Pairing is done with a button, the status is indicated by an LED. The receiver has integrated three-axis MEMS sensors for learning the receiver's position.
The receiver is also equipped with two connectors for connecting telemetry sensors RPM (speed) and V/T (voltage/temperature). Furthermore, a telemetry expansion module can be connected to the 4-pin connector, into which you can connect up to 6 sensors, including a very accurate GPS speed sensor.
Traxxas Stability Management
Traxxas Stability Management (TSM) not only allows you to experience power, speed, acceleration and cornering at extreme speeds, but also ensures much easier steering and control on slippery surfaces such as dust, smooth concrete or even ice and snow.
The receiver contains a three-axis gyro and an accelerometer, which evaluates the movement of the model 100 times per second and corrects the direction of the model by appropriate interventions in the steering of the front wheels. Traxxas TSM does not limit the engine power, you have 100% control over its performance. The algorithms are tuned for each model separately. The level of assistance is set using the multi-function controller on the transmitter, or in the Traxxas Link application.

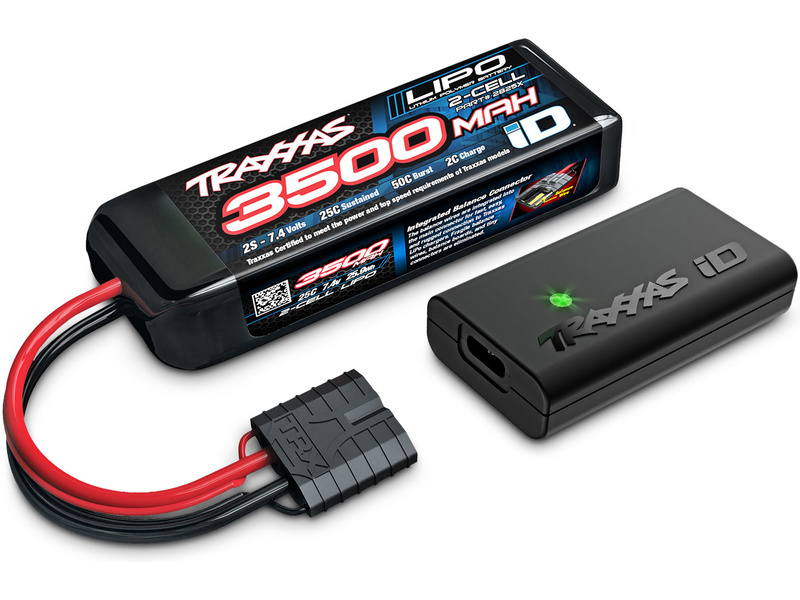

Battery and USB-C charger
The package includes a specially made 2S LiPo battery with a capacity of 3500 mAh for this model, which has small dimensions and a large capacity for a long operating time. The battery can be easily and safely charged using the included USB-C charger.
Package contents
The package contains a fully assembled 1:12 scale Traxxas Mini Rally Ford RS200 RC car model with installed components: Velineon 3500kV 4P brushless motor, Velineon VXL-3s V2 brushless controller, Traxxas 2075X High-Torque servo and Traxxas TQi TSM receiver.
The package also includes a 2-channel Traxxas TQi 2.4GHz Bluetooth Ready transmitter, a Traxxas 2S LiPo battery with a capacity of 3500 mAh equipped with a Traxxas iD power connector, a Traxxas USB-C 20W charger, Allen keys (1.5mm, 2.0mm, 2.5mm), a cross wrench, pistons and spring washers, an optional pinion, a CZ manual and an EN, DE, FR, SP manual.
Must be purchased
To operate the model, it is necessary to add 4 AA batteries (pencil batteries) to power the transmitter.
Accessories for normal operation
For normal operation of a Traxxas RC car, you will definitely need screw glue, high-quality tire glue, silicone oil for shock absorbers, and a set of Allen screwdrivers. From our range, we recommend an affordable tool set for Traxxas/ECX/Vaterra cars.
Screw glue is applied to the thread or head of the screw, which fixes it and prevents vibrations caused by driving from loosening the screw connection. Screw glue has a special composition that allows easy loosening of the screw connection with an appropriate torque without damaging the screw head. Never use ordinary superglue, a screw glued in this way may be impossible to loosen at all! We recommend Fusion medium-strength glue from our offer.
Tire glue is used to glue tires to the rim of the wheel. It is always necessary that the tire is firmly glued to the wheel rim around the entire circumference! If the tire is not glued around the entire circumference, it may burst. Tire glue has a special composition that is able to glue materials such as rubber or nylon and at the same time the glue is flexible after hardening. Never use ordinary instant glue - it is not flexible after hardening and cracks would gradually form in the tire around the rims! We recommend Corally Tire Fix glue from our offer - see recommended accessories.
Sometimes it is necessary to add silicone oil to the model's shock absorbers. During normal operation, only slight silicone oil leaks occur along the shock absorber piston rods. If the surface of the shock absorber piston rods or the condition of the seals is in poor condition, the oil leak can be large. So-called repair kits are available for these cases. The tuning parts offer includes piston rods with an extremely hard TiN (titanium nitride) coating for all shock absorbers. Piston rods with a TiN coating can be easily recognized by their golden-green color. From our range of silicone oils, we recommend TLR, Traxxas, Medial Pro silicone oils - see recommended accessories.
