ARF kit of a 3D aerobatic aircraft with a wingspan of 1974 mm, designed for electric or combustion engine power. Very lightweight construction, with many carbon parts.
Extreme Flight aerobatic models are loosely based on real aircraft, with the designer making a number of modifications to create a model with a unique appearance and flight performance. The EXP designation has no connection to a real aircraft; it is an abbreviation of “Experimental Progressive”. This designation was chosen because Extreme Flight models use several advanced construction and aerodynamic concepts.
The lightweight construction is based on balsa and plywood parts, with carbon- and glass-composite materials used generously—and in the right places—to achieve high airframe strength and rigidity at minimum weight. The result is a robust model capable of handling aerodynamic loads across a wide range, yet light enough to deliver high performance.
The kit includes tuning wingtips, or Side Force Generators (SFGs), which increase the model’s effective side area, making knife-edge flight and other maneuvers that rely on rudder authority easier and more stable. These wingtips also make the model more stable during high-angle-of-attack maneuvers (harriers). We strongly recommend installing them on the model and experimenting with them.
The perfectly painted fiberglass motor cowl and aerodynamic wheel pants, together with the choice of several highly visible Ultracote (Oracover) iron-on film color schemes, give you a model you can rightly be proud of at the flying field. The combination of all these modern features creates a model that pushes the boundaries of modern aerobatic flight. Extreme Flight models excel in all disciplines of modern aerobatics, including low-and-slow 3D aerobatics, fast and aggressive extreme aerobatics, and classic precision aerobatics.
A sport semi-scale model of a German aerobatic aircraft, powered by a 3–4 kW brushless electric motor, for experienced pilots flying classic precision and extreme 3D aerobatics.

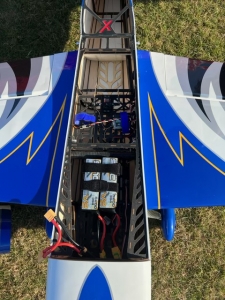

The fuselage has a traditional construction made from laser-cut plywood and balsa parts with composite reinforcements. It features a removable fiberglass motor cowl and a removable upper fuselage section with cockpit (with an aluminum quick-release system), providing excellent access to the power system and RC equipment. The motor is mounted at the rear on a plywood box mount.
The two-piece wing, with a symmetrical airfoil (the halves slide on from the sides onto a carbon tube joiner and are secured with an aluminum quick-release system), also has a traditional construction with a fully sheeted balsa skin. The large ailerons are operated by 2 independent servos. The supplied wingtips can be fitted to the ends of the wings.
The tail surfaces have a lightweight all-balsa construction. The horizontal stabilizer is in two pieces, with the halves sliding onto a carbon tube (and secured with an aluminum quick-release system). The elevator halves are operated by servos mounted in the rear of the fuselage with short, direct linkages; the rudder is controlled by cable linkages from a servo installed in the cockpit area. The entire model is covered with ULTRACOTE iron-on film (the brand name used in the USA for the well-known Oracover films).
The landing gear is of the taildragger type, with duralumin main legs, wheels with fiberglass fairings, and a wire tailwheel assembly with a carbon bracket linked to the rudder.
For power, you will need a 3–4 kW brushless electric motor (e.g. Xpwr 40ccm) with an ESC rated for at least 120 A, powered by an 8S–12S LiPo battery with a capacity of 3500–5000 mAh and a discharge rating of at least 40C.
A computer RC system with at least six channels is suitable for controlling the model. The ability to precisely adjust paired servos and program dual rates and exponential rates of the correct magnitude is essential for aerobatic flying—both classic precision and extreme 3D.
Fast, powerful standard-size servos are suitable—for example, Hitec HS-7985MG, D954SW, etc.
Package contents
The package contains an iron-on film-covered fuselage, wing and tail surfaces, a painted fiberglass motor cowl, a complete set of accessories, duralumin landing gear, a tailwheel assembly, wheels and instructions.
Notice: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aircraft (traditional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). Further information is available here: Registration of drone operators and pilots.
| Wingspan [mm] | 1974 |
| Length [mm] | 2045 |
| Weight [g] | 6350 |
| Wing area [dm2] | 79 |
