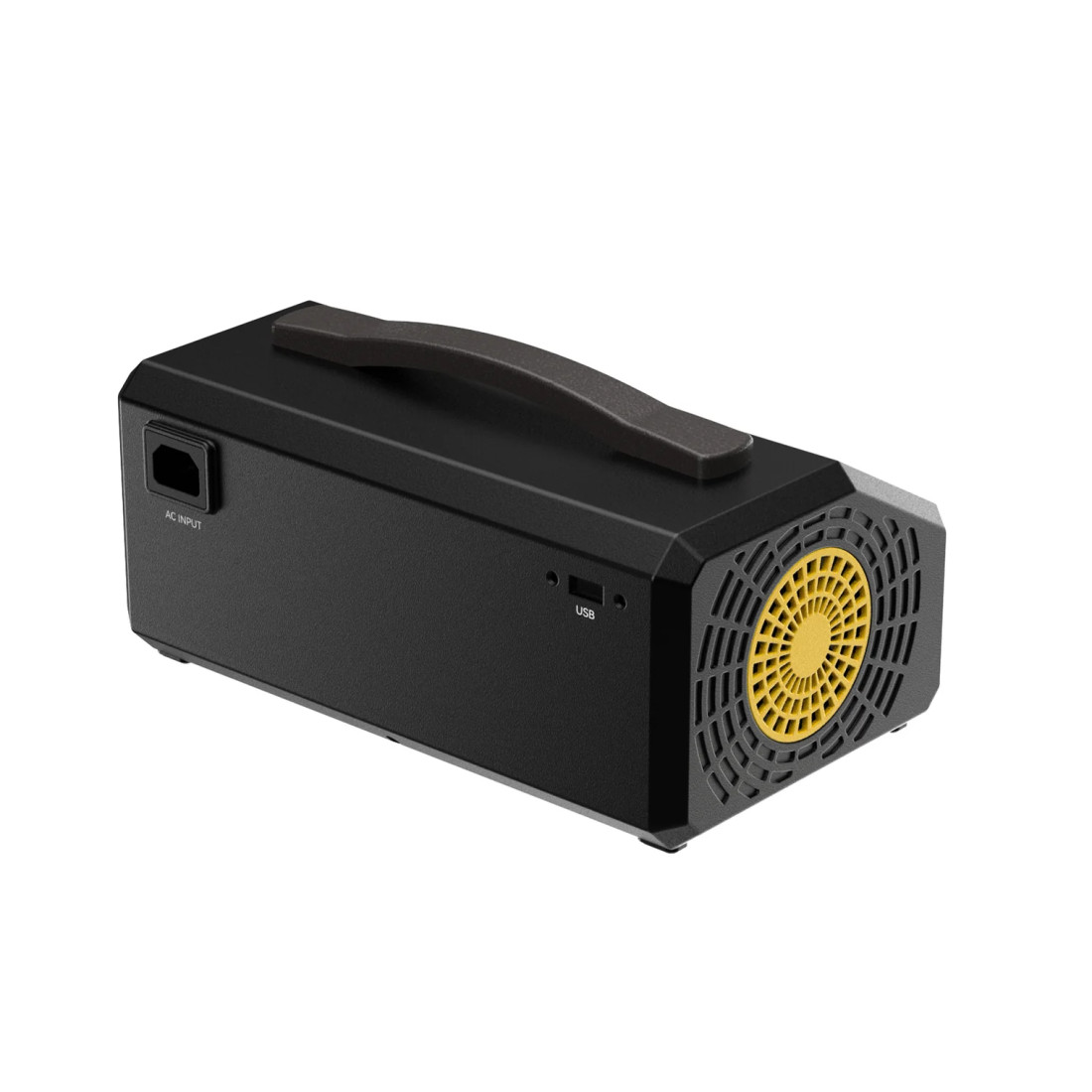

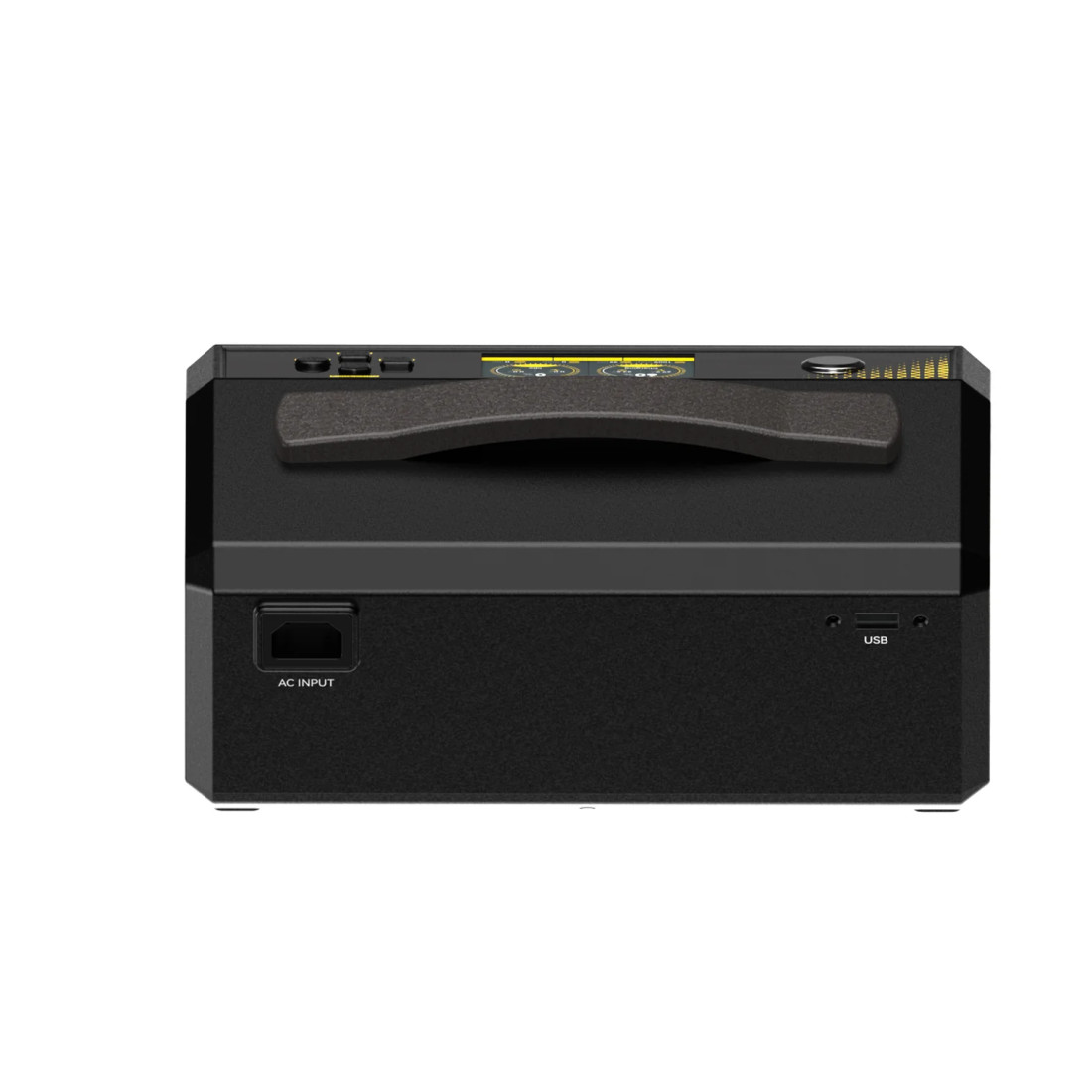

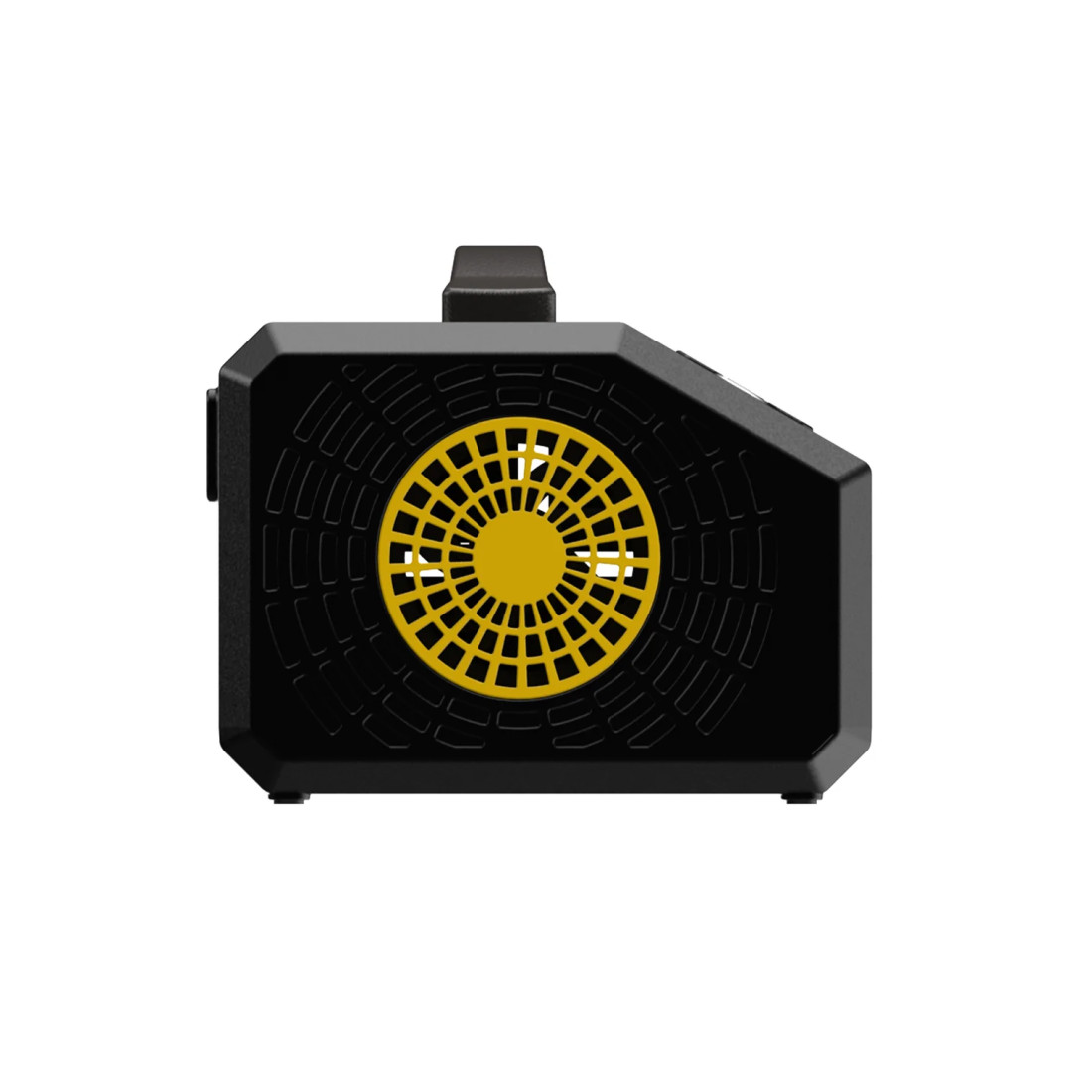

Nabíječ TATTU TA1500 Dual-Channel Smart Charger 30A / 1500W | For 6-14S LiPo/LiHV/LIUHV

The TA1500 dual-channel intelligent charger is a professional charger for charging your batteries. It is a new type of charger with a wide voltage range of AC 90-264 V, 50/60 Hz, which provides an output power of up to 1500 W and a maximum charging current of 30 A. The charger is equipped with comprehensive safety features: protection against overheating, overcharging, cable disconnection and a fast battery balancing function.

After connecting the TATTU smart battery, the charger automatically identifies the battery information and reads the relevant parameters, starting charging without the need for manual settings by the user. During charging, the charger continuously monitors the battery status in real time and automatically stops charging when fully charged, ensuring a safe and reliable charging cycle. The TA1500 is also compatible with other types of batteries. Users set the charging current and operating mode to start charging.

Features

• The dual-channel charger is designed for 6-14S LiPo/LiHV/LIUHV batteries.
• Plug-and-play intelligent battery detection

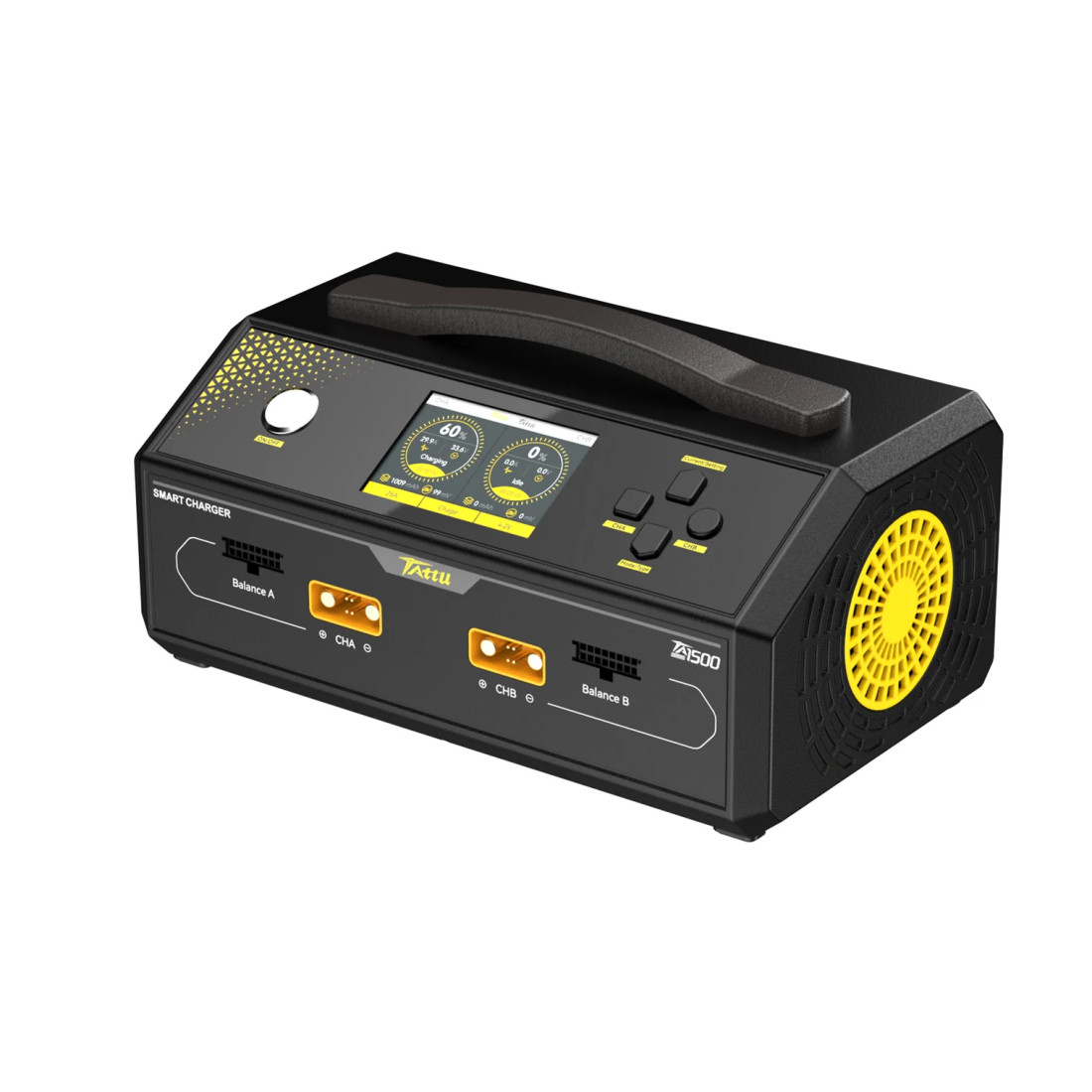

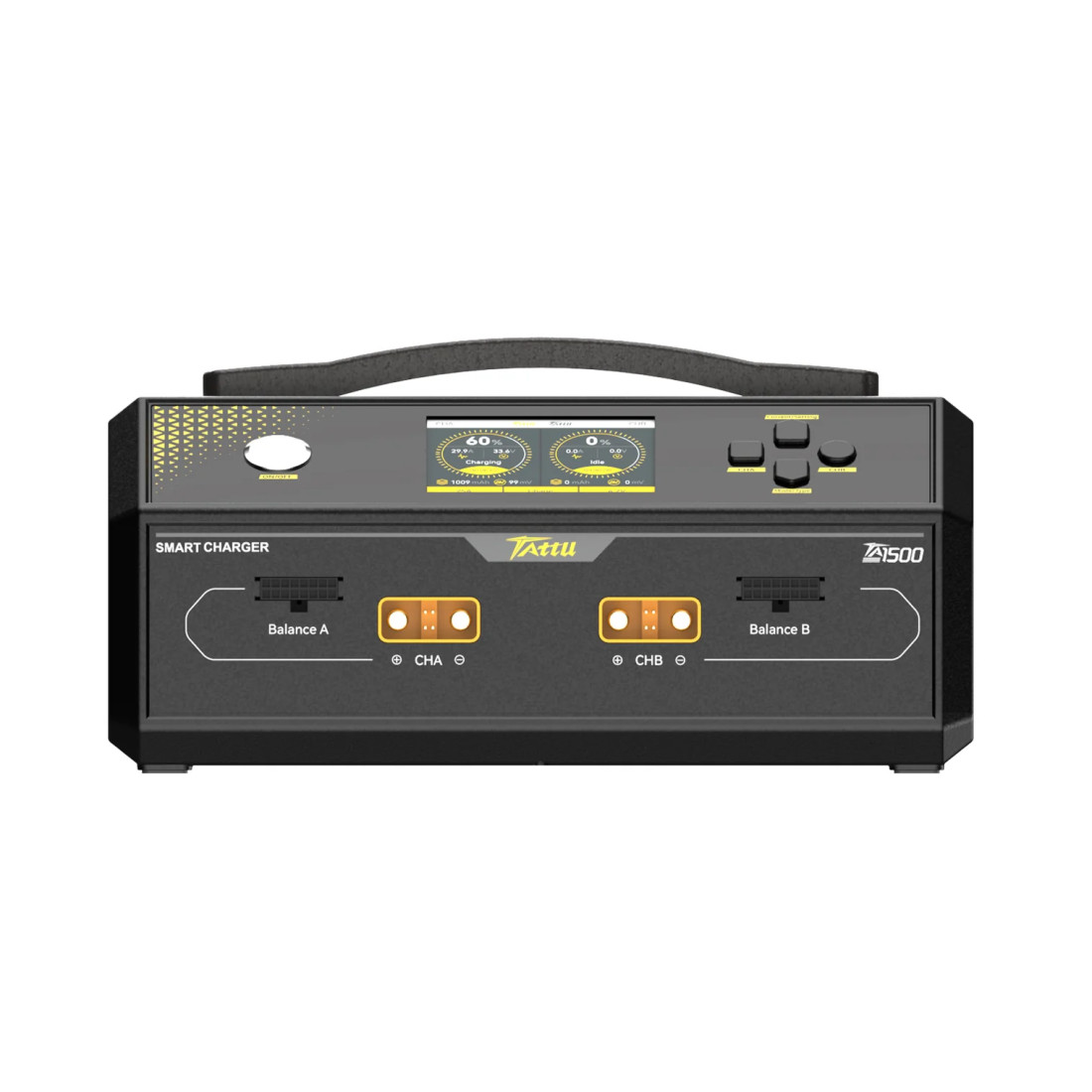

• Large split-channel LCD display showing real-time cell voltage and arrows indicating highest and lowest cell voltage

• User interface with push-button control for current setting, mode selection and Start/Pause function

• Firmware update via USB-C, device self-test, channel calibration and communication speed switching (1 MHz or 500 kHz)

• Adjustable device parameters for language, volume, audio termination, and capacity limits

Function

• Smart pairing: Plug in and charge your batteries. The charger recognizes the capacity and number of cells in your battery.
• 2 channels: Flexible charging
• Charging and Storage: Cell Care
• Wide Compatibility: Compact and portable
• Improved interface: Visible data
• Continuous protection: Automatic stop when fully charged

Specifications

1. Input voltage: AC 100-240V 50/60Hz
2. Output voltage: DC 20~65V
3. Charging current: max. 30A*2
4. Input current: AC 10A (MAX)
5. Standard charging mode voltage: LiPO:4.2V LiHV:4.35V
6. Maintenance mode voltage: LiPO3.8V, LiHV: 3.85V, LIUHV3.9V
7. Operating temperature: 0~45°C
8. Storage temperature: -20~60°C
9. Dimensions: 276x166x119mm
10. Weight: approx. 3.5 kg
11. Supported battery types and number of cells: LiPo/LiHV/LiUHV 6-14S Soft Pack and Tattu Smart Battery
12. Included accessories: Input cable / USB cable
