Product Description
-
Technical Data:
Product Description

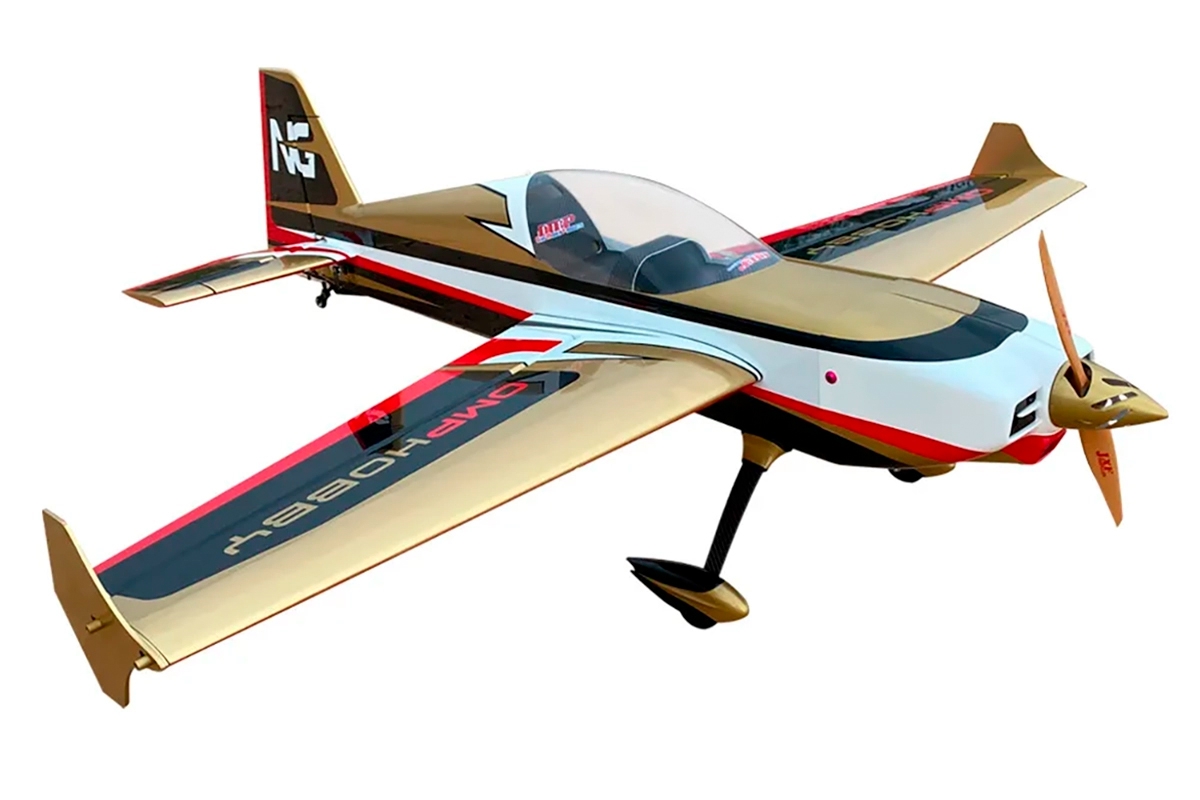

OMP OMPP011GLB - Extra NG 1.7m ARF (Gold)
ARF kit of a 3D aerobatic special with a 1700 mm wingspan, designed for an electric brushless motor with an output of at least 2000–2600 W, powered by a 6S LiPo battery. Very lightweight construction made from parts reinforced with Kevlar and carbon, with many carbon parts.
This sport semi-scale aerobatic aircraft is intended for experienced pilots who want to fly both classic and extreme 3D aerobatics.
The model fuselage is of conventional construction, made from laser-cut plywood and balsa parts reinforced with Kevlar and carbon. The removable fiberglass motor cowl and removable upper fuselage section with cockpit provide excellent access to the power system and RC equipment. The motor is mounted in a rear-mount configuration on a plywood box mount.
The two-piece wing with a symmetrical airfoil (the halves slide in from the sides onto a carbon tube joiner and are secured with screws) is also of conventional construction, with a rigid all-balsa skin. The large-area ailerons are controlled by 2 independent servos. The wingtips can be fitted with the included SFG wingtips.
The tail surfaces are of lightweight all-balsa construction; the horizontal stabilizer is a single piece, with the stabilizer bonded into the fuselage. The elevator and rudder are controlled by servos mounted in the rear fuselage section using short, direct pushrods.
The entire model is covered with iron-on Ultracote film (the trade name used in the USA for the well-known Oracover films).
The landing gear is of the taildragger type, with carbon main legs, wheels with fiberglass wheel pants, and a wire tailwheel with a carbon bracket linked to the rudder.
For the power system, you will need a brushless electric motor with an output of at least 2000–2600 W (e.g. Kavan PRO 7025-510, Sunnysky X6215-420, etc.) and a speed controller rated for at least 120A. Power is supplied by a 6S LiPo battery with a capacity of 4000–4500 mAh and a discharge rating of at least 40C.
A computer RC system with at least four channels, allowing you to program dual rates and exponential rates to the appropriate values, will be suitable for controlling the model.
Fast, powerful standard-size servos are suitable – e.g. Kavan GO-1053MG for recreational flying, or Kavan GO-1070MG, MKS HV777A+, HBL380, etc. for 3D aerobatics.
Package contents
The package contains the fuselage, wing and tail surfaces covered with iron-on film, a painted fiberglass motor cowl, a complete set of accessories, carbon landing gear, tailwheel, wheels and instructions.
Notice: In accordance with Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aircraft (conventional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). Further information is available here: Registration of operators and pilots.
Technical Data:
| Wingspan [mm] | 1700 |
| Length [mm] | 1715 |
| Weight [g] | 3800 |
| Wing area [dm2] | 57,6 |
| Building difficulty | S1, S2 |
| Pilot skill level | P3, P4 |
| Controlled functions | S, V, K (2), M |
