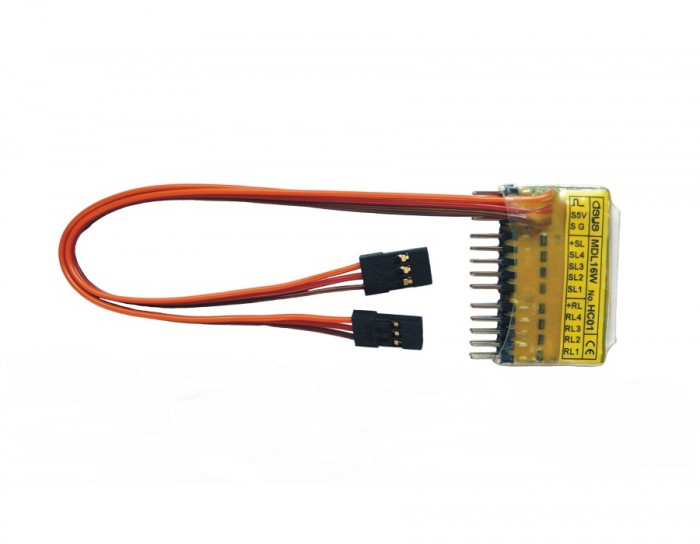

MDL16W Lighting Controller

Type W resistant to splashing water, snow, humidity and dust. MDL16 – Universal RC Model LED Lighting Controller: Car, Boat, Plane, BUS, TIR, Tractor, Tank, Dinghy, Sub, Glider.

Properties

• 8 preset modes (3× car, 3× boat, 2× plane), 1× user settings

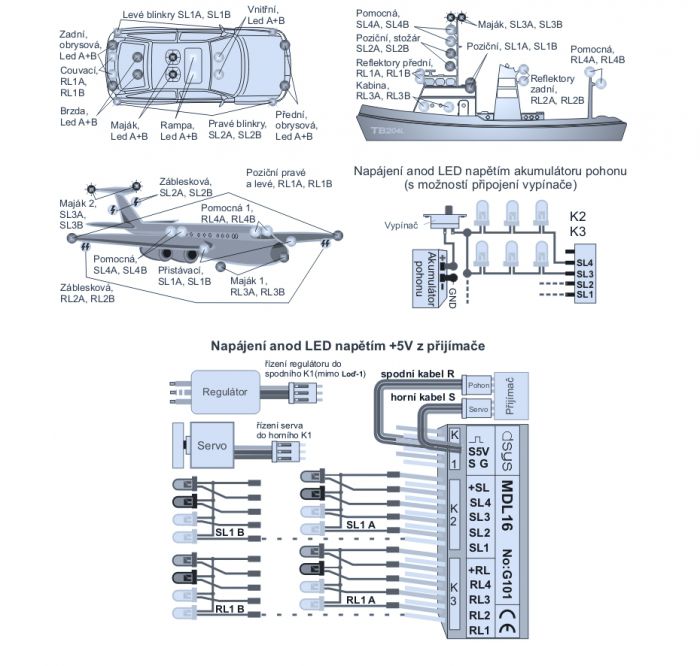

• CAR, TRACK, TANK: right/left blinkers, headlights, rear and reversing lights, roof lights and beacons, hazard warning lights, lights bar
• BOAT, SAILBOATS, SUBs: position lights, navigation lights, cabin and auxiliary lights
• AIR PLANE: position lights, anti-collision lights, landing and taxi lights
• Fast, Easy and intuitive parameters setup
• 16 controllable outputs for LEDs (20 mA)
• 1 or 2 channels control (Stick, Wheel, Switch – by position or by number of state changes)
• LED activity: no light, light, slow blinking, fast blinking, 1× flash, 2× flash
• Hazard warnings lights and bar can be controlled with wheel
• LED Activity at fast power decreasing (Fwd direction)
• LED delay flashing
• LED light intensity SL4 a RL4 (5%, 10%, 25%, 50%, 100%)
• Fast, easy and intuitive parameters setup
• Acoustic signalling with small piezo siren
• Programming with stick or programmer (Card) MDP4

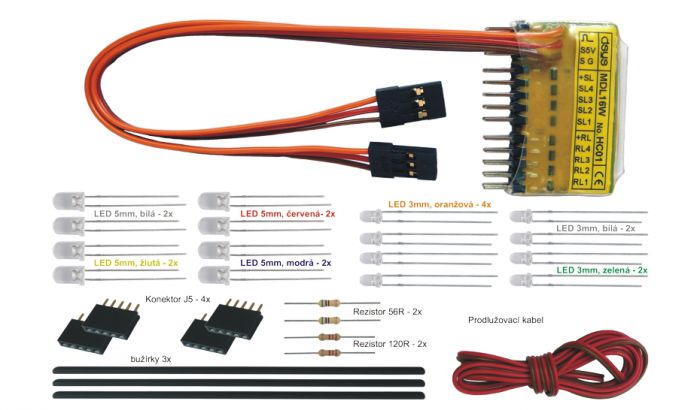

Package contents:

MDL16W (SW 5.3), User Guide, 8× super LED 5 mm (2× white, 4× red, 2× yellow, 2× blue/3,2 V), 8× super LED 3 mm (2× white, 4× orange, 2× green), 4× connectors, 4× rezistors, 3× Heat Shrink tube, 2 wire cable.

Quality:

All our products are undergoing series of tests to ensure high reliability, long lifetime and consistent safety.

Warranty:

Our product are guaranteed for 24 months under the conditions described in attached warranty certificate.

Servis:

We provides expert advice, warranty/expired warranty repair services.
