Kavan Vibe 1080mm (blue)

Price in e-shop with VAT: 155,33 €
Temporarily unavailable
Send a question
on availability
Send a question
on availability

35 years in business = safe shopping and professional service
Manufacturer: Kavan
Goods code: KAV02.8028
EAN: 8596450083202

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.

Send a question Watch availability
  • Product Description

  • Technical Data:

Product Description

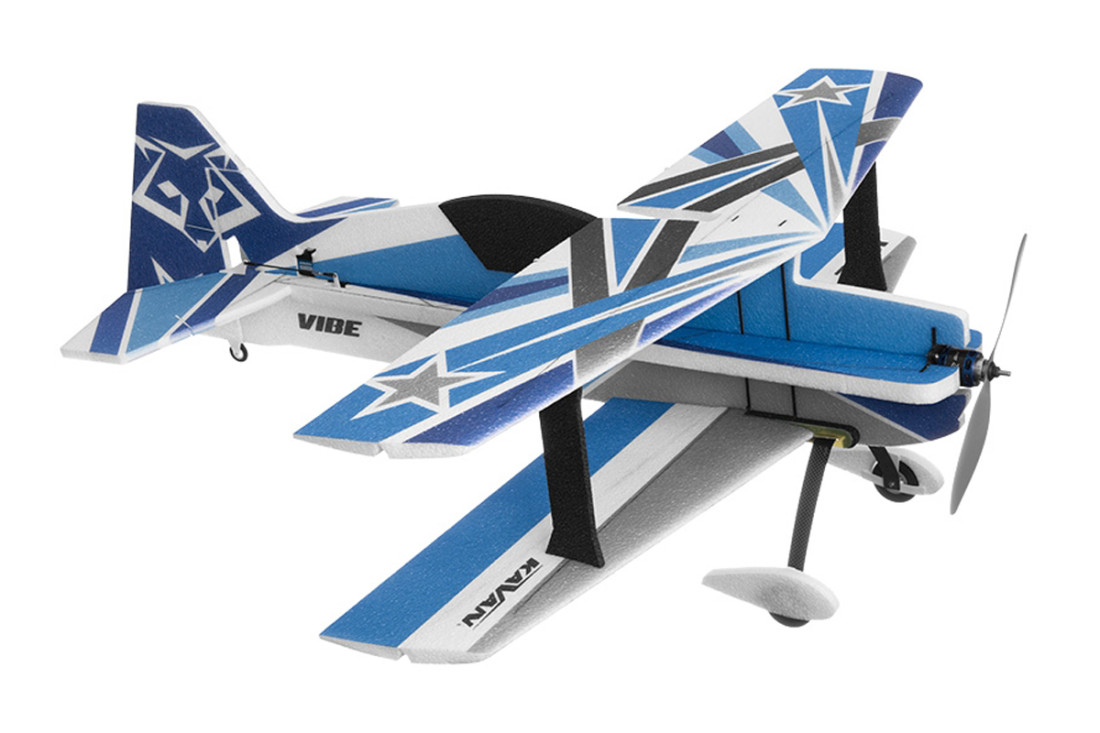

Kavan KAV02.8028 - Kavan Vibe 1080mm (blue)

Kit for a 3D aerobatic biplane park flyer with a 1080 mm wingspan, made from virtually indestructible EPP foam and thoroughly reinforced with carbon spars. The model is designed for brushless electric motors with an output of 350–500 W. Symmetrical airfoil wings and a fuselage with a large side area provide excellent performance in 3D maneuvers and knife-edge flight. Ailerons, rudder, elevator and motor speed are controlled.

Just a few hours with some CA glue is all it takes to complete this model, which can fly the maneuvers of a classic F3A sequence, hover on its propeller, and perform all the other 3D tricks! It is also suitable for less experienced pilots.

With reduced control throws, anyone with some aerobatic experience who can reliably perform a loop, stall turn and roll can fly it. Thanks to the model's low weight, crashes are less costly. EPP parts are also easy to repair!

The one-piece wings with large ailerons have a symmetrical airfoil and are reinforced with carbon spars. The lower wing is, of course, equipped with ready-made servo bays. The upper wing canopy strut, reinforced with plywood, is part of the fuselage. The interplane struts are made of carbon-reinforced EPP.

The fuselage has a profiled design, with a horizontal section thoroughly reinforced with carbon strips and a vertical section with a large side area for exemplary knife-edge flight performance. The well-designed construction includes a plywood motor mount secured to the fuselage with carbon strips. Servo bays for the elevator and rudder are built into the fuselage.

The tail surfaces are also made from carbon-reinforced EPP. The ailerons, rudder and elevator are operated by short carbon or steel pushrods. The main landing gear is made of carbon and has two lightweight wheels with EPP covers. The landing gear is attached to a fiberglass support plate with 2 screws. The tail skid, with a 3D-printed bracket and lightweight foam wheel, is linked to the rudder.

To control the model, you will need at least a 4-channel RC system, which should offer at least dual-rate and exponential control settings.

For casual recreational flying, standard analog micro servos with metal gears, such as Kavan GO-13MG, Hitec HS-65MG, etc., will be suitable. If you are serious about aerobatics, you should use powerful, fast digital servos with metal gears, such as Kavan GO-1013MG, Hitec HS-5065MG, etc.

For the power system, we recommend a Kavan PRO 3536-1000, Model Motors AXI 2814/16 V2 or similar brushless electric motor, with an APC 11×4,7SF propeller when powered by a 3S LiPo battery, or a 10×4,7SF propeller when using a 4S LiPo battery.

The ESC should be rated for at least 40 A. Especially if you use powerful, fast digital servos, it should have a high-performance switching BEC, such as the Kavan PRO-40SB or Kavan R-50SB Plus.

A LiPo battery3S–4St with a capacity of 1300–1800 mAh and a discharge rating of at least 40C is suitable for powering the model. VIBE was designed and is manufactured in the Czech Republic.

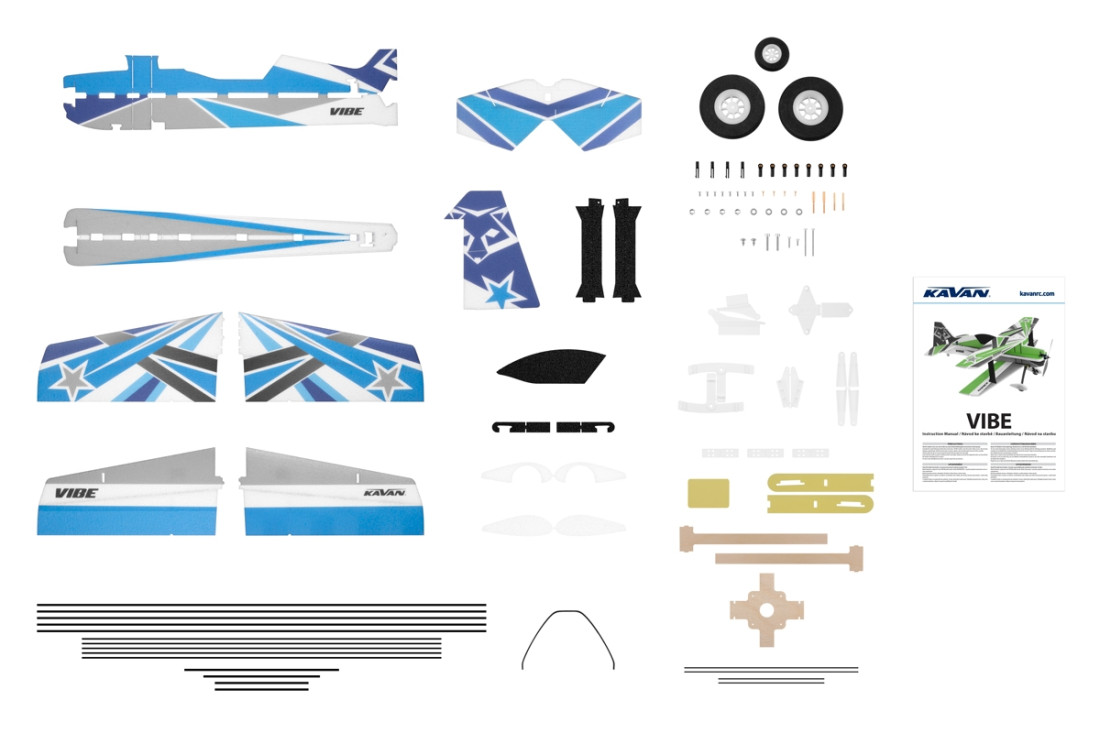

Package contents

The package contains printed EPP foam parts for the fuselage, wings and tail surfaces, landing gear covers, a plywood motor mount, 3D-printed plastic parts, carbon reinforcements, control horns, clevises, pushrods and other small accessories, carbon landing gear with lightweight wheels, and detailed illustrated building instructions.

Notice: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aircraft (conventional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). Further information can be found here: Registration of operators and pilots.

Technical Data:

Wingspan [mm] 1080
Length [mm] 1030
Weight [g] 750–800
Controlled functions S, V, K (2), M
Building difficulty S2
Flying skill level P2, P3
