Product inquiry
DUPLEX EX R18 + Rsat2 - CZ
Goods code: JDEX-R18-CZ
Set availability monitoring
DUPLEX EX R18 + Rsat2 - CZ
Goods code: JDEX-R18-CZ
DUPLEX EX R18 + Rsat2 - CZ
| Price in e-shop with VAT: | 229,51 € |
| Temporarily unavailable | |
|
|
Buy |
| Buy | |
|
35 years in business = safe shopping and professional service |
|
Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.
-
Product Description
-
Technical Data:
Product Description
JETI JDEX-R18-CZ - DUPLEX EX R18 + Rsat2 - CZ
18-channel full-range receiver, compatible with JETI EX & EX Bus protocols. Supports telemetry functions. Power is supplied via an MPX connector or standard JR connectors.
DUPLEX EX series receivers are designed for use with DUPLEX Tx series transmitter modules operating in the 2.4GHz band and are fully compatible with the previous version of the DUPLEX system. Fully digital, bidirectional communication between the transmitter and receiver opens up new possibilities in the field of model remote control. Key advantages include crystal-free operation, high interference resistance, range up to the limit of visibility, the ability to monitor the model's status at any time, and many other functions.
The RSat2 auxiliary receiver satellite is designed for R9, R10, R11, R12, R14 and R18 receivers. It is a fully featured DUPLEX system receiver with all the functions offered by the system. The RSat2 receiver does not output a conventional servo pulse, but only a PPM signal. The PPM signal can be processed by R9, R10, R11, R12, R14 and R18 receivers, or by compatible RC equipment that requires a PPM input.
The DUPLEX EX system is fully compatible with the previous version of the DUPLEX system.
Features:
PPM input (Sat1)
PPM input or output (Sat2)
JETI Duplex Rsat2 included

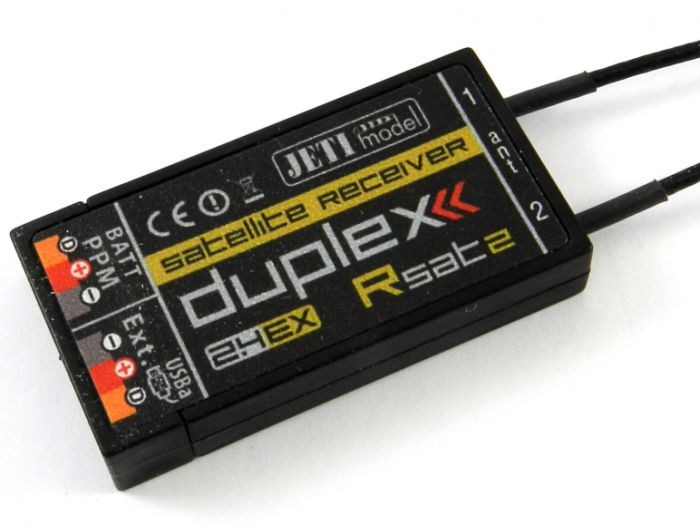

JETI Duplex Rsat2
16-channel satellite receiver that can be connected to the Sat1 or Sat2 connectors of the R18 receiver. Rsat2 offers PPM output on a single line.
Technical Data:
| Weight [g] | 30 |
| Dimensions [mm] | 62 x 38 x 16 |
| Number of channels | 18 |
| Telemetry | Yes |
| Operating temperature range [°C] | -10 ... 85 |
| Compatible protocols | DUPLEX 2.4GHz EX, EX Bus |
| Antenna length [mm] | 2 x 400 |
| Supply voltage [V] | 3,2 - 8,4 |
| Average current [mA] | 40 |
| Satellite receiver support | Yes |
| Max. output power [dBm] | 15 |
| Receiver sensitivity [dBm] | -106 |
