GRAUPNER Brushless Motor COMPACT HPD 4325-1425 - 18,5V
Goods code: 7792
Set availability monitoring
GRAUPNER Brushless Motor COMPACT HPD 4325-1425 - 18,5V
Goods code: 7792
GRAUPNER Brushless Motor COMPACT HPD 4325-1425 - 18,5V
We're sorry, but the product is no longer available for sale. Browse similar products sold in the category:
| Manufacturer: | GRAUPNER Modellbau | |
| Goods code: | 7792 | |
| EAN: | 4013389487344 | |
Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.
Product Description

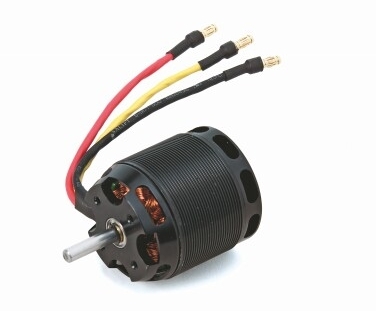

GRAUPNER Modellbau - GRAUPNER Brushless Motor COMPACT HPD 4325-1425 - 18,5V - 7792
Graupner HPD High-Performance Motors The new Graupner HPD external rotor motor series is ideal for use with both glider models and motorised models. Furthermore, the drive is particularly well suited to model helicopters.
Features:
New Graupner HPD motor series
High-precision production quality
Effective integrated cooling system
Finely ribbed surface for optimum heat dissipation
Delivery includes set of accessories
Operating instructions in German, English, and French
Technical data:
Connecting plug : G 3,5
Operating voltage range : 7,4...22,2 V
Overall length, approx. : 68 mm
No-load speed: 26362 U/min
All-up weight, approx. : 233 g
Maximum efficiency: 86 %
Free shaft length: 20 mm
Recommended controller: BRUSHLESS CONTROL +T 45 G 3,5 Best.-Nr. 33745
Output : 1000 W
Number of poles: 6
Permissible motor direction : R und L
Nominal voltage: 18,5 V
Case length: 46,5 mm
Recommended propeller: BRUSHLESS CONTROL +T 45 G 3,5
Shaft diameter: 5 mm
Max. charging rate: 60 A
Case diameter: 43 mm
Revolutions/Volt: 1425
