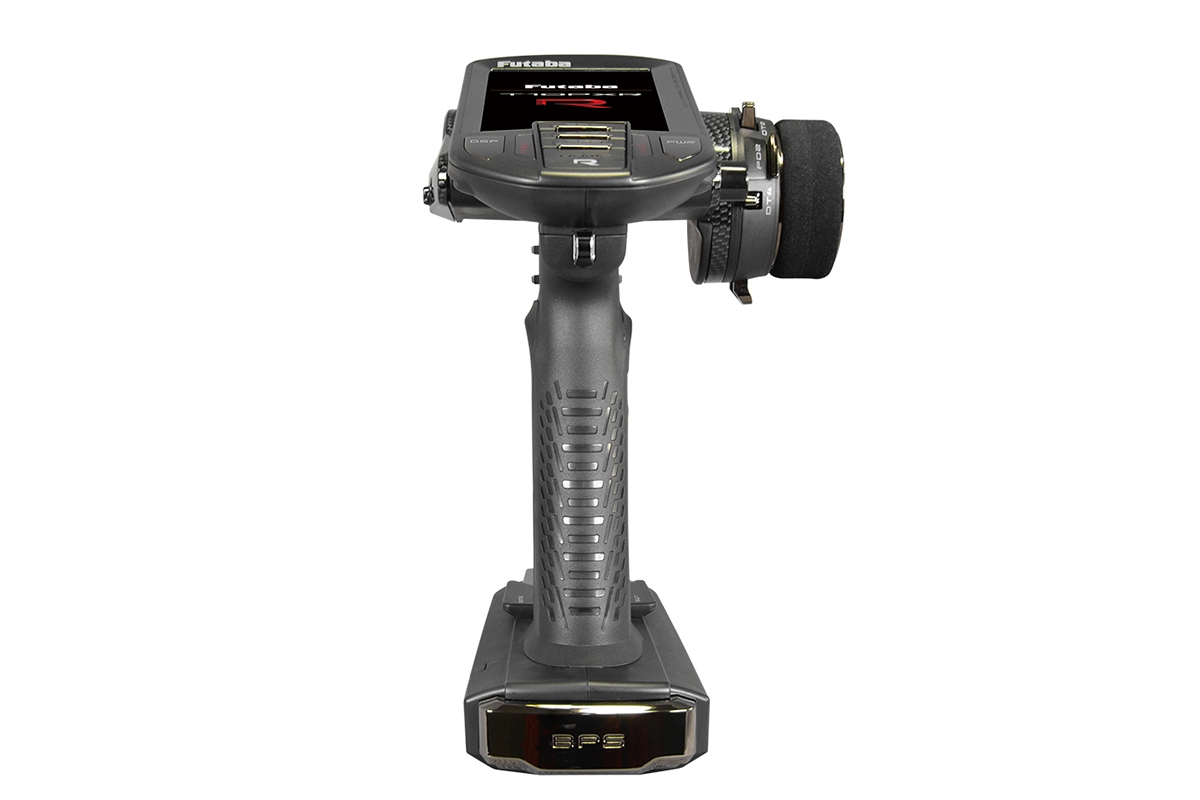

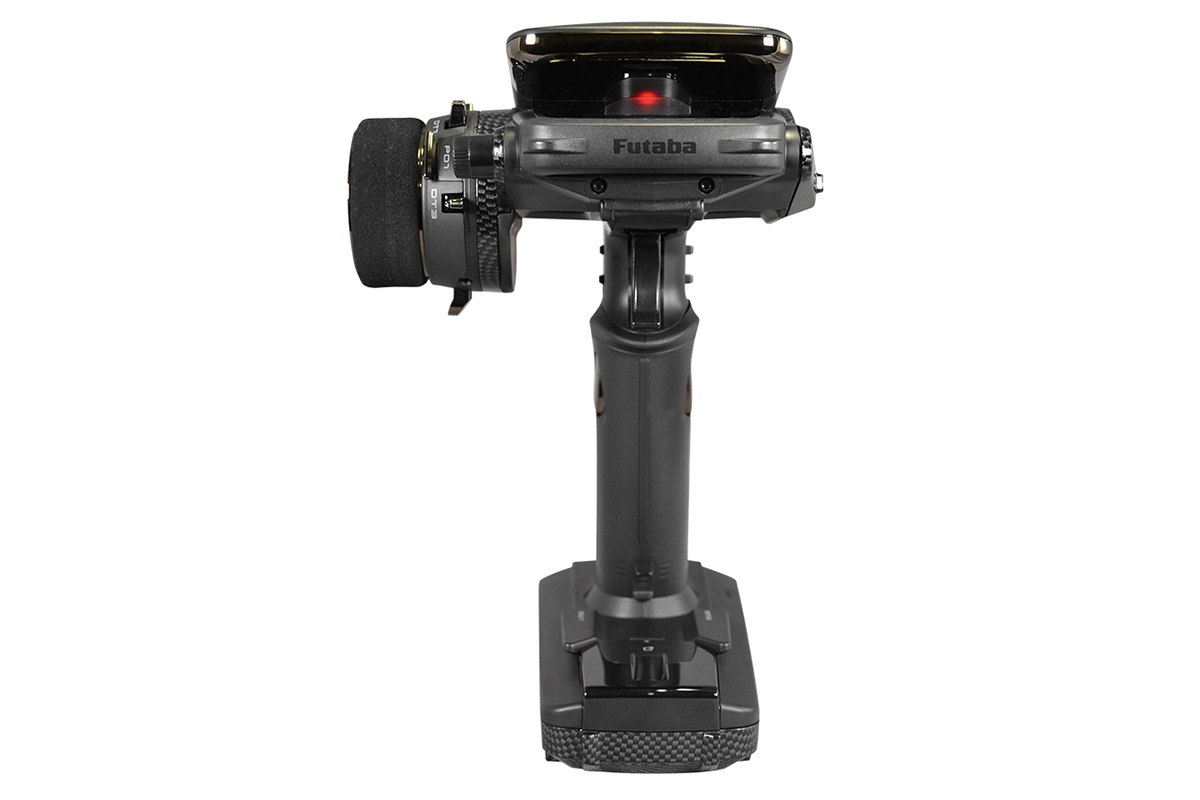

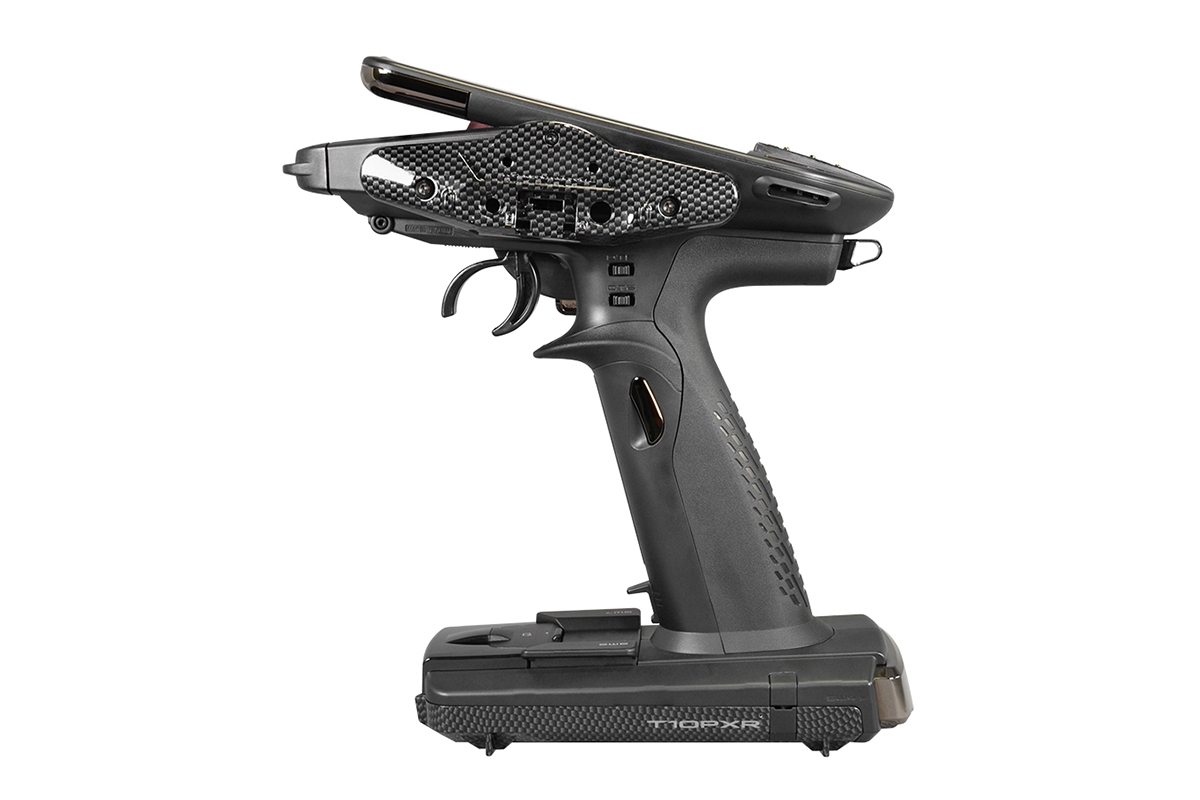

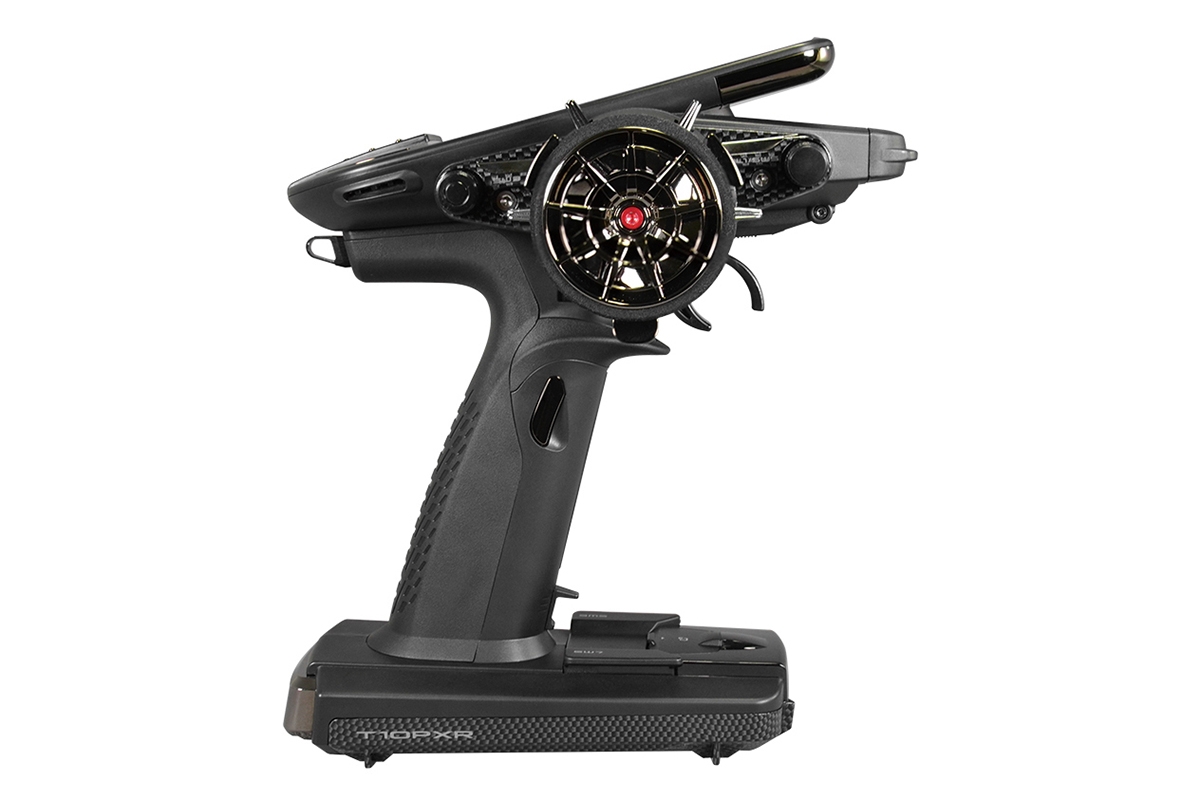

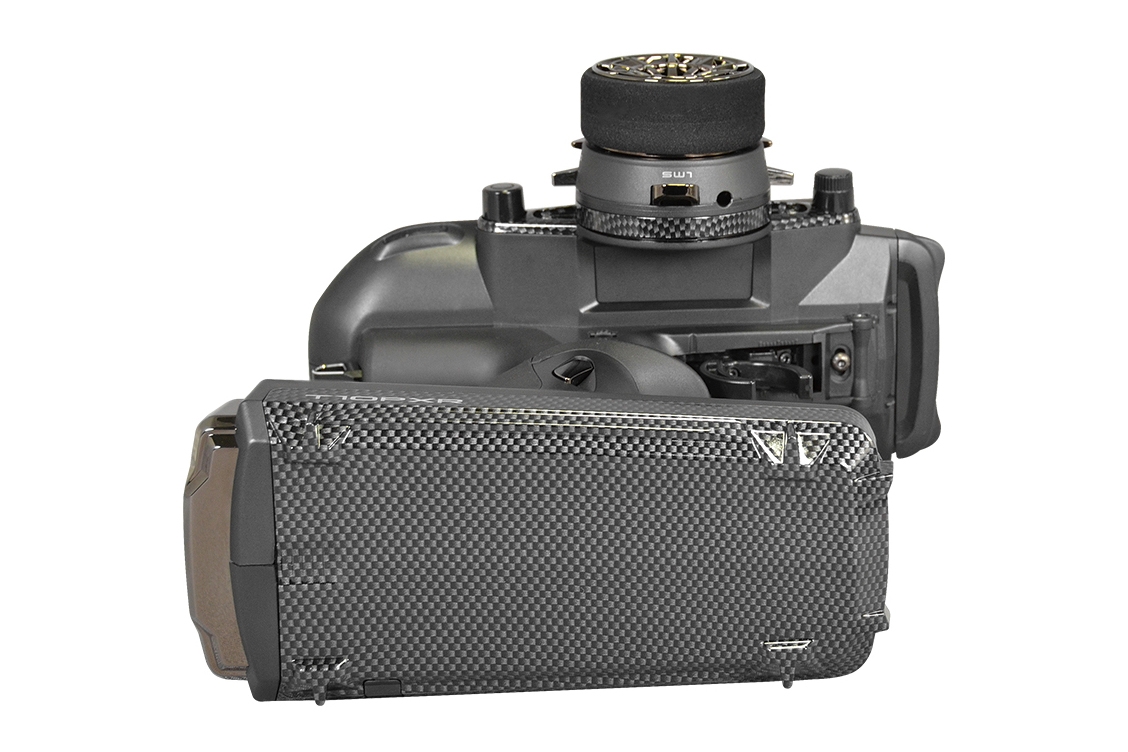

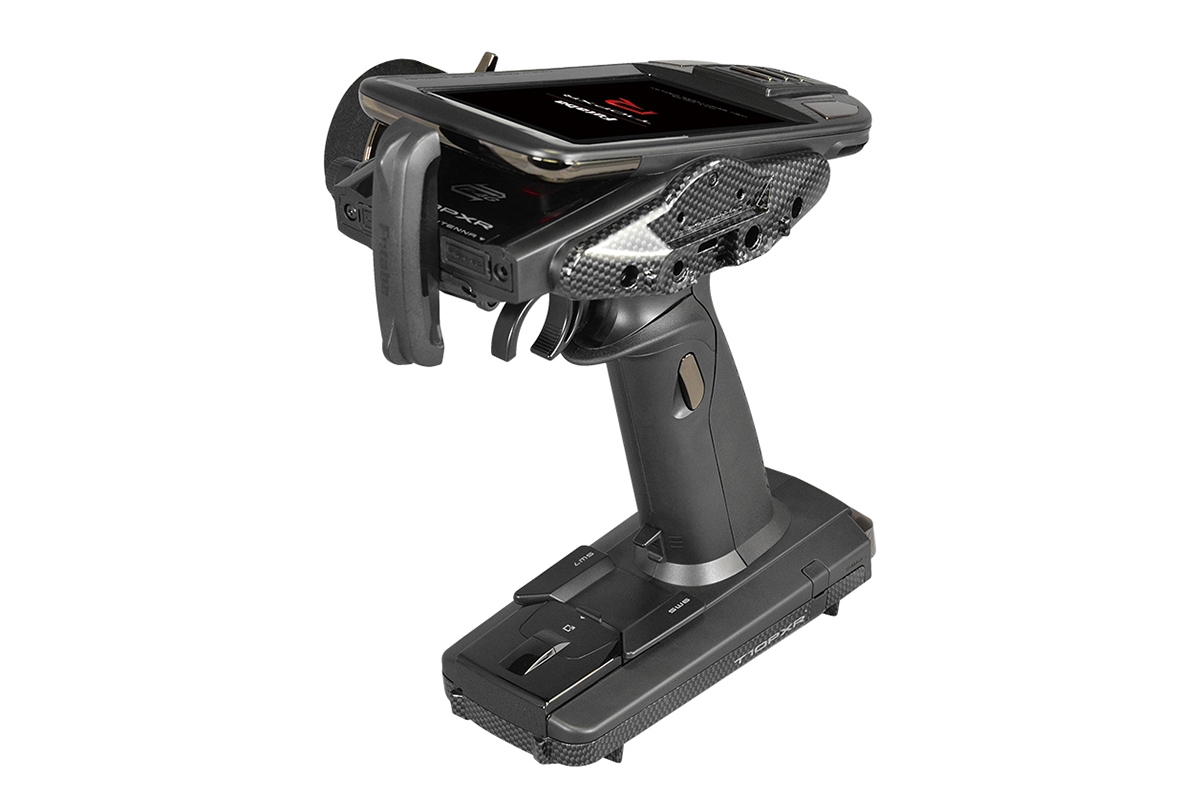

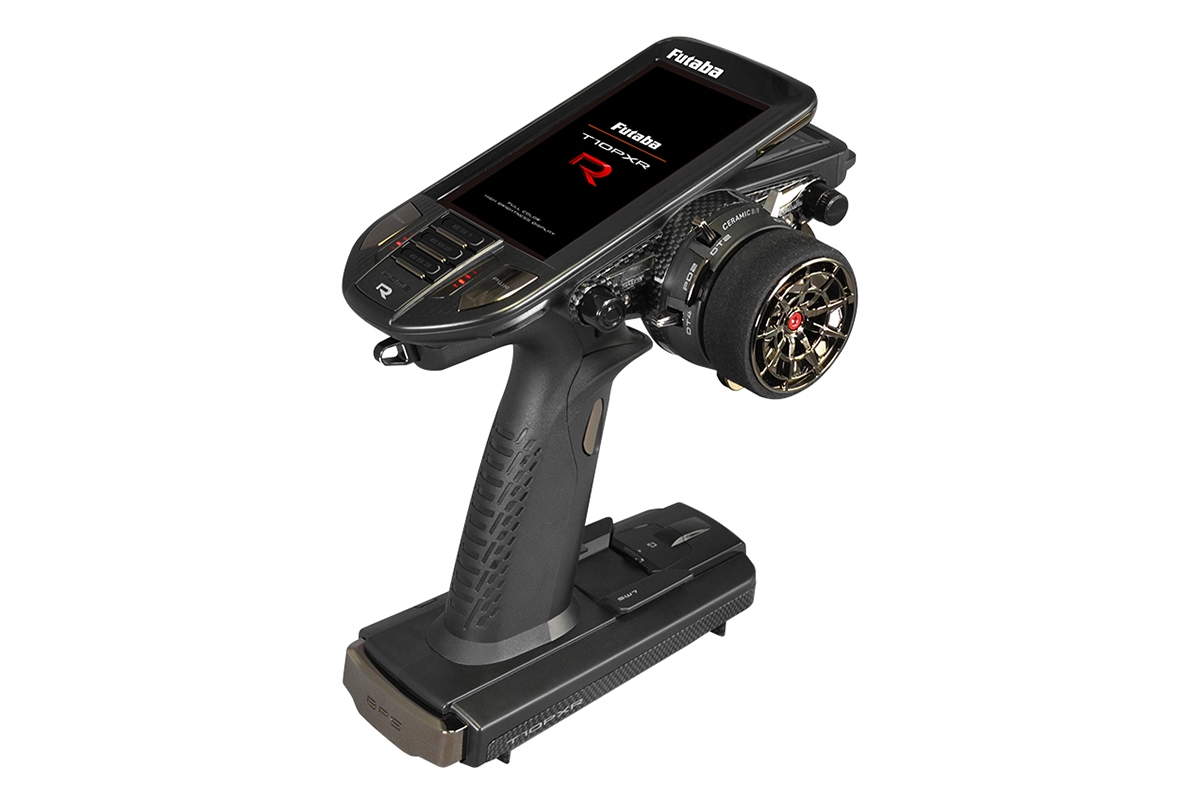

Futaba 10PXR Transmitter with R404SBS Telemetry Receiver

Top-of-the-line 10-channel computerized steering wheel kit for racing car and boat models. It features controls mounted in precision ceramic bearings and a wide range of accessories for individual ergonomic adjustment. The package includes a super-fast R404SBS receiver (F-4G with telemetry).

Transmission systems:

• F-4G – the fastest protocol with telemetry and support for 10 channels (including UR and SR modes)
• T-FHSS SR – superfast high repetition rate non-telemetry mode
• T-FHSS – telemetry system for standard digital servos
• S-FHSS – basic protocol without telemetry
• Mini-Z – support for Kyosho Mini-Z EVO and EVO 2 models

Hardware and ergonomics:

• Ceramic bearings on the steering wheel and throttle for maximum smoothness

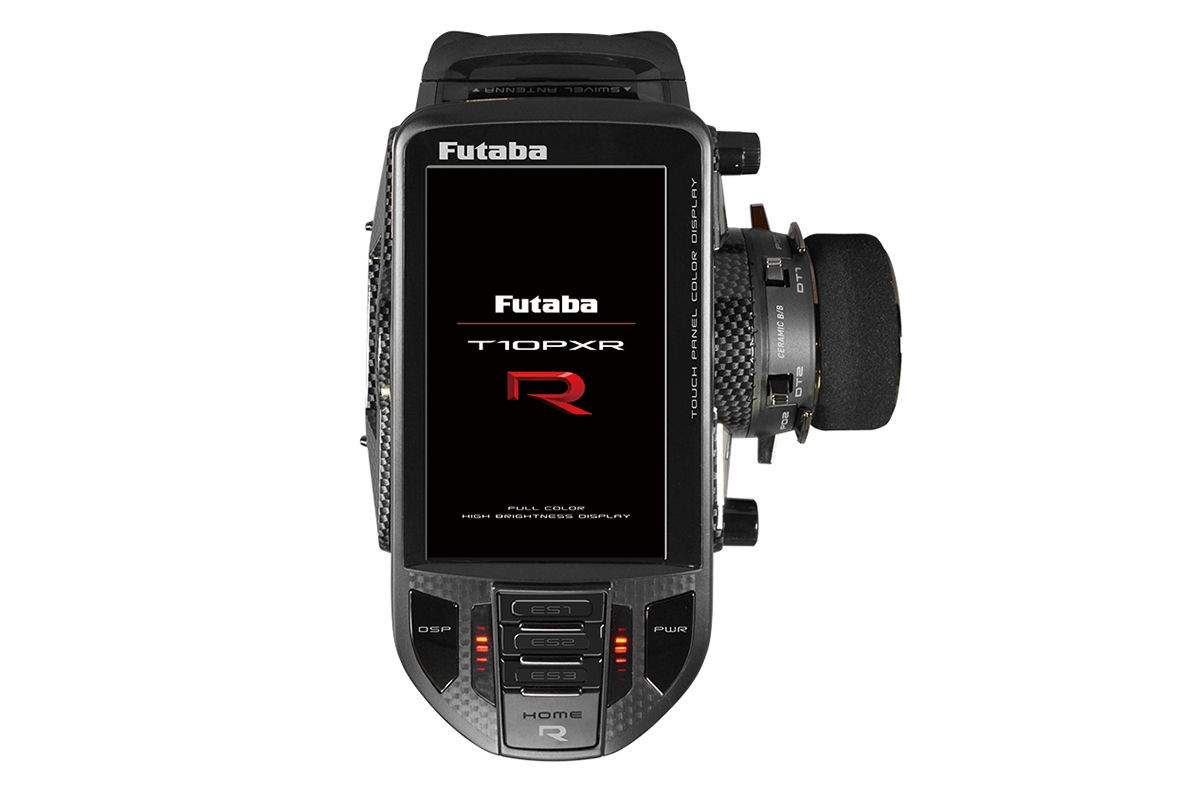

• High-resolution (HVGA) color LCD touchscreen
• Left- and right-handed configuration with the ability to move the steering wheel and its tilt
• 8 switches, 6 digital trims and 1 rotary control with selectable function
• USB-C port for using the transmitter as a game controller for PC simulators
• Telemetry voice output via 3.5mm headphone jack

Functional equipment:

• Up to 4 driving modes for each model with different function settings
• Special mixes for 4WS (independent axle steering of crawlers), tanks and ships
• Advanced brake mixes for large 1:5 models with two brake servos
• 21-point curves for precise throttle and steering adjustments
• ABS, traction control and launch control
• Remotely adjust Futaba controllers and gyros directly from the display

Technical parameters:

• 10 channels (with F-4G system)
• Memory for 40 models expandable via microSD card
• Power supply 4× AA batteries (holder included) or optimally 2S LiPo battery

Package contents:

• Futaba T10PXR 2.4GHz transmitter

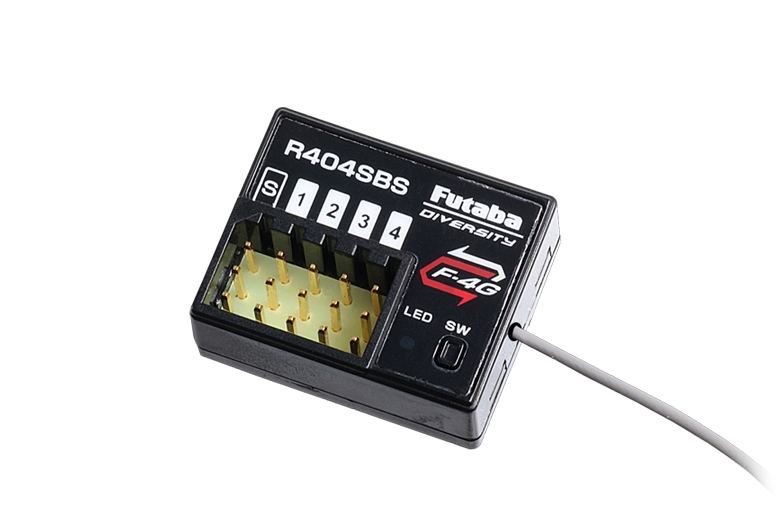

• R404SBS receiver with telemetry
• ASA steering wheel angle adjustment adapter
• Steering wheel adapter 32°
• Eccentric steering wheel adapter (APA)
• Brake lever large
• Two-finger brake lever
• Angle stop (4 pcs)
• Steering wheel angle insert 5°
• Large diameter steering wheel
• LiPo battery insert
• Trigger guard (left/right)
• Rubber handle
• Paddle switch blanking plate (2 pcs)
• Steering wheel neutralization spring soft/medium/hard
• Trigger neutralization spring soft/hard
• Allen key
• UR/SR stickers
• Operating instructions
