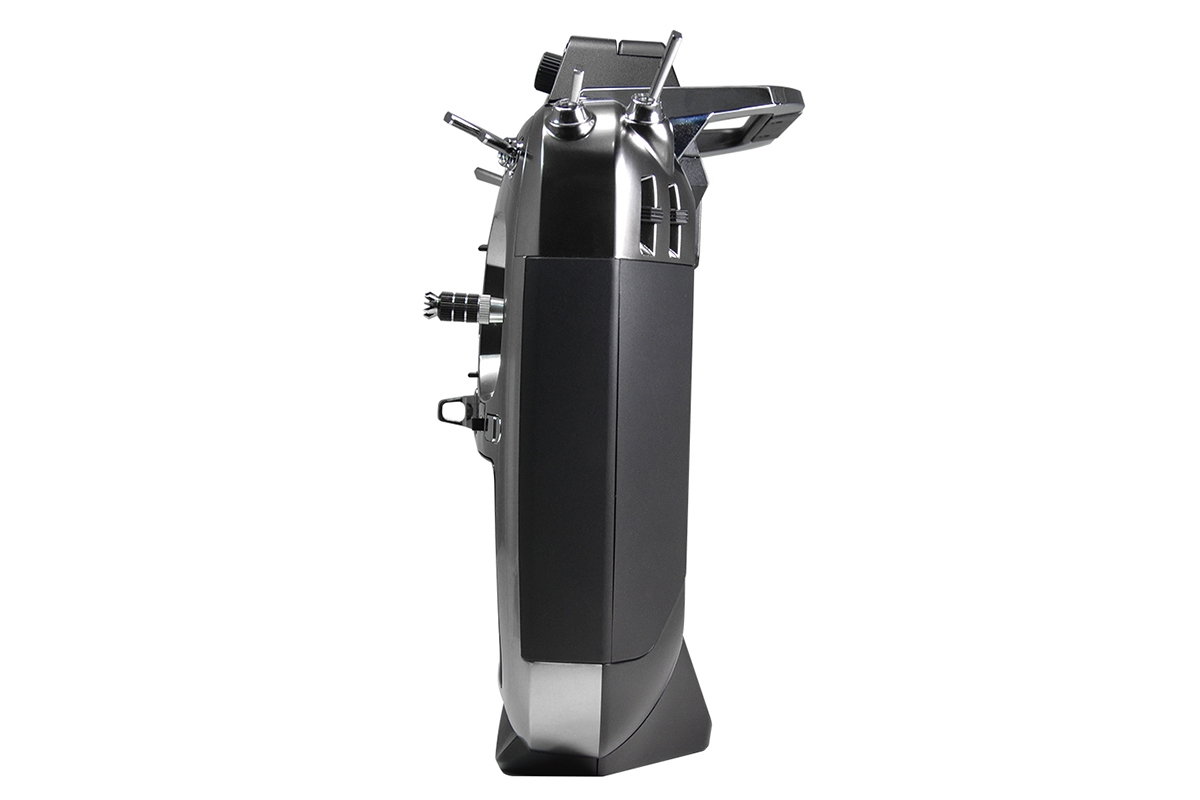

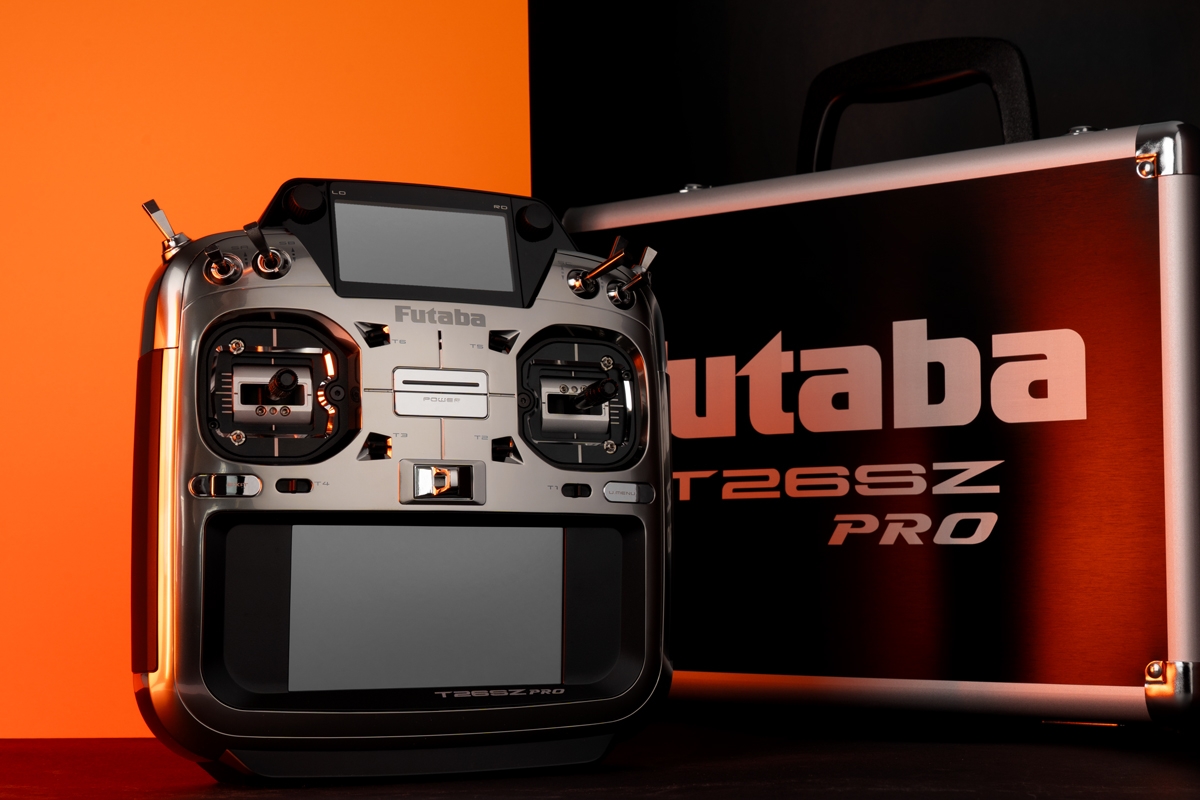

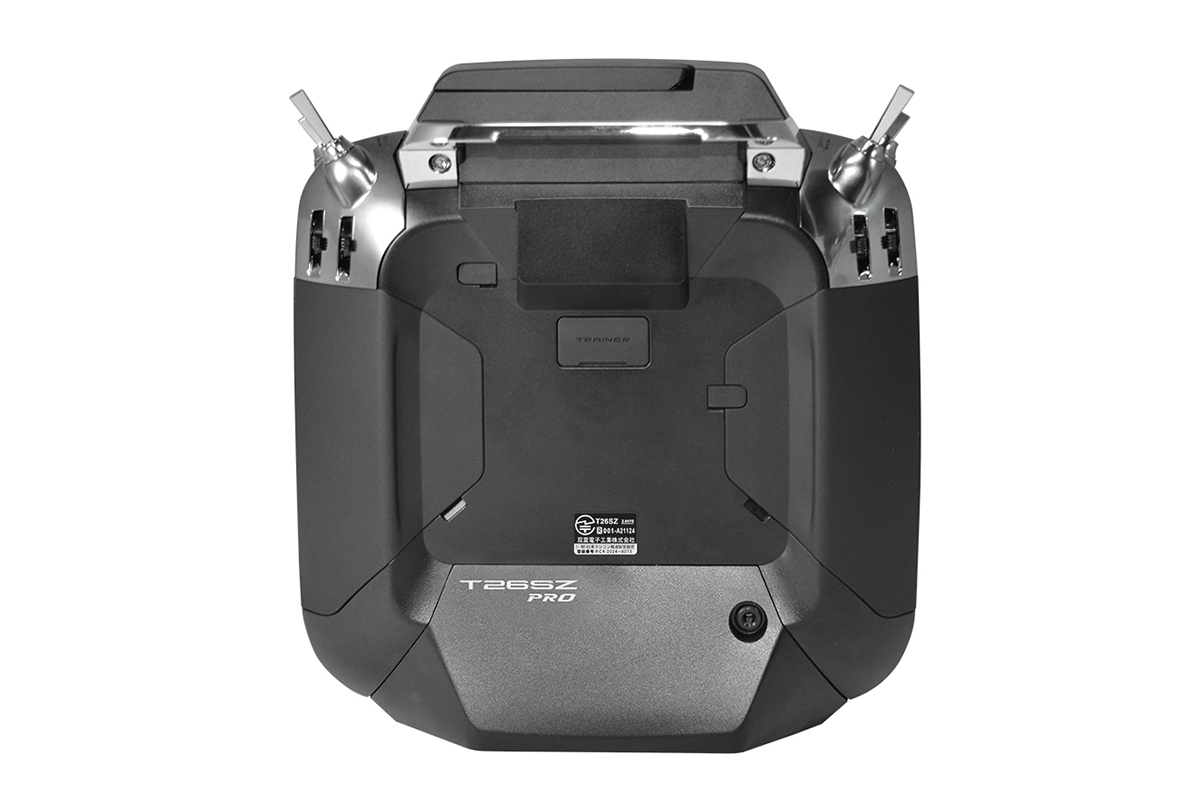

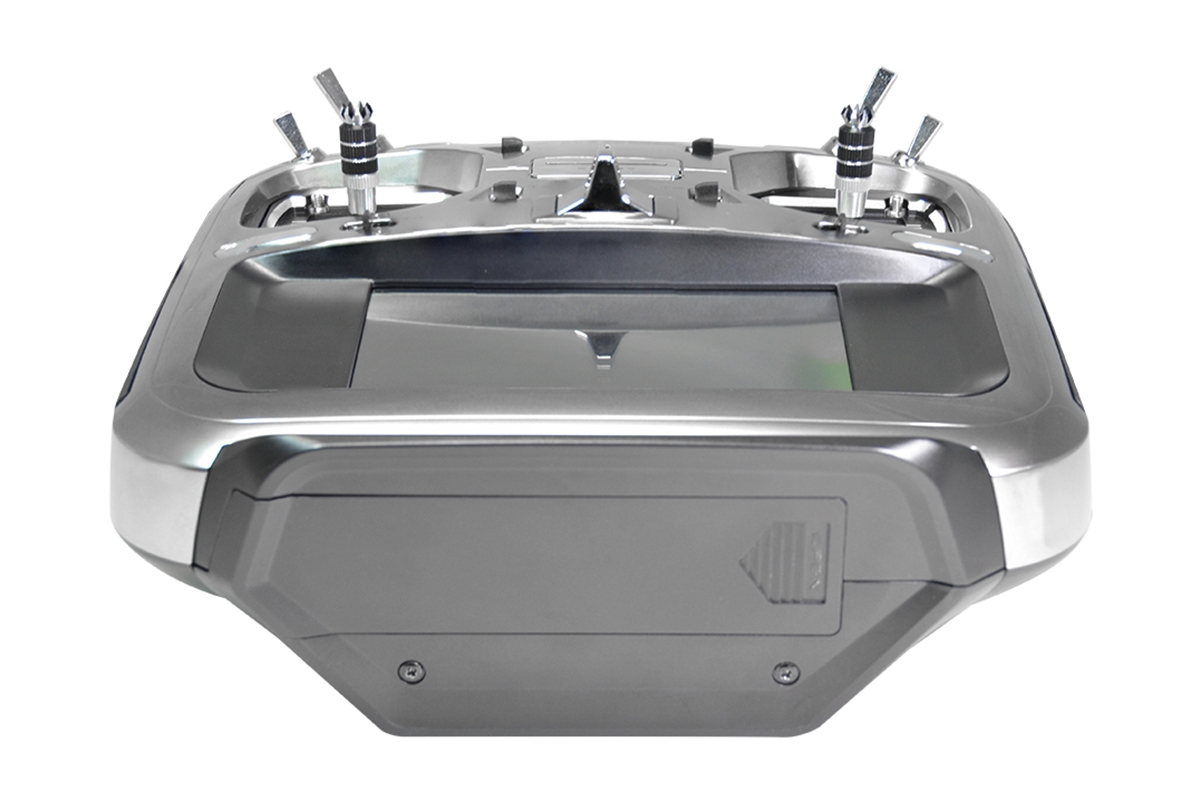

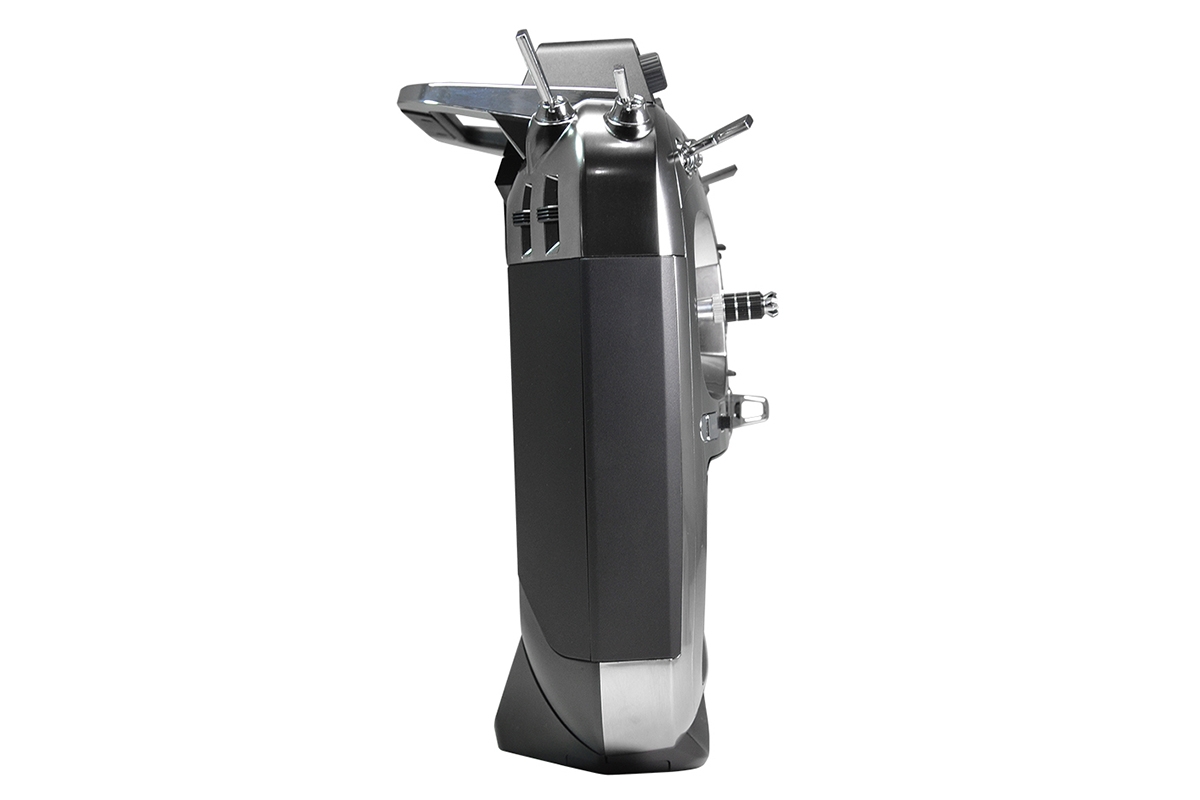

Futaba 26SZ PRO Transmitter with R7214SB Receiver

Top 26-channel kit for the most demanding pilots. The PRO version has all-metal D-pad mechanics and magnetic encoders for absolute precision without potentiometer wear. The package includes a Futaba R7214SB FASSTest/FASST receiver.

Transmission systems:

• FASSTest 26CH – 24 proportional and 2 switched channels with telemetry
• FASSTest 12CH – high repetition rate mode for minimal latency
• T-FHSS Air – telemetry system compatible with a range of available receivers
• S-FHSS – basic protocol for models without telemetry requirements
• CRSF – protocol support for TBS Crossfire systems (unidirectional)

Hardware and ergonomics:

• All-metal cross-type controllers mounted in 4 bearings with magnetic encoders
• Main 4.3" color touchscreen LCD and upper status display for telemetry
• 8 switches, 4 sliders and 2 rotary controls plus 6 digital trims
• Connectivity via USB-C for charging and direct connection to PC simulator
• microSD card slot and teacher-student ports (wired and wireless) and S.BUS

Functional equipment:

• Up to 8 flight modes for each model
• 17-point curves (balancer) for precise alignment of multiple servos on one rudder
• 4 programmable sequencers for realistic running of chassis and doors
• Integrated Futaba CGY/GYA interface for adjusting gyro systems from the display
• Voice output of telemetry and warning messages to headphones

Technical parameters:

• 24+2 channels (proportional + switched)
• 2S LiPo power supply with internal USB charging (5 V / 2 A)
• Memory for 30 models with unlimited expansion via SD card

Package contents:

• Futaba T26SZ PRO transmitter

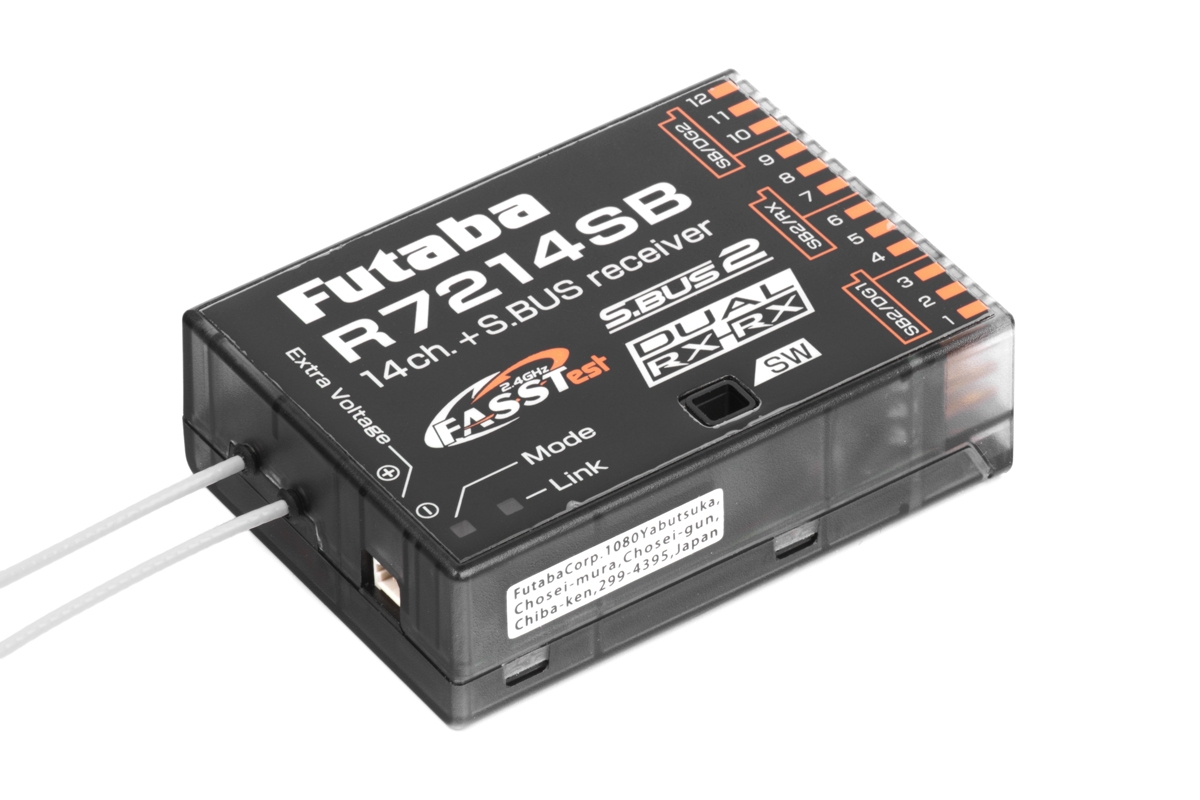

• R7214SB FASSTest/FASST receiver
• LiPo battery 7.4 V 2000 mAh

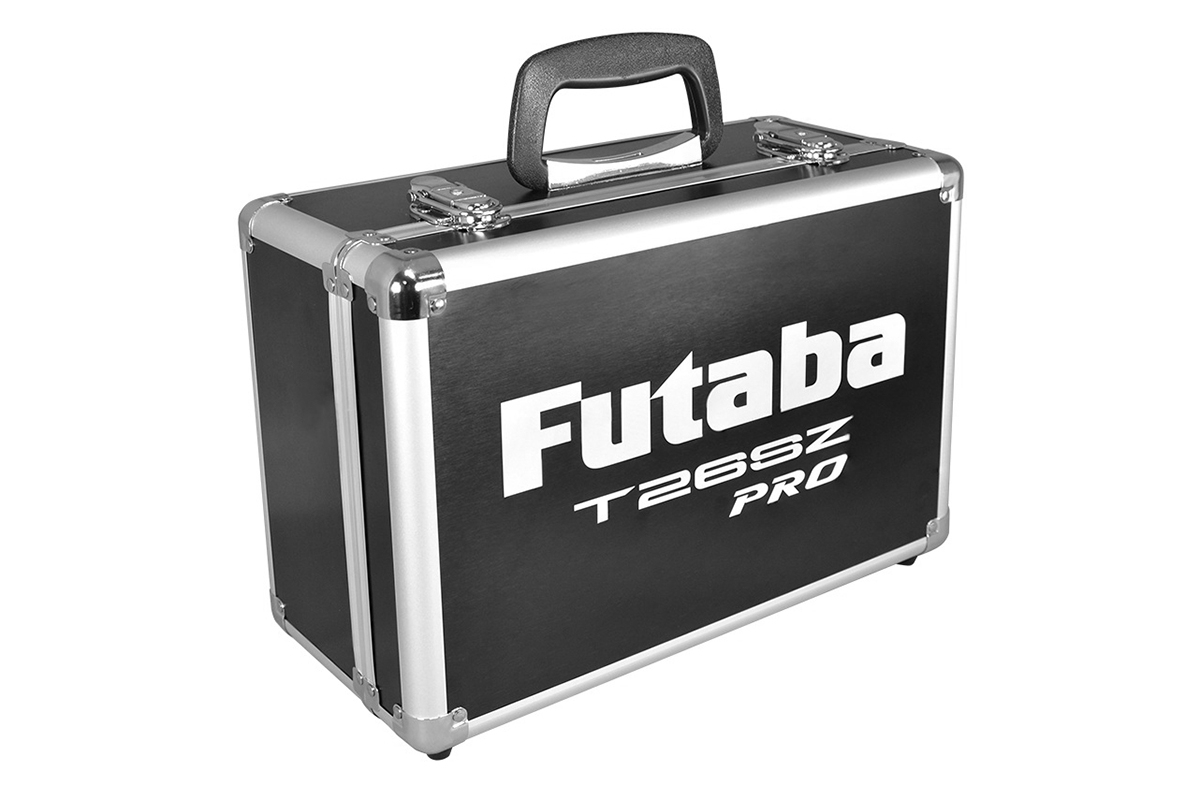

• Aluminum case T26SZ PRO
• Transmitter strap
• Receiver setup cable
• USB-C cable
• Operating instructions
