DSO1S OPTO spínač do 9A

DSO1S (W) OPTO is designed to switch on the supply voltage for: controller, servo, receiver, sound module, pump, winch, cranes, relay, motor, siren, horn, beacon, smoke generator, power LEDs, LED strips and bars, bulbs in models and mock-ups powered by batteries.

FEATURES
• Easy to use
• Switching: sirens, horns, beacons, ramps, power LEDs (bars, strips), light bulbs, smoke generators, winches, relays, motors.
• Single-channel control by lever position, steering wheel, two-position 2P or three-position 3P switch.
• 1 controllable output with a current carrying capacity of 9 A (15 A 3 s).

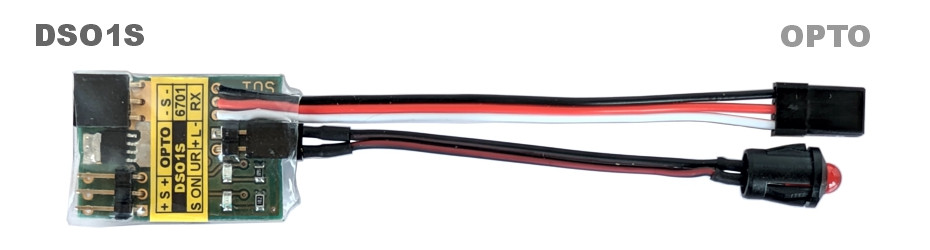

• Switch activation indication by red LED (S ON) on the board and LED connected by cable to connector K1 (+L-).
• Indication of power supply connection from the receiver by green LED (UR) on the board.
• Suitable for Car, ship, plane, TIR, tank, mechanical machines, etc.

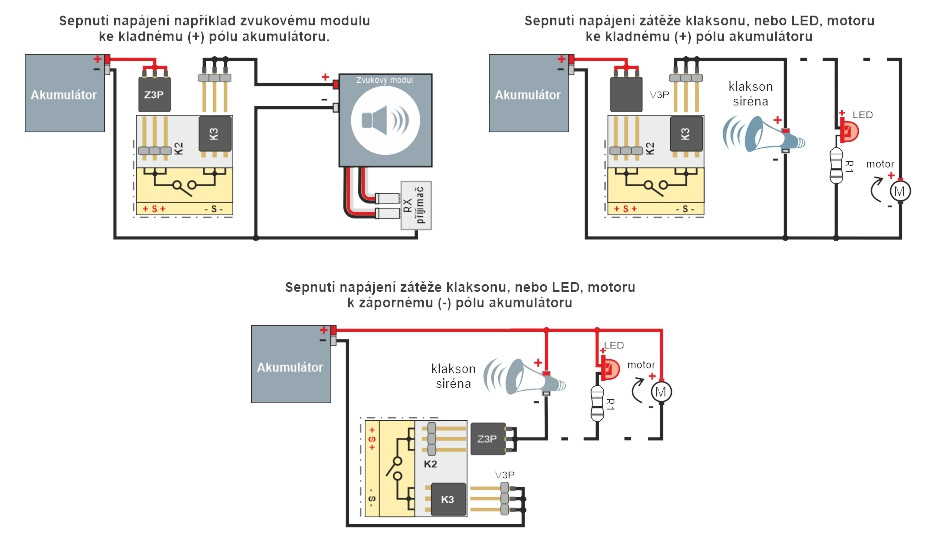

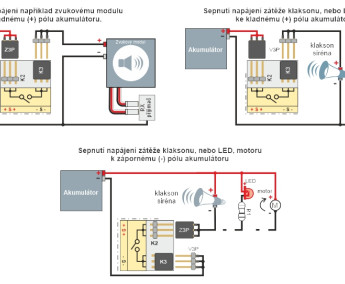

• The electronic switch (MOSFET) is optically (galvanically) isolated from the control and therefore it is possible to connect the load to the positive (+) pole of the battery, or connect the load to the negative (-) pole of the battery.
• The switch is ready for operation.

Scope of delivery: DSO1S switch (SW 1.1), user manual, Z2P connector socket K1, Z3P connector socket K2, V3P connector plug K3, red LED 5 mm, LED socket, shrink tubing 2 mm/5 cm, two-core cable 0.15 mm² - length 20 cm, two-core cable 0.75 mm² - length 30 cm.

QUALITY: Products undergo a series of tests to ensure maximum reliability, long service life and high safety.
WARRANTY: The product is guaranteed for 24 months from the date of sale.
SERVICE: We provide professional advice, warranty and post-warranty service.
