DS8S 4 kanálový, 8x spínač / 2x regulátor voděodolný

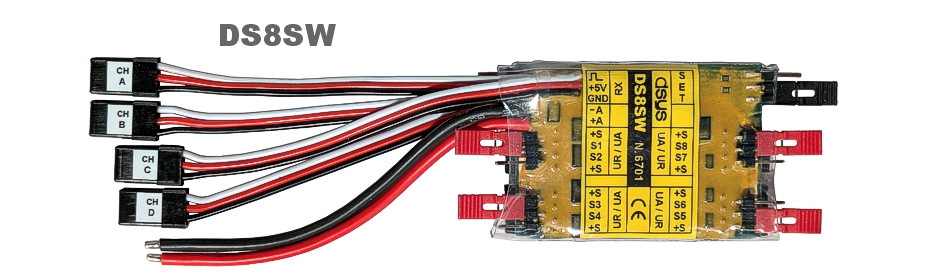

The DS8SW is designed for smooth bidirectional control of two small motors and switching accessories in battery-powered models and scale models.

FEATURES
• Easy to use
• Cars and work machines. Motors: cabin rotation, arm control (boom, arm), winch, lifting and tilting of the loader blade or bucket, lowering the bulldozer blade, extending the crane, etc. Switching: lighting, smoke module, horn, beacon, ramp, LED, LED strips, bulbs, pumps, relays.
• Boats. Engines: winch, crane. Switching: pump, siren, LED spotlight and mast with bulbs, smoke module.
• Tanks. Motors: turret control, gun raising and lowering. Switching: lighting, smoke module, firing.
• Four-channel control by lever position, steering wheel, two-position 2P or three-position 3P switch.
• 5 controllable outputs with a current rating of 3 A (4 A for 3 s).
• 3 controllable outputs with a current rating of 1 A (1.5 A 3 s).
• Four power sources: from the drive battery (4 V to 18 V) or from the receiver (4 V to 8 V).
• Simple setting of properties with two jumpers .
• DS8s is ready for operation immediately.

Scope of delivery: DS8S (SW 1.1), user manual, V4P plug for connector K2, K4, K7, K9, V3P plug for slide switch, slide switch, adjustment jumpers, diode D1, shrink tubing 2 mm/length 8 cm, two-core cable 0.35 mm²/length 2 m.

QUALITY: Products undergo a series of tests to ensure maximum reliability, long service life and high safety.
WARRANTY: The product is guaranteed for 24 months from the date of sale.
SERVICE: We provide professional advice, fast warranty and post-warranty service.
