Product Description
-
Technical Data:
Product Description

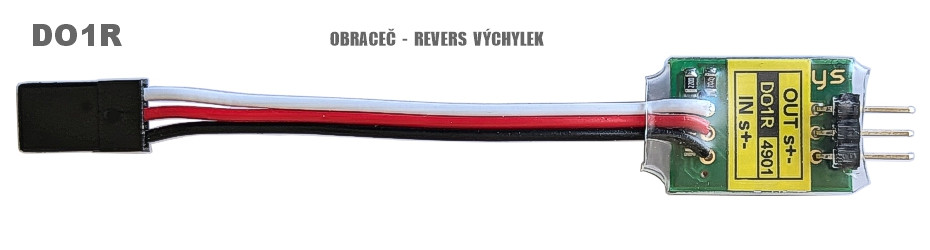

DSYS Electronics Systems DO1R - DO1R Obraceč (revers) výchylek
DO1R reverses the direction of deflections (Reverse) in models and mock-ups of cars, tractors, tanks, ships, submarines, aircraft (control of two elevators or flaps) and mechanical machines.

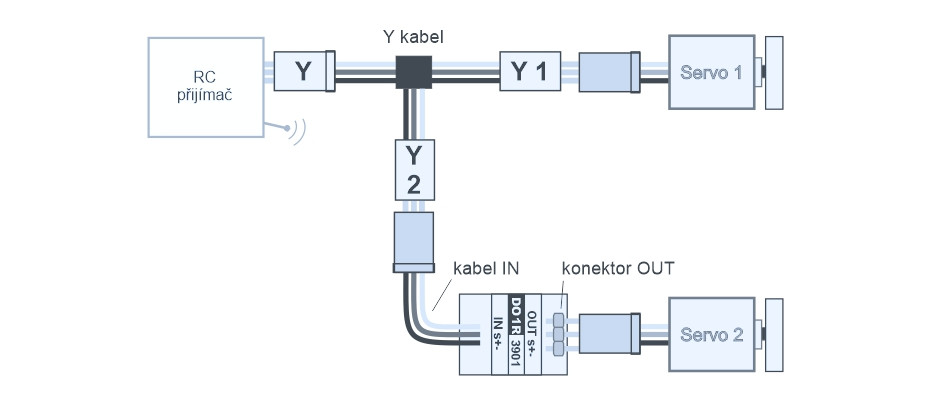

For example, when using two servos connected via a Y cable, without a yaw reverser, the servos would have to be mechanically positioned in the same direction.
FEATURES
• Easy to use.
• Simple connection with Y cable.
• Simple direct connection in series with the servo.
• Power supply: from the receiver (4 V to 8 V).
• DO1R is ready for operation immediately.
QUALITY: Products undergo a series of tests to ensure maximum reliability, long service life and high safety.
WARRANTY: The product is guaranteed for 24 months from the date of sale.
SERVICE: We provide professional advice, fast warranty and post-warranty service.
Technical Data:
| Type | DO1R |
| Current consumption | < 10mA |
| Control power supply | 5V from IN cable (+4V to 8V) |
| Number of input and output channels | 1 |
| Deflections | T = 5 ÷ 30 ms, t = 1.5 ms ± 0.7 ms: neutral 1. 5 ms. |
| Weight | < 3g |
| Dimensions | 20 x 15 x 7 mm |
