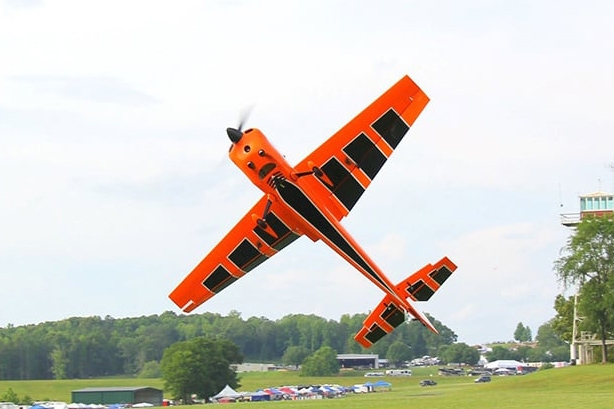

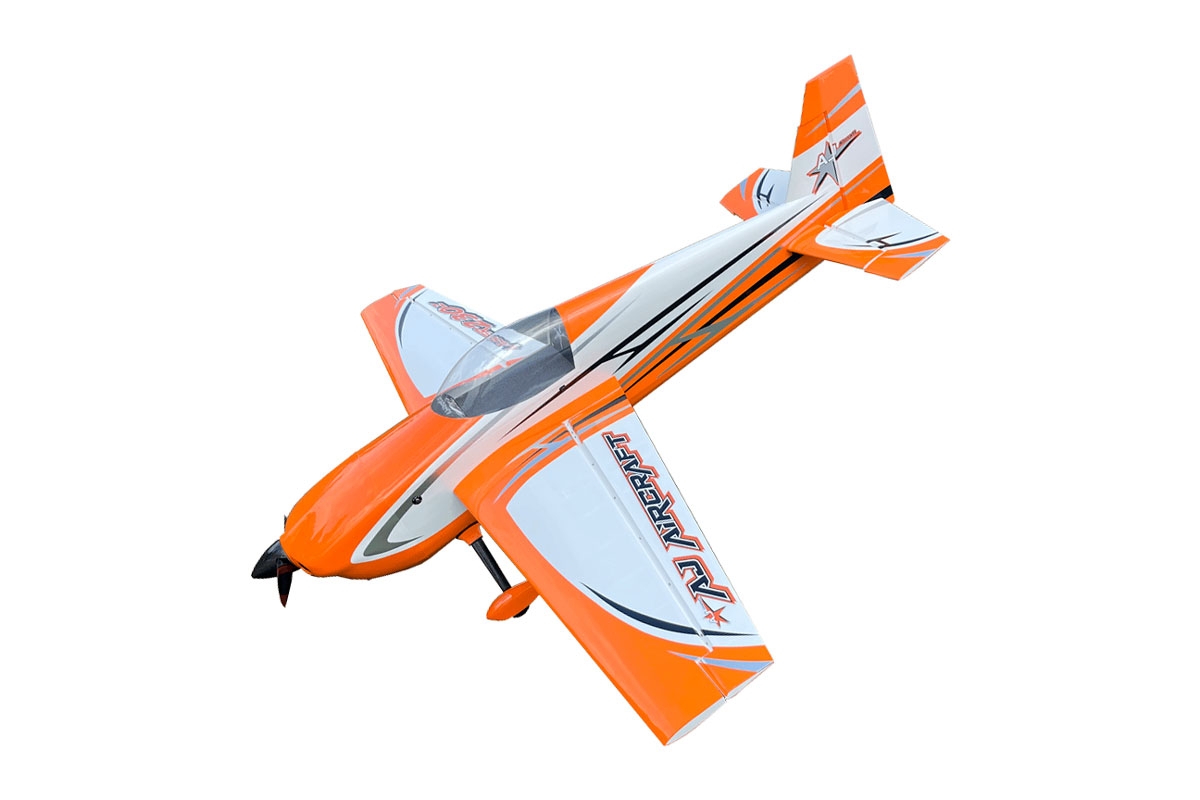

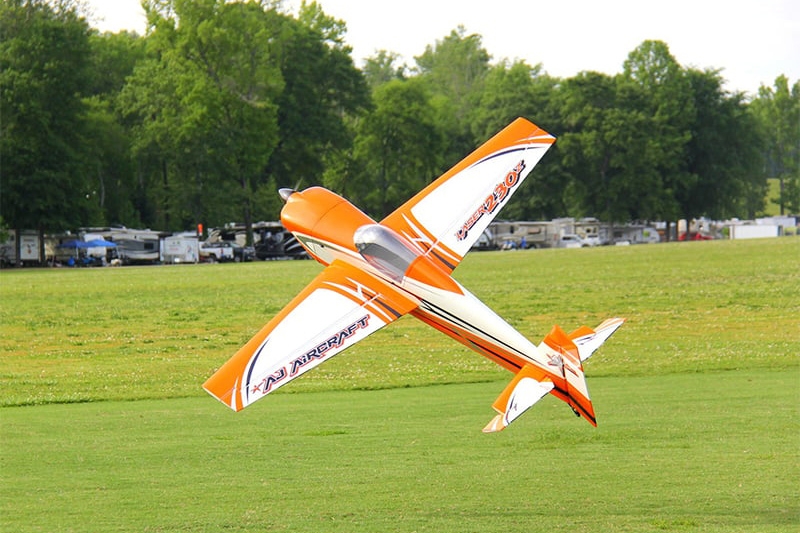

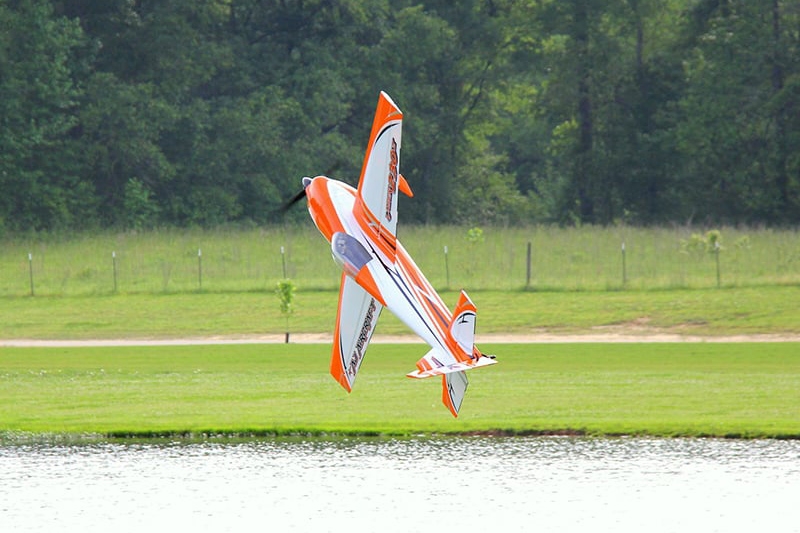

AJ Aircraft AJ0016O - Laser 230z 2.66m ARF (Orange)
ARF kit of a 3D aerobatic special with a wingspan of 2667 mm, designed for a 100–130 cc gasoline engine. Very lightweight construction made from parts reinforced with Kevlar and carbon, with many carbon parts.
This sport-scale aerobatic aircraft is designed for experienced pilots who want to fly both classic and extreme 3D aerobatics.
The model fuselage is of classic construction, made from laser-cut plywood and balsa parts reinforced with Kevlar and carbon. The removable fiberglass engine cowl and detachable upper fuselage section with cockpit provide excellent access to the power system and RC equipment. The engine is mounted in a rear-mounted configuration on a plywood box mount, and a tunnel is provided on the underside of the fuselage for fitting a tuned exhaust muffler if required.
The two-piece wing with a symmetrical airfoil (the halves slide onto a carbon tube joiner from the sides and are secured with screws) is also of classic construction, with a rigid all-balsa skin. The large-area ailerons are operated by two pairs of servos.
The tail surfaces are of lightweight all-balsa construction. The horizontal stabilizer is two-piece, with its halves sliding onto a carbon tube. The elevator halves are operated by servos housed in the horizontal stabilizer, using short pushrods. The rudder is operated by a cable linkage (it can also be removed for easier transport and storage).
The entire model is covered with Ultracote iron-on film (the brand name used in the USA for the well-known Oracover films).
The landing gear is of the taildragger type, with carbon main legs, wheels with fiberglass fairings, and a wire tail skid with a carbon bracket linked to the rudder.
For power, you will need a 100–130 cc gasoline engine (e.g. GP-123).
A computer RC system with at least nine channels is suitable for controlling the model, allowing precise adjustment of the paired servos and programming of dual and exponential rates to the correct values.
Suitable servos are fast and very powerful standard-size models—for example, Futaba S9177SV, MKS HV777A+, Kavan GO-1070MG, Kavan GO-1081MG, Kavan GO-1088MG, Hitec HS-7950TH, Hitec D980TW or Hitec HSB-9381TH—and one standard servo for throttle control.
Package contents
The package contains the fuselage, wing and tail surfaces covered with iron-on film, a painted fiberglass engine cowl, a complete set of accessories, carbon landing gear, tail skid, wheels and instructions.
Warning: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aerial vehicles (conventional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). For more information, see: Registration of operators and pilots.
Technical Data:
| Wingspan [mm] | 2667 |
| Length [mm] | 2591 |
| Weight [g] | 11 800–12 700 |
| Controlled functions | S, S( 2), V (2), K (4), M |
| Build difficulty | S2, S3 |
| Piloting difficulty | P4 |
