Extra SX 2.61m ARF (Blue)

Price in e-shop with VAT: 1 925,82 €
Temporarily unavailable
Send a question
on availability
Send a question
on availability

35 years in business = safe shopping and professional service
Manufacturer: AJ Aircraft
Goods code: AJ0015TB
EAN: 8596450106192

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.

Send a question Watch availability
  • Product Description

  • Technical Data:

Product Description

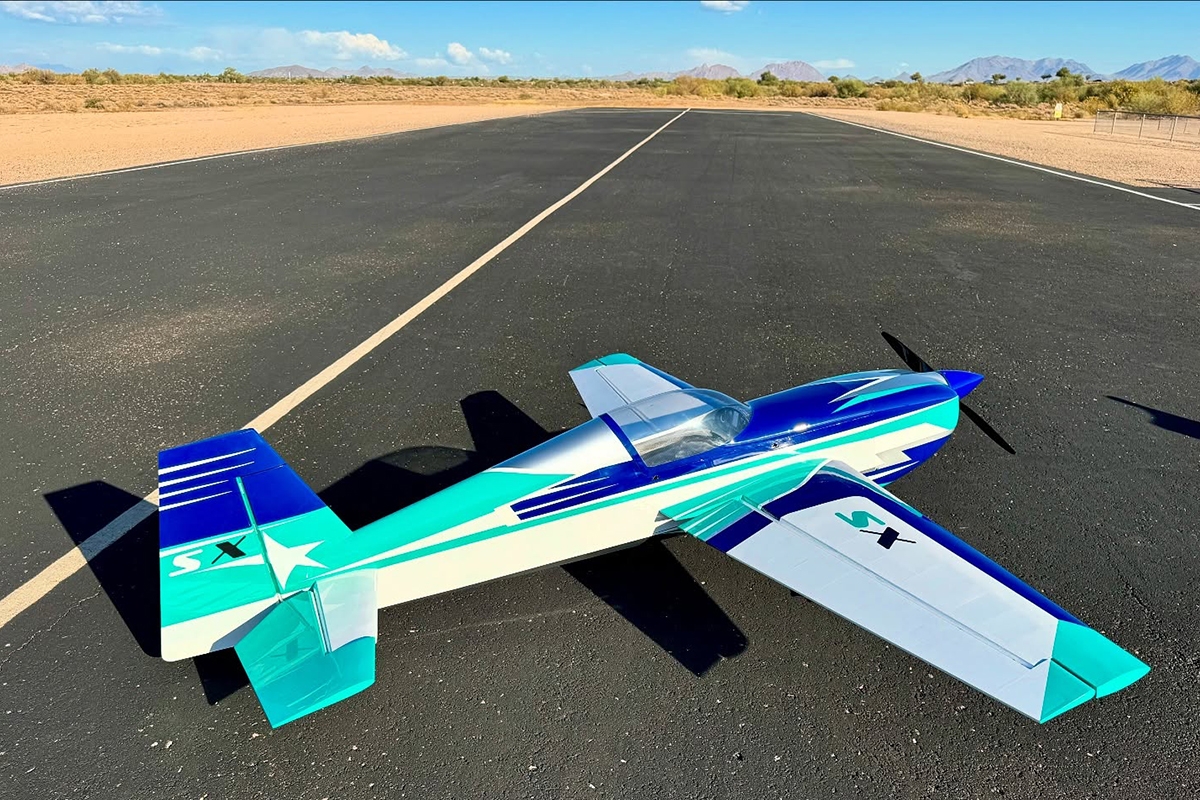

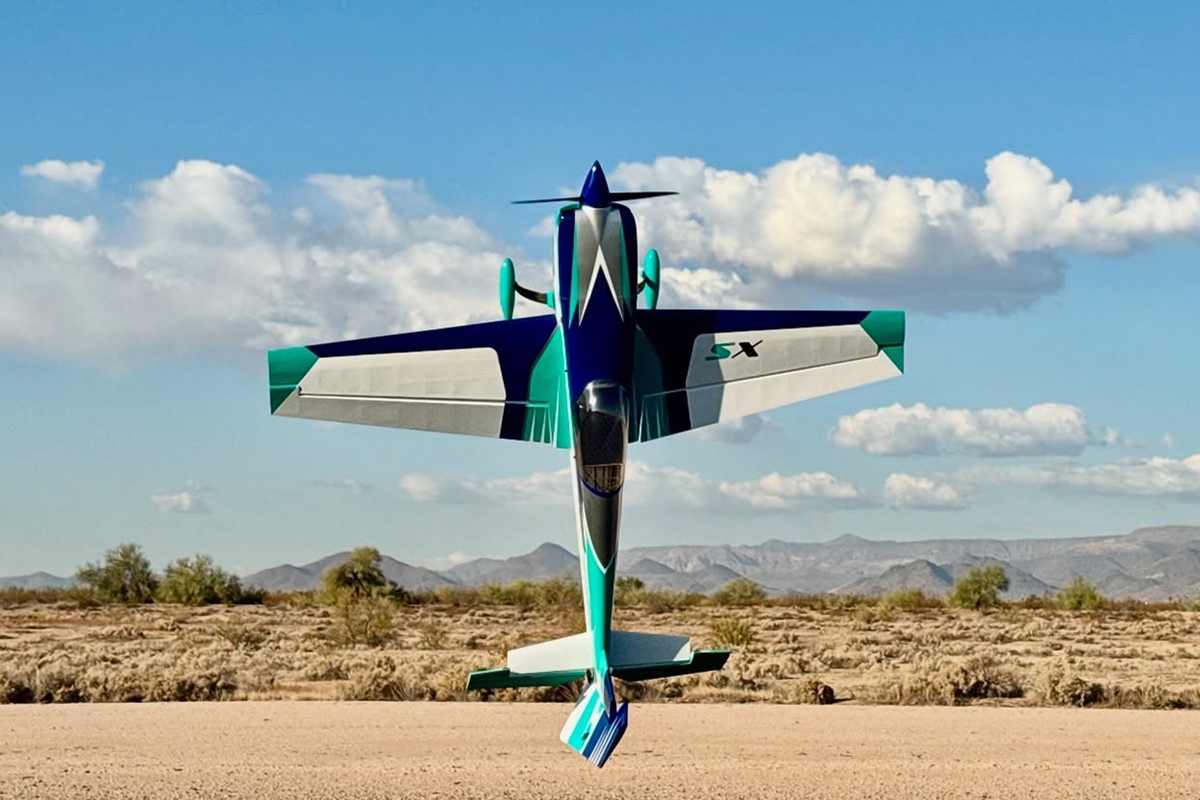

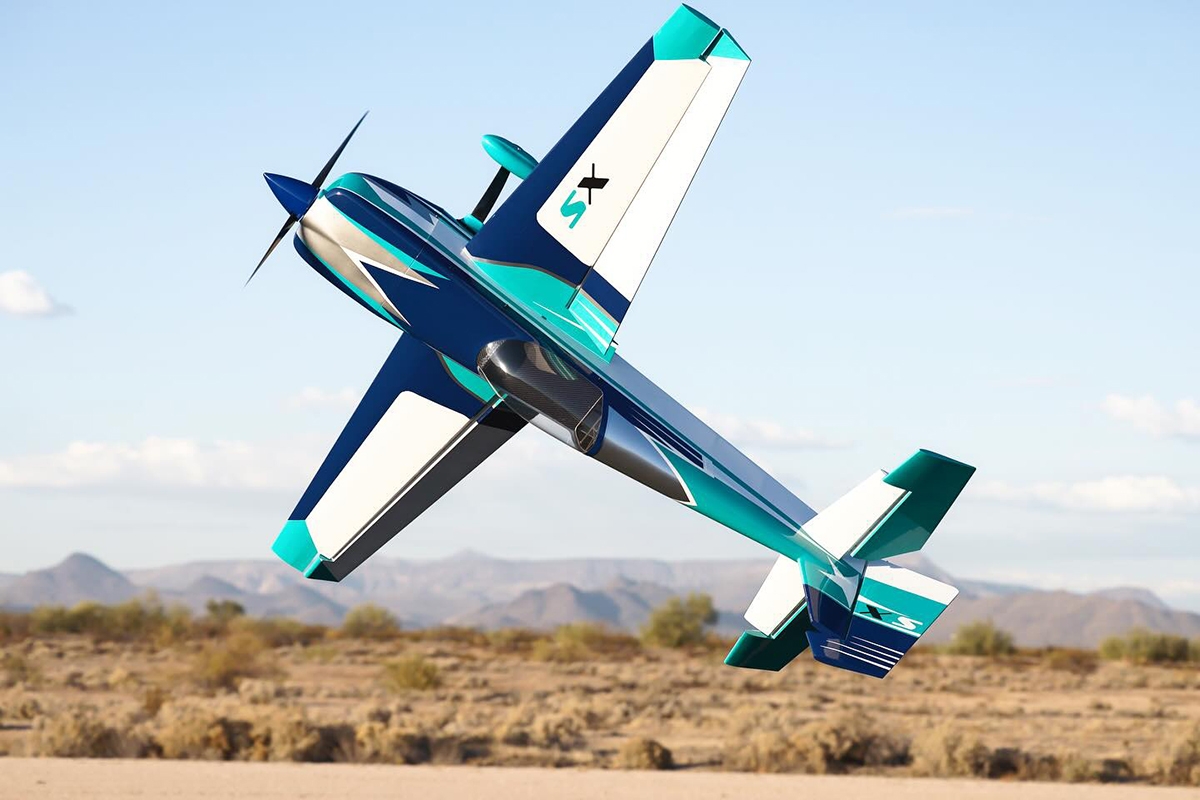

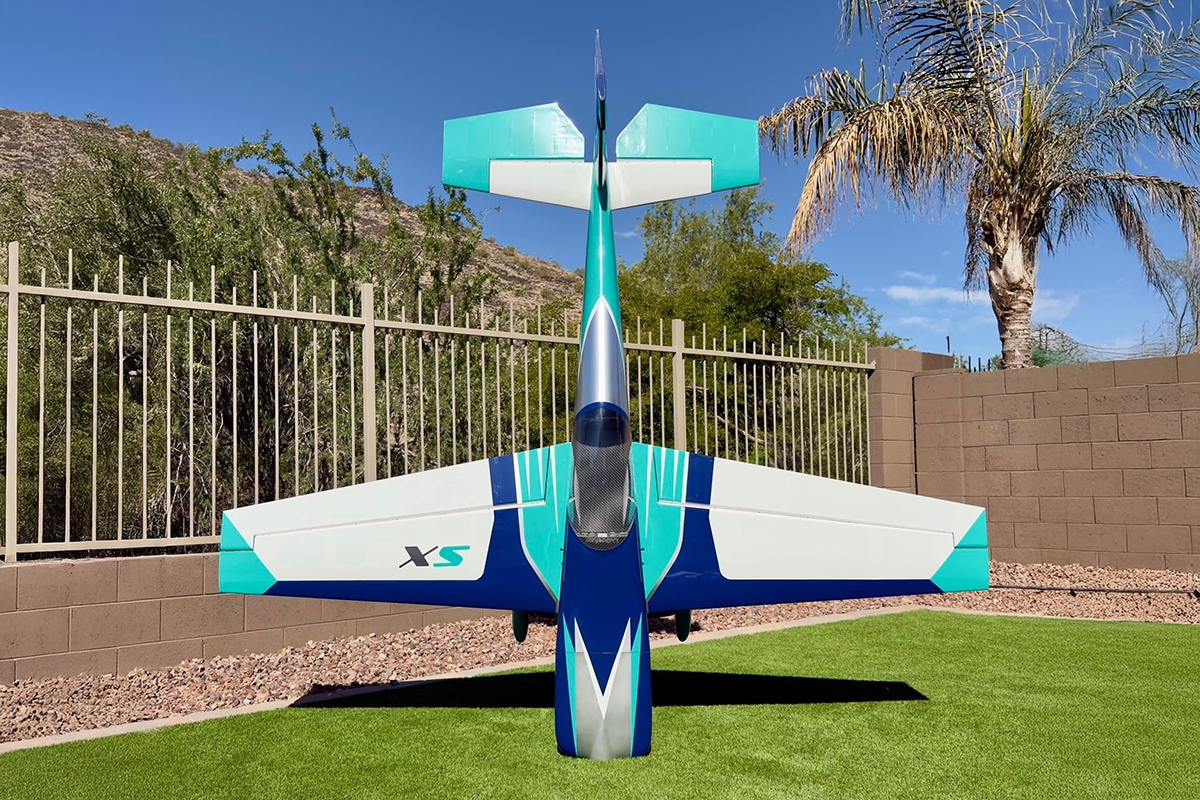

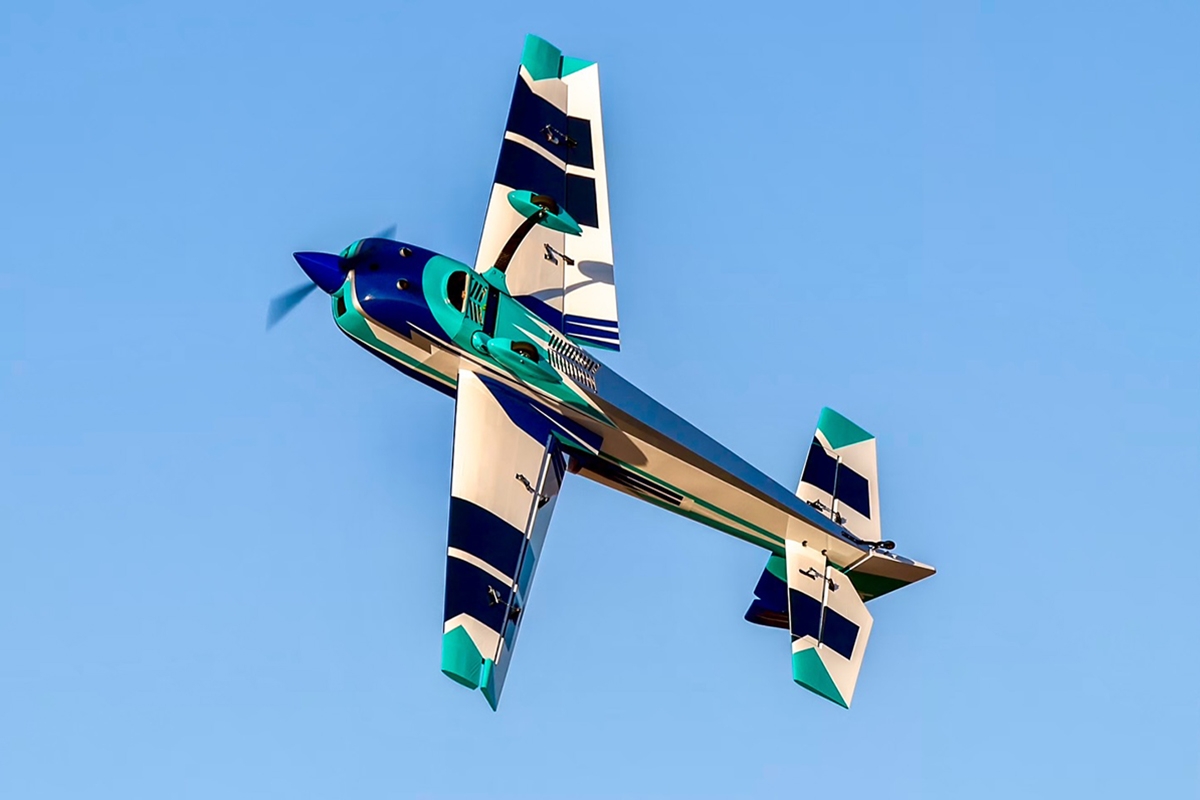

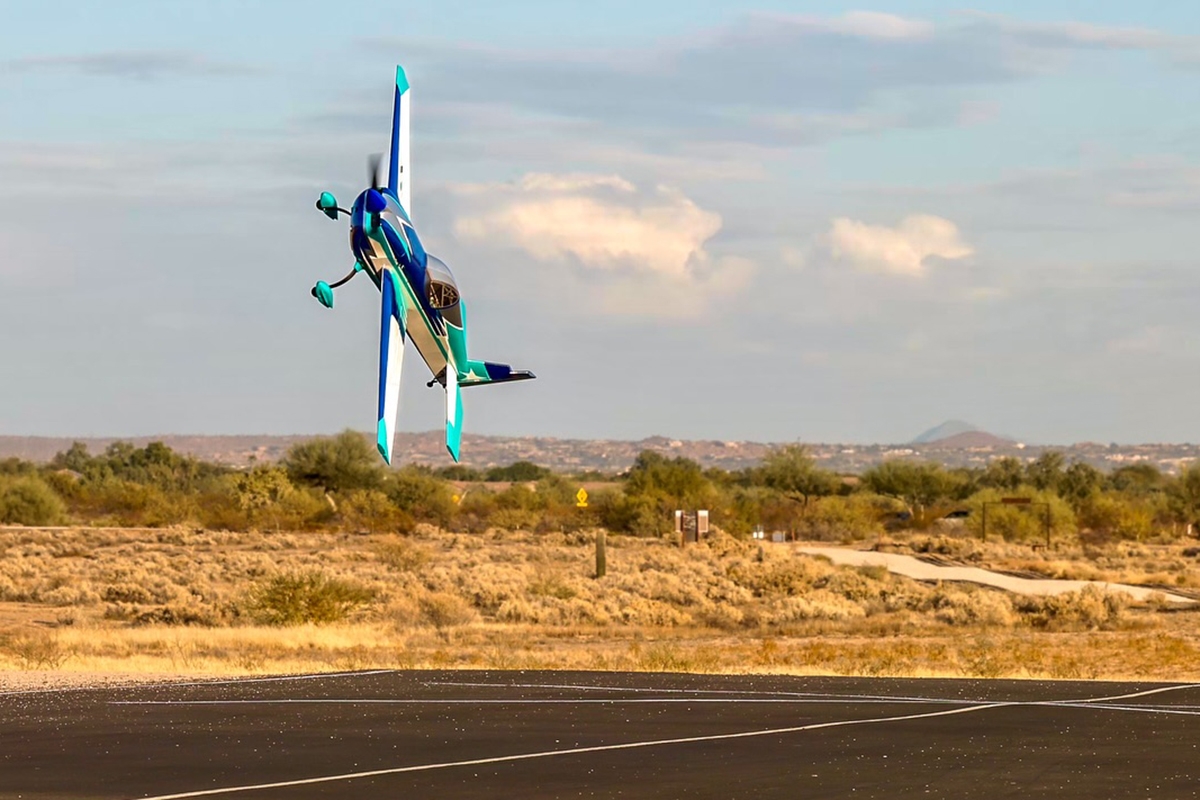

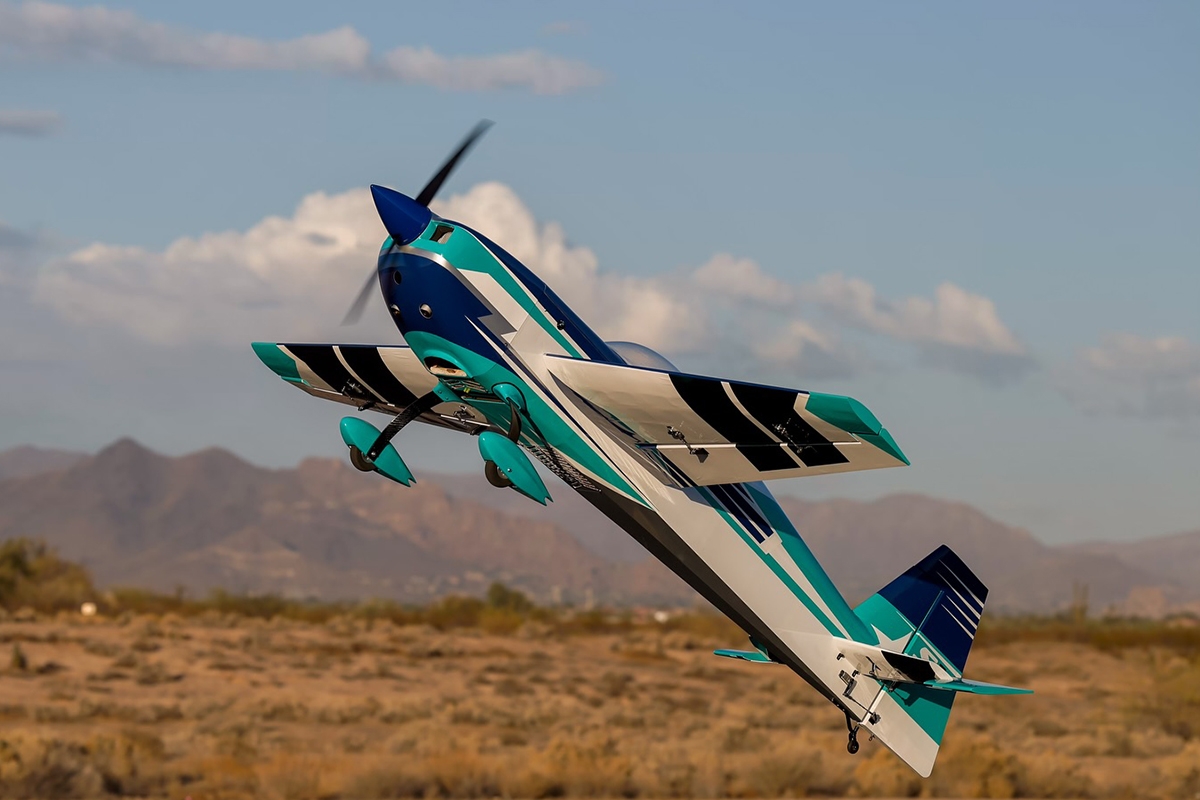

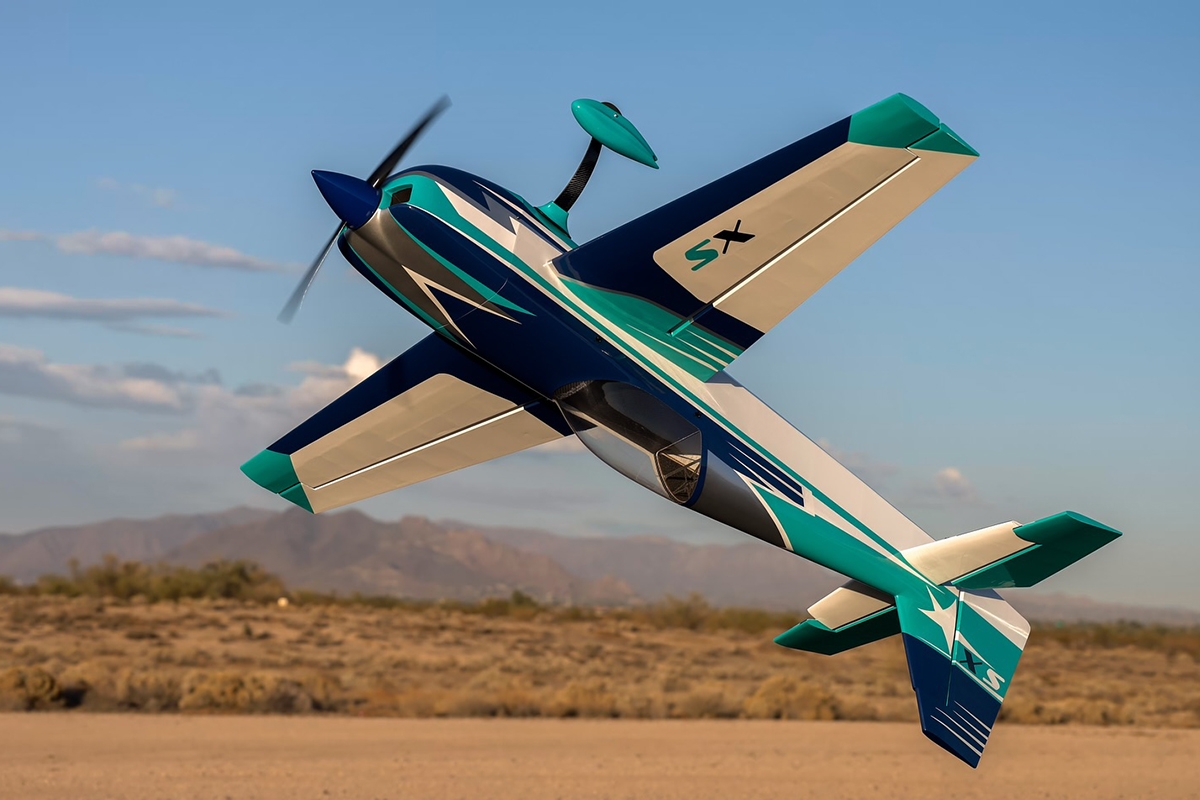

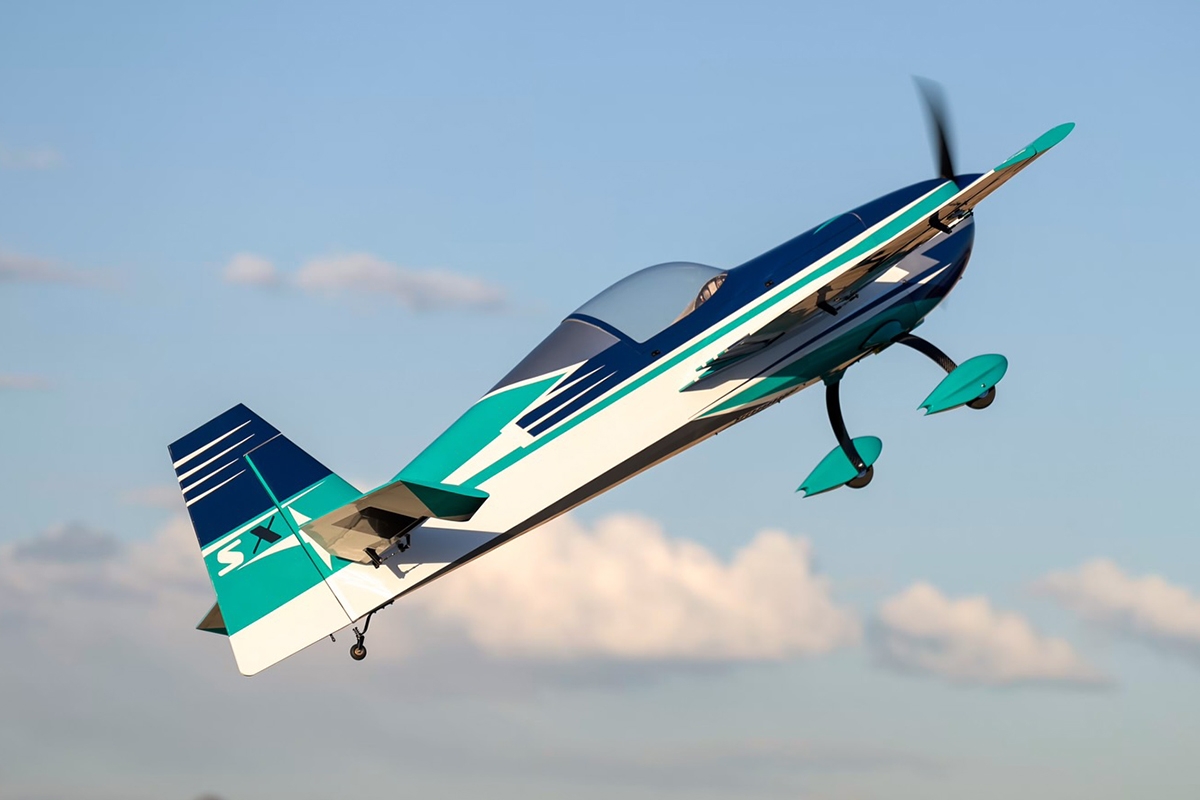

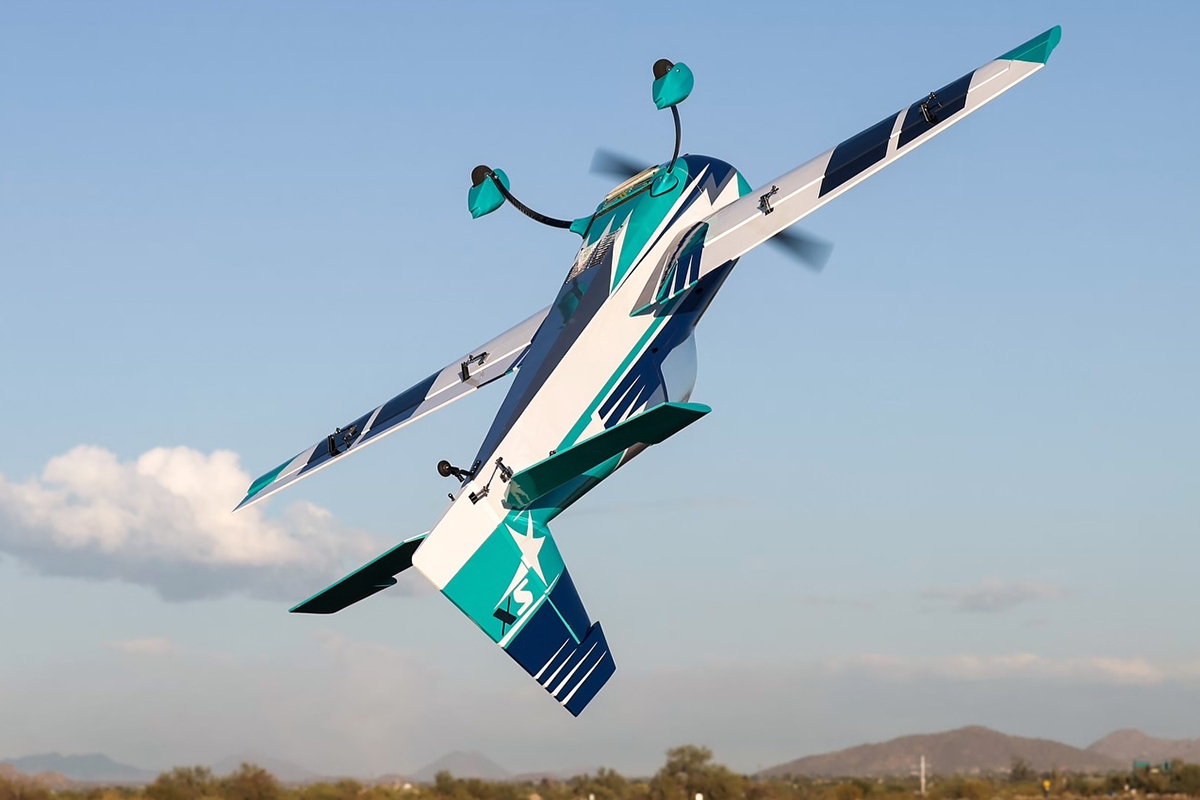

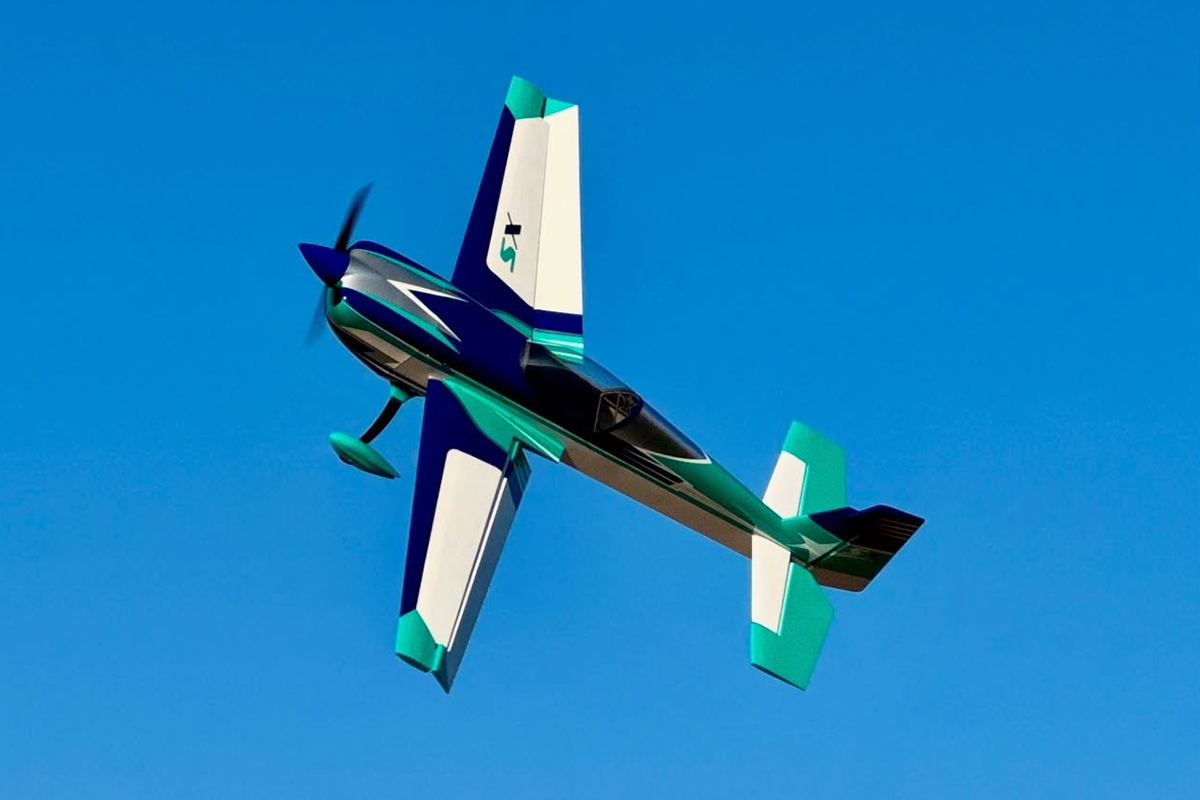

AJ Aircraft AJ0015TB - Extra SX 2.61m ARF (Blue)

ARF kit of a 3D aerobatic special with a wingspan of 2616 mm, designed for a 100–130 cc petrol engine. A very lightweight construction made from parts reinforced with Kevlar and carbon, with many carbon parts.

This sport-scale aerobatic aircraft is intended for experienced pilots who want to fly both classic and extreme 3D aerobatics.

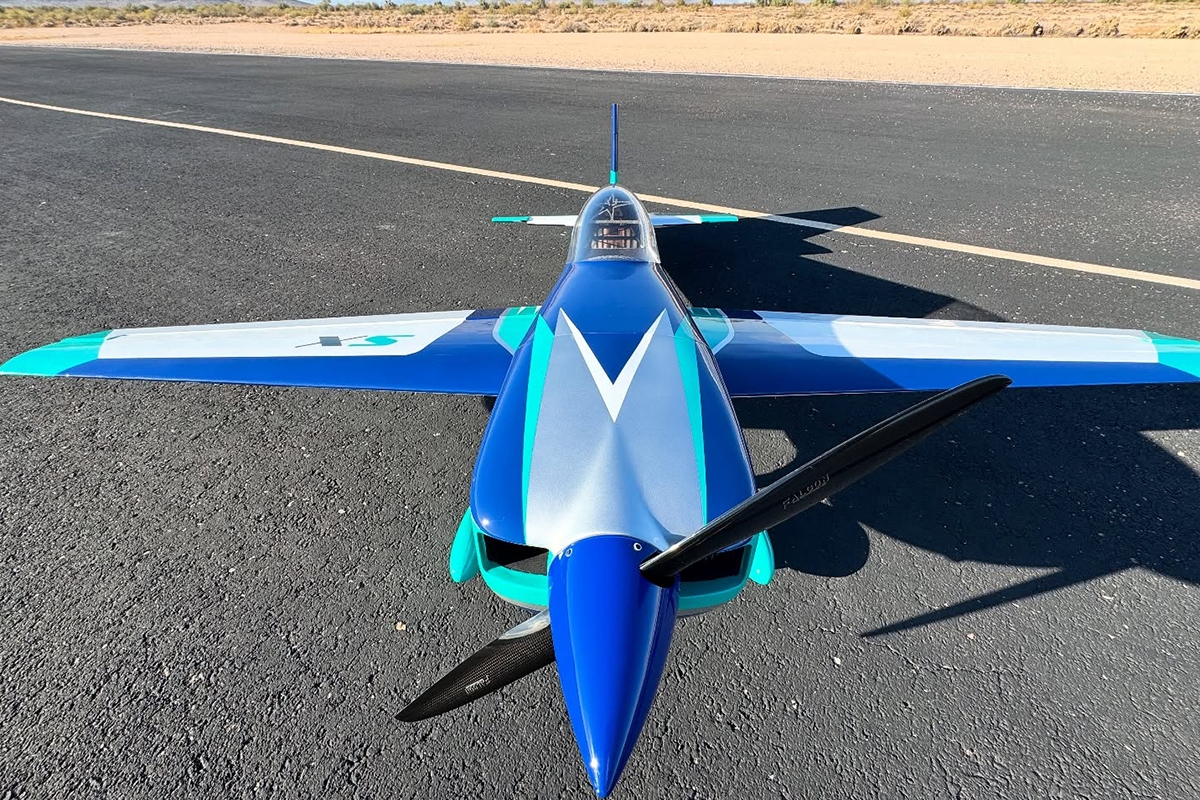

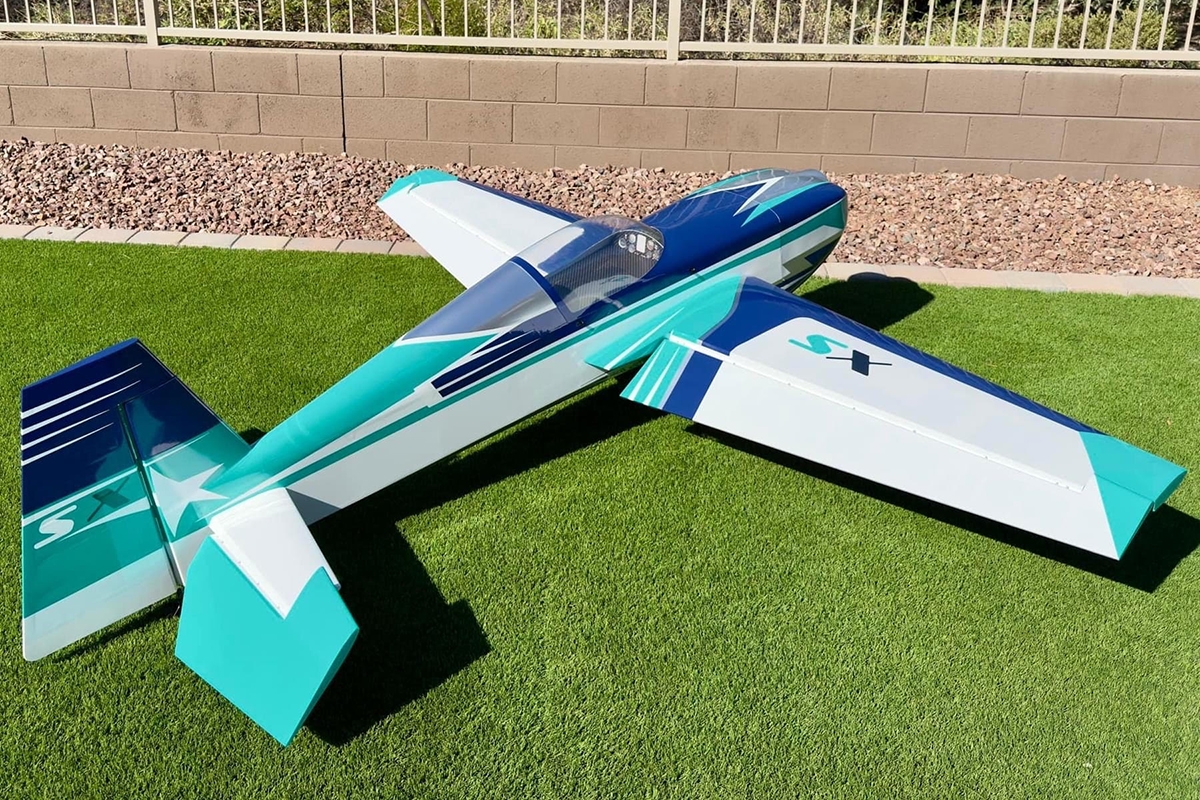

The model’s fuselage is of conventional construction, made from laser-cut plywood and balsa parts reinforced with Kevlar and carbon. The removable fibreglass engine cover and removable upper fuselage section with cockpit provide excellent access to the power system and RC equipment. The engine is mounted in a rear installation on a plywood box mount, and a tunnel is provided on the underside of the fuselage for fitting a tuned exhaust muffler if required.

The two-piece wing with a symmetrical airfoil (the halves slide onto a carbon-fibre tube joiner from the sides and are secured with bolts) is also of conventional construction, with a rigid all-balsa skin. The large-area ailerons are controlled by 2 pairs of servos.

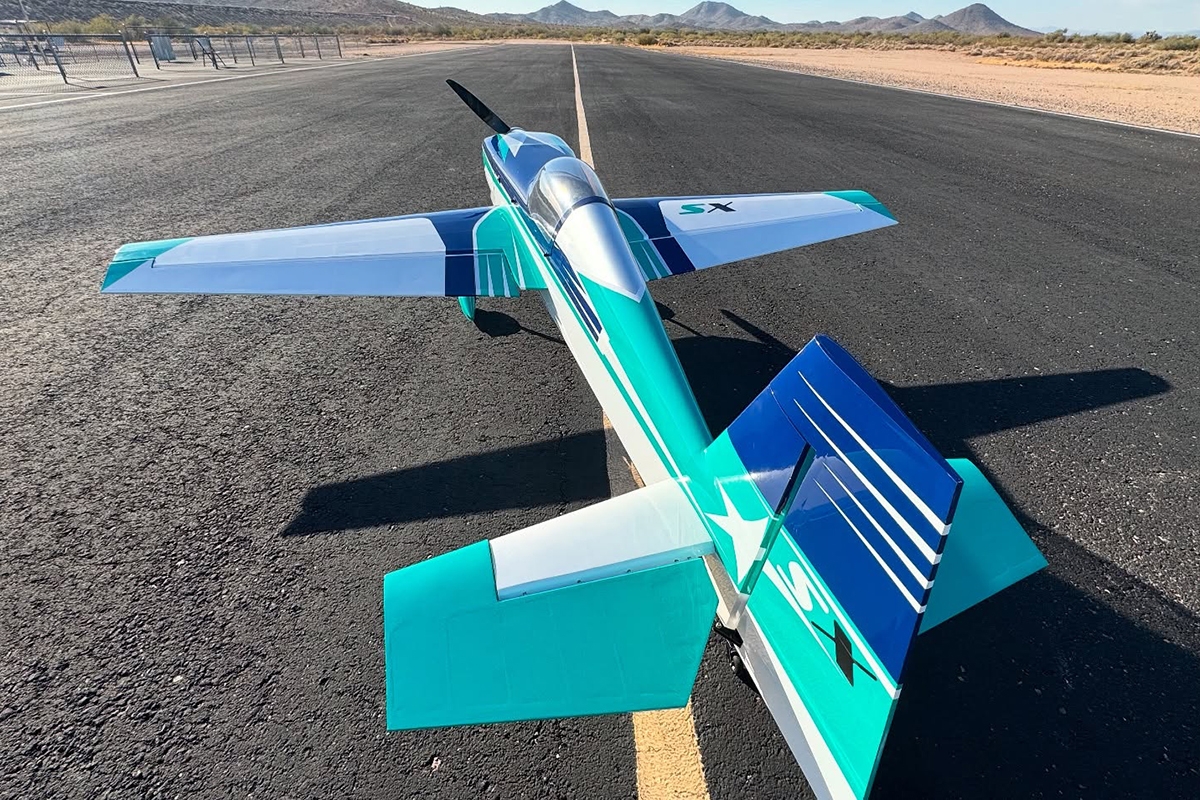

The tail surfaces are of lightweight all-balsa construction. The horizontal stabilizer is in two pieces, with the halves sliding onto a carbon-fibre tube. The elevator halves are controlled by servos installed in the horizontal stabilizer via short pushrods. The rudder is controlled by a cable drive (it can also be removed for easier transport and storage). The design also allows the rudder to be controlled by wire pushrods using one or two servos installed in the rear section of the fuselage.

The entire model is covered with Ultracote iron-on film (the trade name used in the USA for the well-known Oracover films).

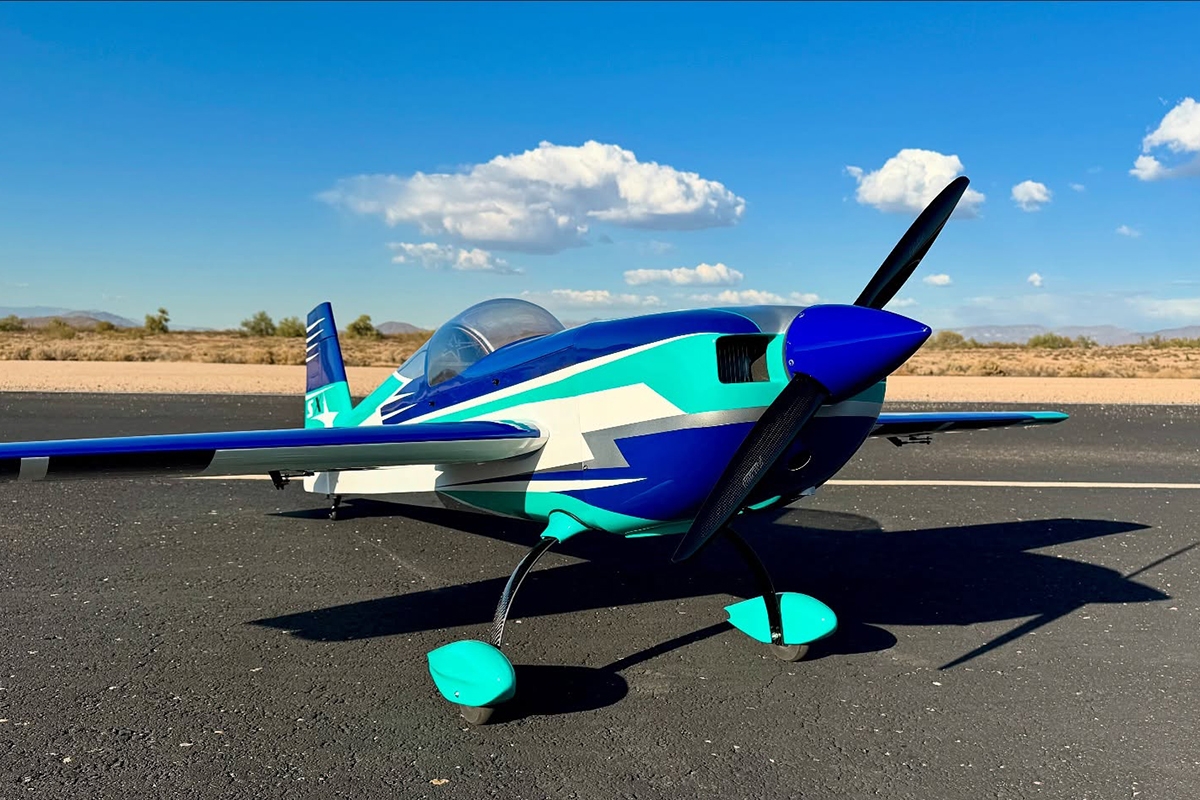

The landing gear is of the taildragger type, with carbon main gear legs, wheels with fibreglass covers, and a wire tailwheel with a carbon bracket linked to the rudder.

For power, you will need a 100–130 cc petrol engine (e.g. GP-123).

A computerised RC system with at least nine channels will be suitable for controlling the model, allowing precise adjustment of “paired” servos and programming of dual rates and exponential rates to the correct values.

Fast, very powerful standard-size servos are suitable—for example, Futaba S9177SV, MKS HV777A+, Kavan GO-1070MG, Kavan GO-1081MG, Kavan GO-1088MG, Hitec HS-7950TH, Hitec D980TW or Hitec HSB-9381TH, plus one standard servo for throttle control.

Package contents

The package contains the fuselage, wing and tail surfaces covered with iron-on film, a painted fibreglass engine cover, a complete accessory set, carbon landing gear, tailwheel, wheels and instructions.

Warning: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aircraft (conventional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). Further information can be found here: Registration of operators and pilots.

Technical Data:

Wingspan [mm] 2616
Length [mm] 2565
Weight [g] 11 800–12 250
Controlled functions S, S (2), V (2), K (4), M
Build difficulty S2, S3
Pilot skill level P4
