Kavan GO-1070MG BB Brushless HiVolt DIGITAL servo
Wednesday 25.11. it can be at your place
Customer line 9 am - 6 pm: +420 774 590 258 | Do you need help?
| Price in e-shop with VAT: | 983,20 € |
| Temporarily unavailable | |
|
|
Send a question
on availability |
|
Send a question
on availability |
|
|
35 years in business = safe shopping and professional service |
|
Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.

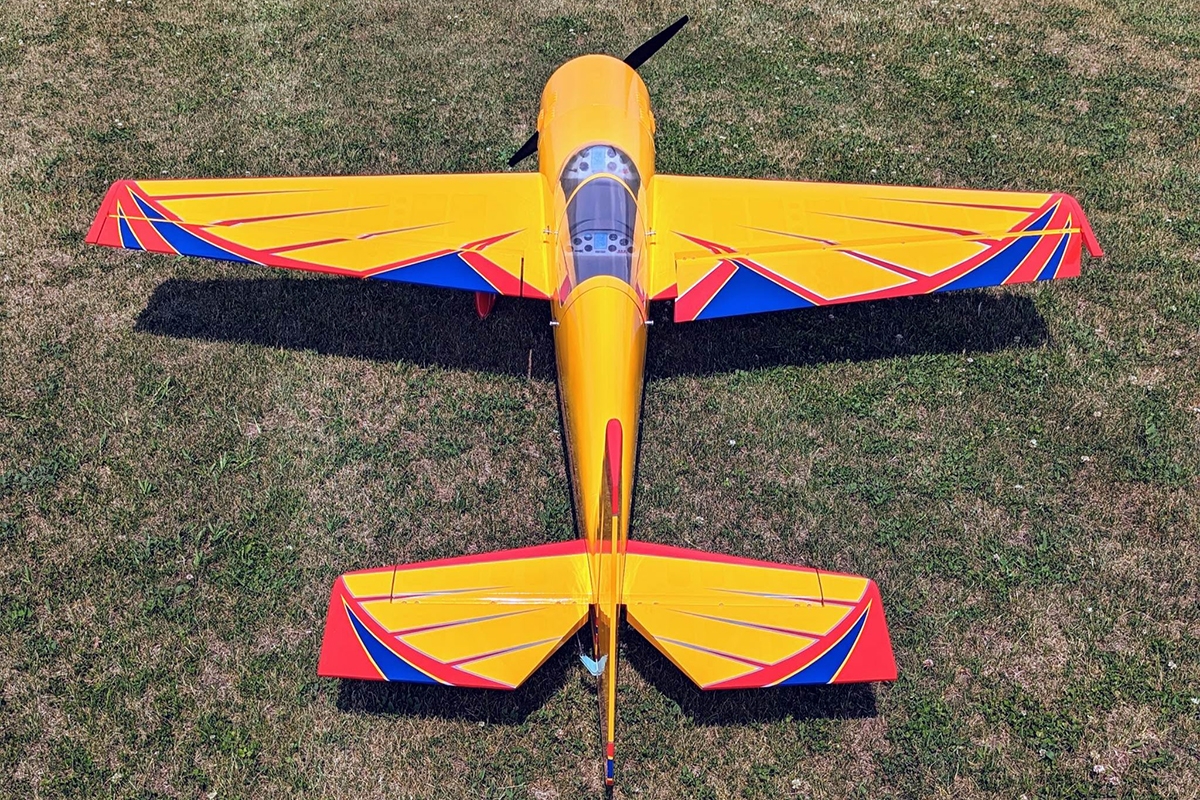

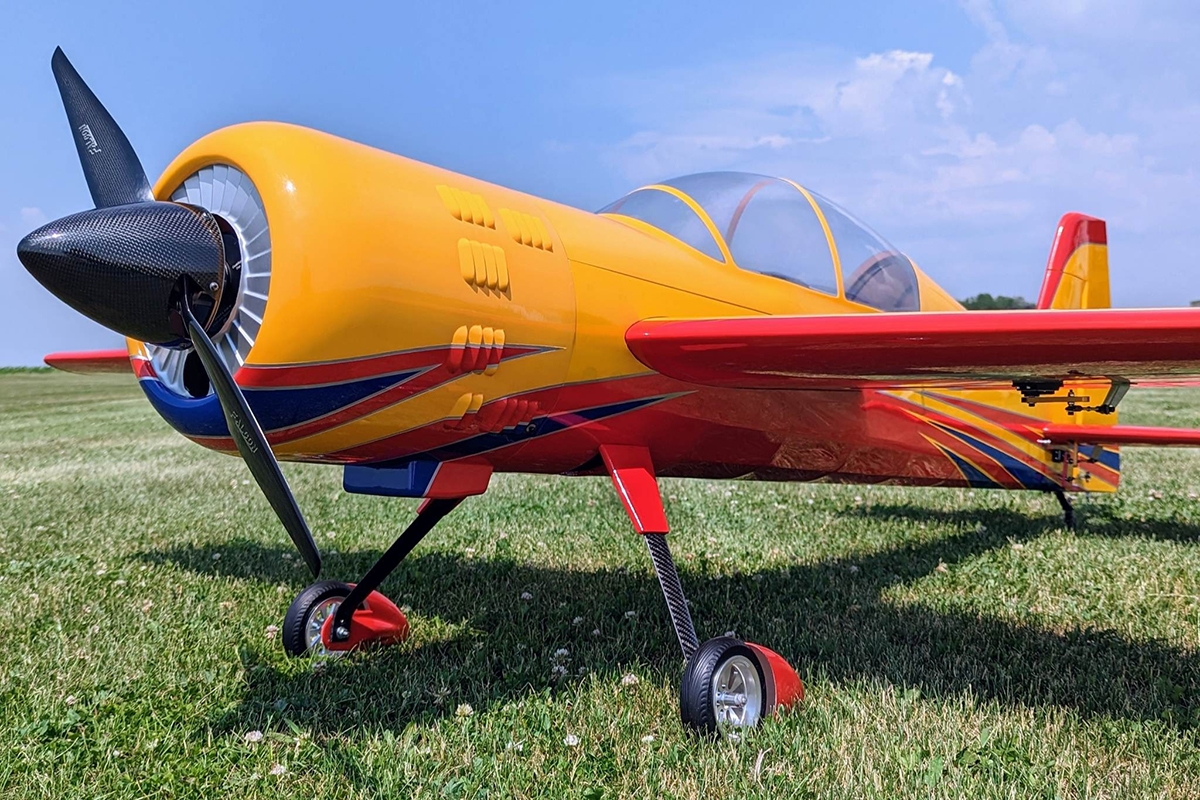

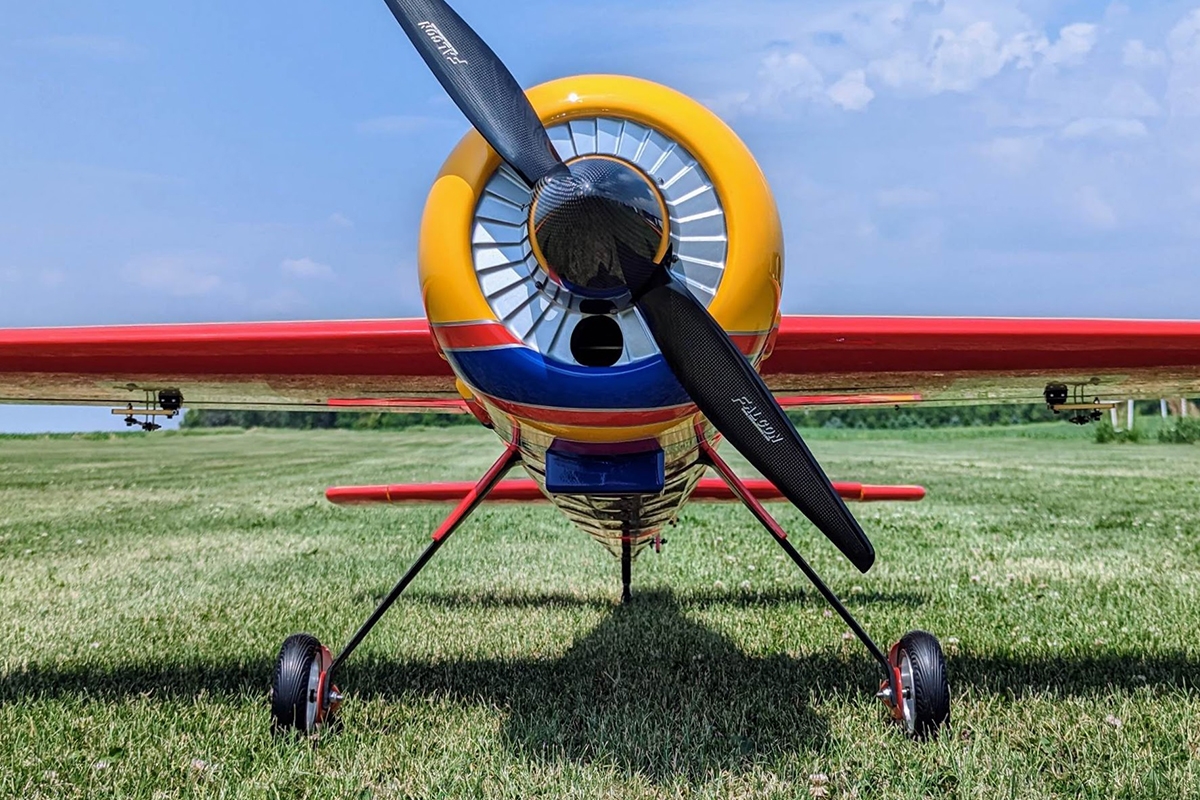

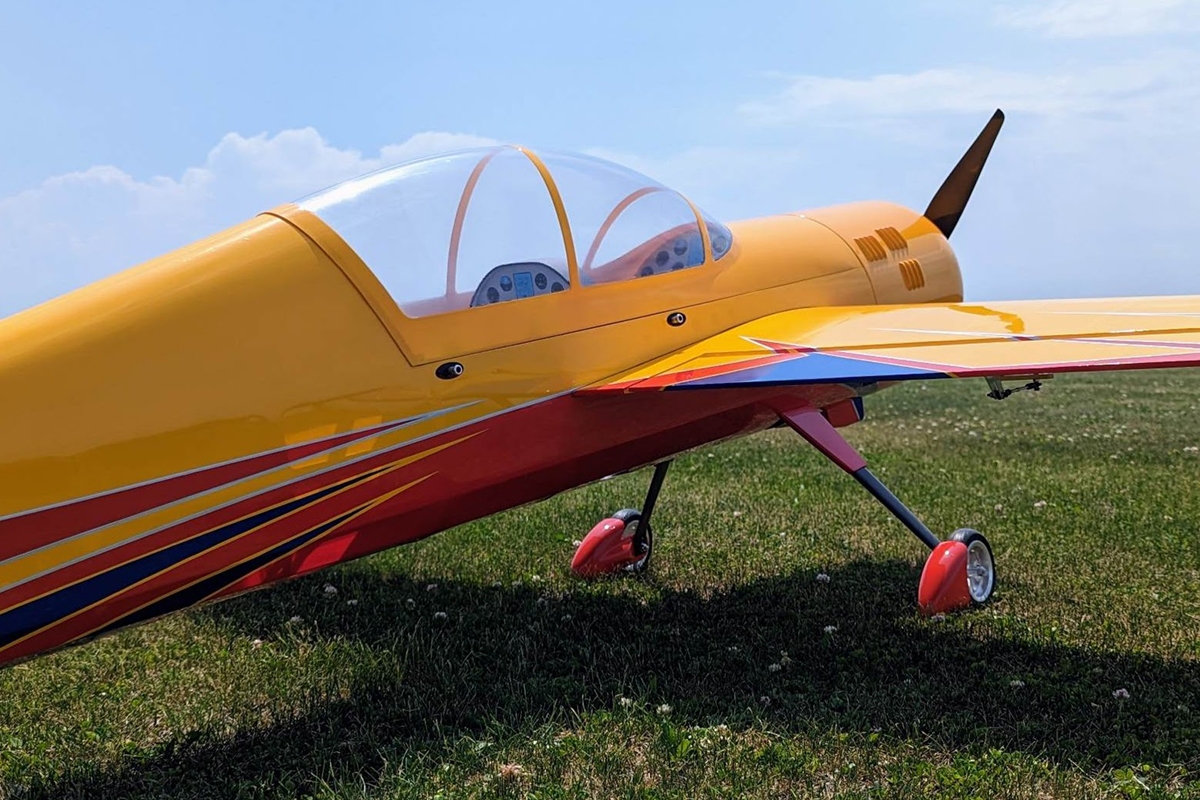

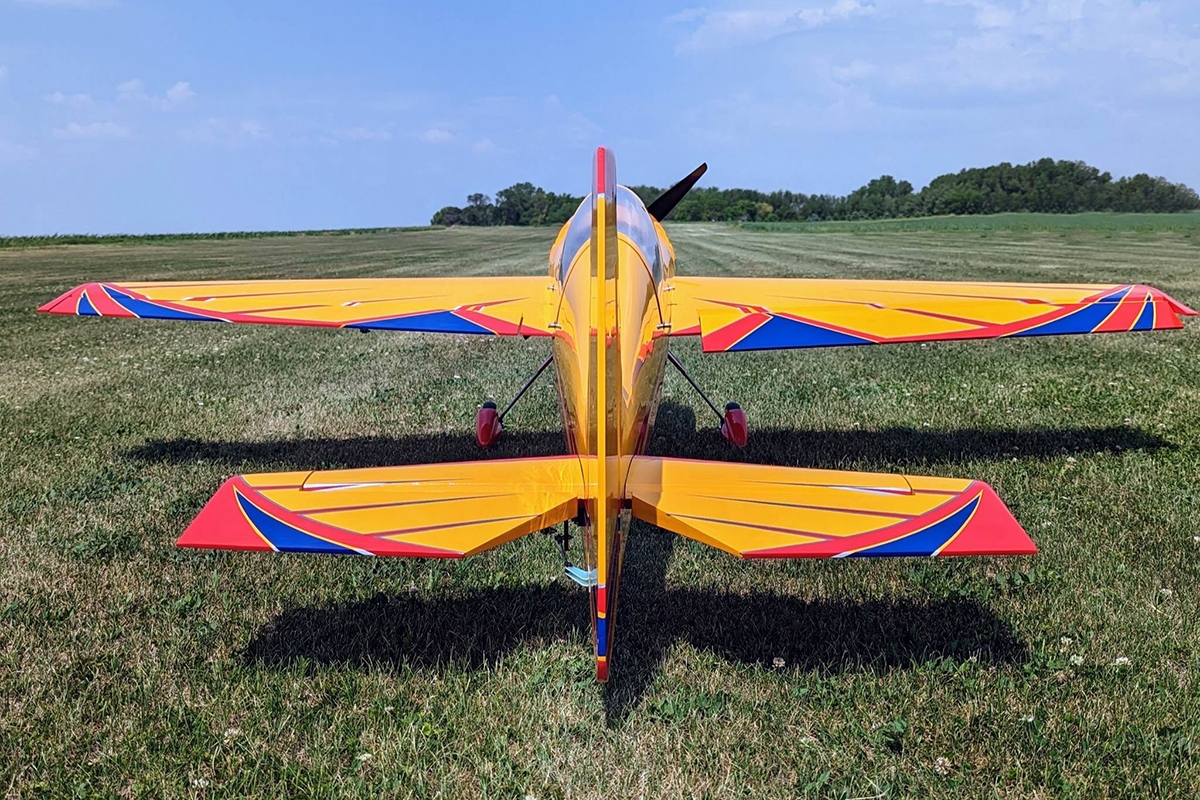

ARF kit of a 3D aerobatic special with a 2160 mm wingspan, designed for power by a 50–61 cc glow engine or brushless electric motor. Very lightweight construction, with many carbon-fiber components.
Extreme Flight aerobatic models are loosely based on real aircraft, with the designer making a number of modifications to create a model with a unique appearance and flight performance. The EXP designation has no connection to a real aircraft; it is an abbreviation of “Experimental Progressive.” This designation was chosen because Extreme Flight models use several advanced structural and aerodynamic concepts.
In the lightweight construction, based on balsa and plywood components, carbon- and fiberglass-composite materials are used generously—and in all the right places—to achieve a strong, rigid airframe at minimum weight. The result is a robust model capable of handling aerodynamic loads across a wide range, yet light enough to deliver high performance.
The kit includes tuning wingtips, or Side Force Generators (SFGs), which increase the model’s effective side area, making knife-edge flight and other maneuvers that depend on rudder authority easier and more stable. These wingtips also make the model more stable during high-angle-of-attack maneuvers (harriers). We strongly recommend installing them and experimenting with them.
The perfectly painted fiberglass engine cowl and aerodynamic wheel pants, combined with a choice of several highly visible Ultracote (Oracover) iron-on covering schemes, will give you a model you can rightly be proud of at the airfield. The combination of all these modern features creates a model that pushes the boundaries of modern aerobatic flight. Extreme Flight models excel in all forms of modern aerobatics, including slow 3D aerobatics at low altitude, fast and aggressive extreme aerobatics, and classic precision aerobatics.
The fuselage has a conventional structure made from laser-cut plywood and balsa parts with composite reinforcements. It features a removable fiberglass engine cowl and a removable upper fuselage section with canopy (with a quick-release system) for easy access to the power system and RC equipment. The engine is mounted in a rear-mount configuration on a plywood box mount.
The two-piece wing, with a symmetrical airfoil (the halves slide in from the sides and are secured with a quick-release system), also has a conventional structure with a rigid all-balsa skin. The large ailerons are operated by 2 independent servos. The included wingtips can be fitted to the wing ends.
The tail surfaces have a lightweight all-balsa construction. The horizontal stabilizer is in two pieces, with the halves sliding onto a carbon tube and secured with a quick-release system. The elevator halves are operated by servos housed in the horizontal stabilizer, using short pushrods. The rudder is operated in the same way, or alternatively by cable linkages via a servo located in the canopy area. The entire model is covered with Ultracote iron-on film (the trade name used in the USA for the well-known Oracover films).
The landing gear is a taildragger type, with carbon main gear legs, wheels with fiberglass wheel pants, and a wire tailwheel assembly with a carbon bracket linked to the rudder.
To power the model, you will need a 50–60 cc gasoline engine (e.g. GP-61, O.S. GT-60), or alternatively a 4 kW brushless electric motor (e.g. Xpwr 40cc) with an ESC rated for at least 120A. Power is supplied by a 12S LiPo battery with a capacity of 4500–5000 mAh and a discharge rating of at least 40C.
For model control, a computer radio system with at least seven channels is suitable—the ability to precisely set up paired servos and program dual rates and exponential rates to the correct values is essential for classic and extreme 3D aerobatics.
Fast, high-torque standard-size servos are suitable—for example, Hitec Hitec HS-7950TH, D980TW, HSB-9381TH or Savöx SB-2290SG—and one standard servo for throttle control.
Package contents
The package contains an iron-on film-covered fuselage, wing and tail surfaces, a painted fiberglass engine cowl, a complete set of accessories, carbon landing gear, tailwheel assembly, wheels and instructions.
Warning: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aerial vehicles (conventional model aircraft, multicopters, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). More information is available here: Registration of drone operators and pilots.
| Wingspan [mm] | 2160 |
| Length [mm] | 2120 |
| Weight [g] | 7500–8000 |
| Wing area [dm2] | 82,8 |
