MXS EXP V2 1.21m ARF (green)

Price in e-shop with VAT: 442,21 €
Stock
Tuesday 24.11. you can have it at the Nademlejnská central store
Wednesday 25.11. it can be at your place
Buy
Buy

35 years in business = safe shopping and professional service
Manufacturer: ExtremeFlight
Goods code: A210V2G
EAN: 8596450028555

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.

Send a question
  • Product Description

  • Technical Data:

Product Description

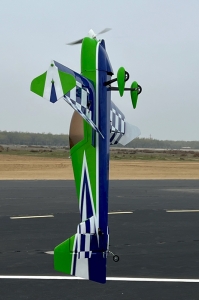

ExtremeFlight A210V2G - MXS EXP V2 1.21m ARF (green)

ARF kit of a 3D aerobatic special with a wingspan of 1219 mm, designed for a brushless electric motor in the Axi 2814 class. Very lightweight construction, with many carbon parts.

Extreme Flight aerobatic models are loosely based on real aircraft, with the designer making a number of modifications to create a model with a unique appearance and flight performance. The lightweight construction is based on balsa and plywood parts, with carbon and fiberglass composite materials used generously—and in all the right places—to achieve a strong, rigid airframe at minimum weight. The result is a robust model capable of handling aerodynamic loads across a wide range, yet light enough to deliver high performance.

The kit includes tuning wingtips, or Side Force Generators (SFGs), which increase the model’s effective side area, making knife-edge flight and other maneuvers that depend on rudder authority easier and more stable. These wingtips also make the model more stable during high-angle-of-attack maneuvers (harriers). We strongly recommend installing them on your model and experimenting with them.

The perfectly painted fiberglass motor cowl and aerodynamic wheel pants, together with the choice of several highly visible Ultracote (Oracover) covering film color schemes, will give you a model you can rightly be proud of at the airfield. The combination of all these modern features creates a model that pushes the boundaries of modern aerobatic flight. Extreme Flight models excel in all types of modern aerobatics, including slow, low-altitude 3D aerobatics, fast and aggressive extreme aerobatics, and classic precision aerobatics.

The fuselage has a traditional construction made from laser-cut plywood and balsa parts with composite reinforcements. It features a removable fiberglass motor cowl and a removable upper fuselage section with canopy for easy access to the power system and RC equipment. The motor is mounted in a rear-mount configuration on a plywood box mount.

The two-piece wing with a symmetrical airfoil (the halves slide in from the sides and are secured with screws) also has a traditional construction with a rigid all-balsa skin. The large-area ailerons are operated by 2 independent servos. The supplied wingtips can be fitted to the wing ends.

The tail surfaces are lightweight, all-balsa, and internally geodetic in construction. The horizontal stabilizer is a single piece, with the stabilizer glued into the fuselage. The elevator and rudder are operated by servos mounted in the rear of the fuselage, using short, straight pushrods. The entire model is covered with Ultracote iron-on film (the brand name used in the USA for the well-known Oracover films).

The landing gear is a taildragger type with carbon main gear legs, lightweight wheels with fiberglass wheel pants, and a wire tailwheel assembly with a carbon bracket linked to the rudder.

The model requires a brushless Axi 2814 electric motor with a speed controller rated for at least 40–50 A. It is powered by a 4S LiPo battery with a capacity of 2100–2700 mAh and a discharge rating of at least 40C.

A computer RC system with at least four channels is suitable for controlling the model. The ability to precisely program dual and exponential rates at the appropriate levels is essential for aerobatic flying—both classic precision aerobatics and extreme 3D.

Fast, powerful sub-micro servos are suitable, e.g. Hitec HS-65MG, HS-5065MG, etc.

Package contents

The package contains a fuselage, wing and tail surfaces covered with iron-on film, a painted fiberglass motor cowl, a complete accessory set, carbon landing gear, tailwheel assembly, wheels, and instructions.

Notice: Under Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned aircraft systems and on third-country operators of unmanned aircraft systems, and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on the rules and procedures for the operation of unmanned aircraft, operators and pilots of unmanned aircraft (traditional model aircraft, multirotors, drones) weighing more than 250 g or carrying a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic, with the Civil Aviation Authority). Further information is available here: Registration of drone operators and pilots.

Technical Data:

Wingspan [mm] 1219
Length [mm] 1219
Weight [g] 1240–1360
Wing area [dm2] 32,25
Controlled functions S, V, K (2), M
Building difficulty S1, S2
Piloting difficulty P3, P4
