Product Description

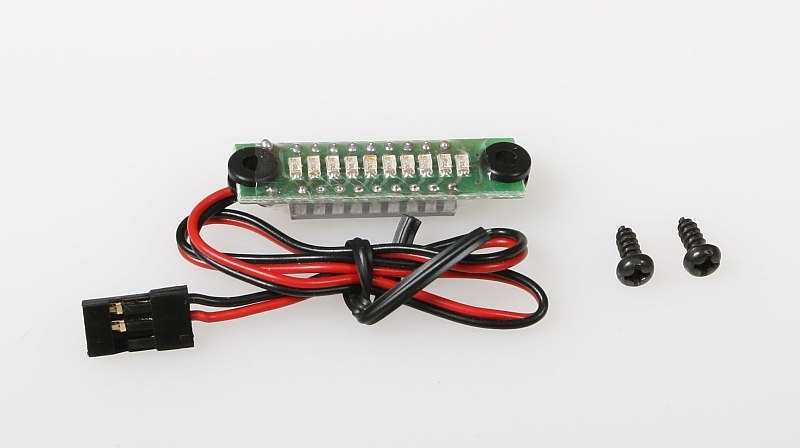

Pelikán 8GR30935 - JR065/5 10LED Rx indicator 5-cell

Bar-type voltage indicator (“running dot”) for 4-cell Ni-XX battery packs, with 10 LEDs. The indicator is powered by the battery being measured and is fitted with mounting tabs with rubber grommets for screw mounting in a suitable location in the model.

The indicator is connected via a two-wire cable with a standard Hitec/JR servo connector, e.g. to a free channel on the receiver. The 10-LED bar with an expanded scale makes it possible to distinguish between fully charged cells (voltage above 6.4 V), partially charged cells, discharged cells (5.7–6.0 V) and dangerously discharged cells (below 5.5 V), both with no load and under load (if you move several servos at once and the bar drops significantly into the “discharged” area, you definitely don’t have enough energy for another takeoff).

Voltage levels are indicated using a “running dot” style, with one LED lit at a time. This signaling method ensures minimal current draw for the indicator’s operation and also allows a greater number of levels to be indicated—if two LEDs are lit at once, the voltage is halfway between the levels assigned to the individual LEDs.

Approximate table of indicated voltage levels

LED no.: LED color Lights up at:
1 red 5.3 V
2 red 5.4 V
3 red 5.5 V
4 yellow 5.7 V
5 green 5.8 V
6 green 5.9 V
7 green 6.0 V
8 green 6.1 V
9 green 6.2 V
10 green 6.4 V

Note: The voltage levels shown are approximate only. Thanks to the excellent stability and accuracy of the measuring integrated circuit used, you can calibrate the indicator precisely if needed using a good voltmeter and a regulated voltage source.

Technical Data:

Voltage [V] 0 - 7.5
Length [mm] 39
Width [mm] 12
Height [mm] 7
Weight [g] 4.5
