55810 Receiver. RX-7-DR Light M-LINK 2.4 GHz

Price in e-shop with VAT:	88,94 €
Temporarily unavailable
	Send a question on availability
Send a question on availability

Manufacturer:	Multiplex
Goods code:	1M151490

Share the product on:

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.

Product Description
Technical Data:

Product Description

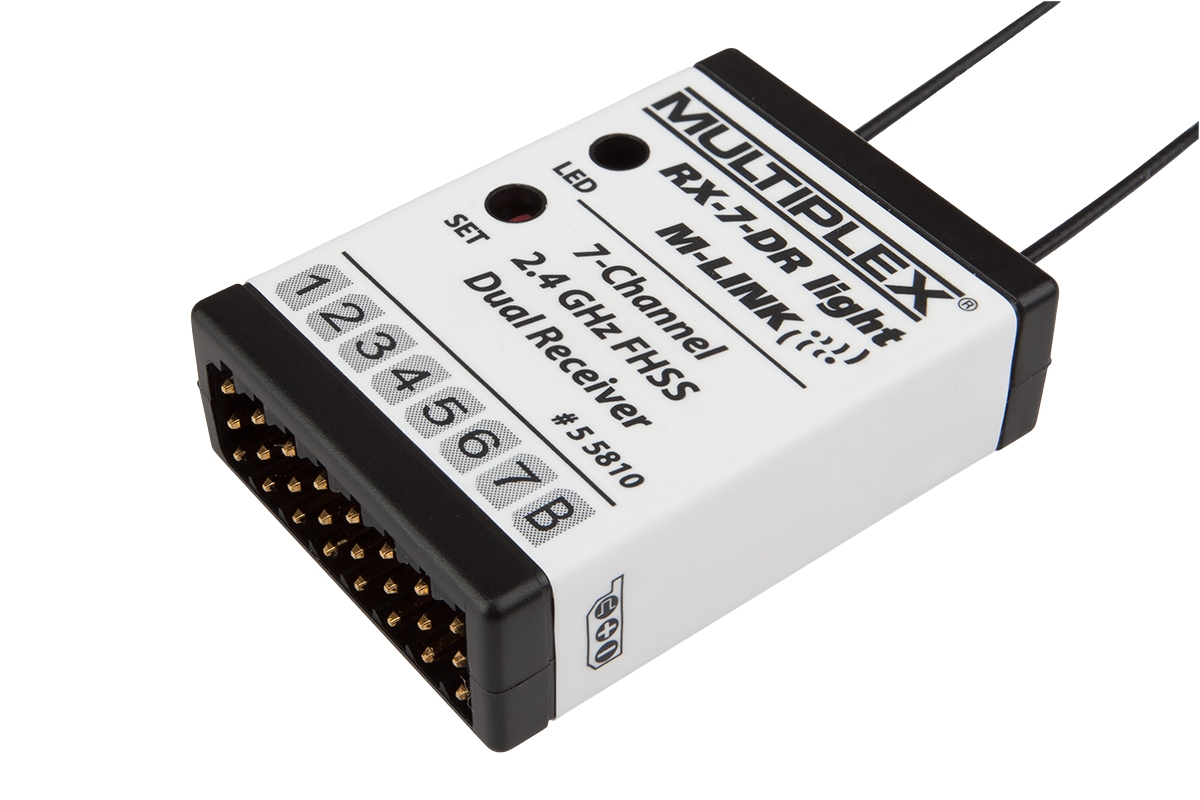

Double (diversity) seven-channel receiver with 2.4 GHz FHSS system MULTIPLEX M-LINK with a smaller range (corresponding to reach 35/40 Mhz receivers with a "full range") and an increased supply voltage range (4-5 Ni-xx, 2S Li- poly). Thanks to its small size, low weight, connectors zasouvaným longitudinal axis and low current consumption is designed for smaller models. Using M-LINK transmission technology provides high noise immunity and the ability to set the emergency deflections (fail-safe) in case of failure or strong interference signal transmitter. RX-7-DR Light M-LINK circuit includes two receivers with special antennas that operate in parallel, which ensures correct installation of antennas (mutually perpendicular) to the high reliability of the transmission control signal regardless of the relative position of the transmitter and the model.

Pairing setting a fail-safe emergency deflection is done using the programming button on the receiver SET, operating states are indicated by LEDs.

The receiver does not return transfer to the telemetry transmitter.

Receiver RX-7-DR Light M-LINK is equipped with a jack for standard connectors UNI (= JR / Graupner Hitec).

Modulation / Coding	2.4GHz M-LINK
Number of channels	7
Function	Fail-safe
Power	4.8V, 6V, 7.4V
Subscribe free serv [mA]	10
Length [mm]	38
Width [mm]	28
Height [mm]	11.5
Weight [g]	10

Technical Data:

Modulace/Kódování	2.4GHz M-LINK
Počet kanálů	7
Funkce	Fail-safe
Napájení	4.8V,6V,7.4V
Odběr bez serv [mA]	10
Délka [mm]	38
Šířka [mm]	28
Výška [mm]	11.5
Hmotnost [g]	10
