Product Description

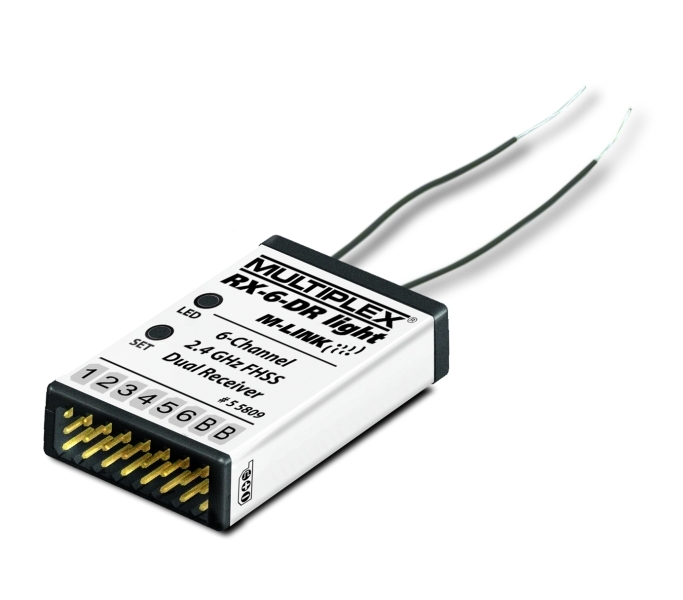

Multiplex - 55809 Receiver. RX-6-DR Light M-LINK 2.4 GHz - 1M151491

Double (diversity) six-channel receiver with 2.4 GHz FHSS system MULTIPLEX M-LINK with a smaller range (range corresponds to 35/40 MHz receivers with a "full range") and an increased supply voltage range (4-5 Ni-xx, 2S Li- poly). Thanks to its small size, low weight, connectors zasouvaným longitudinal axis and low current consumption is designed for smaller models. Using M-LINK transmission technology provides high noise immunity and the ability to set the emergency deflections (fail-safe) in case of failure or strong interference signal transmitter. RX-6-DR Light M-LINK circuit includes two receivers with special antennas that operate in parallel, which ensures correct installation of antennas (mutually perpendicular) to the high reliability of the transmission control signal regardless of the relative position of the transmitter and the model.

Pairing setting a fail-safe emergency deflection is done using the programming button on the receiver SET, operating states are indicated by LEDs.

The receiver does not return transfer to the telemetry transmitter.

Receiver RX-6-DR Light M-LINK is equipped with a jack for standard connectors UNI (= JR / Graupner Hitec).

Modulation / Coding 2.4GHz M-LINK
Number of channels 6
Function Fail-safe operation Dvoupřijímačový
Power 4.8V, 6V, 7.4V
Subscribe free serv [mA] 10
Length [mm] 38
Width [mm] 28
Height [mm] 11.5
Weight [g] 10
