DO-27 Zámek křídla
unavailable
Customer line 9 am - 6 pm: +420 774 590 258 | Do you need help?
| Price in e-shop with VAT: | 327,46 € |
| Temporarily unavailable | |
|
|
Send a question
on availability |
|
Send a question
on availability |
|
|
35 years in business = safe shopping and professional service |
|
Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.
#Chcete dostat upozornění ve chvíli, kdy produkt bude k dispozici? Stačí vyplnit formulář a náš hlídací pes Vám dá vědět.

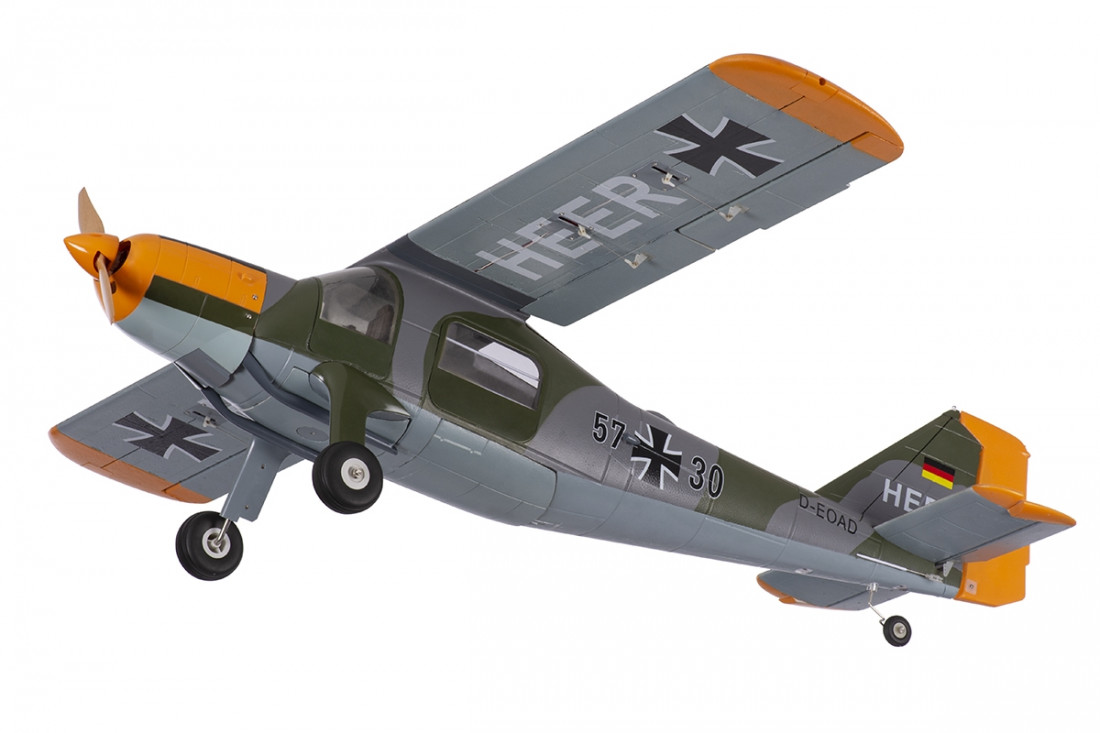

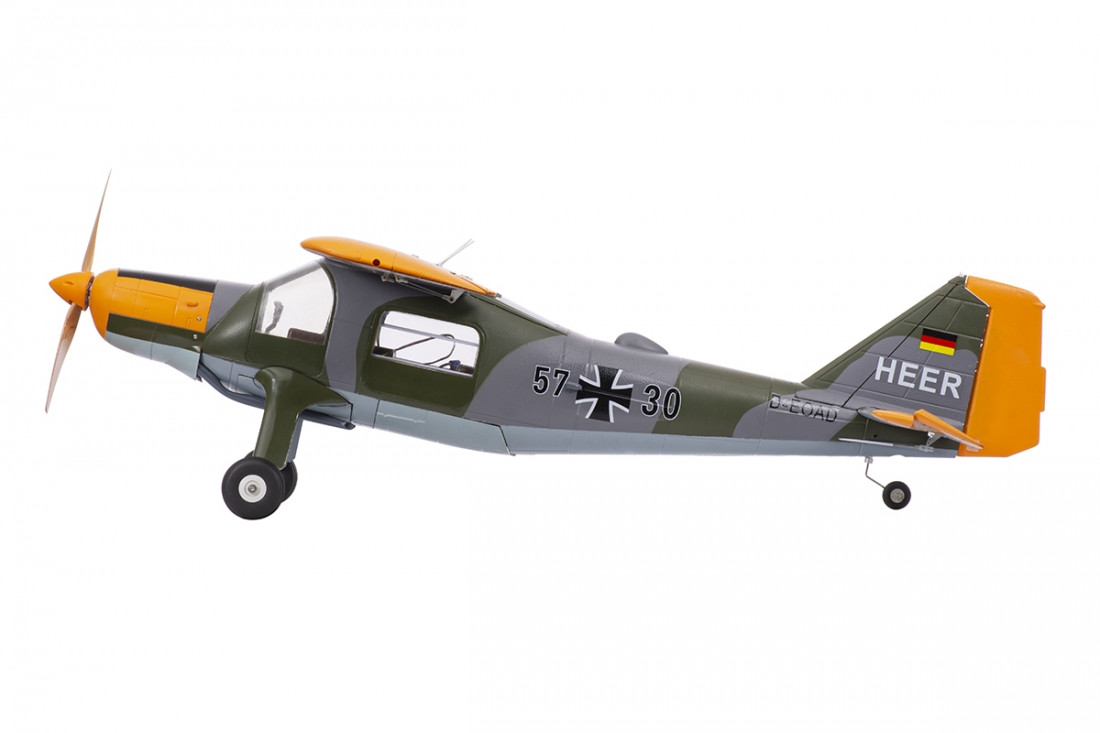

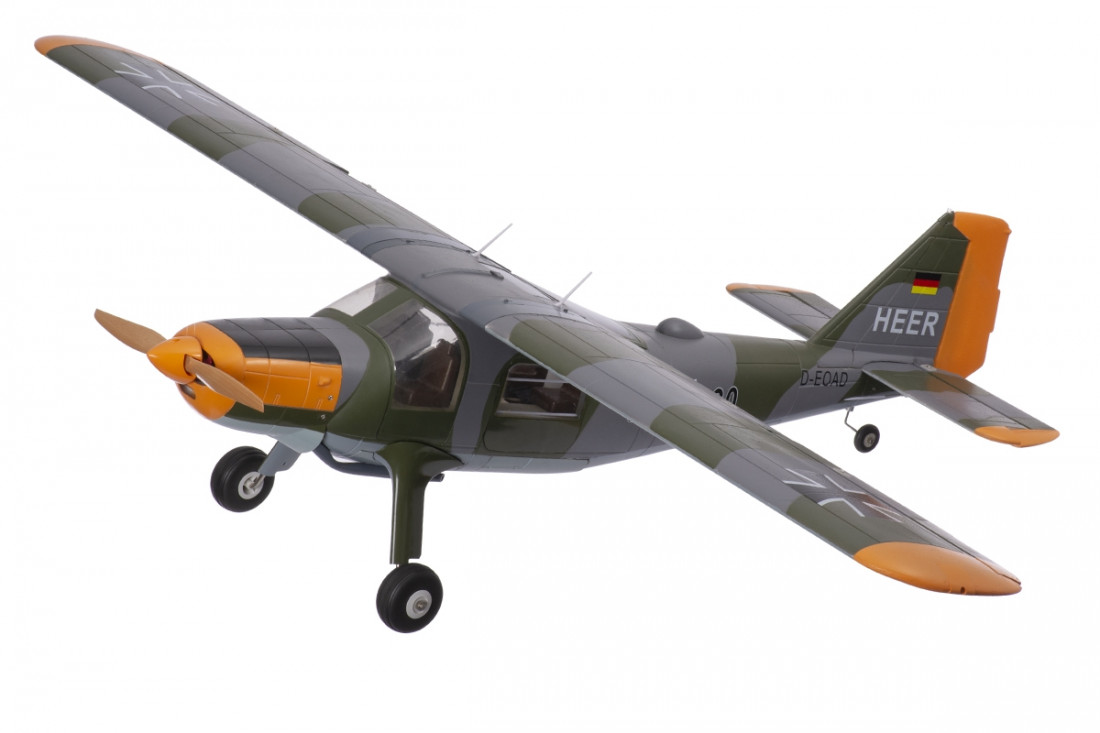

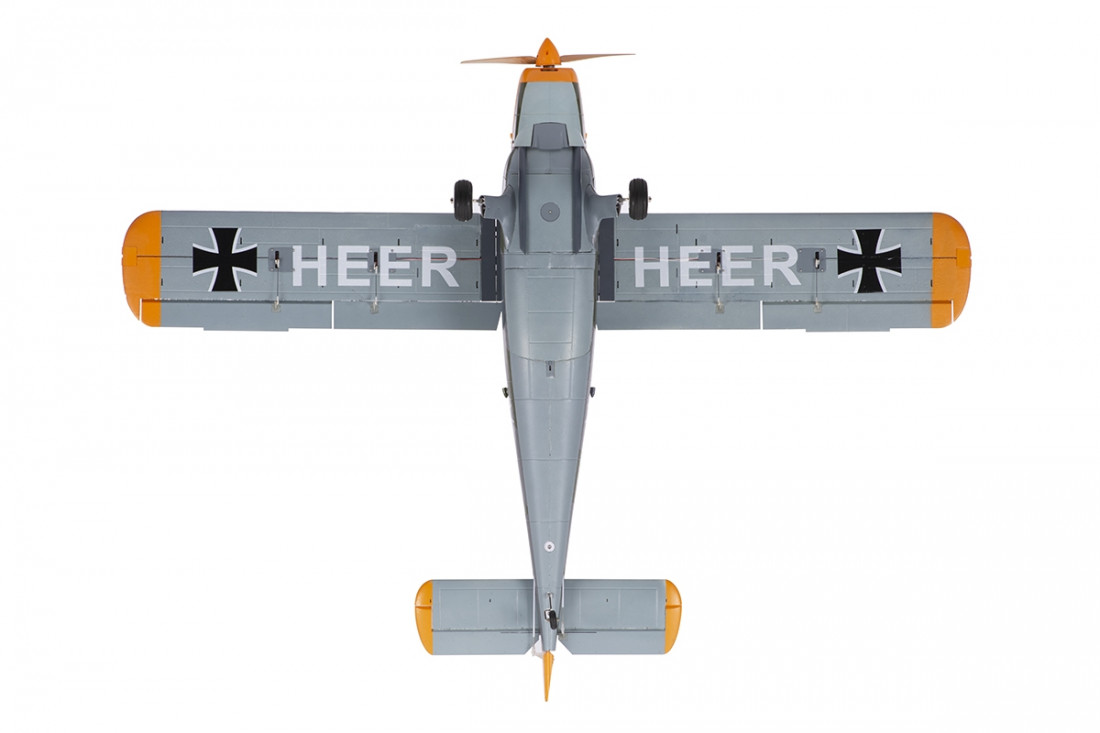

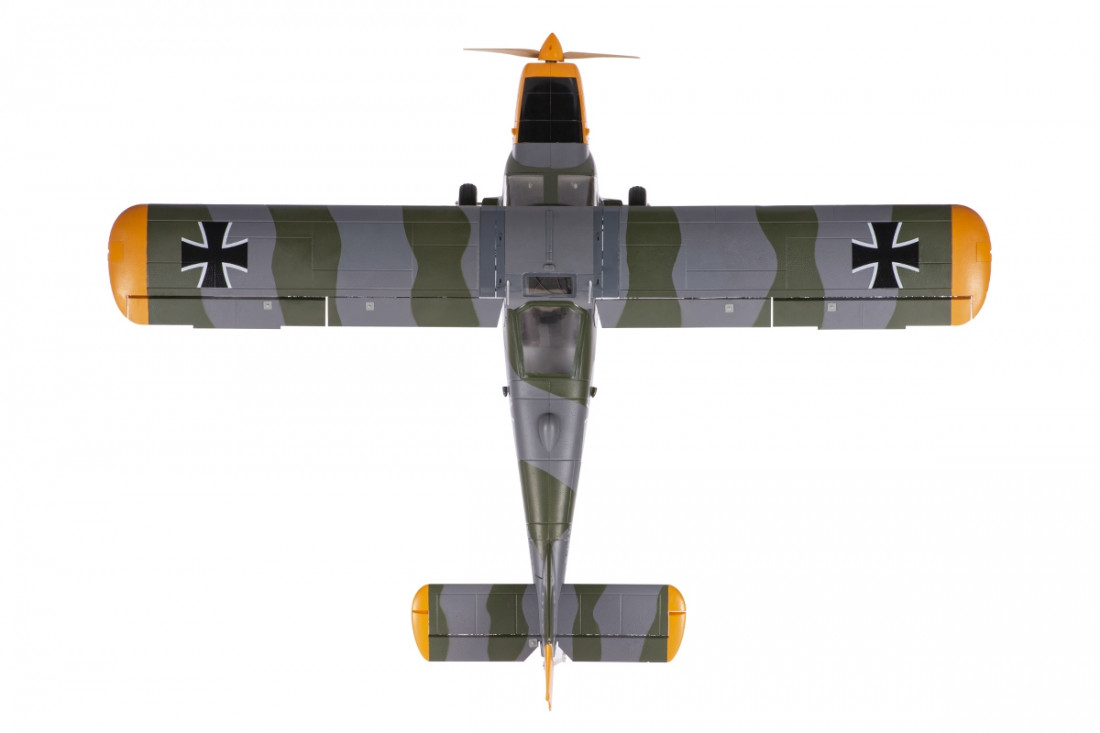

The Dornier DO-27 was a German single-engine utility aircraft manufactured by Dornier GmbH (later DASA Dornier and Fairchild-Dornier). It was a conventional high-wing aircraft with fixed tailwheel landing gear and very low runway length requirements for takeoff and landing. The kit contains an almost-ready-to-fly model equipped with a brushless motor, speed controller and servos. Ailerons, flaps, rudder, elevator and motor speed are controllable.
The model fuselage is made of EPP foam molded in a negative mold. The power battery and receiver compartment is located beneath the removable lower section of the fuselage. The two-piece wing with a semi-symmetrical airfoil, joined by a carbon-fibre tube connector, is also made of EPP foam. The ailerons and flaps are controlled by two pairs of servos in the wing, using short, straight pushrods. LED navigation lights are installed beneath plastic covers at the wingtip and on the rudder.
The EPP foam tail surfaces are attached to the fuselage with screws. The control surfaces are operated by servos mounted in the fuselage and connected to them by wire pushrods with bellcranks. A separate servo mounted in the rear of the fuselage operates the tailwheel. The landing gear is a two-wheel wire type and features a steerable tailwheel.
All seven servos are 9 g digital units with metal gears. The installed BL4250 KV700 outrunner motor is controlled by a Hobbywing 50A speed controller. A 13×6" wooden propeller is included.
Package contents
The package contains an EPP foam fuselage, wing and tail surfaces, a wing joiner, a 13×6" wooden propeller, small scale accessories, a screw set and instructions. The model comes equipped with a power unit, servos and speed controller.
Must be purchased separately
To control the model, you will need at least a 5-channel RC system if you keep the model in its standard configuration, with both aileron servos, flap servos, and the rudder and tailwheel servos connected to a single receiver channel. If you want to retain independent control of these functions, you will need at least an 8-channel RC system. The motor and onboard electronics require a 4S 14.8 V LiPo battery with a capacity of 3000–5000 mAh and a discharge rating of at least 25 C. The cable to the speed controller in the model is fitted with an EC3 connector.
| Wingspan [mm] | 1600 |
| Length [mm] | 1234 |
| Weight [g] | 2600 |
| Building difficulty | S1 |
| Piloting difficulty | P1, P2 |
