Almost finished school model motor glider with an AC motor. Model of nearly indestructible extruded expanded polypropylene (EPP) rudder, elevator, ailerons. Complete RC set in mode 1 with RC HITEC Lite 4
ALPHA 1500 is no longer alone in the sky! The sleek motor glider connects resistant and tenacious traction grasshopper BETA 1400th Trainers reliable workhorse satisfy novice pilots to be carried out from the initial scaling airfield to the basic aerobatic maneuvers and thermal soaring. Equally happy holiday weekend fliers, which provide compact and easily transportable model for a perfectly relaxing polétání.

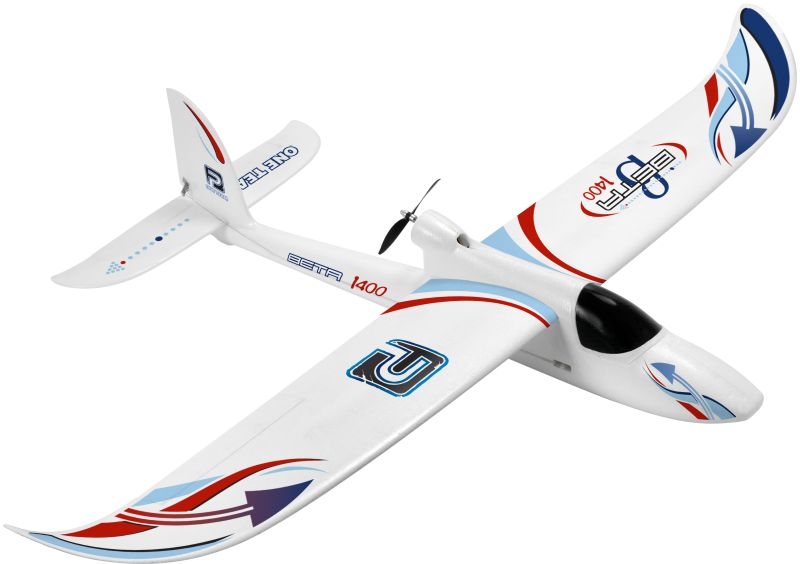

BETA 1400 Trainers motor glider made from high grade extruded polypropylene EPP driven by an AC motor. Thanks to its design with the engine mounted on a pylon under the wing very well to rough handling and endure even harder "čuchometrické" bow sticking to native soil, that of classical models with engine adds at least lead to damage to the propeller.

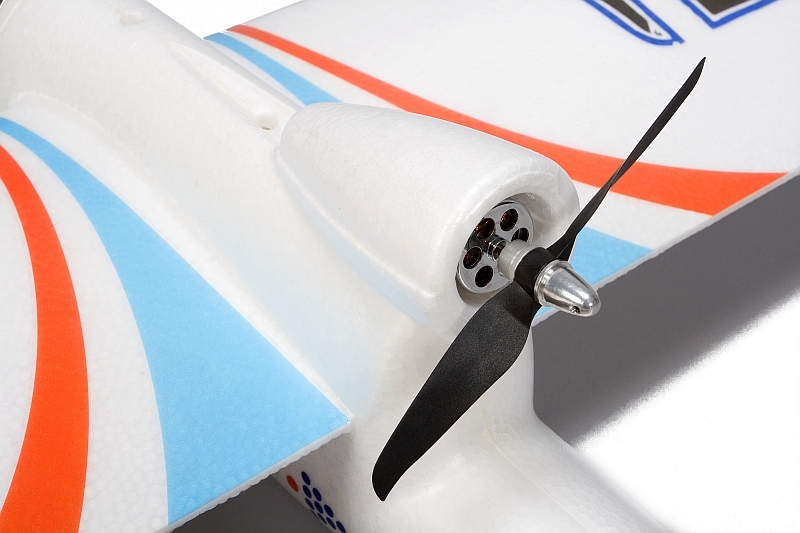

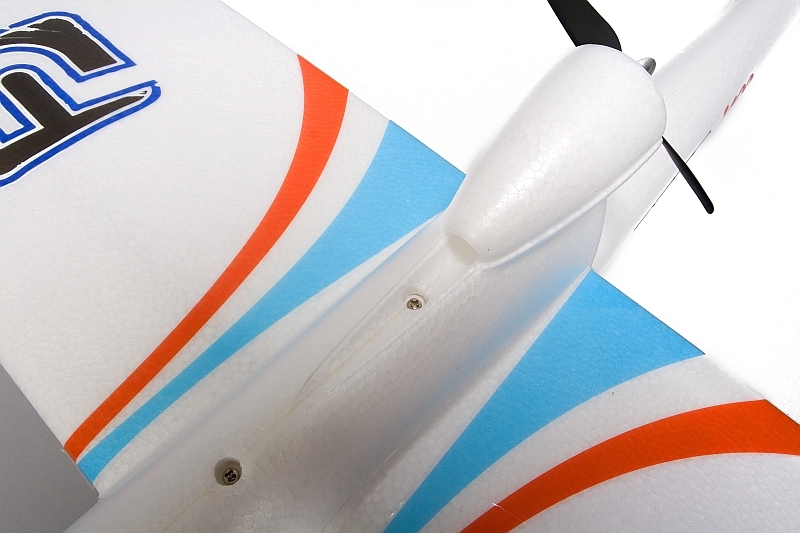

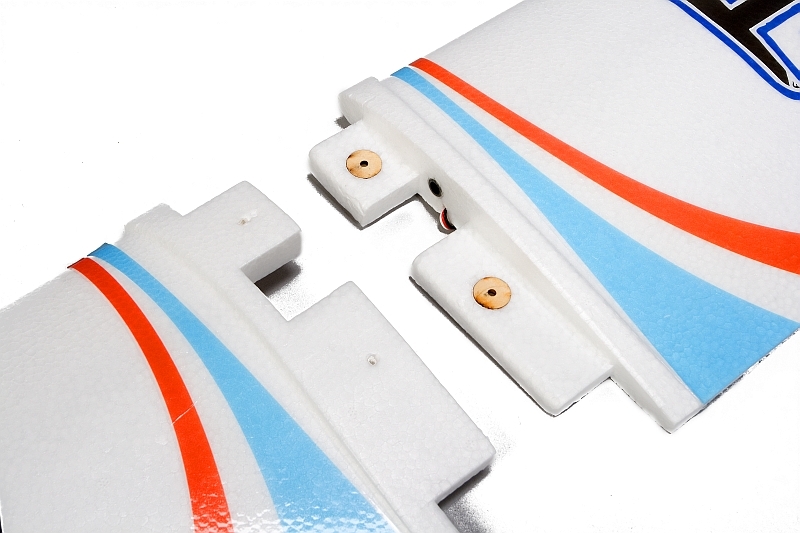

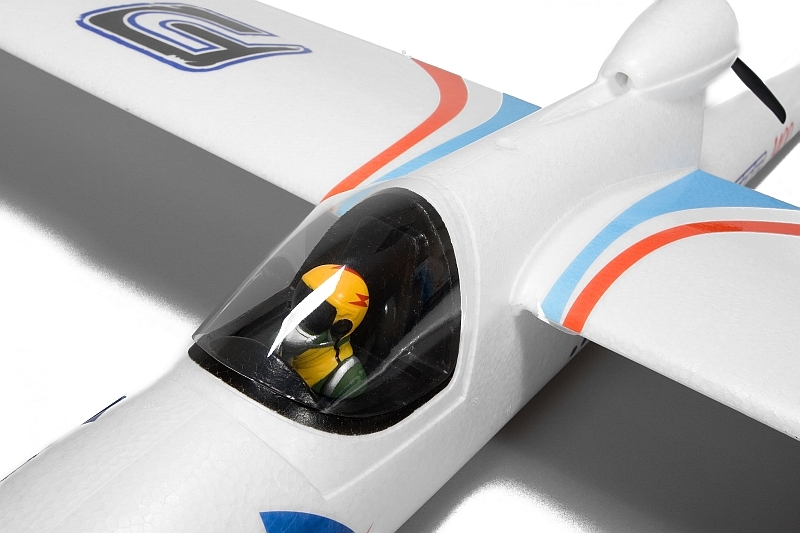

The hull fitted with a brushless motor (outrunner, CD2622) housed in a wing pylon with a fixed propeller mounted controller 20 A and rudder and elevator servos is extracted from EPP foam. Canopy is removable with magnetic closures. Two-piece wing is also molded from EPP, the ailerons are controlled by 2 servos stored in the wing with a short straight wire rods. Wing combine carbon tube connection. The tail surfaces in a classical arrangement are made of EPP, are controlled by means of wire cables. Engine cooling facilitates cooling air in the leading portion of the pylon, the cooling air flows through channels around the motor housing.
Preparing for a flight includes only the tail sticking (medium glue), deployment of wing halves, connect the receiver and connect the drive battery. Controlled by the ailerons, rudder, elevator and motor speed.

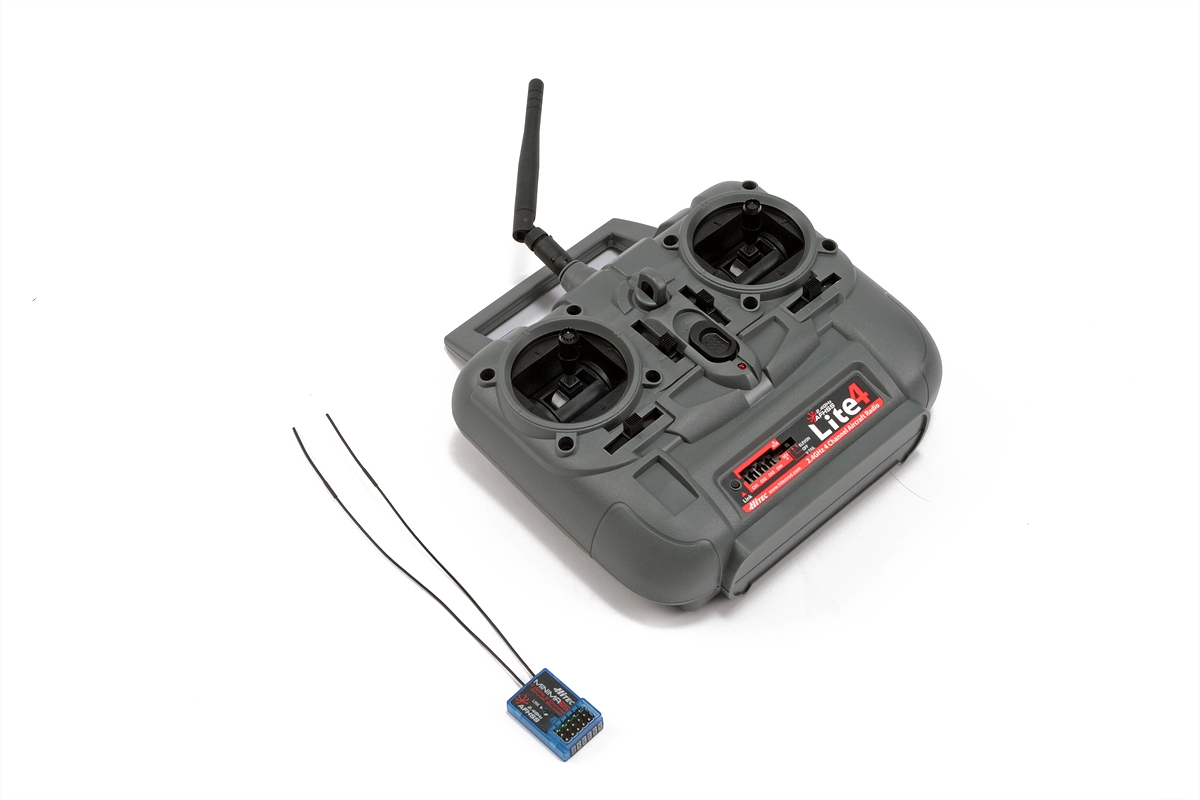

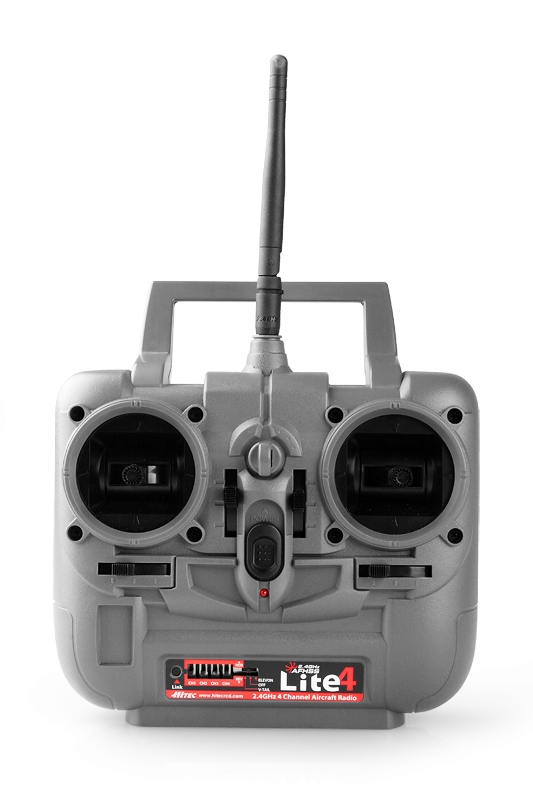

The control model is a classic four-channel transmitter Hitec Lite 4 2.4GHz AFHSS (adaptive system with frequency hopping spread spectrum) with cross controllers arranged in Mode 1 (throttle right), trims and switches sense deflections for all channels. To power the transmitter, you will need 4 AA (AA) alkaline batteries or rechargeable batteries (not included RC set). If you do not like holding the transmitter in your hands, you can add a strap Hitec (# 8311) or place it in a tray to transmitter Optic 6 (just to be generous with foam tape on the sides of the transmitter housing).
Like in the case of our other sets (Skylady, Cessna 480 ...) is RC equipment can later be used in other models of the same category.
BETA 1400 is designed for beginners as-always delivered - under the supervision of an experienced pilot, as well as for anyone who wants just so beautiful holiday travels. Flight characteristics are pleasant and straightforward. Model will acquaint you with full control of the model around all three axes coordinated control with the right rudder, ailerons and elevator. This experience is "like finding" no later than right after you start flying with their first aerobatic models or (semi) scale model of any kind. By changing the ratio of the lengths of servo and rudder deflections can adjust the size of a large range. Beginner, start with small variations, safe and excessive "steerage"; experienced pilot sets the size, allowing a little bit of that větroňové basic aerobatics - loops, barrel rolls, Wing Over Beta going pretty well! The power is sufficient for a lively pitch, while not overly model přemotorovaný, which could create difficulties for novice pilots. BETA 1400 can also be used very strong thermals in the sky and can withstand "all ages".
BETA 1400 is supplied with a Li-poly battery 11.1 V 1300 mAh (20C load), which corresponds to a fixed propeller 5x4. "Model no problems" can carry "tříčlánky until about 2200 mAh.
RC set includes: body molded from EPP with brushless motor mounted, fixed propeller 5x4 "speed controller 20A and 2 servos, wing molded EPP installed with 2 servos, tail of EPP, carbon tube wing joiner, four-channel transmitter 4 Hitec Lite 2.4 AFHSS GHz with six-channel 2.4GHz receiver AFHSS Minima 6S, power Li-poly battery 11.1 V 1300 mAh (20C), 12 V fast and detailed instructions for building and flying.
