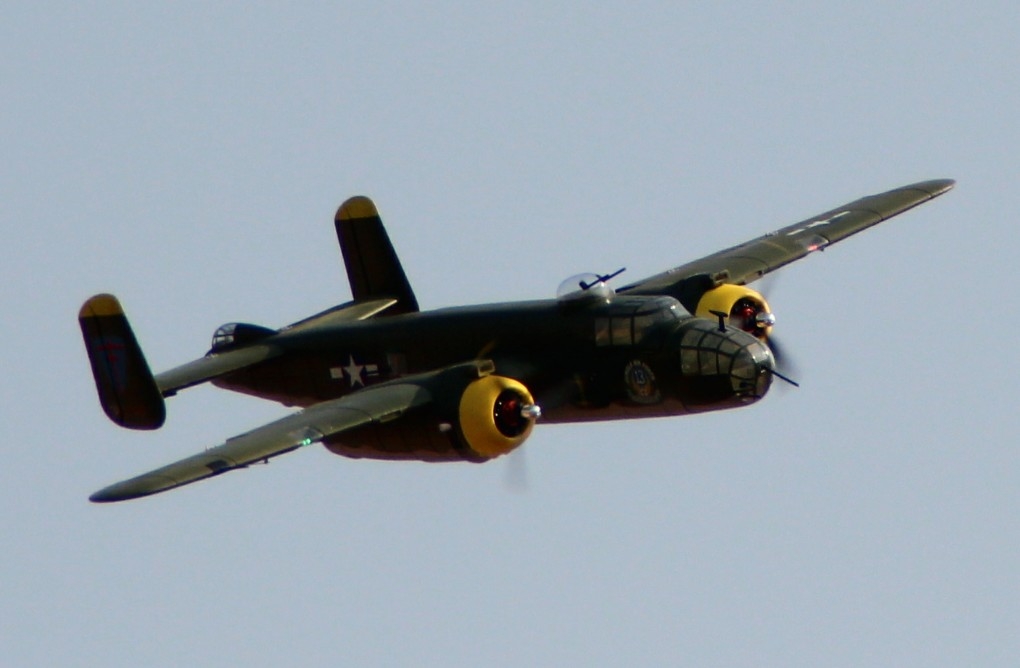

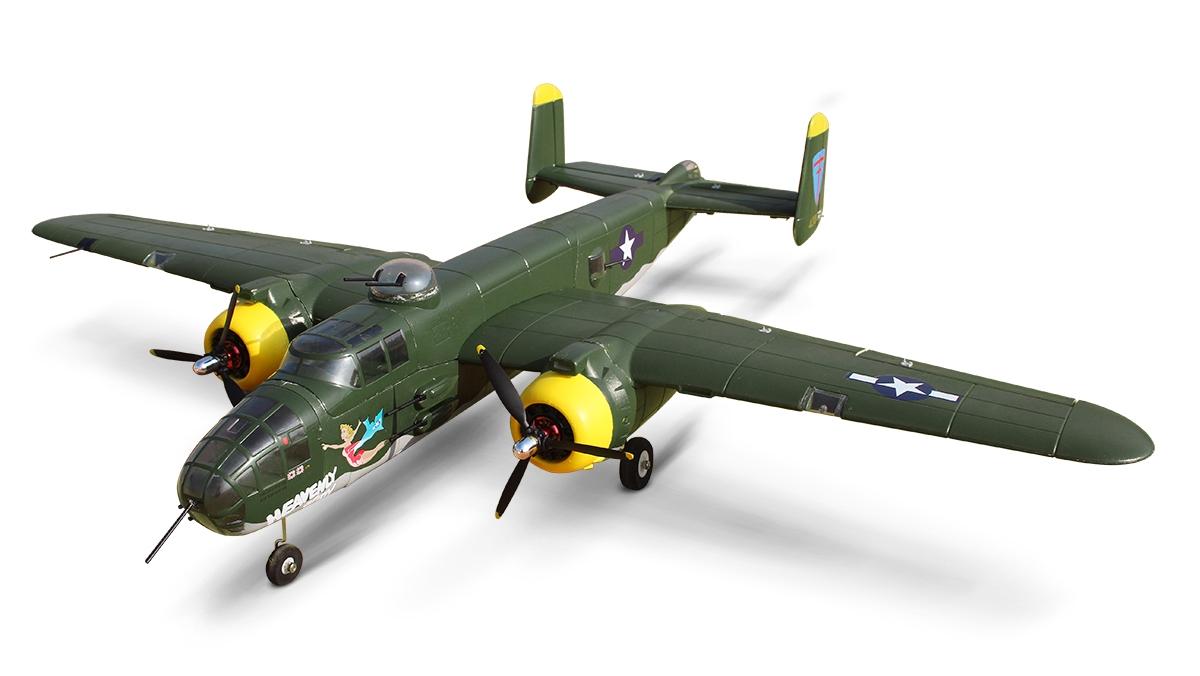

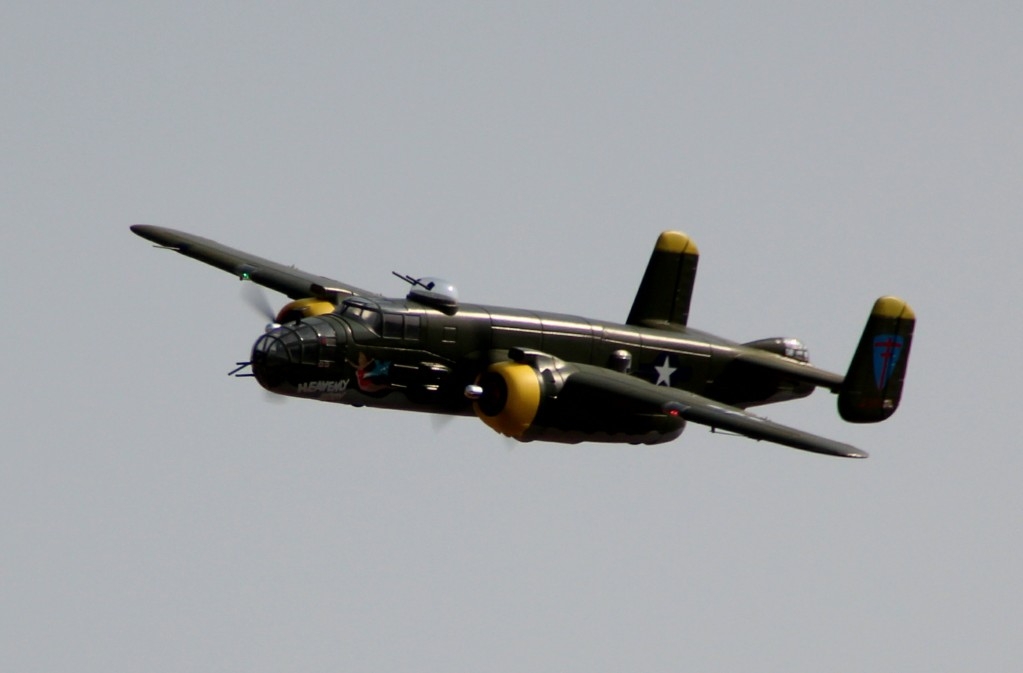

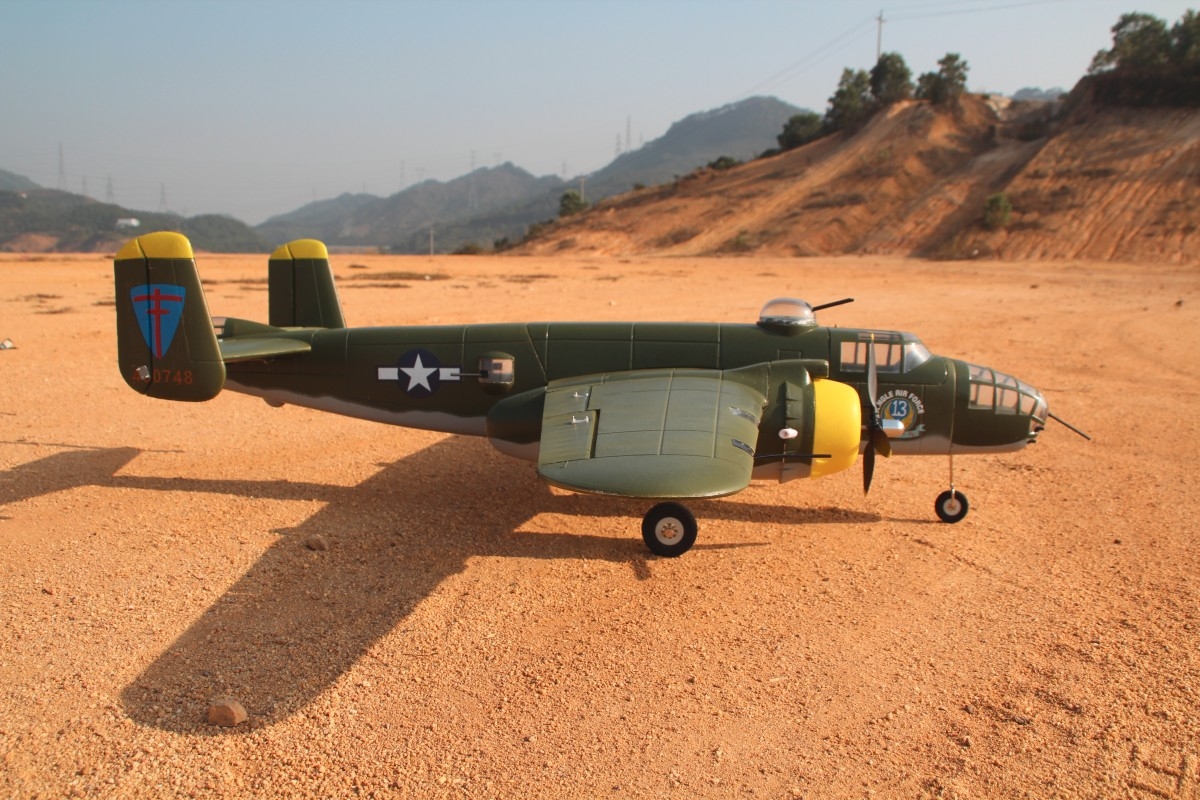

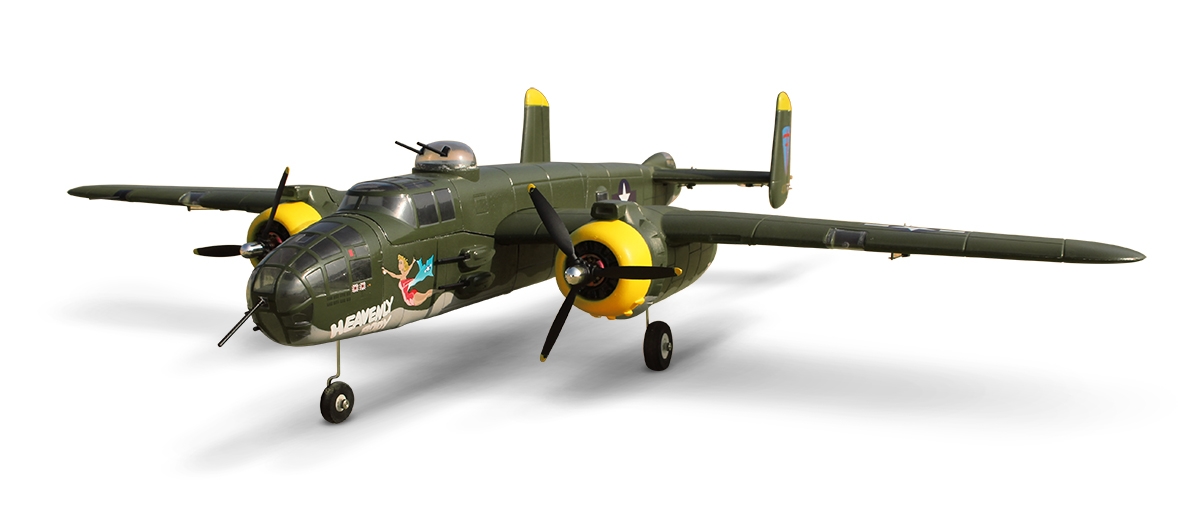

Kit contains nearly finished model airplane B-25 Mitchell from the EPP range of 1250 mm with 2 AC motors and controllers mounted servos. Controlled ailerons, flaps, rudder, elevator and electrically retractable landing gear.
North American B-25 Mitchell is probably the most famous American medium bomber II. World War II. Mitchell is famous now for its first major event in April 1942 - the raid on Japan, which were launched under the command of General Jimmy Doolittle aboard the aircraft carrier USS Hornet. Bombers fought on the battlefields of war, wore bombs, torpedoes, and even 75 mm cannon in the nose, in a battle to the enemy version of "sprinkling" to 16 Browning 12.7 mm ...
Semi American twin-engine bomber aircraft foam EPP-driven brushless motors class in 2212 with retractable landing gear and position lights. The model is designed for the experienced pilot who has been flying reliably handles with conventional aerobatic models.
The fuselage of the model is made of EPP foam molded into a negative mold. Space flight battery and receiver can be found under the removable Hron parts of the body (from the cabin behind the trailing edge of the wing) held in front pin and a magnet at the back.
Two-piece wing with polosouměrným profile associated carbon tubular wheel is also from EPP foam. The ailerons and slotted flaps are controlled short straight rods with two pairs of servo mounted in the wing. Under the plastic covers on the leading edge of the wings are installed LED marker lights. Nacelle with installed brushless motor C2212-1450 and 30 A Hobbywing controllers are fixed to the wing bolts.
The tail surfaces are made of EPP foam, the hull are fixed with screws. To control the rudder servo serves positioned in the horizontal stabilizer, rudders are connected by wire rods with angled levers.
Electric tricycle landing gear is retractable with wire legs. Bow leg is driven by a separate servo connected to the rudder channel.
All servos are size 9 gs plastic gears.
To operate the model, you'll need at least a six-channel radio system - if you leave the default model design, where both aileron and flap servos and both controllers are connected to one receiver channel. If you want to maintain an independent servo control these functions, you need at least devítikanálovou RC kit.
As the power pack you need tříčlánek LiPo 11,1 V from 3000 to 3300 mAh with a load capacity of at least 25 C. The cable to the controllers in the model is fitted with a Dean-T connector (PELIKAN DANIEL # 7949).
ARF set includes: EPP foam fuselage installed electrically retracting bow legs, wing of the EPP-installed aileron and flap, nacelle of the EPP with motors, and controllers, 2 three-blade propeller 7 "tail of EPP with installed servos, clutch wings, small Scale Project, a set of screws and instructions.
Size [mm] 1250
Length [mm] 930
Weight [g] 1300
Wing Area [dm2] 20.3
Controlled functions S, V, K (2), M (2) P (3), F (2), bow leg
Building intensity of S1
Difficulty piloting P3
Drive and RC equipment:
Motor * 2x C2212-1450
* Hobbywing Brushless AC 30 A
Propeller * 7 "three-blade
RAY G3 Battery 11.1 V 3300 mAh
Servos * 7x micro S009
Radio: min. 6 channels
*) Part of the ARF set
