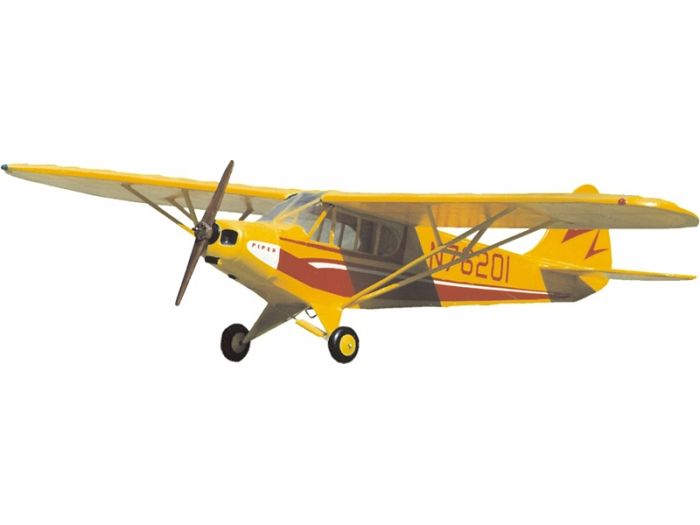

American sports wing aircraft produced since 1949 has been upgraded by performing the legendary pre-war model J-third At first glance, it differed engine (according to the version with up to double the performance) carefully kapotovaným with a new engine cover and wing flaps. During 40 years of production was built over 9000 Super Cub, much of it still flies.
Free Flight Scale Model Kit sports high wing aircraft designed for propulsion by rubber; instructions and plans allow you to build a model as well as a free-flying powered internal combustion engine 0.33 cc.
Model is a classic balsa construction in Rozsyp with předseknutými wooden parts, scale accessories from vacuum-molded plastic, plastic injection molding parts drawn by a předseknutými parts of "plastic plywood", a light and strong material to replace traditional plywood. The hull is constructed right minimaketářskou technology with baffles and a plurality of longitudinal, allowing faithfully reproduce the rounded shapes. Built in two steps - thanks to "slit" in the vertical plane stand directly on the countertop first half of the fuselage, and then the "dolepíte" half a second. Thus it is ensured that the hull complicated shapes stand straight and symmetrical, without needing any special preparations. Since it is a small - albeit quite simple - model, you should already have prior experience with classical building and test-flying models powered by rubber.
Super Cub is also suitable for conversion to RC model with electric drive - although this construction plan of variants offer for experienced modellers would not be a big problem.
Kit includes: předseknuté balsa parts, balsa wood beams, předseknuté parts from plastic plywood, vacuum molded parts Scale (bonnet ...), plastic propeller shaft and head, rubber harness (5x1mm rubber), plastic wheels, steel strings on a chassis other small parts, plastic wheels, lining paper, wet decal sheet, building plan.
Tip for building: Předseknuté parts NEVYLAMUJTE! Turn the cutting board, place it on a work surface and lightly sand the fine sandpaper (No. 220 or finer). Parts can then be easily separated; should still have some wood fibers "bound" to a cutting board, carefully separate the part of the pattern, using a sharp knife (suitable as Excel No.1 knife with a blade 11).
Treatment of rubber volume: a new eraser gently wash it in soapy water and allow to dry. Then lubricate it with castor oil (sold in pharmacies) or silicone grease for the lubrication of fishing line (you get the fishing tackle shops). After flying with the volume model, remove and store it in a sealed plastic bag. Lubricated rubber volume depends more smoothly and with less friction - gives more power and last longer. The new volume is also advisable to first fetch - for the first 2-3 years only to turn the 80-100 revolutions before it can safely shoot more.
Wingspan: 610 mm
Length: 429 mm
Weight: The manufacturer does not give
Difficulty: * S2/P0
*) Free-flying model RC model P2
