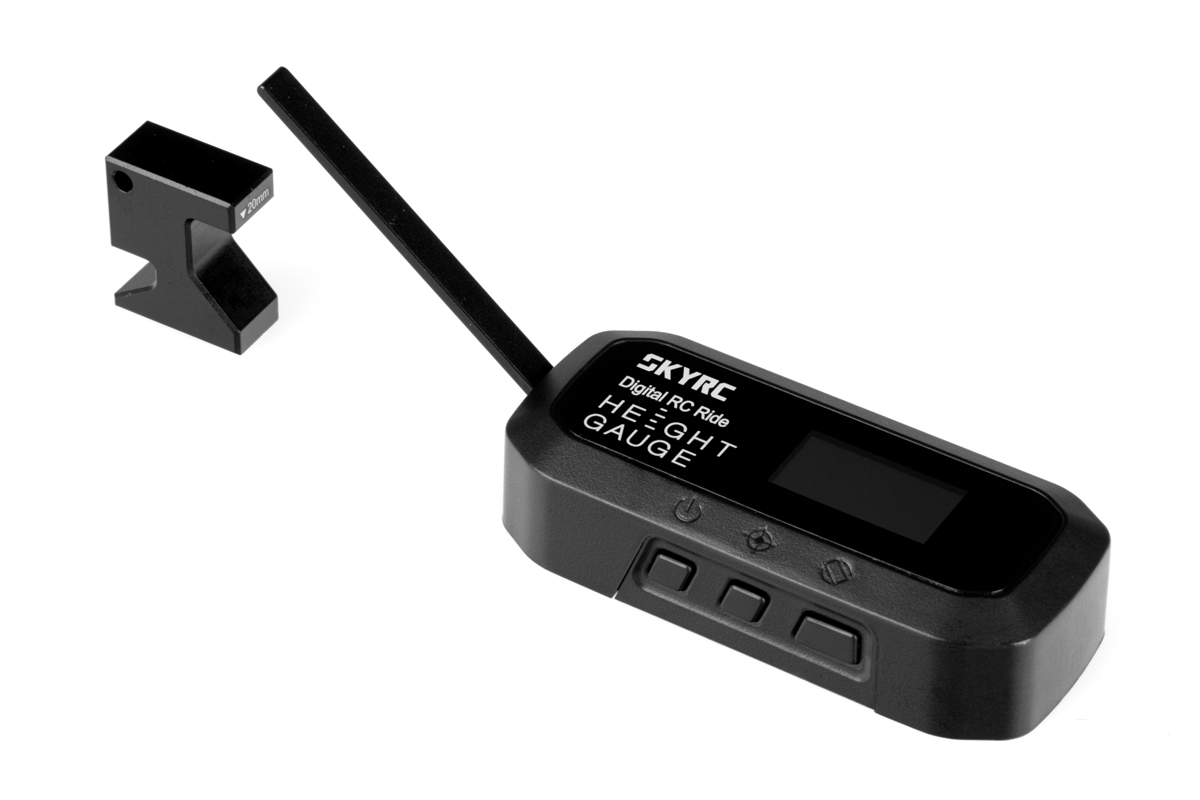

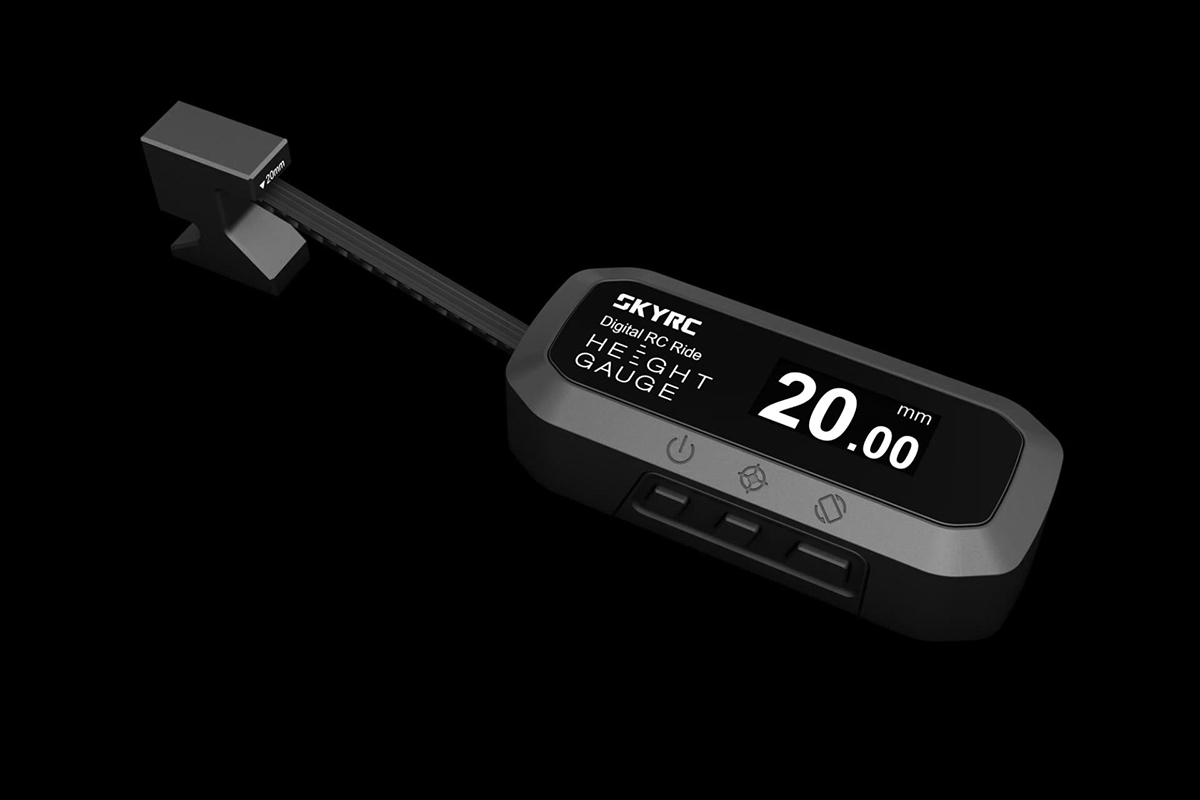

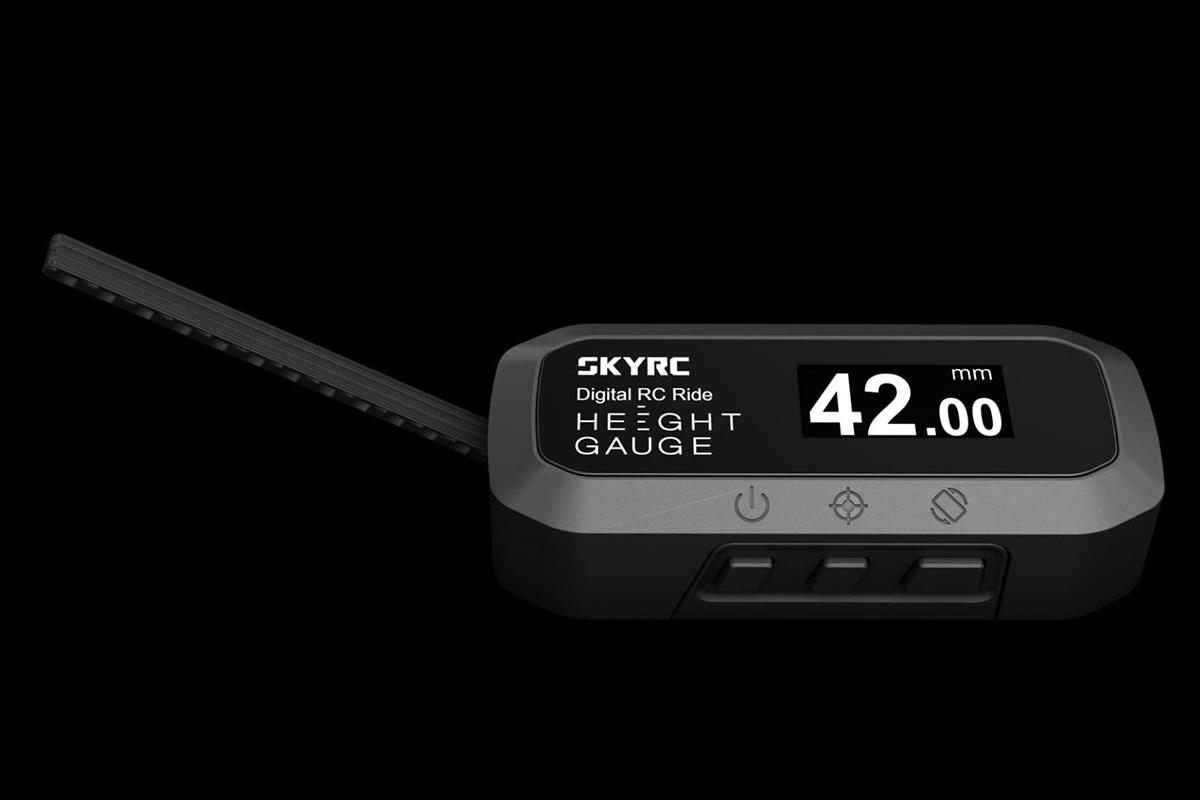

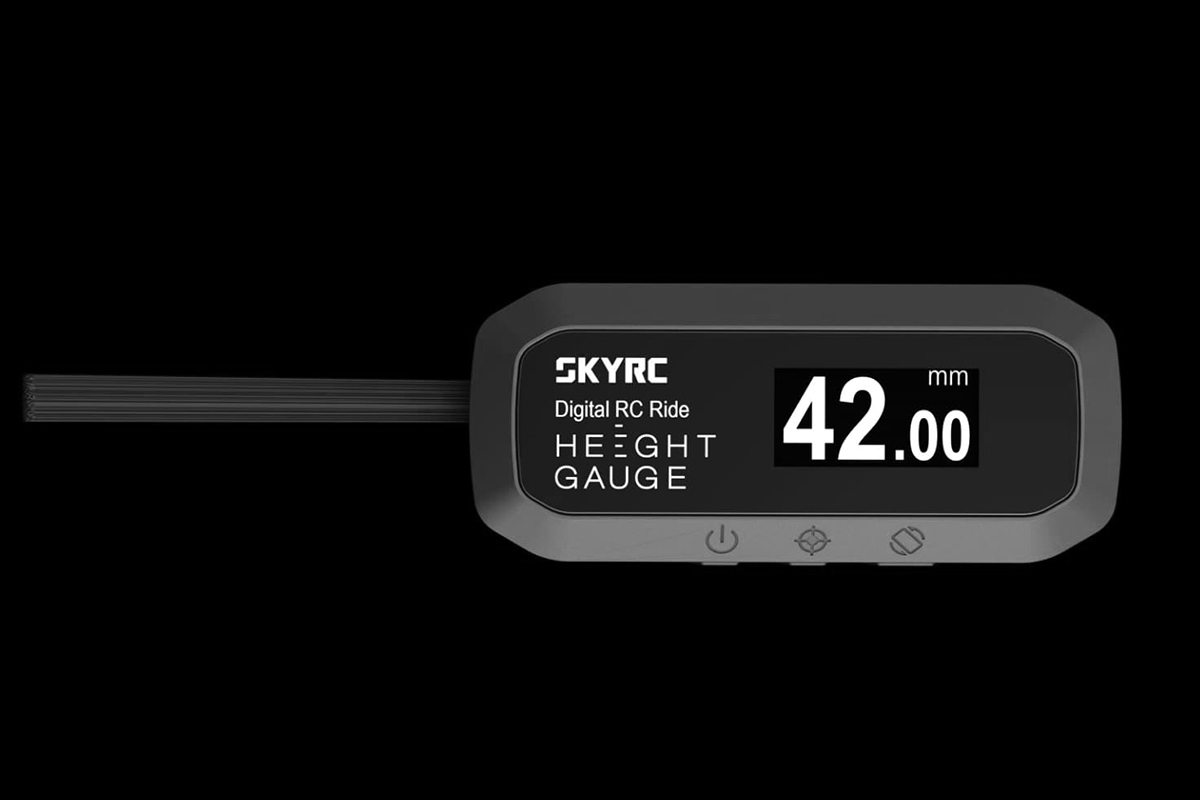

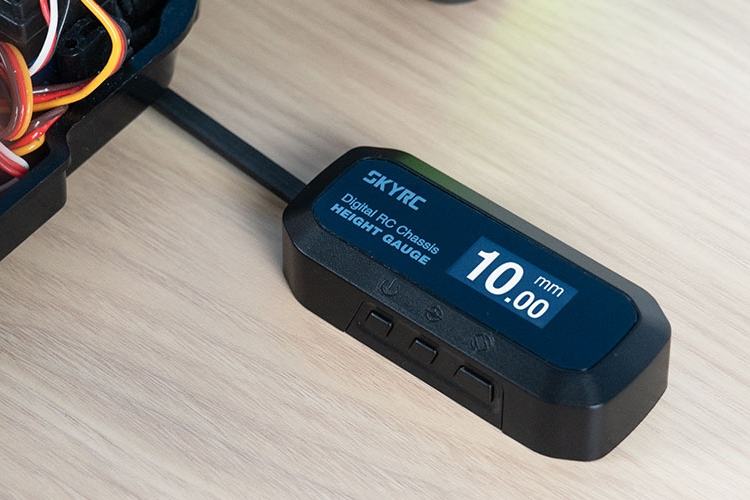

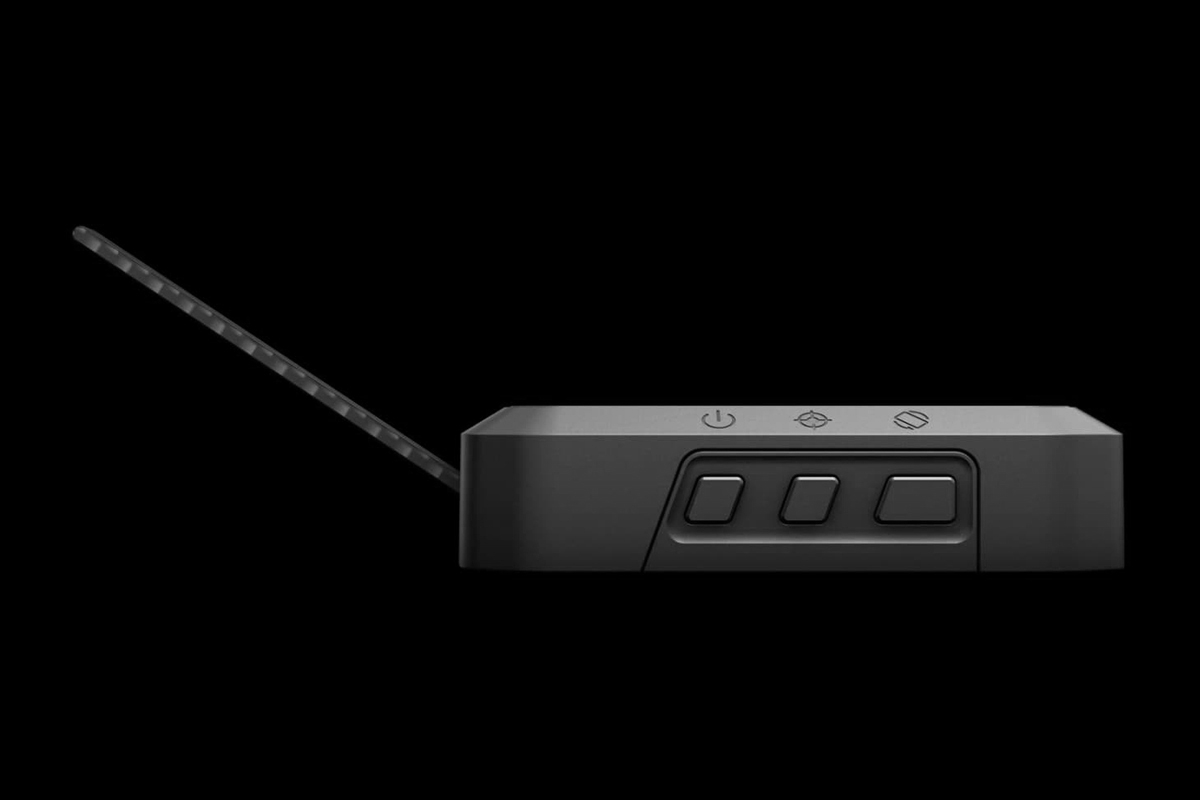

SkyRC Digital Ground Clearance Meter

The SkyRC RT005 digital meter is a precision tool designed for accurate and easily reproducible measurement of the ground clearance of RC car chassis.

This meter provides instant digital readings that greatly facilitate chassis geometry tuning, shock absorber damping settings, and overall pre-launch preparation. With a wide measurement range, it is the ideal choice for models from 1:24 scale to large 1:8 scale.

Key features and accuracy:

• Digital display of measured values on the LCD display for easy and quick reading without errors.
• Wide measurement range from 2 mm to 38 mm covering the needs of both road and off-road models.
• High measurement accuracy with a maximum deviation of 0.3 mm in the most commonly used range.
• Possibility of software rotation of the display by 180 degrees for comfortable work in the depot.
• Easily switch length units between millimeters and inches according to your preference.
• Three-point calibration using the supplied calibration block for long-term reliability.
• Automatic shut-off function after 5 minutes of inactivity to save battery power.
• Supplied in a sturdy plastic box with foam padding for safe transport and storage.

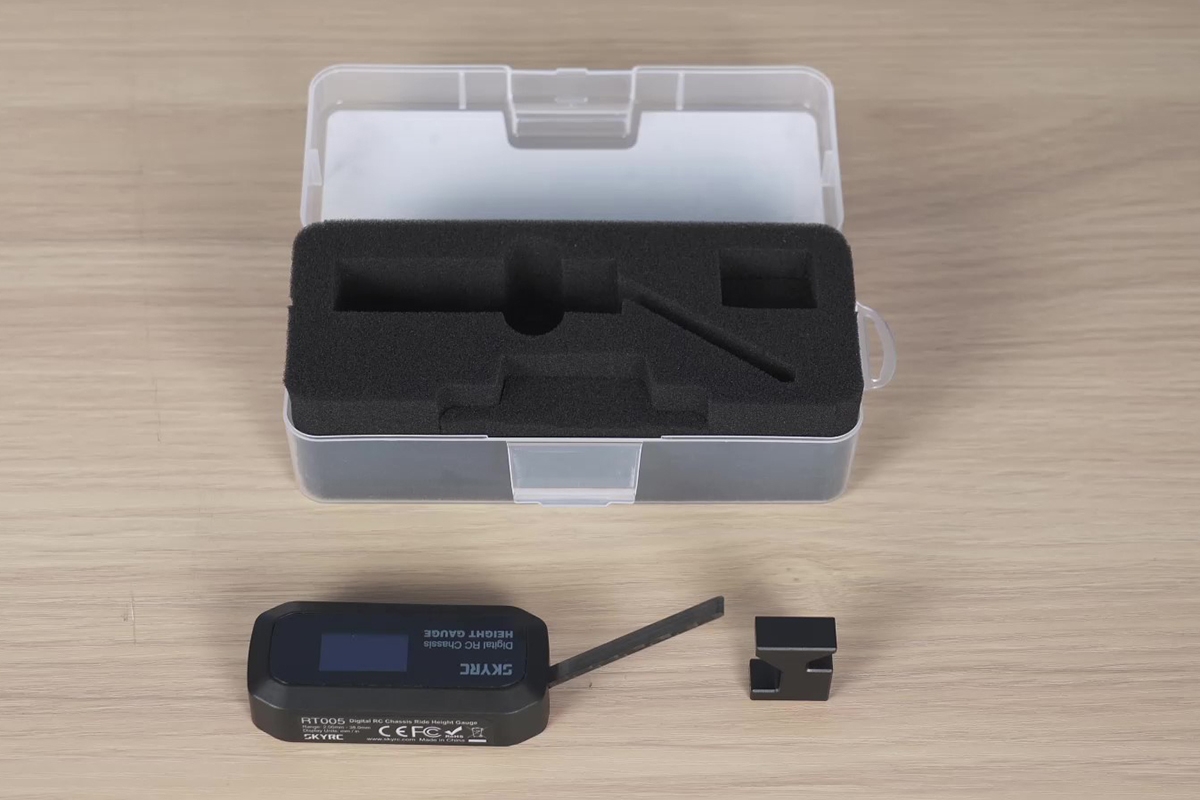

Package contents:

• SkyRC RT005 digital ground clearance meter
• Shipping box with foam insert
• Calibration block
• 1× AAA battery
• Operating instructions
