General Motor Module for 2-6S Gr. HoTT

Price in e-shop with VAT: 42,51 €
Stock
Tuesday 23.07. you can have it at the Nademlejnská central store
Wednesday 24.07. it can be at your place
Buy
Buy
Manufacturer: Graupner
Goods code: 33610
EAN: 4013389456173

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.

Send a question

Product Description

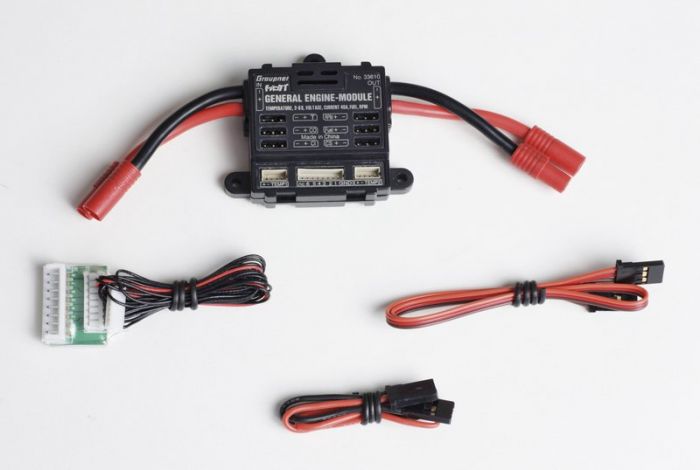

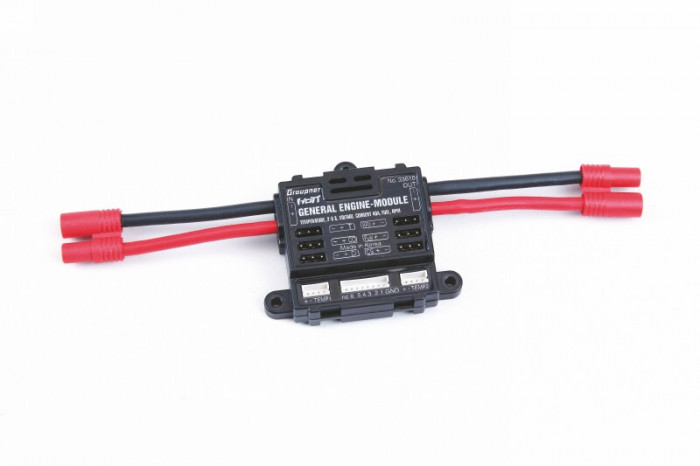

Graupner - General Motor Module for 2-6S Gr. HoTT - 33610

2x temperature and voltage sensor inputs. Warning thresholds for minimum / maximum voltage and minimum / maximum temperature
measuring the voltage of each cell (balance port) to reach the minimum voltage warning
measurement of voltage, current and capacity with warnings reach the minimum / maximum voltage, maximum capacity and maximum current
programmable current limit
Current measurement with shunt 2x 1 mOhm parallel = 0.5 mOhm
measurement speed warning reaching min / max values
measurement of fuel level warning in increments of 25%
warning timer can be set to: OFF, 5, 10, 15, 20, 25, 30 sec, constant warning
recurring time alert can be set to: constant, 1, 2, 3, 4, 5 minutes, once

Important note when using telemetry modules 33600, 33601, 33610, 33611 and 33620:

Never make any program adjustments or adjustments during the flight model to model gotten out of control because of your carelessness.
In any case neporvádějetě setting up a programming model for telemetry flight, if your model is equipped with two receivers. Program changes may affect the receiver without reconnected telemtrických modules and thus may result in loss of control of the model.
All programming and Always on the ground and make sure that the power is only active receiver with telemetry units.

Inputs:
2x temperature, optionally from 0 to 120 or 200 ° C and measuring the voltage to 60V DC
1 tachometer to 100,000 rev / min with bladed propeller
1x speed measurement / servo input, 1x tachometer, 1x speed measurement / servo tachometer output
1x measuring current, voltage and capacity up to 40A (60A for 1 second), the voltage to 30V
1x measurements of individual cells for 2-6S LiPo, LiIo, LiFe)
1x receiver power supply, input and output
1x telemetry output for receiver
1x fuel sensor 0% / 25% / 50% / 75% / 100%

Graupner HoTT - General Engine Module, 2-6S, Vario HoTT

Dimensions: 41 (48) x 44 (56) x 16 mm
Operating voltage: 3.6 to 8.4 V
Weight: 30 g
