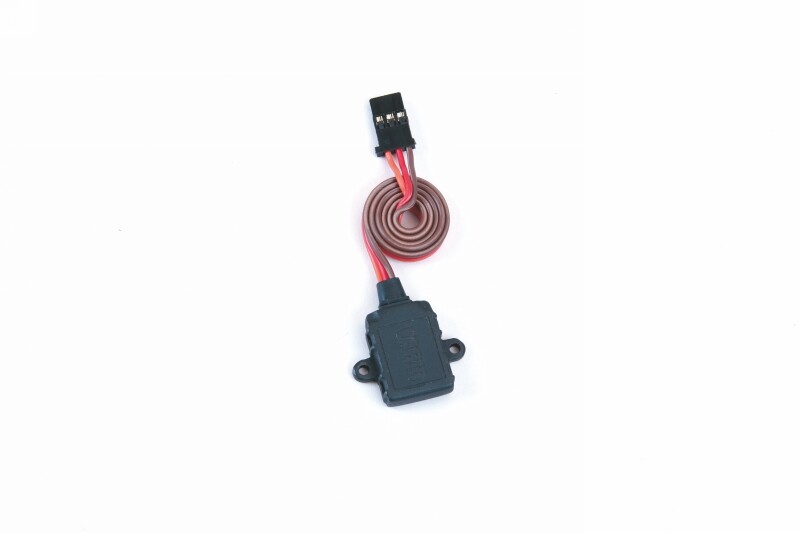

Vario module GRAUPNER HoTT

Product no longer available for order
Manufacturer: GRAUPNER HOTT
Goods code: 33601

Don't know how to choose? Are some parameters not clear to you? Write us your question and we will contact you with an answer.

Send a question
  • Product Description

  • Technical Data:

Product Description

Vario sensor that provides information about height.

  • vario with height signaling, signaling height 5 points achieved during ascent / descent
  • other warning signals for maximum and minimum height, and the descent and ascent in dvouetapách
  • display and store information on the maximum and minimum altitude
  • warning time can be set to: OFF, 5, 10, 15, 20, 25, 30 sec, constant warning
  • recurring time alert can be set to: constant, 1, 2, 3, 4, 5 minutes, once
  • GPS / Vario sensor can be connected directly to his telemetry receiver input

Important note when using telemetry modules 33600, 33601, 33610, 33611 and 33620:

  • Never make any program adjustments or adjustments during the flight model to model gotten out of control because of your carelessness.
  • in any case neporvádějetě setting up a programming model for telemetry flight, if your model is equipped with two receivers. Program changes may affect the receiver without reconnected telemtrických modules and thus may result in loss of control of the model.
  • All programming and setting Always on the ground and make sure that the power is only active receiver with telemetry units.

Technical information:
Measurement of height -500 M ... 3000 m
Distinction 0.1 m
Vario Sensitivity 0.5 m / s 3, 1 m / s 3, 0.5 m / s, 1 m / s 1, 3 m / s adjustable tone
Averaging 4-40 data can be averaged
Current consumption 25 mA


Graupner HoTT - Vario module HoTT
Dimensions: 23 x 17 (26.5) x 7.5 mm
Operating voltage: 3.6 to 8.4 V
Weight: 5 g
Range: -500 ~ +3000 M

Technical Data:

Měření výšky -500 m ... 3000 m
Rozlišení 0.1 m
Vario Citlivost 0,5 m / 3 s, 1 m / 3 s, 0,5 m / s, 1 m / s 1, 3 m / s nastavitelným tónem
Průměrování 4 až 40 údajů lze průměrovat
Proudový odběr 25 mA

Graupner HoTT - Vario modul HoTT

Rozměry: 23 x 17 (26,5) x 7,5 mm
Pracovní napětí: 3,6 - 8,4 V
Hmotnost: 5 g
Rozsah měření: -500 ~ +3000 m

Download

Podpora Graupner/SJ

Podpora Graupner/SJ

Aktuální data ke stažení na webu výrobce (firmware, Hott software apod.) 07.10.2014
