Product Description

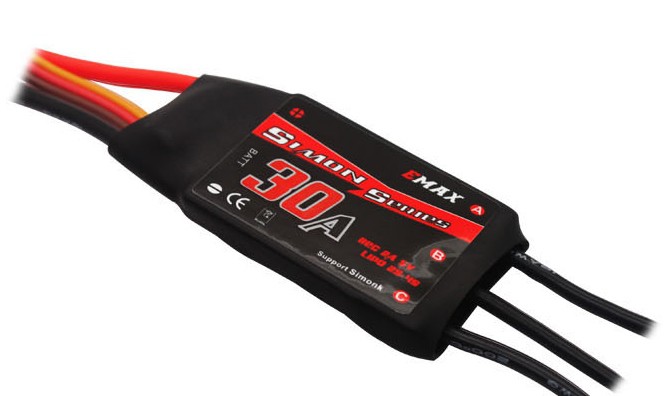

EMax - Simon Speed Controller Emax serie 30A - 2210030
Universal speed controller for AC (brushless) motors suitable for aircrafts, helicopters and quadcopters. Max. continuous current: 30A. The speed controller is not compatible with Hitec Aurora 9, Hitec Lite 4 and some Turnigy transmitters.
Features:
Low - overvoltage protection, thermal protection, signal loss protection, safe power, self - control functions
Excellent progress in the low speed
Max Speed: 210,000 rpm. / 2 - pole, 70,000 rpm. / 6 - pole, 35,000 rpm / 12 - pole
Separate power supply for MCU and BEC, enhanced ability of the regulator to eliminate interference
Controller parameters can be set via program card or transmitter
The scope of the programmer can be configured to be compatible with different receivers
Option three linear curves of gas for flexible control of the helicopter
Availability reverse rotation of the motor is only possible through a programmable transmitters
Specifications:
Type: ESC-30A
Continuous current max: 30A
Inrush current max: 40A
Number of cells LiPo: 2-3
Dimensions: 55x28x7 mm
Weight (g): 28
BEC: 2A
Programmable: yes
